Heater core replacement?

2004 BUICK PARK AVENUE
230,000 MILES • 3.8L • 6 CYL • 2WD • AUTOMATIC
Avatar
JAMES TINCHER
  • MEMBER
  • 1 POST
Installed new core but having trouble putting dash components back together. I think I need a diagram.
May 15, 2023 at 11:21 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

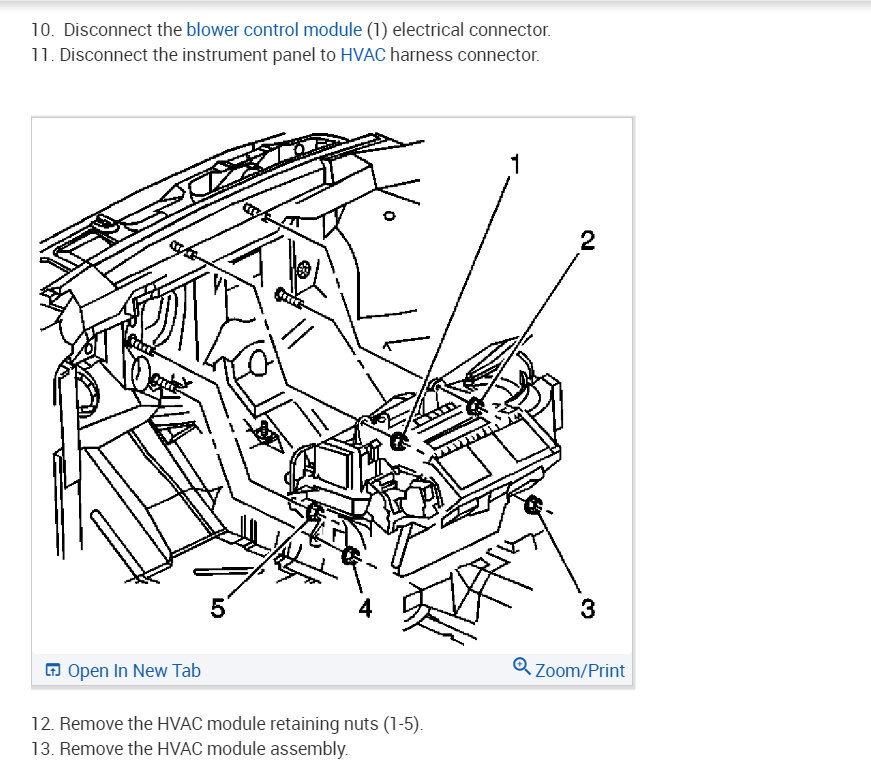

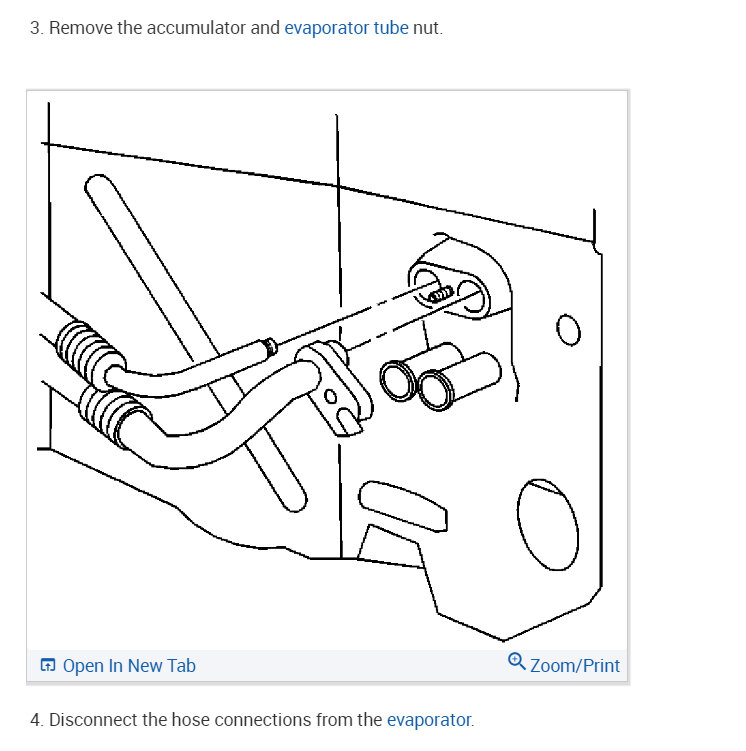

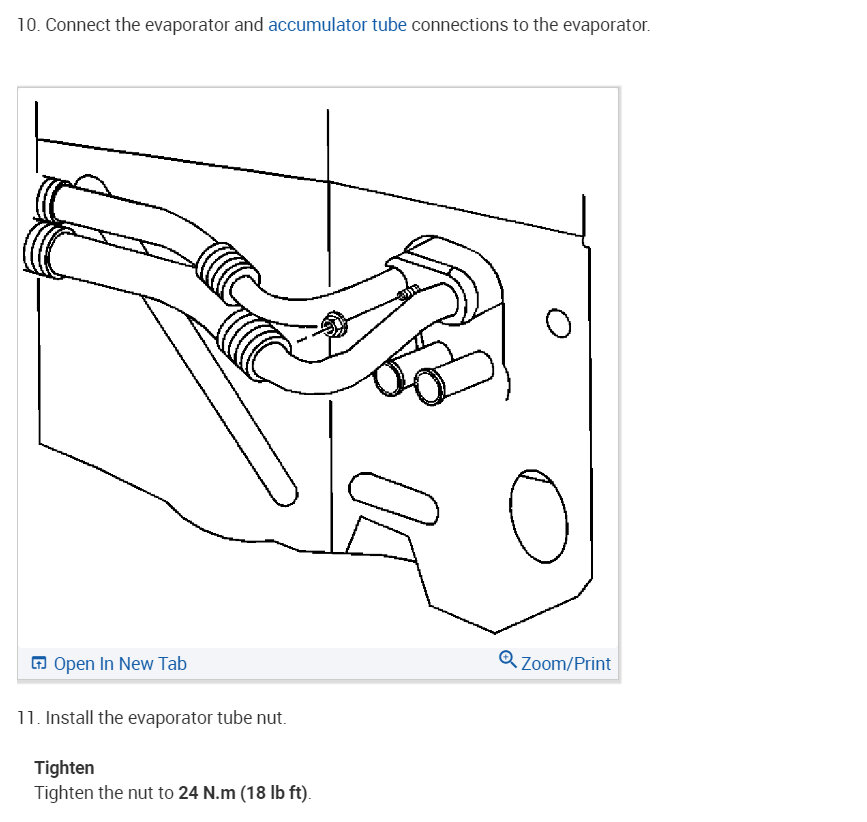

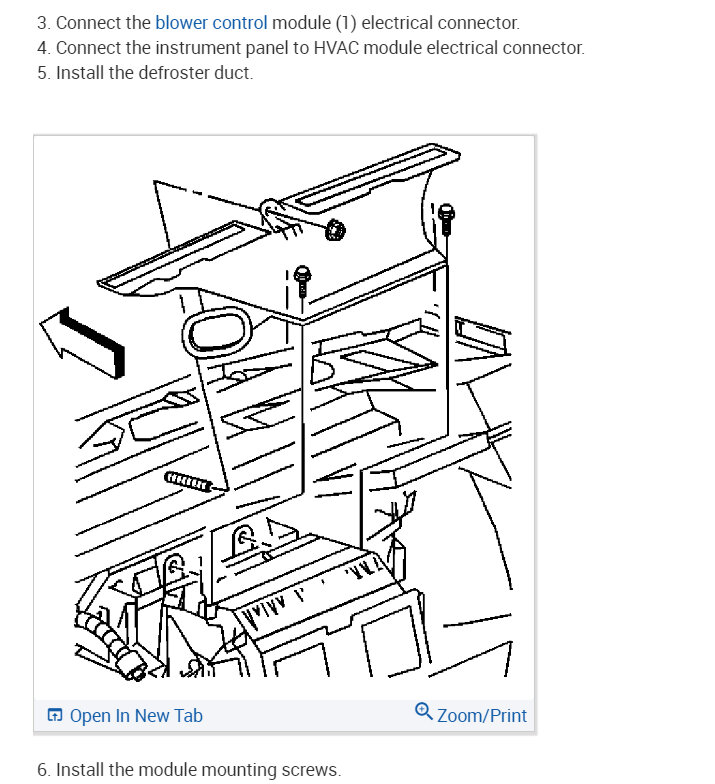

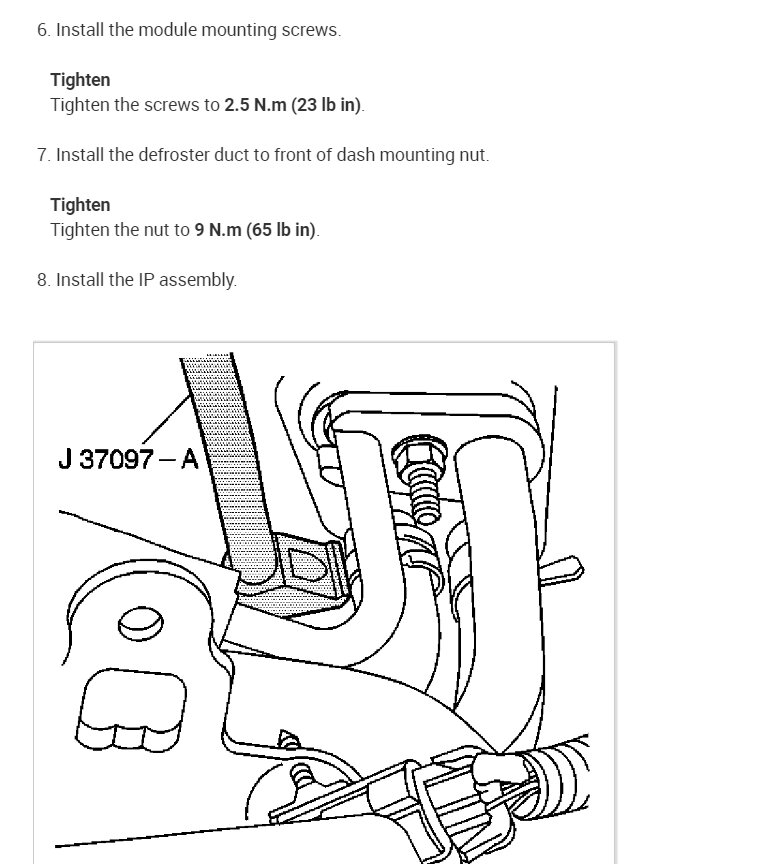

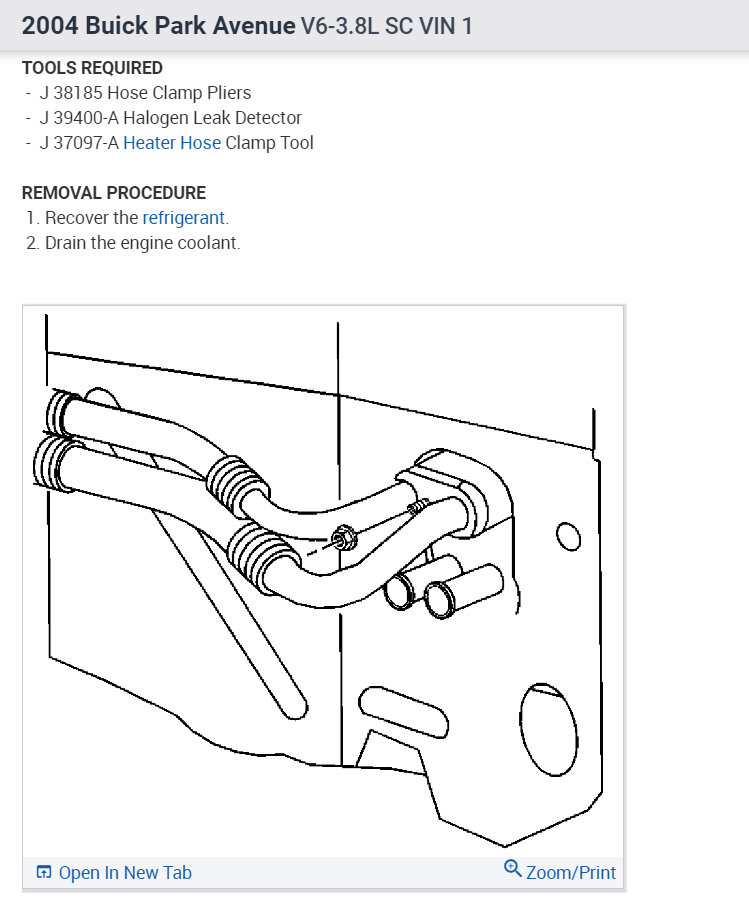

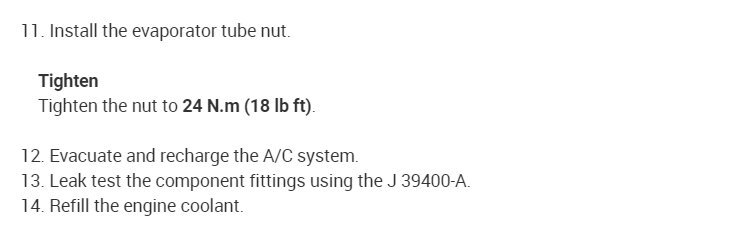

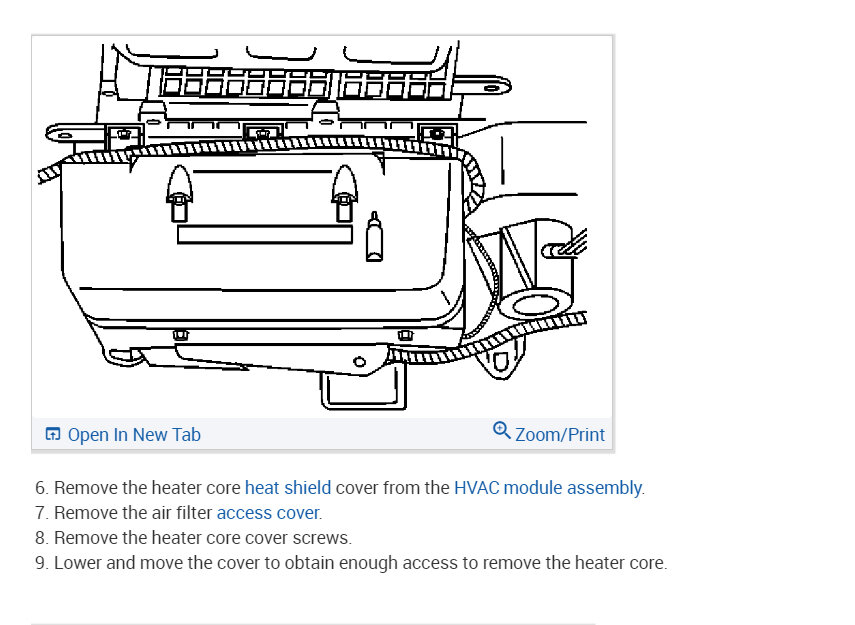

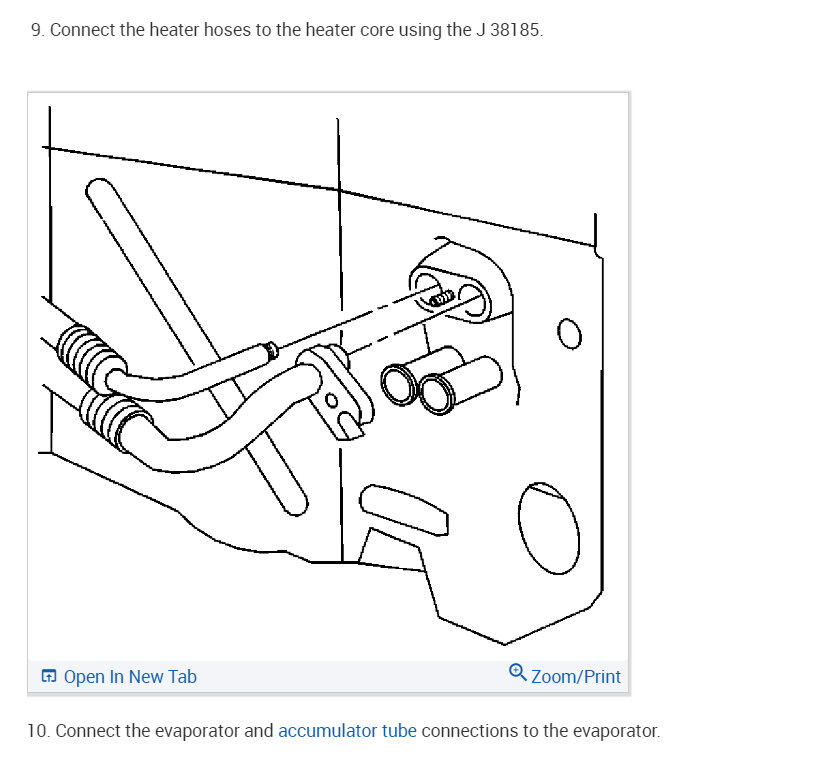

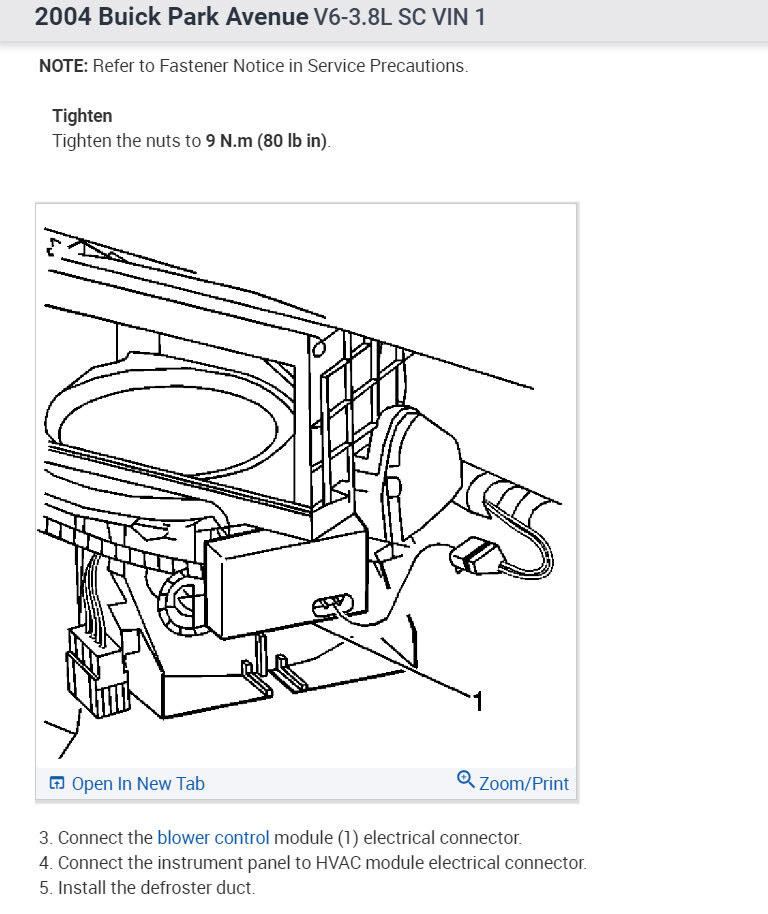

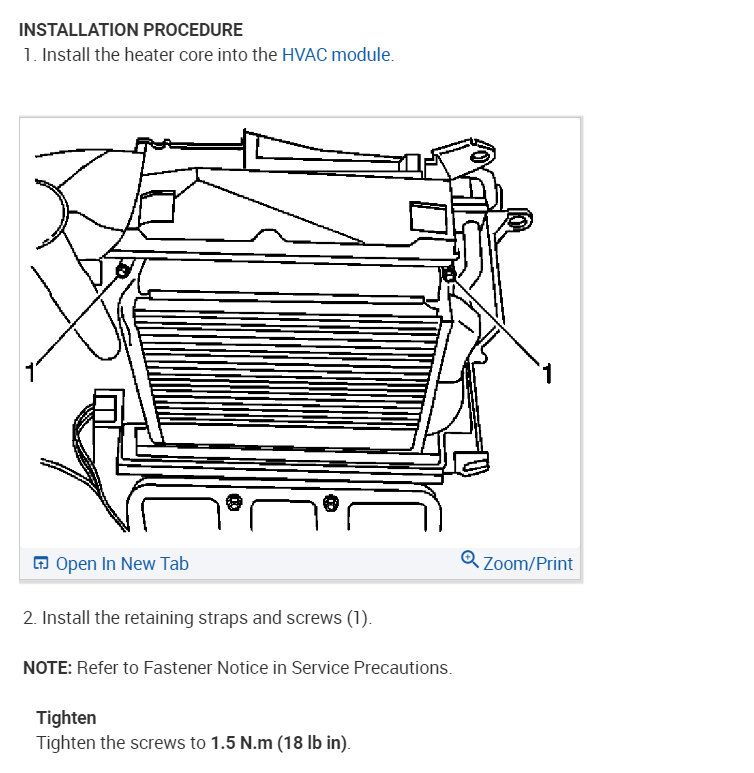

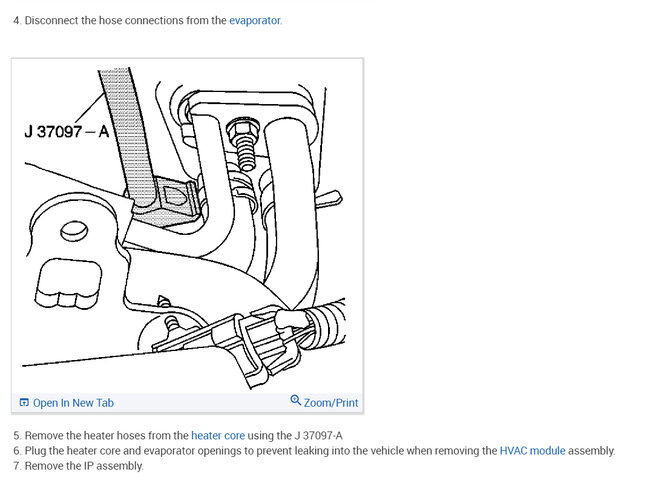

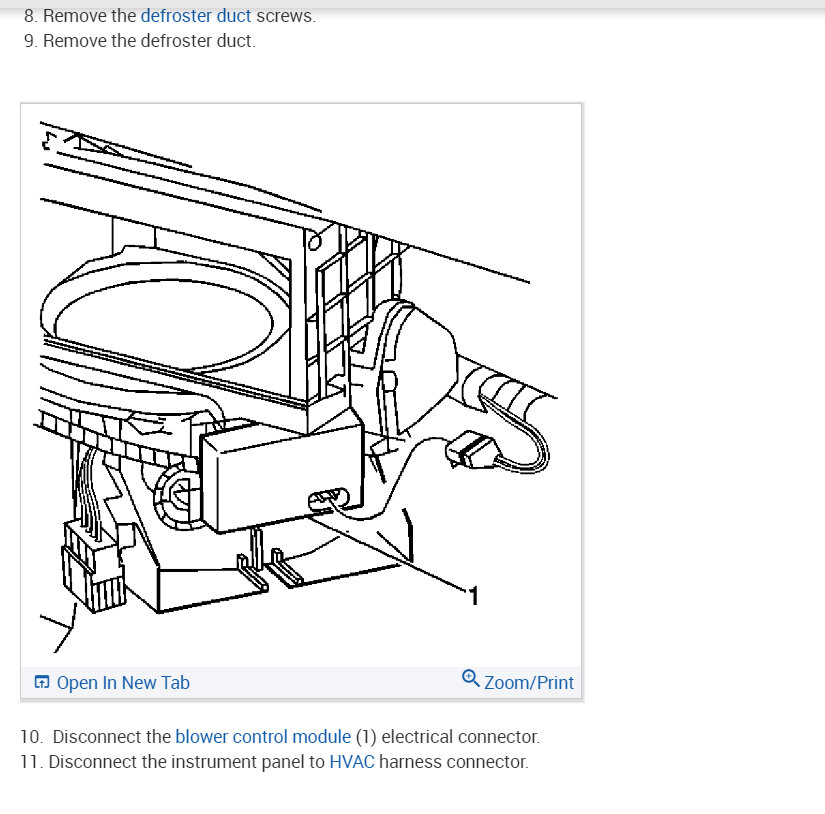

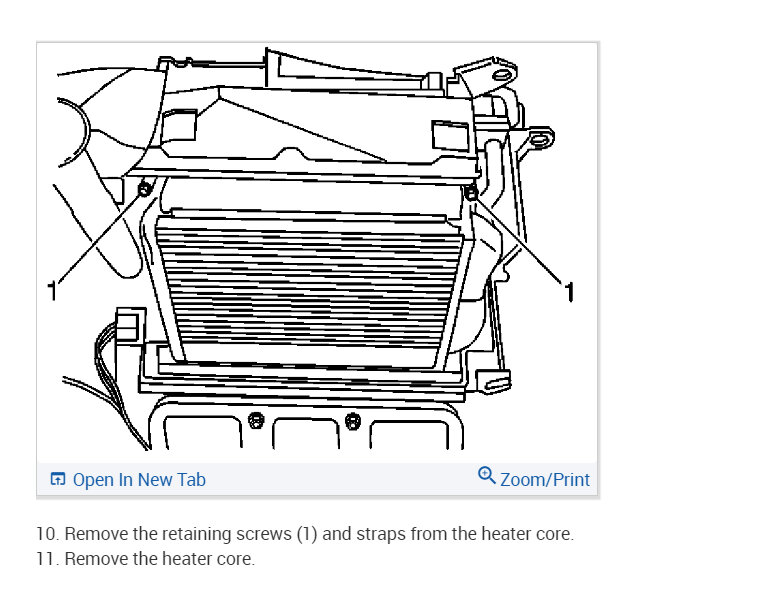

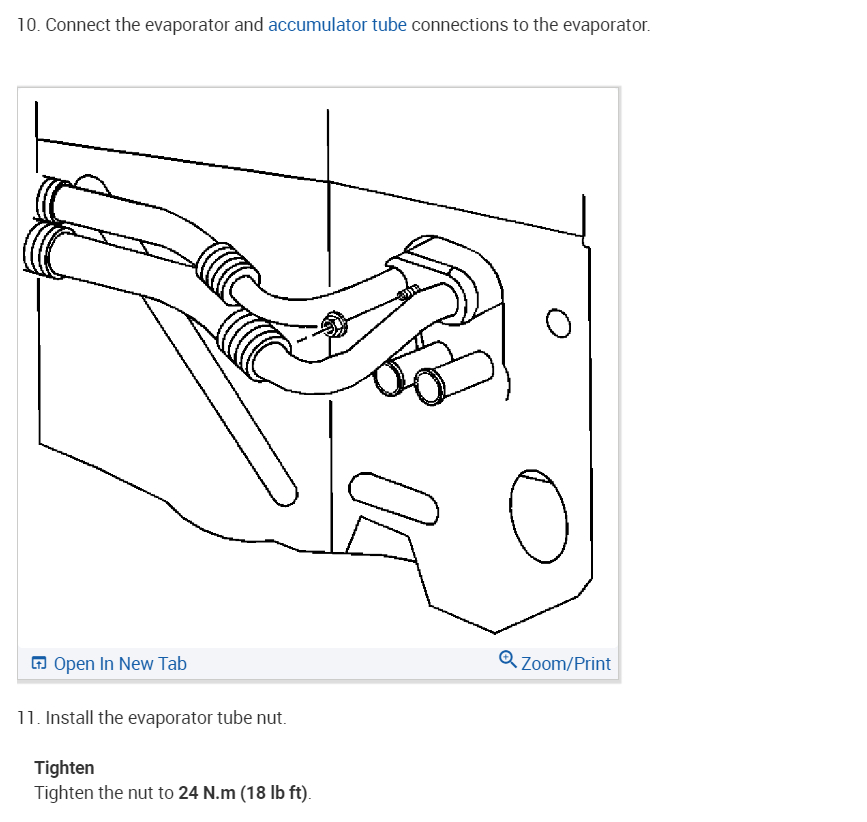

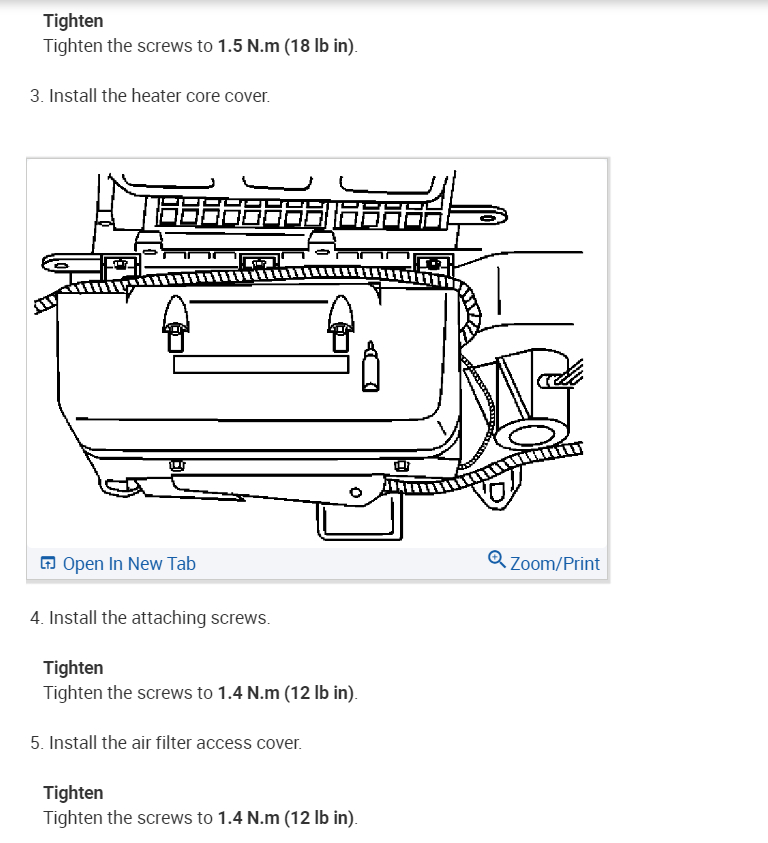

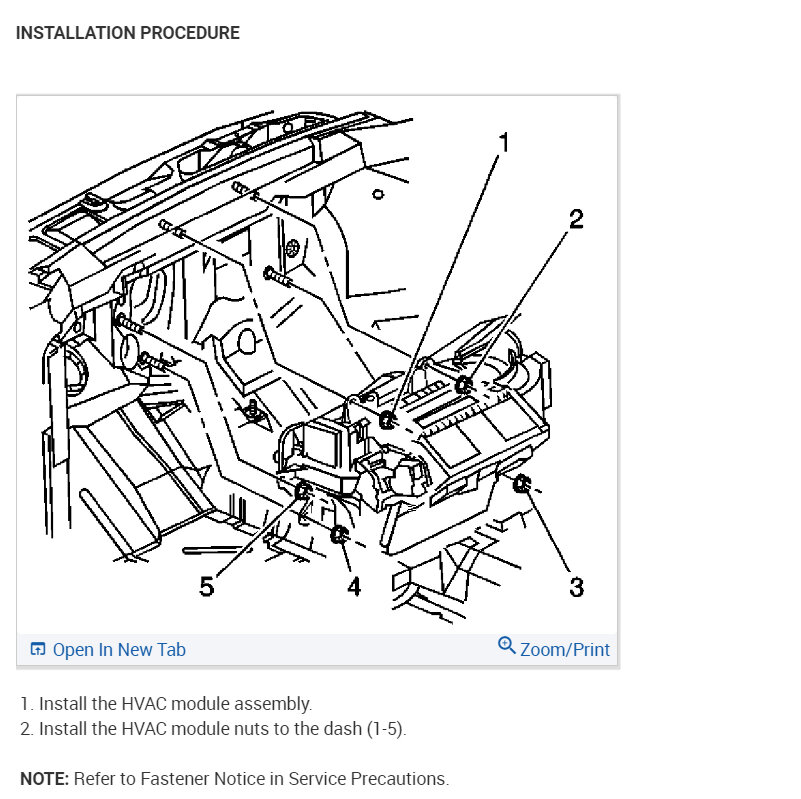

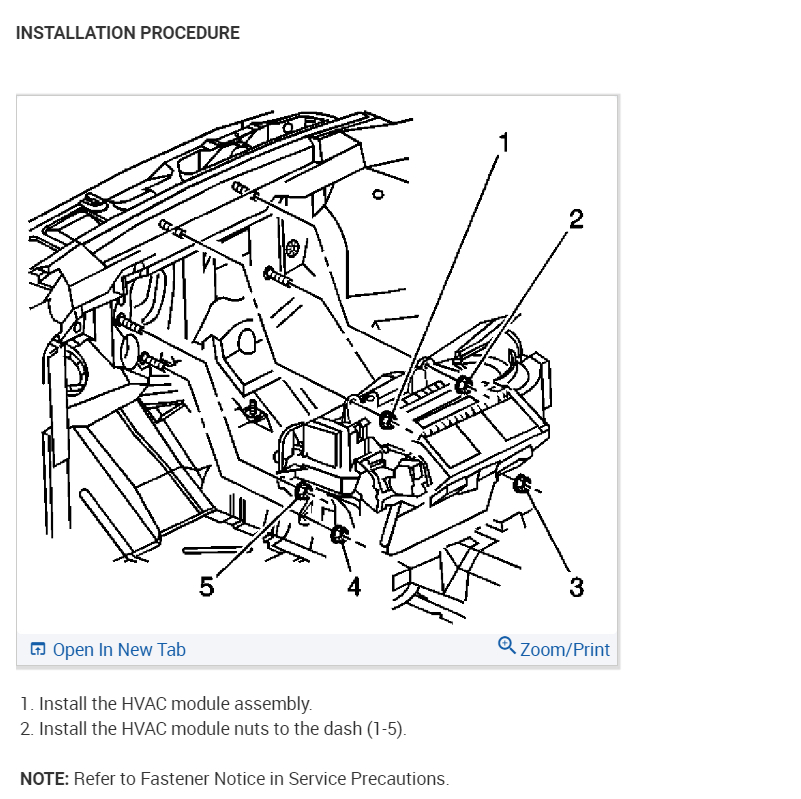

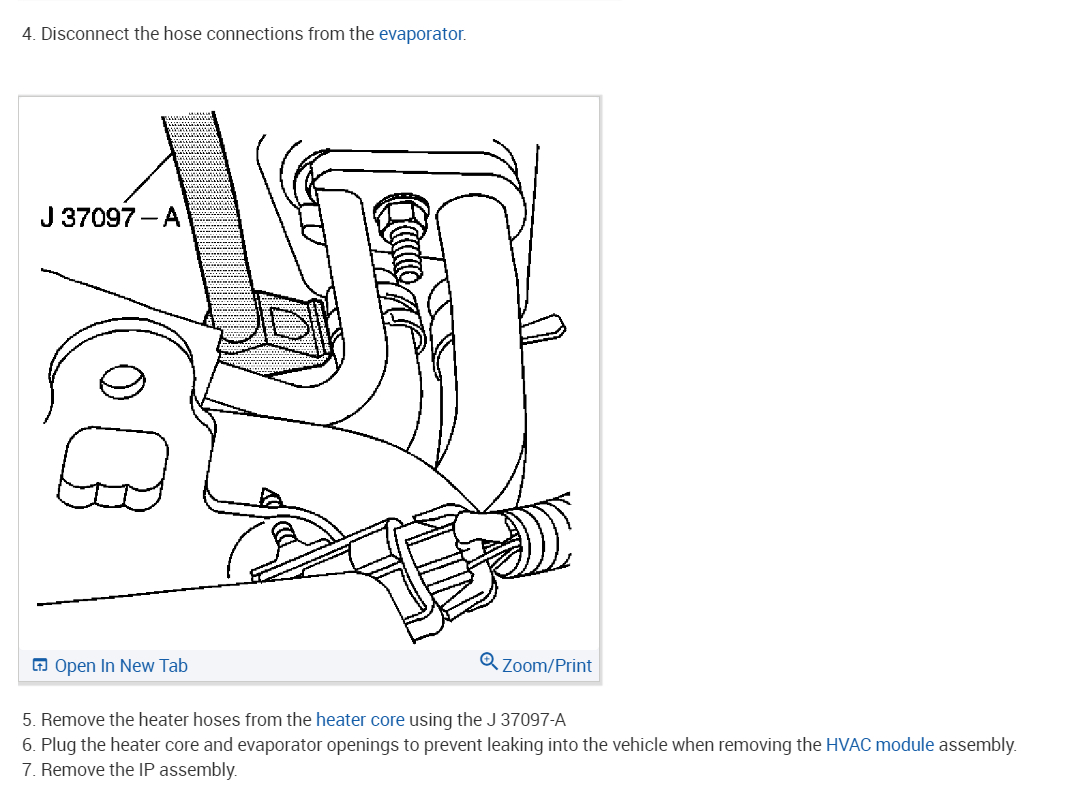

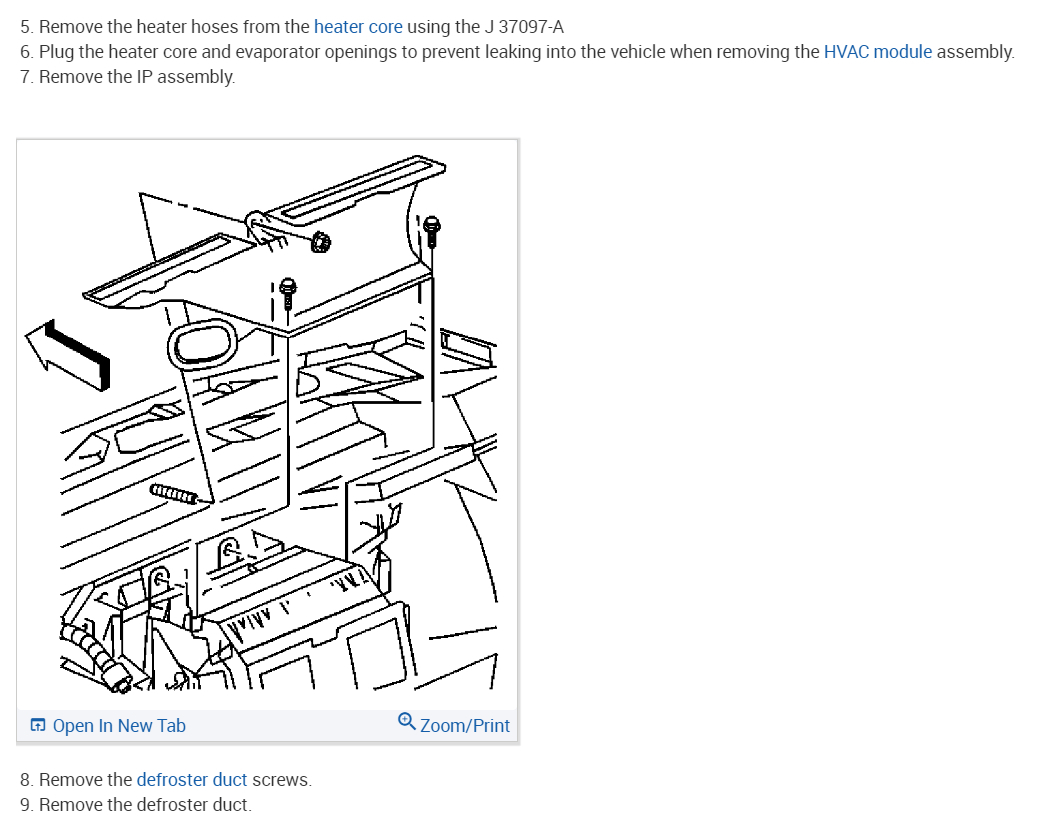

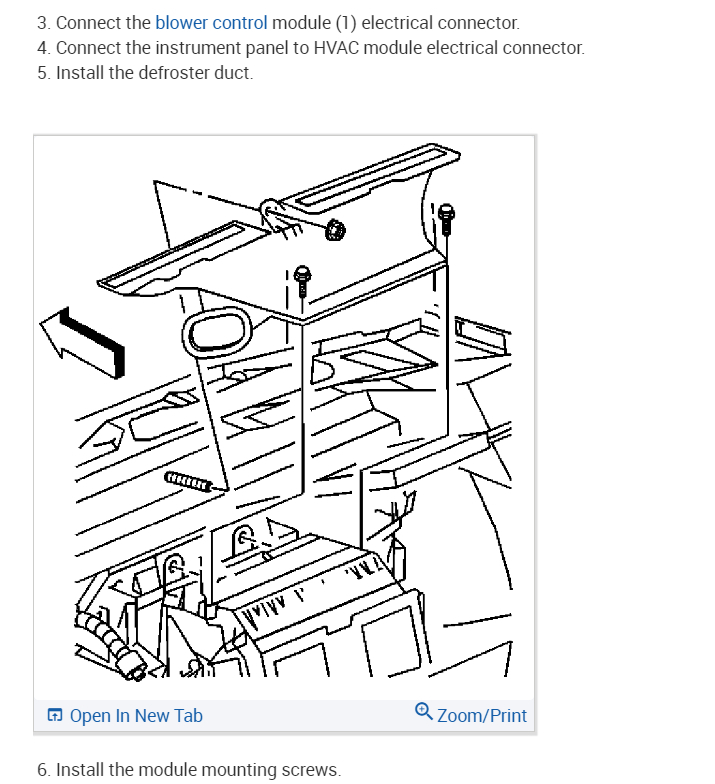

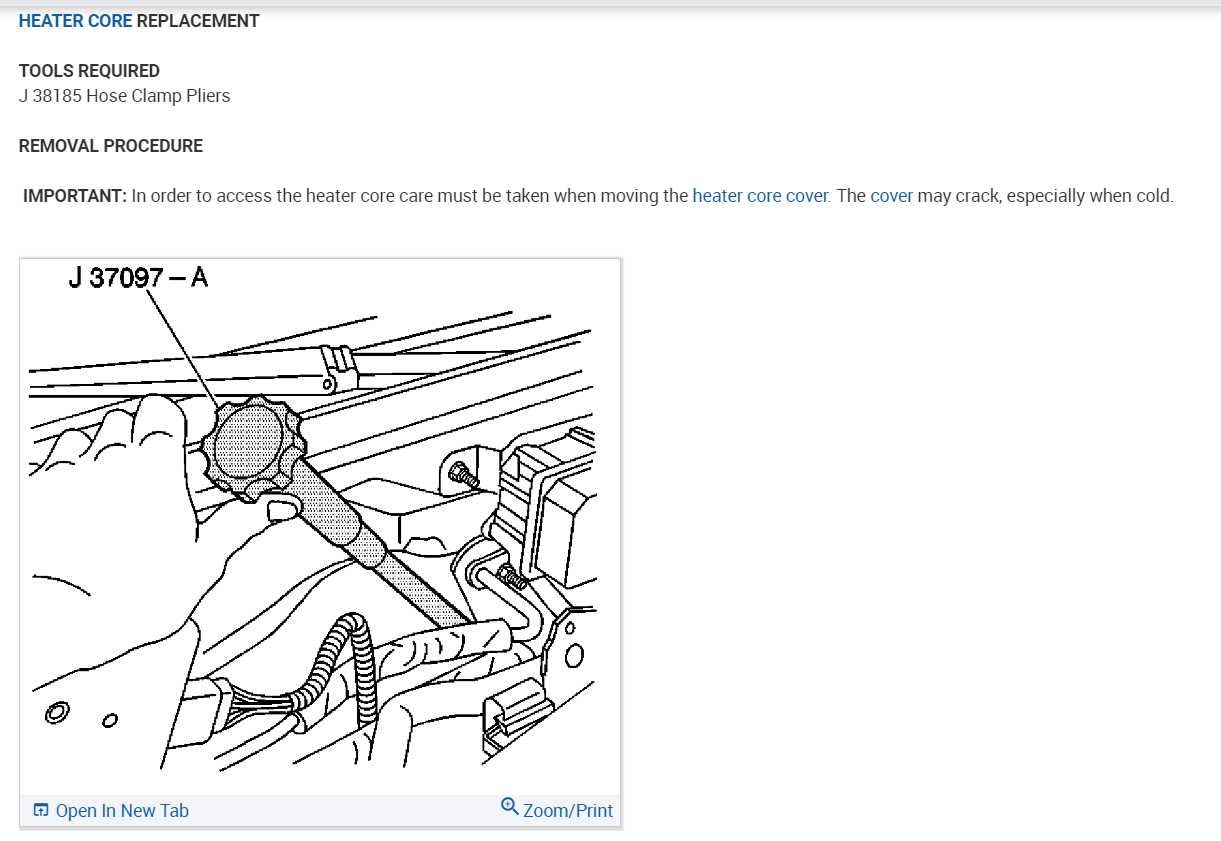

Sure, here are the diagrams to help you reinstall the heater core. Check out the images (below). Let us know what happens and please upload pictures or videos of the problem so we can see what's going on.
