Headlight wiring diagram

Tiny
JESUS BERRIOS2
  • MEMBER
  • 1987 SUZUKI SAMURAI
  • 1.3L
  • 4 CYL
  • 4WD
  • MANUAL
  • 150,000 MILES
Hello there! I'm trying to put all the wiring back at my vehicle but I forgot where they belong. A wiring diagram showing where each cables goes would be perfect. I need to connect almost all the lights on the samurai and need to find the correct wires for each connection. I don't want to make any bad connections.
SPONSORED LINKS
Friday, September 13th, 2019 AT 6:40 PM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,700 POSTS
Welcome to 2CarPros.

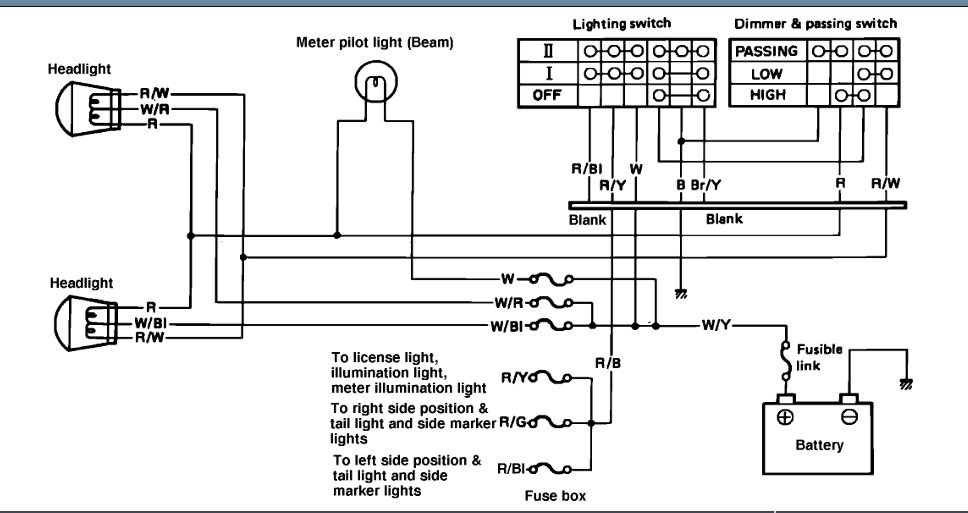

I attached one of the original wiring schematics for exterior lighting. I hope it helps.

Take care,
Joe
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Friday, September 13th, 2019 AT 8:43 PM
Tiny
JESUS BERRIOS2
  • MEMBER
  • 9 POSTS
Thank you so much! I'm trying to understand it. Doing my best. Thank you so much for your help. Take care.
