Headlight switch module wiring diagram needed

2009 CHEVROLET SILVERADO
200,000 MILES • 5.3L • V8 • 2WD • AUTOMATIC
Avatar
AKREAGER
  • MEMBER
  • 4 POSTS

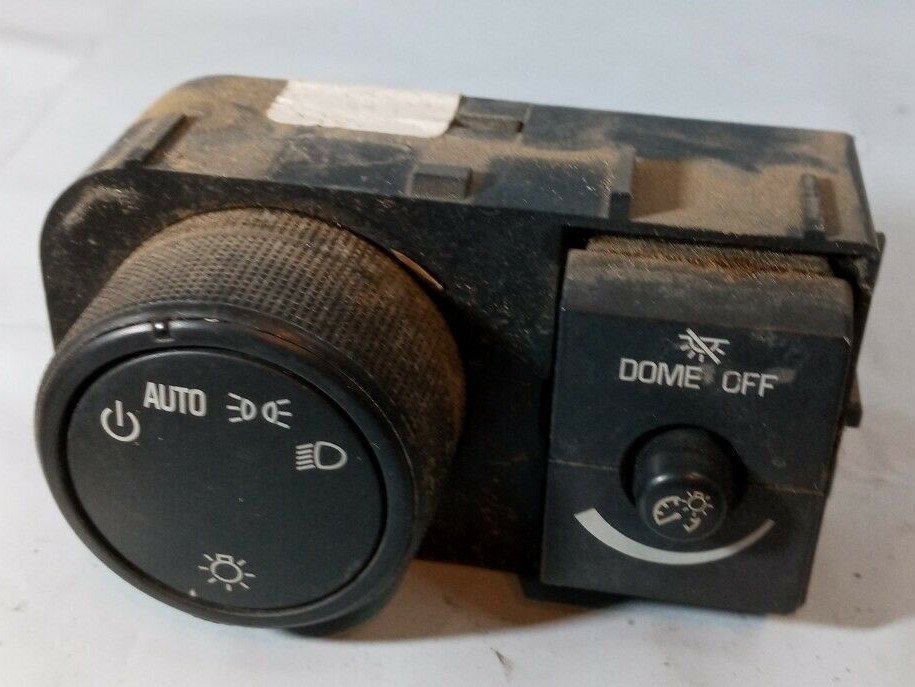

I am looking for a wiring diagram for the headlight switch located in the dash. I am trying to retrofit this module into an older truck.
Image (Click to enlarge)
Attached Media
Feb 22, 2022 at 7:28 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
SQM
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 6,383 POSTS
Hello,

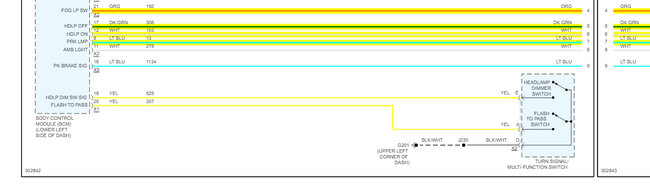

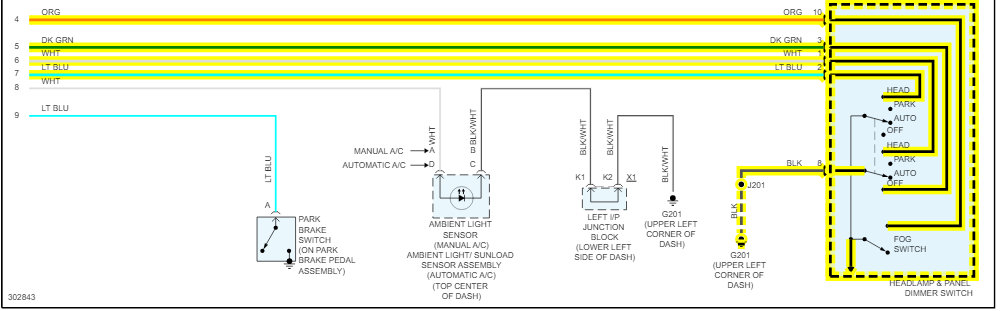

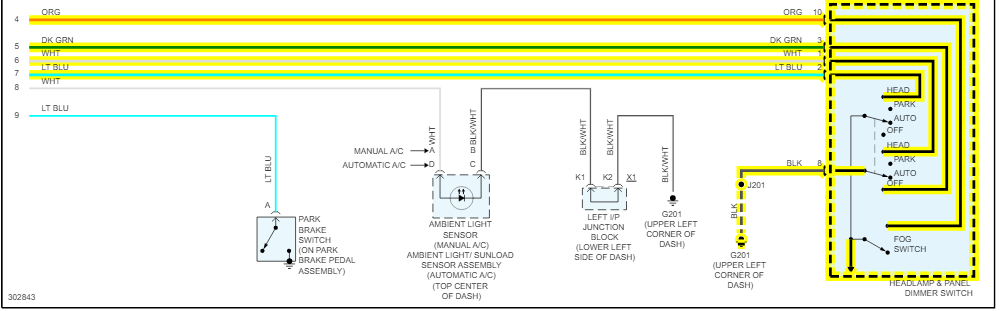

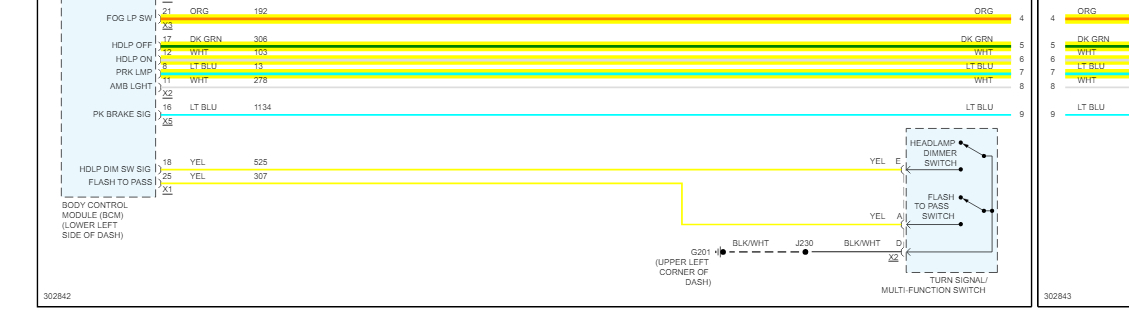

I have attached the wiring schematics for the headlight switch below.

Please let me know if you have any questions.
Thank you.
