Where are the headlights located?

2004 OLDSMOBILE BRAVADA
122,000 MILES • 4.2L • V6 • 4WD • AUTOMATIC
Avatar
ARTHUR MILLER JR
  • MEMBER
  • 1 POST
It's not really a problem but I'm trying to find where all the lights for my vehicle listed above. I would like to know where all my headlights are on, can anyone help? I haven't found any.
May 14, 2023 at 7:58 AM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,244 POSTS
Hi,

I'm not sure what you are looking for. The headlamps are at the front of the vehicle. Do you mean you are looking for the wiring schematics related to the headlamps?

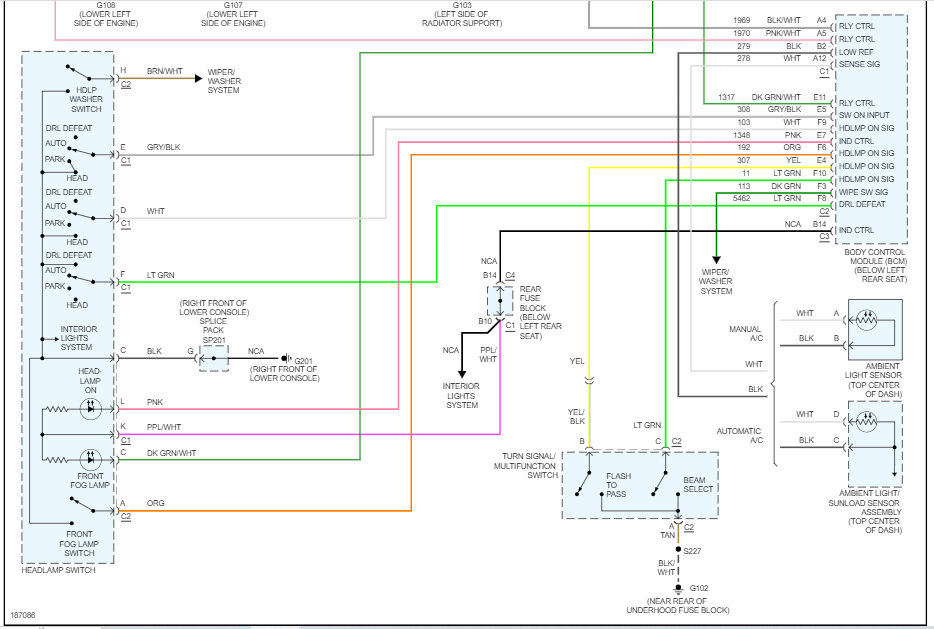

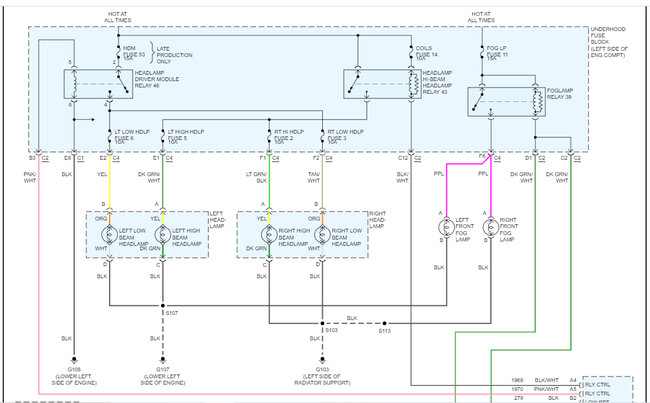

I attached the schematic below. Let me know if that is what you needed.

Take care,

Joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
May 14, 2023 at 2:38 PM
