Head light switch diagram needed

1999 DODGE RAM
100,000 MILES • 5.2L • V8 • 2WD • AUTOMATIC
Avatar
HEMINUTT
  • MEMBER
  • 2 POSTS
I am looking for a wire diagram for the head light switch that will show me both the head lights and dome /cargo light thanks. I have no fog lights no DRL's and no dual beam.
Jul 6, 2018 at 1:16 PM
Advertisement
Avatar
DANNY L
  • ✓Experienced Mechanic
  • 5,648 POSTS
Hello, I am Danny.

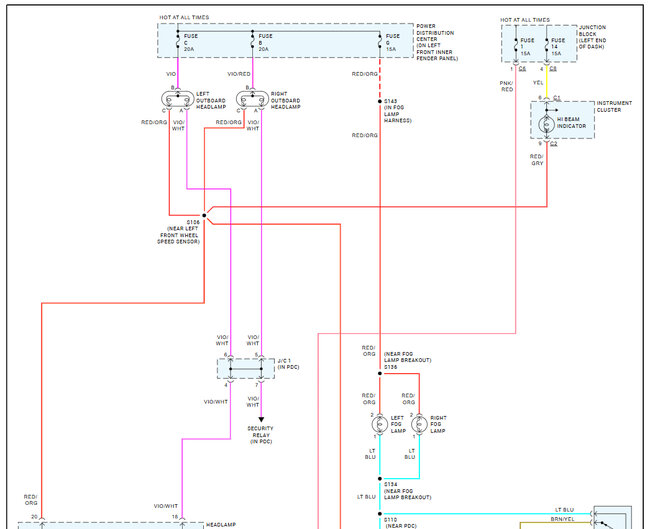

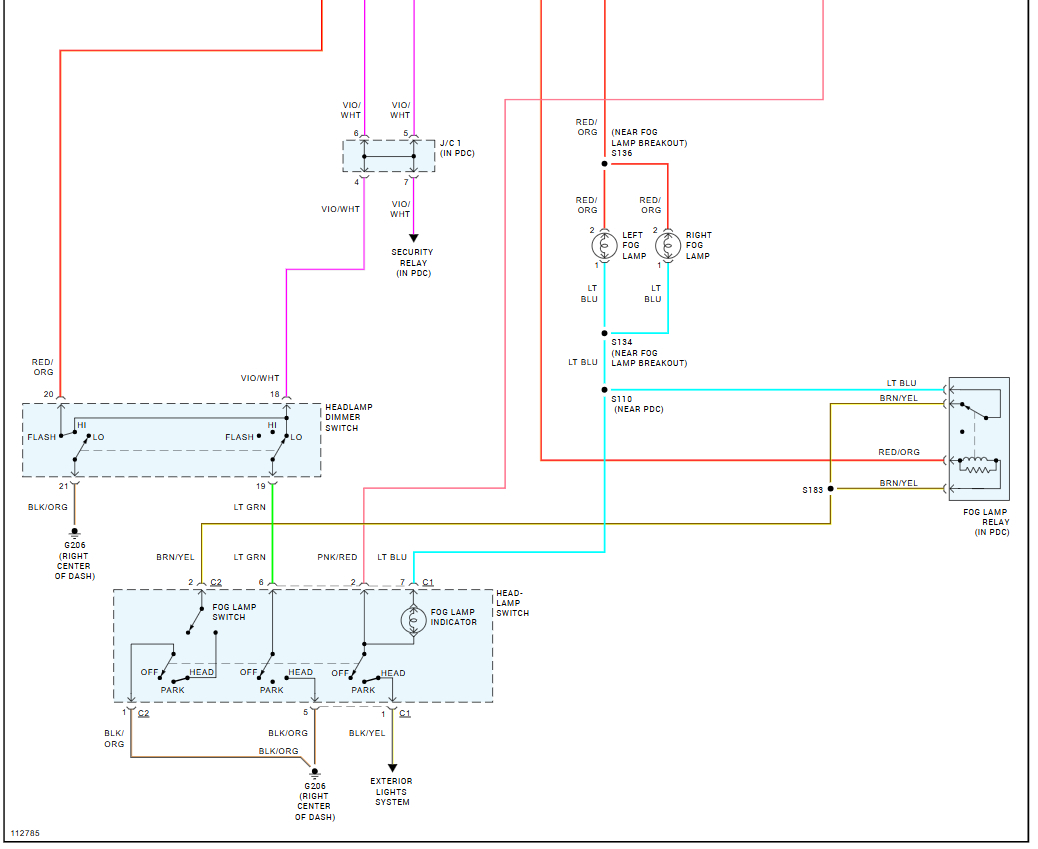

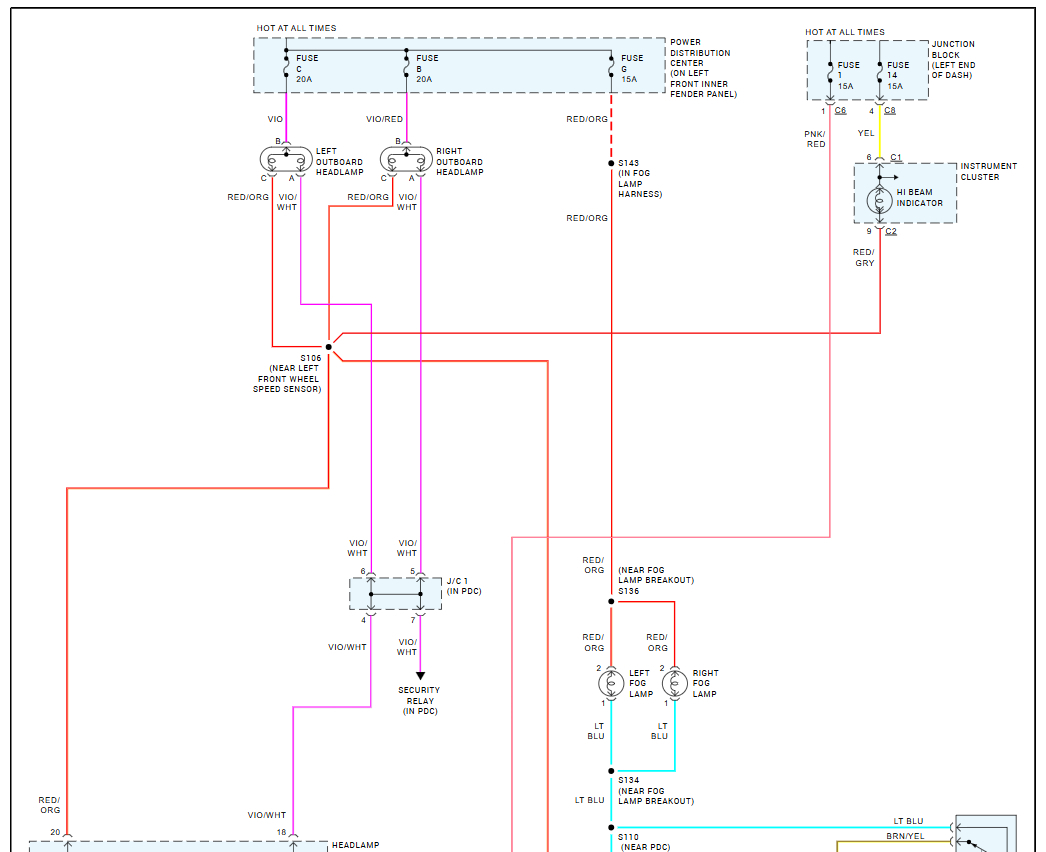

Here is a wiring diagram for you. Hope this helps and feel free to ask any question if needed. Thanks for using 2CarPros.com. Danny- Check out the images (below).
Images (Click to enlarge)
Attached Media
Attached Media
Jul 6, 2018 at 2:12 PM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,248 POSTS
Hi and thanks for using 2CarPros.com.

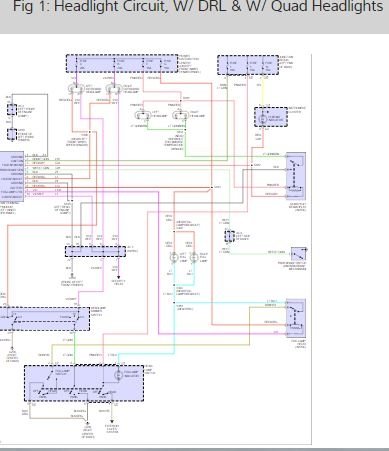

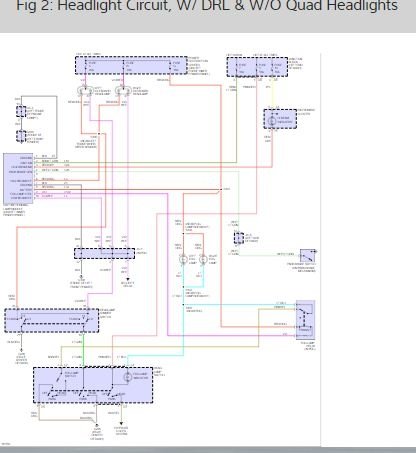

I have attached two wiring schematics for your review. One is for quad headlights and the other without quad headlights. Let me know if they help or if you need something different.

Take care,
Joe
Images (Click to enlarge)
Attached Media
Attached Media
Jul 6, 2018 at 2:16 PM
Avatar
HEMINUTT
  • MEMBER
  • 2 POSTS
Thanks that is what I was looking for.
Jul 6, 2018 at 2:43 PM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,248 POSTS
Glad to help. Let me know if you need anything other.

Take care,
Joe
