Passenger side dim headlamp is out

2015 CHEVROLET SONIC
23,000 MILES • 1.8L • 4 CYL • 2WD • MANUAL
Avatar
MEAGANSNOW03
  • MEMBER
  • 1 POST
The passenger side dim headlamp is out. We have checked all the fuses and replaced the bulb. I've read that it could be a relay problem or reining, but I can not find a wiring diagram. Can you help me please?
Apr 26, 2019 at 9:31 PM
Advertisement
Avatar
SCGRANTURISMO
  • ✓Experienced Mechanic
  • 4,897 POSTS
Hello,

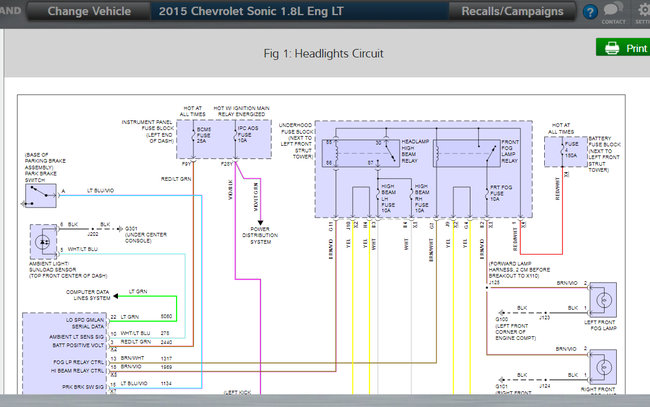

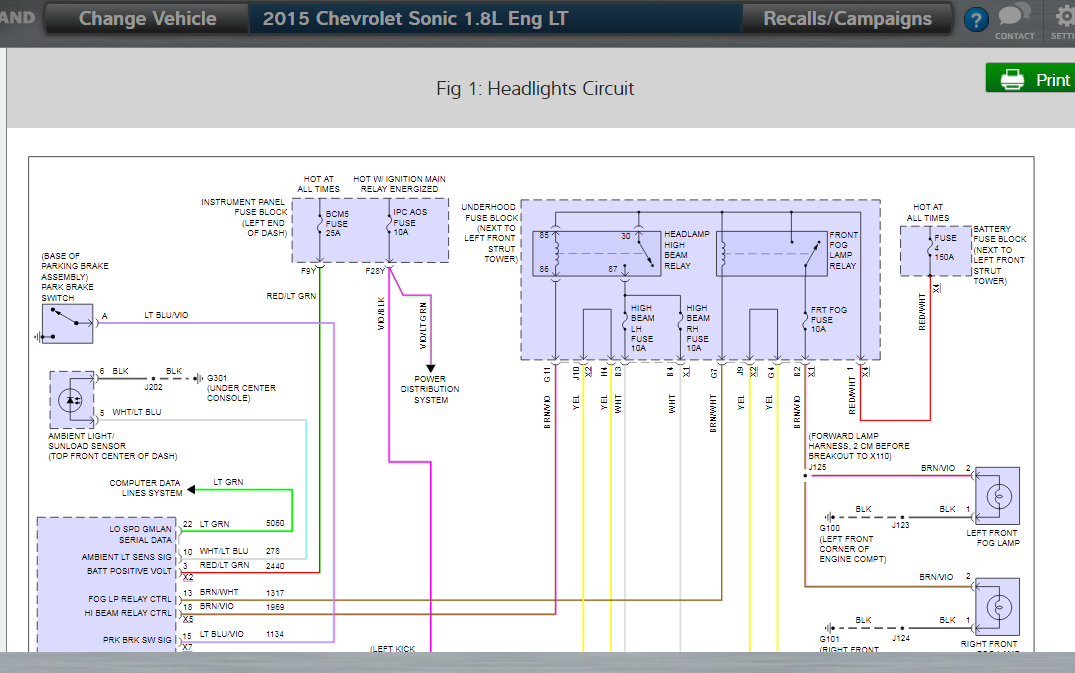

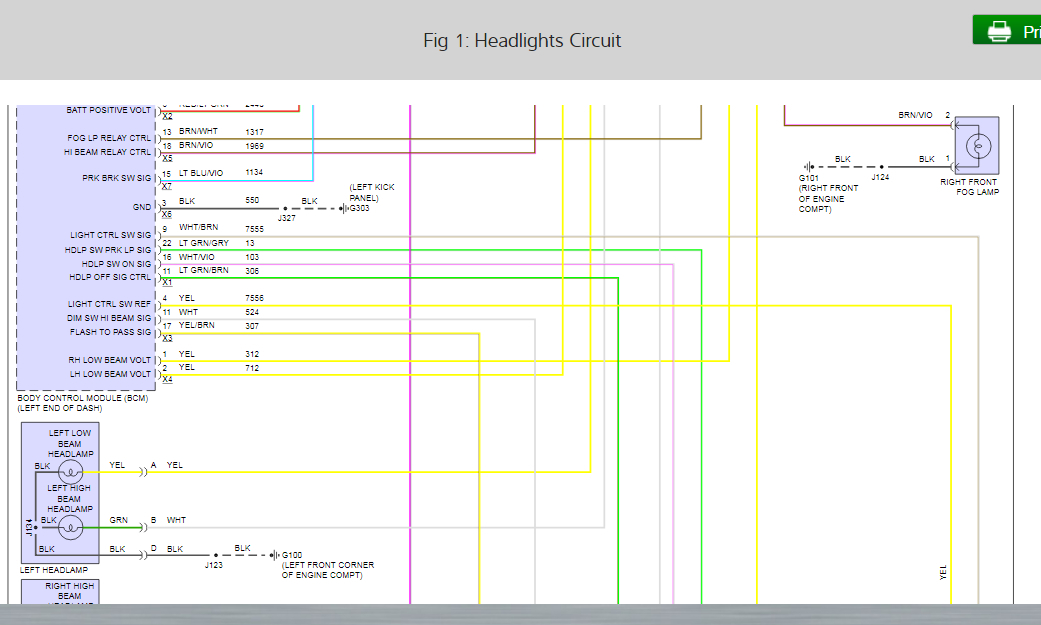

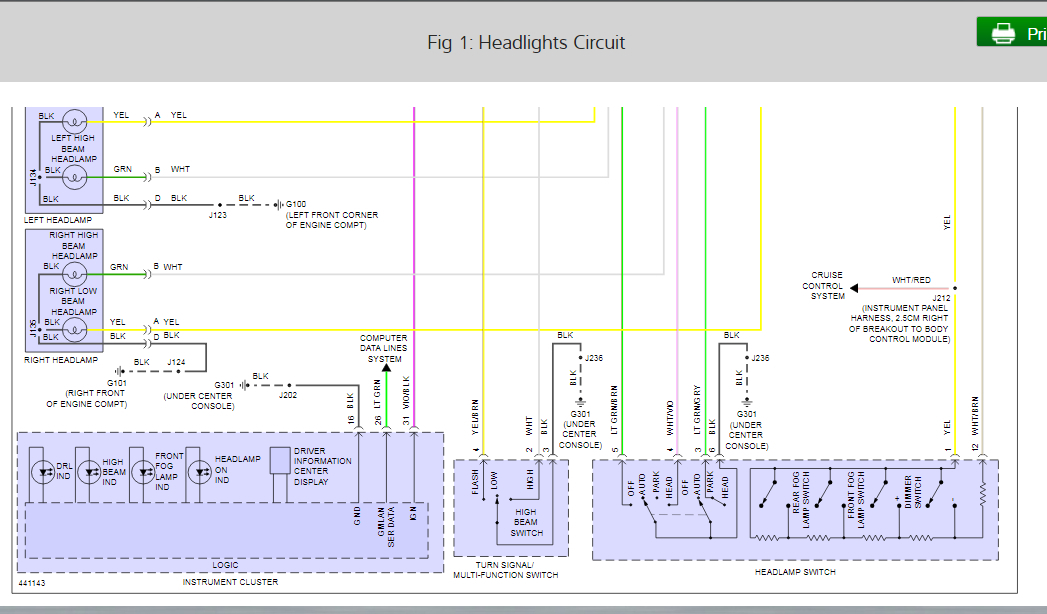

I have included the Headlight Circuit Wiring Diagram for you in the diagrams down below. Please, if you should have any other vehicle related questions, feel free to ask. It's why we are here.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
