1997 GMC Safari Dash board reinstallatopm

Tiny
BOOKWOOD
  • MEMBER
  • 1997 GMC SAFARI
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 224,000 MILES
I fired my mechanic (naybe not a wse decision) because he is taking too long to put back the dashboard of my cargo van. Is there anywhere I can get a schematice of the whole assembly? My original probloem of the gates for the dash has been solved (one of the valves under the air bag on the passenger side not working). Everything is off down to the firwall? Wires are coming out the center for the radio, air bag and lighter? If I have a diagram, I think I can put it back together. Is it possible to get this diagram? Thanks for you help.
SPONSORED LINKS
Thursday, September 30th, 2010 AT 12:24 PM

3 Replies

Tiny
DAVE H
  • MECHANIC
  • 13,384 POSTS
Hello. Thanks for the donation. Much appreciated

There are numerous wiring diagrams for the full dashboard. There is not a single diagram showing all systems . It may be worth your while to buy a weekly subscription to the online repair manual www.2carpros. Com/kpages/auto_repair_manuals. Htm
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Thursday, September 30th, 2010 AT 7:35 PM
Tiny
BOOKWOOD
  • MEMBER
  • 2 POSTS
Dave H. Did not read my question. I did not ask for the wiring diagrams of the dashboard. I asked for an exploded view of the dashboard assembly so I know what parts go where. I have not a guide. If this is not possible please send my money back. Thanks.
Was this
answer
helpful?
Yes
No
Friday, October 1st, 2010 AT 12:04 AM
Tiny
DAVE H
  • MECHANIC
  • 13,384 POSTS
Sorry about the confusion .. these are the only pictures i can locate of the dashboard assembly !

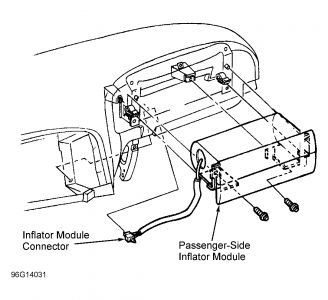

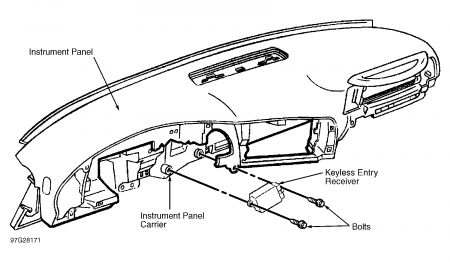

https://www.2carpros.com/forum/automotive_pictures/266999_gmc2_1.jpg



https://www.2carpros.com/forum/automotive_pictures/266999_gmc_3.jpg

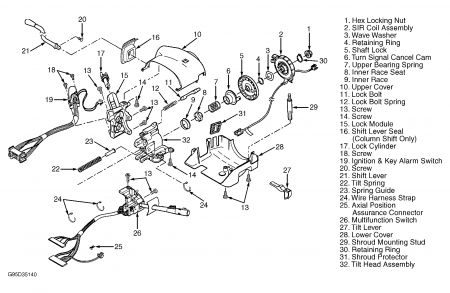

https://www.2carpros.com/forum/automotive_pictures/266999_gmc3_1.jpg

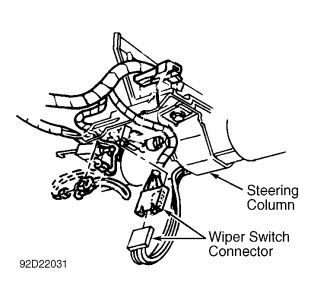

https://www.2carpros.com/forum/automotive_pictures/266999_gmc4_1.jpg

Was this
answer
helpful?
Yes
No
Monday, October 4th, 2010 AT 4:11 AM
