1993 Other GMC Models Vacum Diagram

1993 GMC
225,000 MILES • V8 • 2WD • AUTOMATIC
Avatar
PETER K
  • MEMBER
  • 1 POST
Hi,
I'm reassembling a GMC cab over same as an Isuzu NPR. The engine was just rebuilt, I need a vacum diagram to hook up everything correctly.

It's a chevy 350, TBI Automatic

Thanks
Sep 30, 2010 at 1:35 PM
Advertisement
Avatar
JDL
  • ✓ASE Certified Mechanic
  • 16,098 POSTS
  • ASE Certified Mechanic

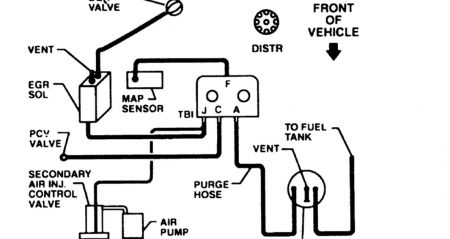

Found this vacuum diagram for GMC c1500 5.7L engine.


https://images.2carpros.com/forum/automotive_pictures/170934_gmc_vacuum_lines_1.jpg

Sep 30, 2010 at 2:42 PM
