GEM Module xl5t-14b205-dc, wiring diagram needed
ERNIESEEL99
MEMBER
1999 FORD RANGER
V6
2WD
117,000 MILES
Need to snip the wire that goes to the buzzer but do not know which color wire it is.
Monday, June 13th, 2022 AT 7:12 PM
1 Reply
SQM
MECHANIC
6,383 POSTS
Hello,

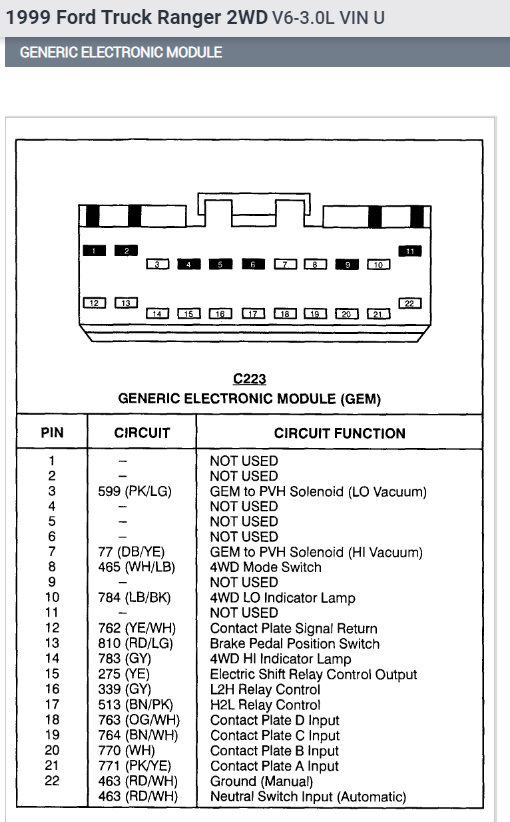

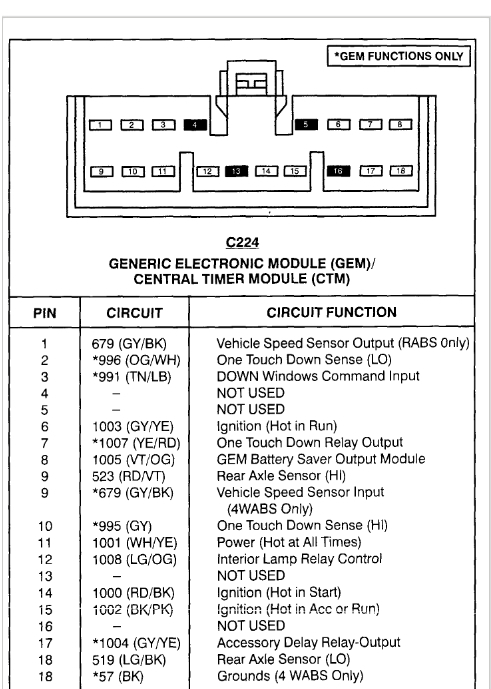

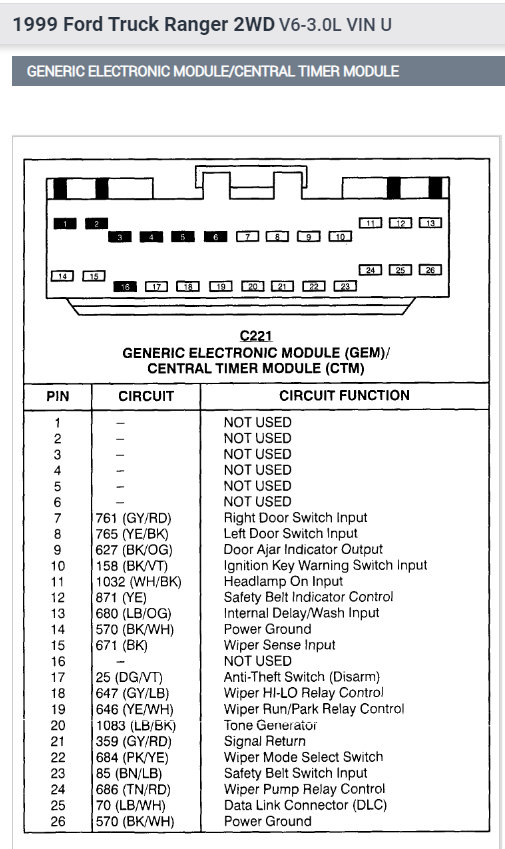

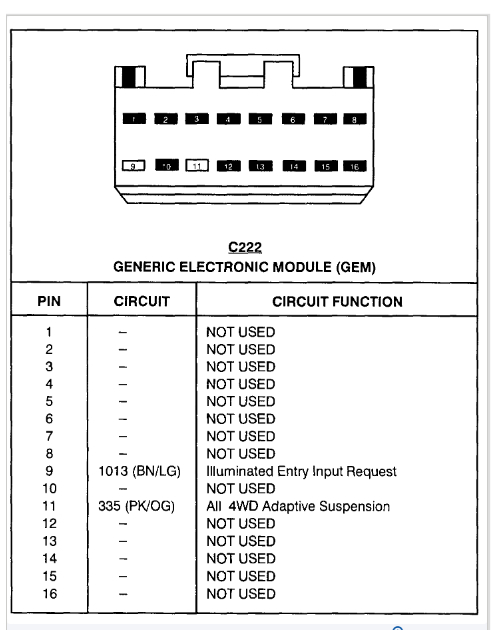

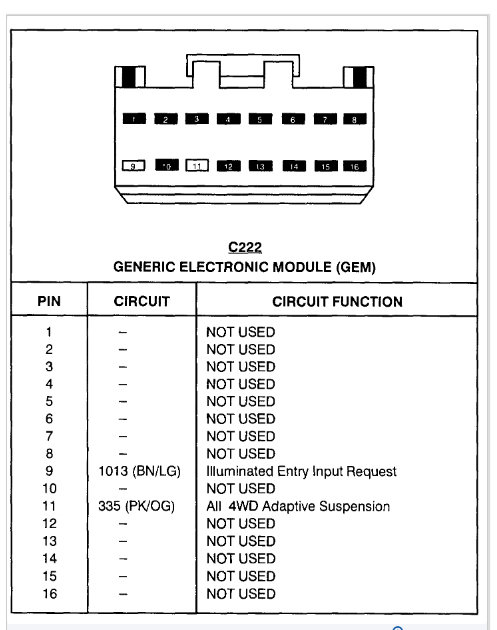

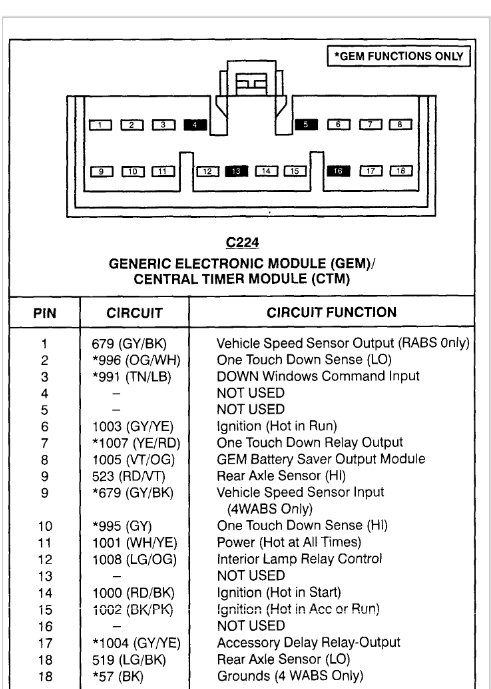

See attached for the GEM pinout, it shows the color and location of each wire.
Let me know of any questions.
Thank you.
