Can I get the pinout diagram for the gauge cluster?

2000 FORD EXPLORER
200,000 MILES • 5.0L • V8 • 2WD • AUTOMATIC
Avatar
DARIN BAILEY
  • MEMBER
  • 1 POST
Looking for a pinout diagram for the gauge cluster.
Jan 15, 2025 at 12:59 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,711 POSTS

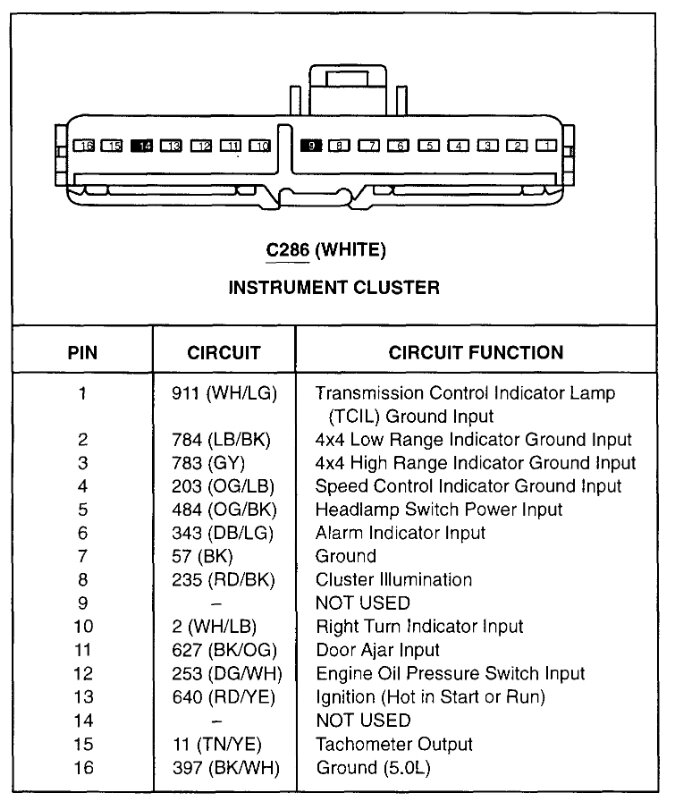

Sure, here is the pinout diagrams for the instrument cluster. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Jan 15, 2025 at 10:01 AM
