Fusebox pinout?

2005 NISSAN FRONTIER
180,000 MILES • 4.0L • V6 • 4WD • AUTOMATIC
Avatar
RUBENJR69
  • MEMBER
  • 1 POST
I need a pinout of idpf fuse box please
Apr 23, 2026 at 5:37 PM
Advertisement
Avatar
STRAILER
  • CAR REPAIR CONTRIBUTOR
  • 54,354 POSTS

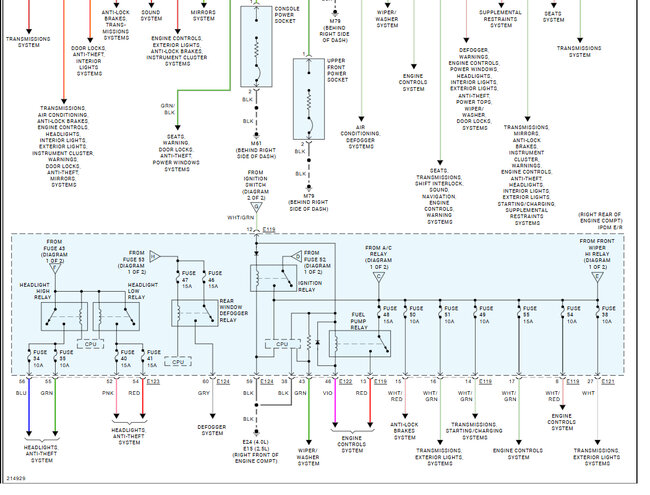

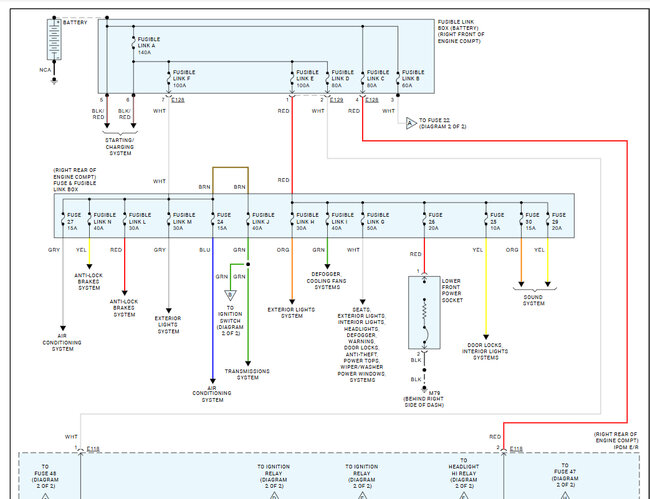

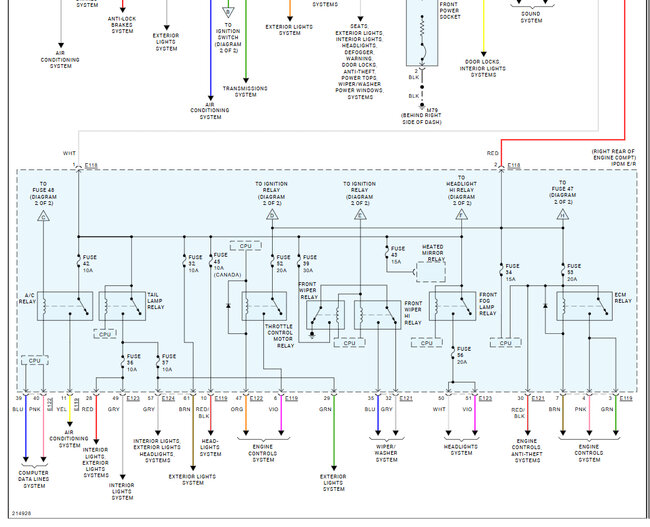

I don't have a pinout but here are the wiring diagrams so I hope they will work for ya. Check out the images (below). Let us know if you need anything else..
