fuse diagrams where are they?

2013 VOLKSWAGEN JETTA HYBRID
139,939 MILES • 1.4L • 4 CYL • TURBO • 2WD • AUTOMATIC
Avatar
CHRISTIAN RUBIO
  • MEMBER
  • 2 POSTS
Need a fuse diagram please. I have no manual and need to find the fuses
Aug 24, 2021 at 12:26 AM
Avatar
SQM
  • ✓Experienced Mechanic
  • 6,383 POSTS
Hello,

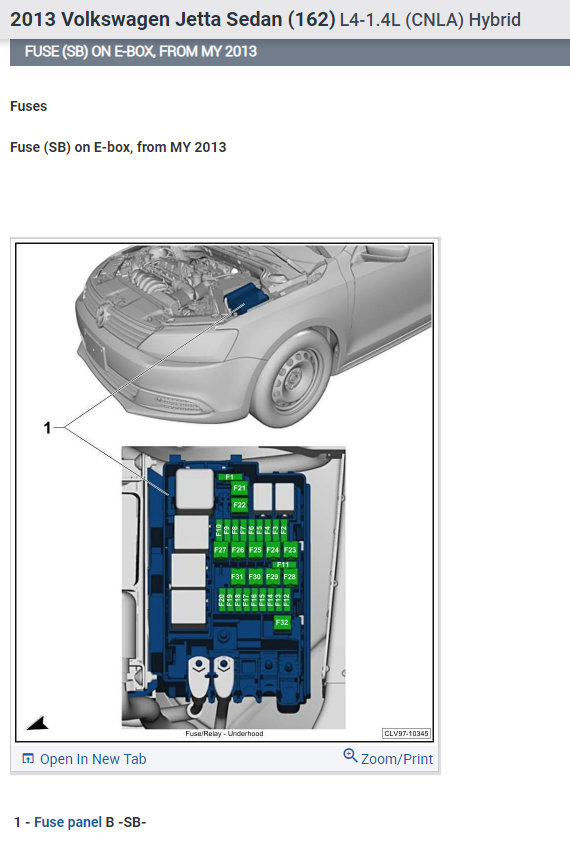

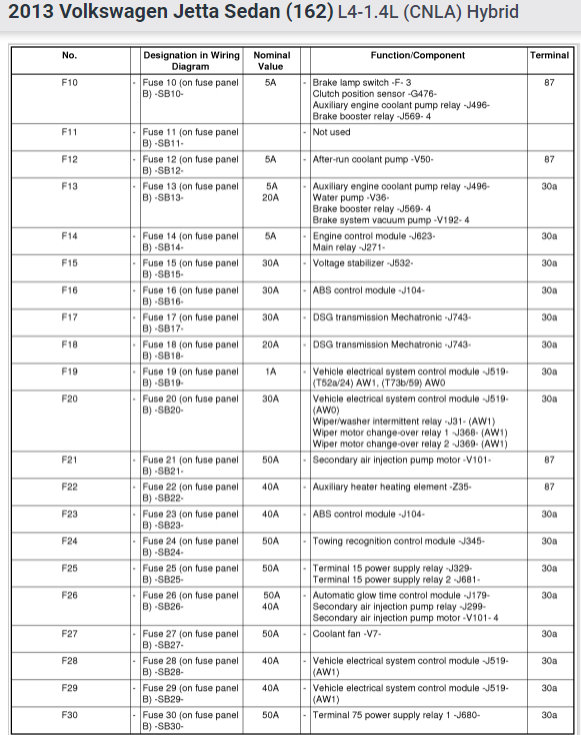

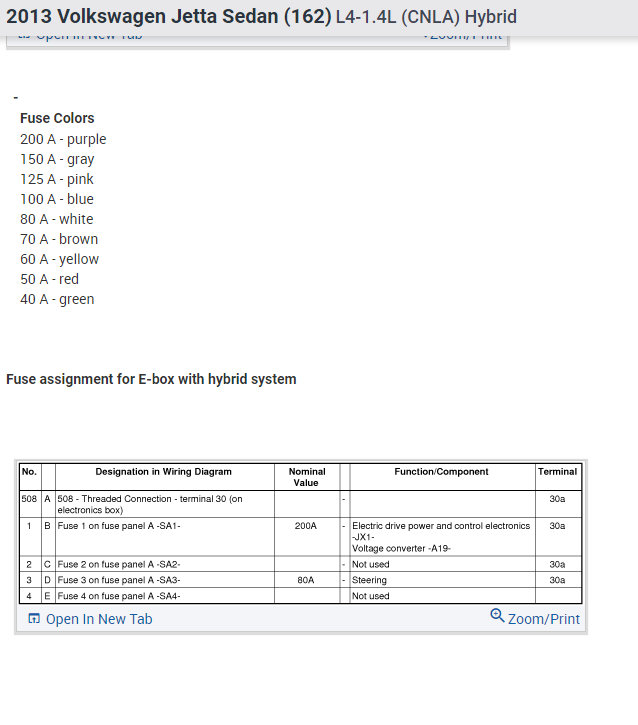

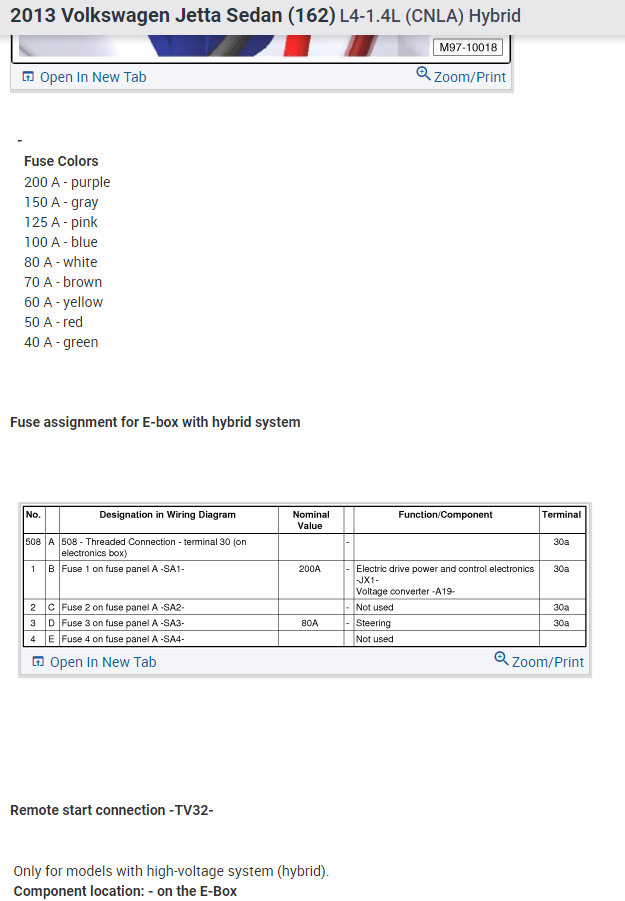

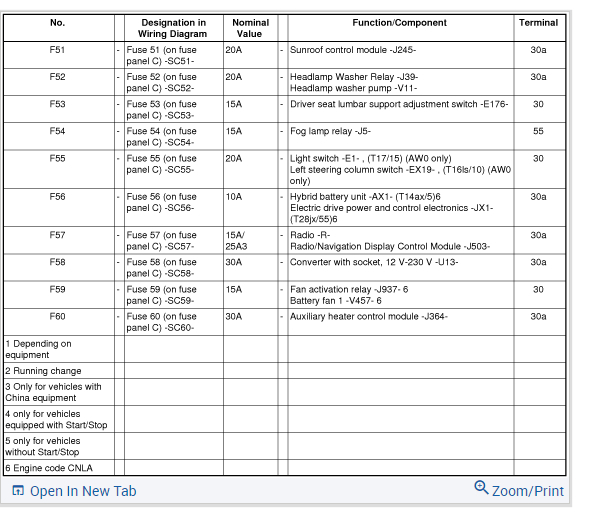

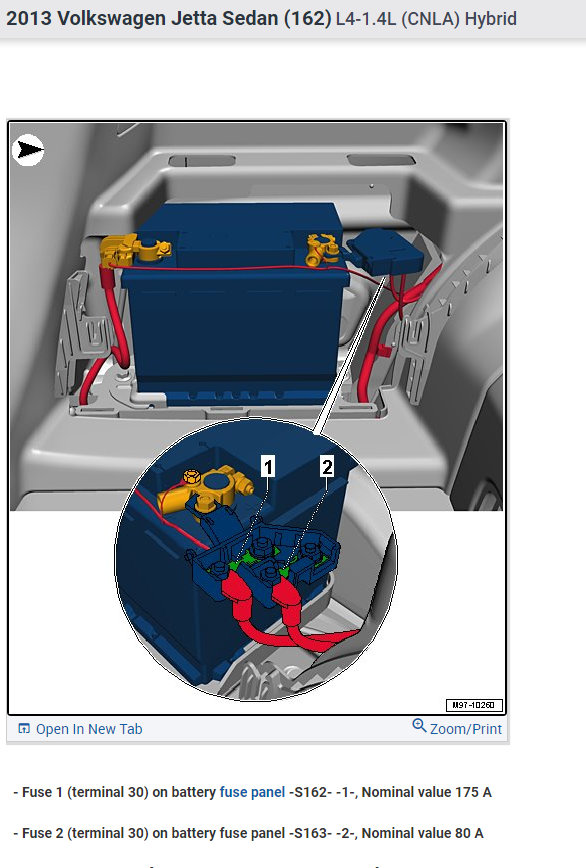

I have attached diagrams for all the fuse blocks for your reference.


https://www.2carpros.com/articles/how-to-check-a-car-fuse

https://youtu.be/Hlna_kUt7As

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit



Please let me know of any questions.

Thank you.

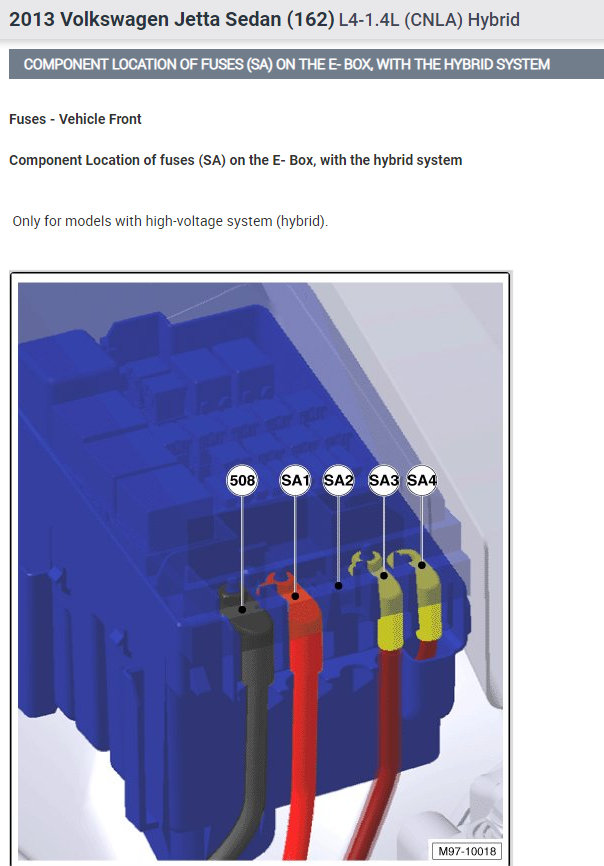

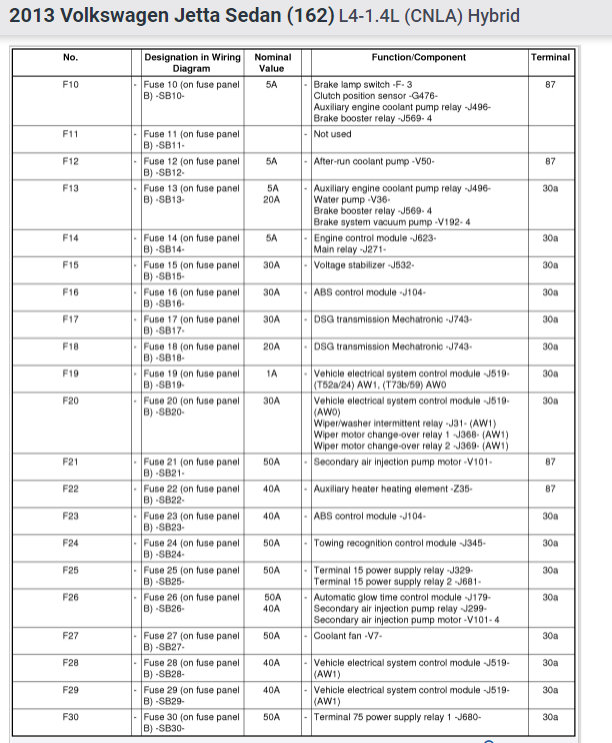

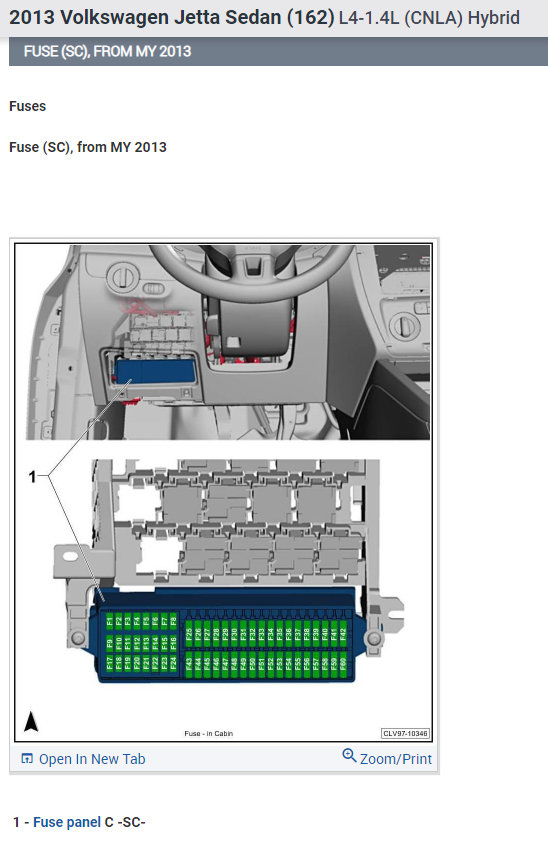

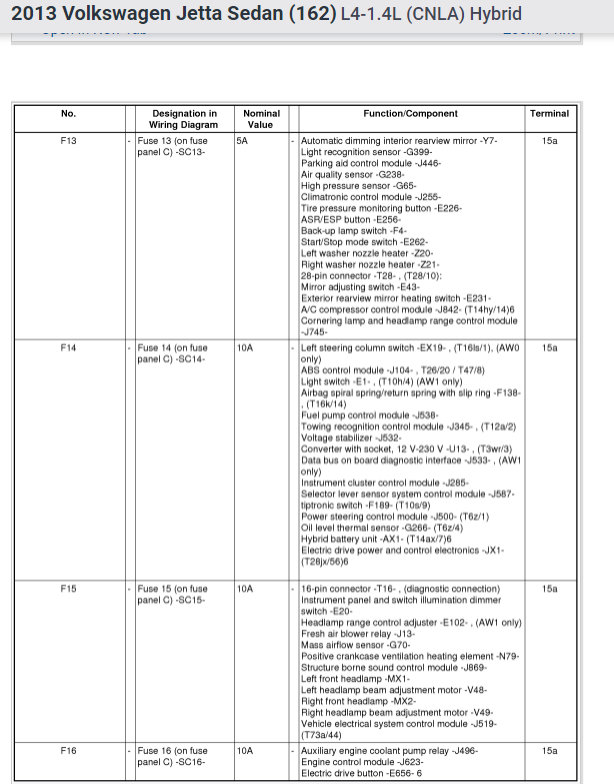

Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 24, 2021 at 7:07 AM
Avatar
CHRISTIAN RUBIO
  • MEMBER
  • 2 POSTS
I need the fuse card to see what fuse goes where.
Sep 13, 2021 at 2:43 AM (Merged)
Avatar
SQM
  • ✓Experienced Mechanic
  • 6,383 POSTS
Hello,

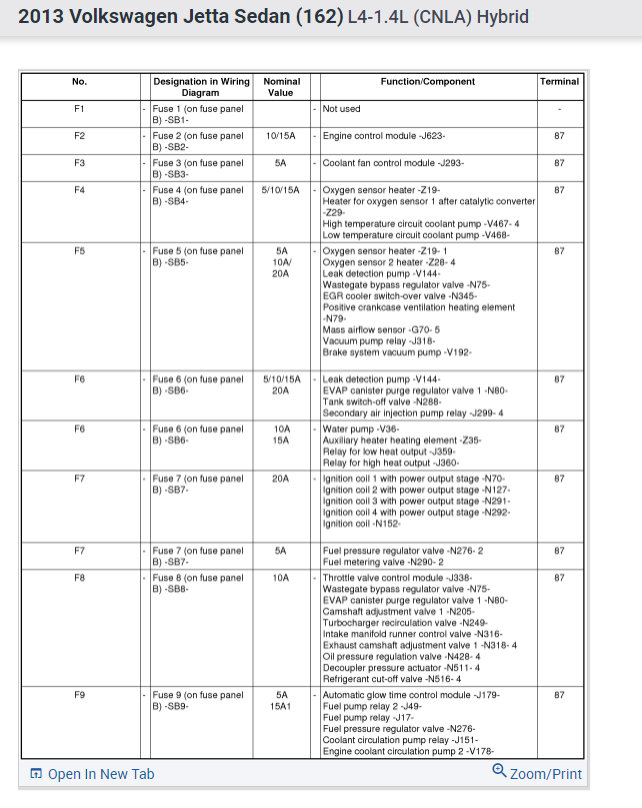

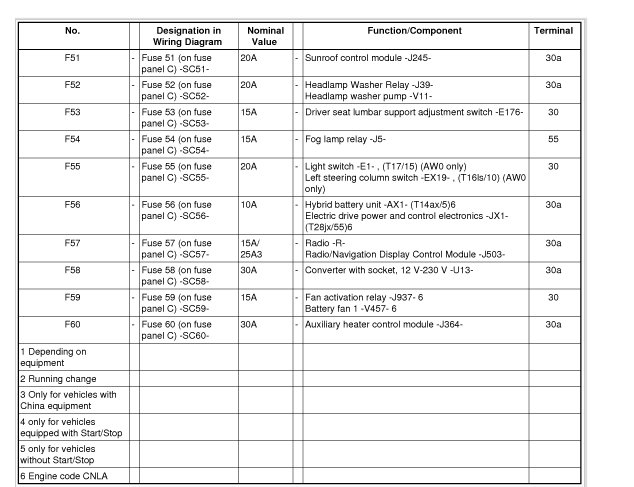

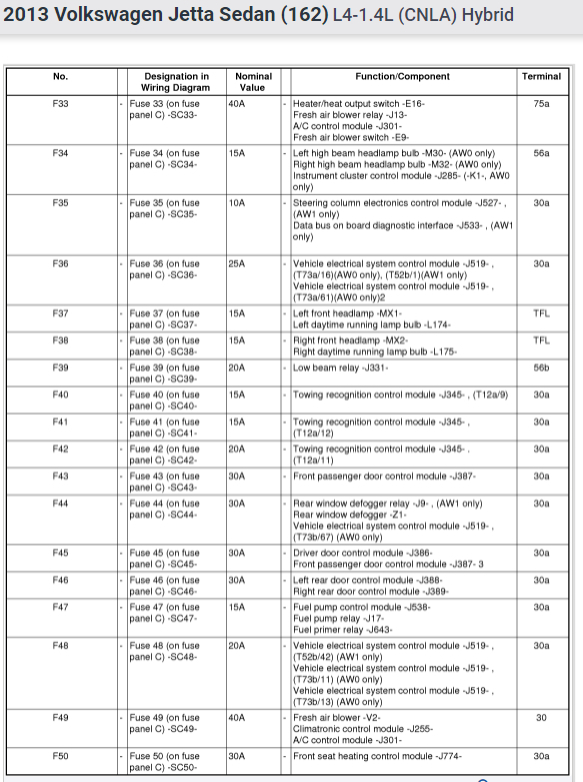

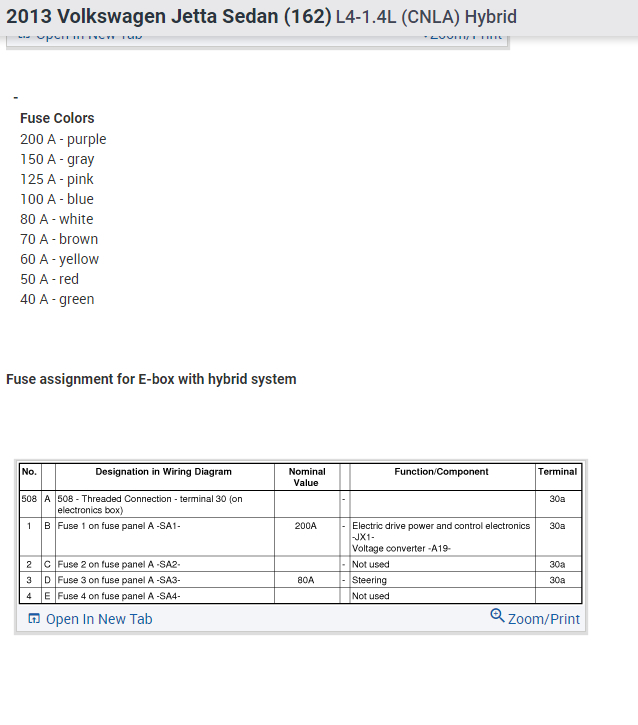

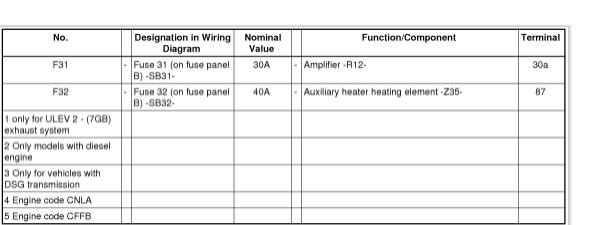

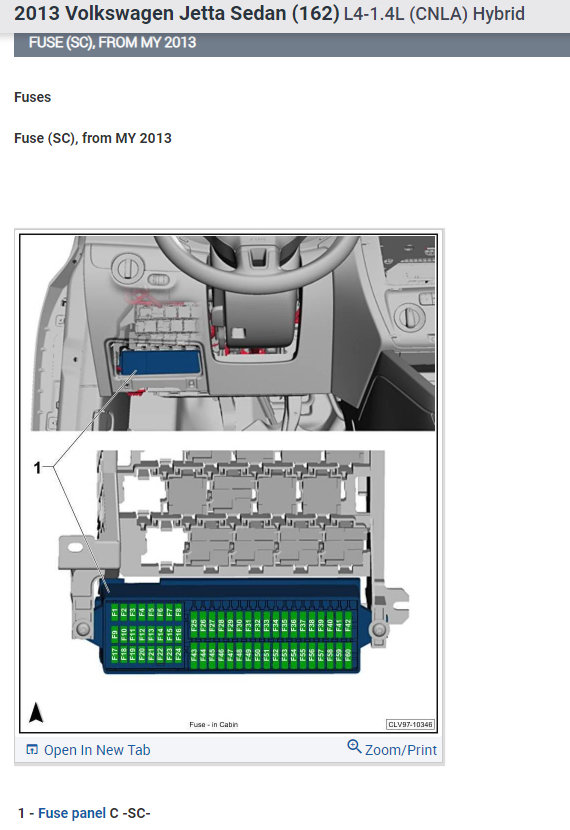

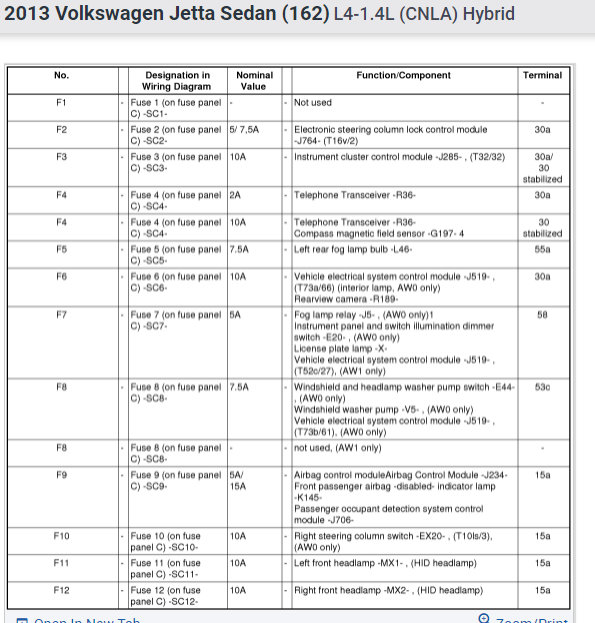

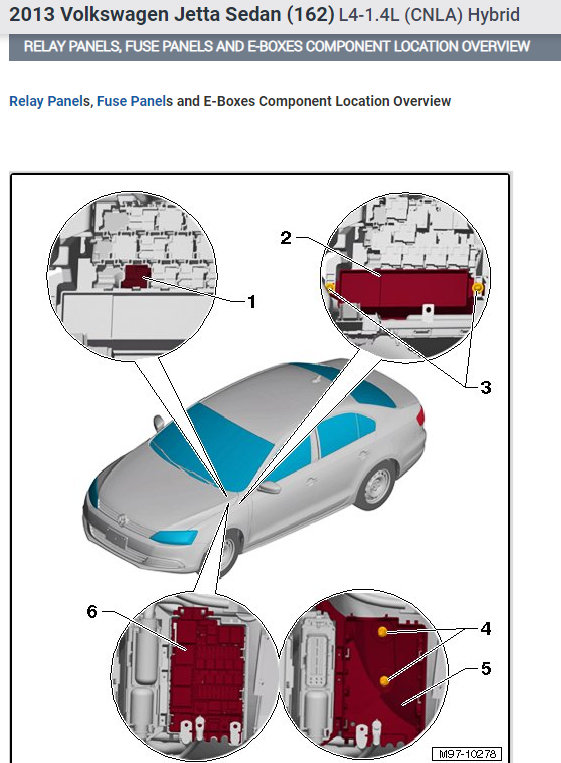

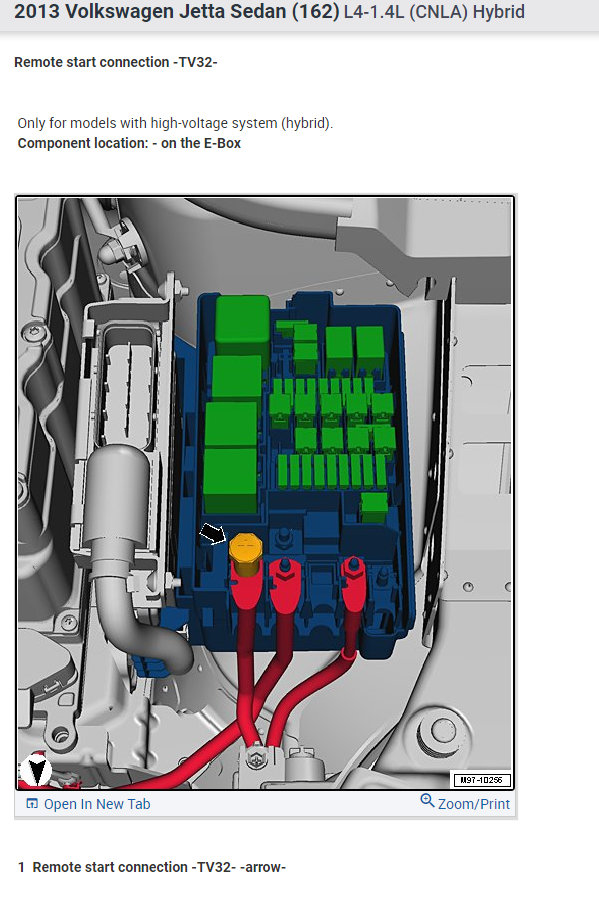

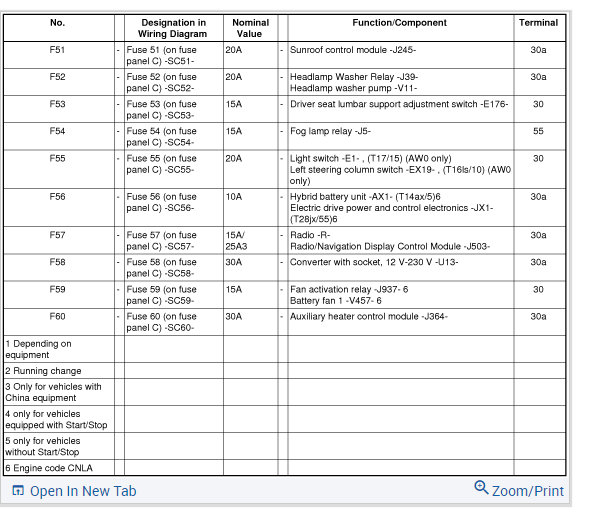

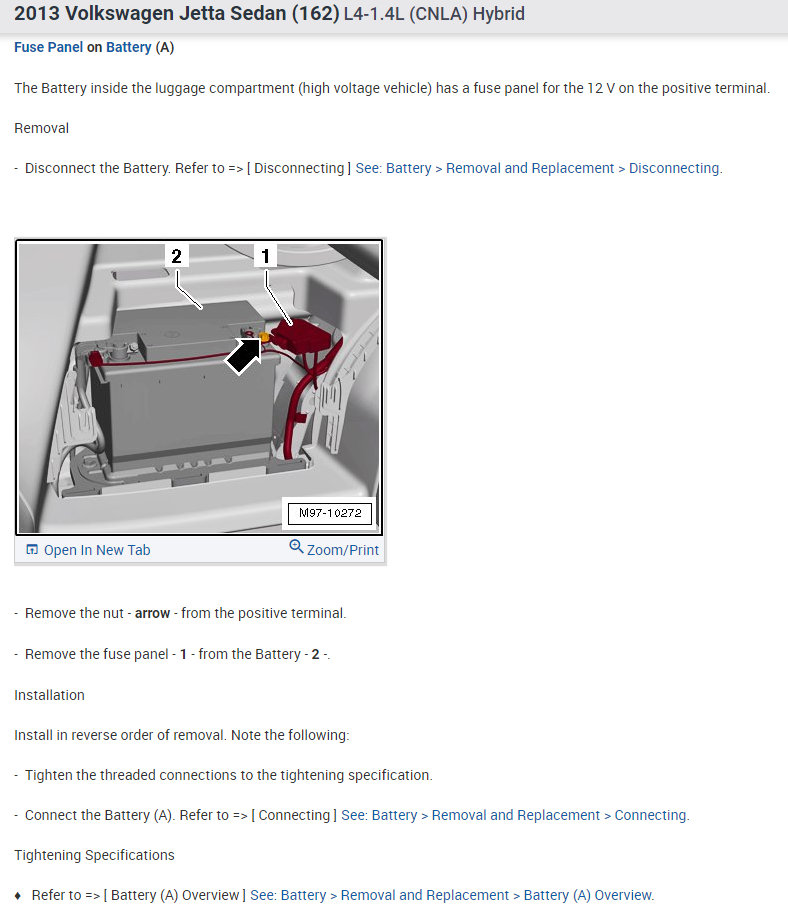

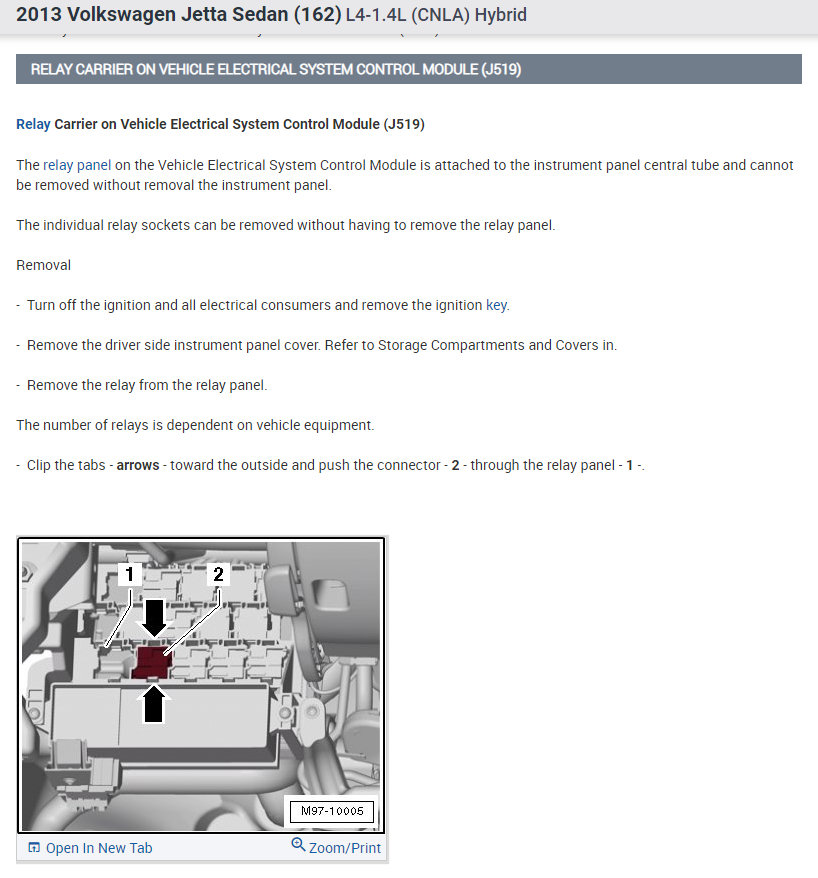

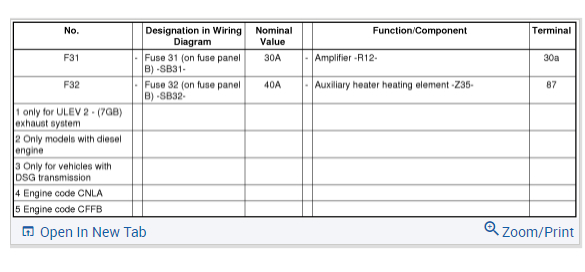

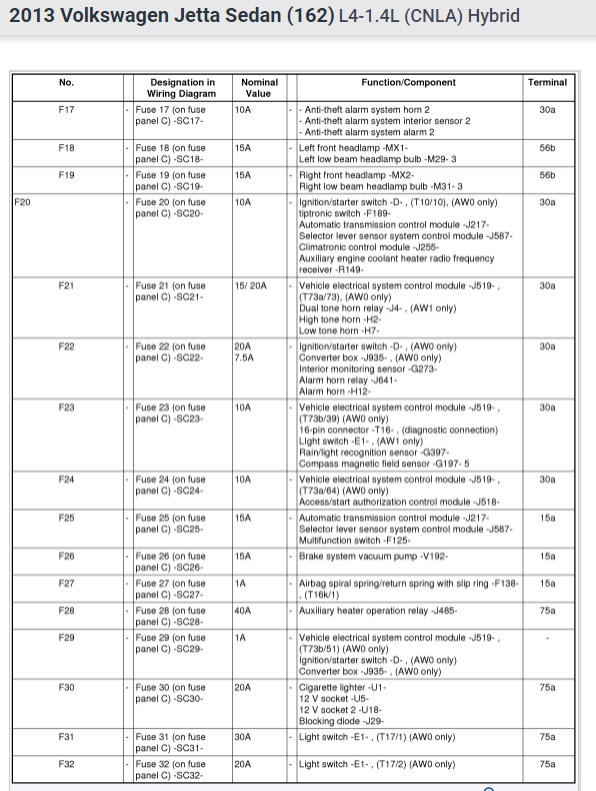

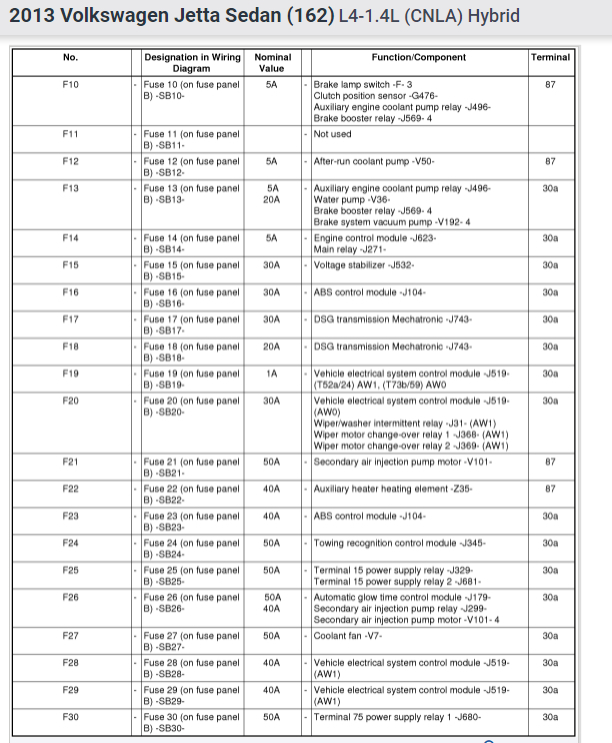

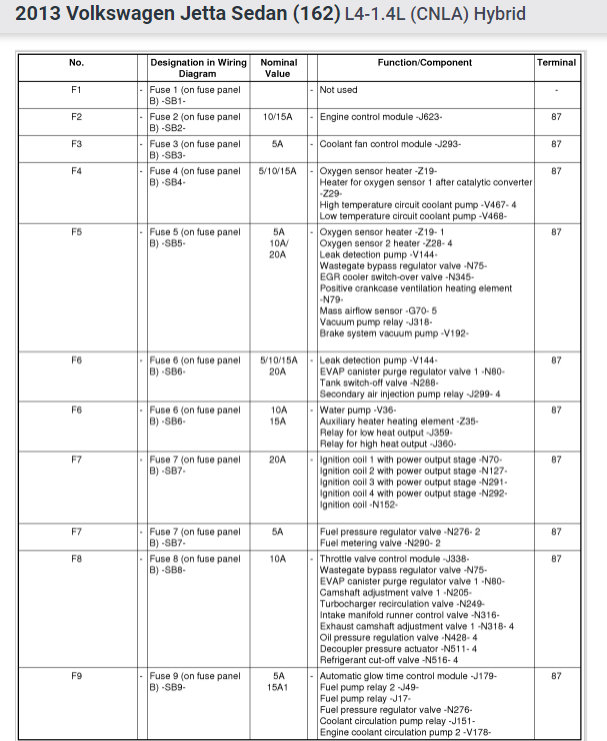

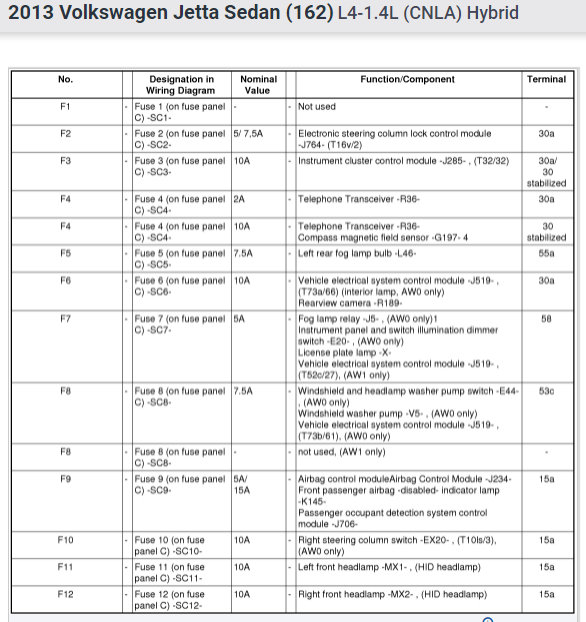

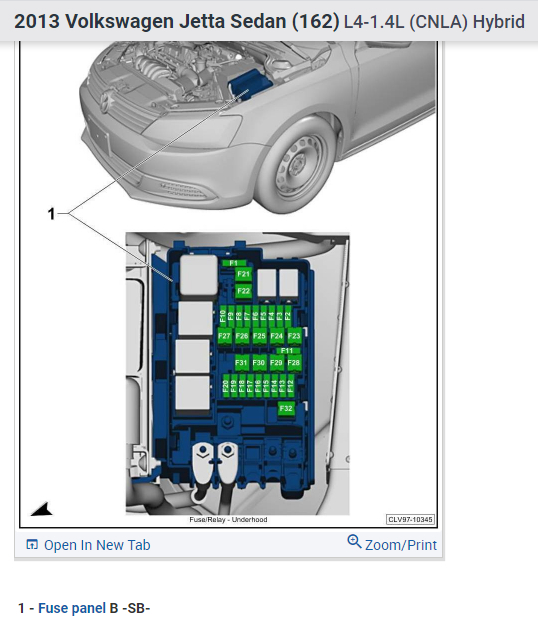

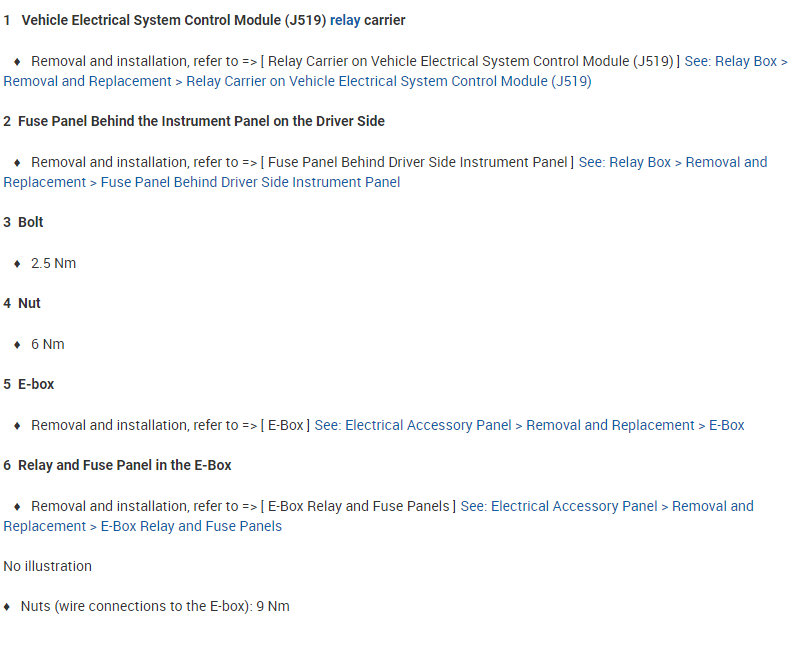

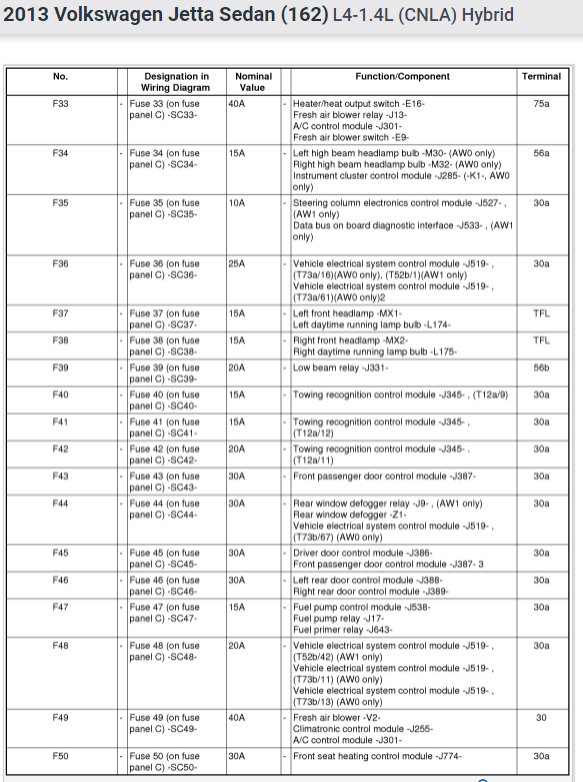

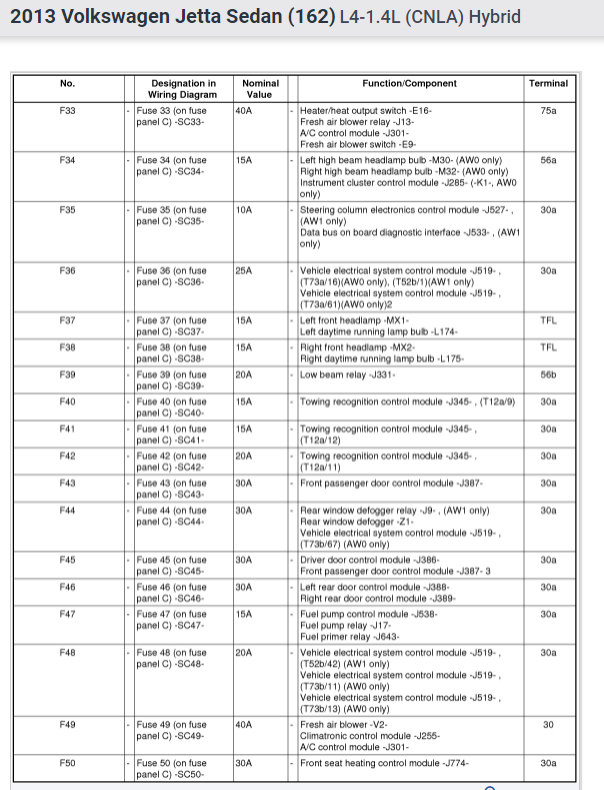

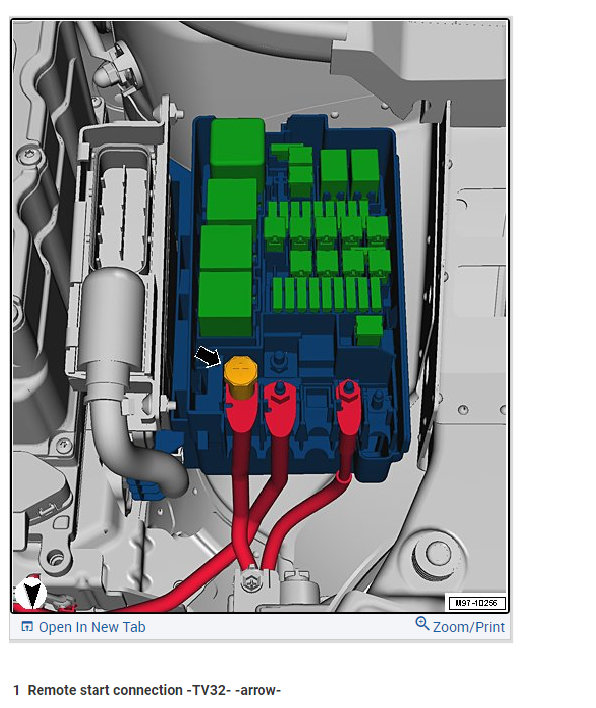

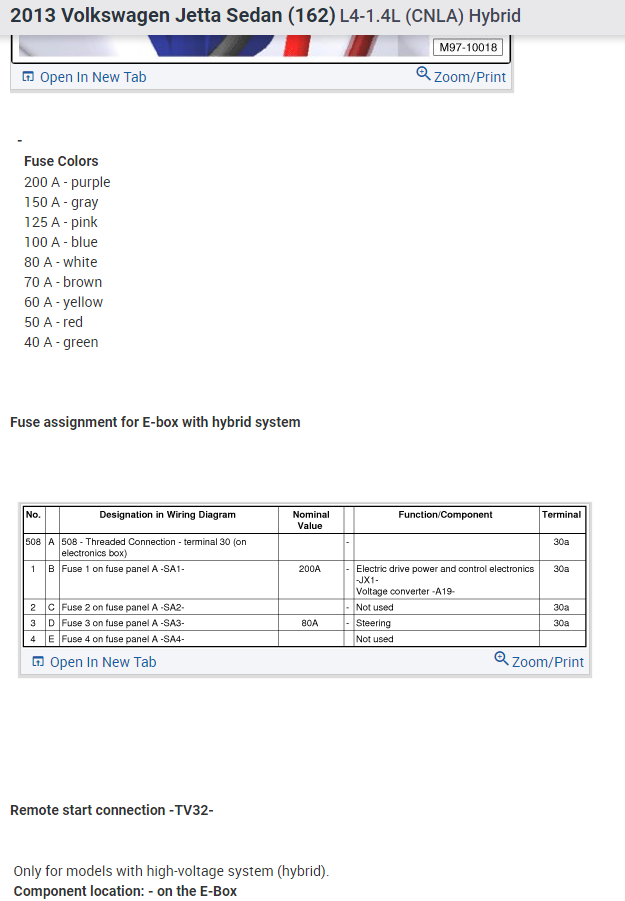

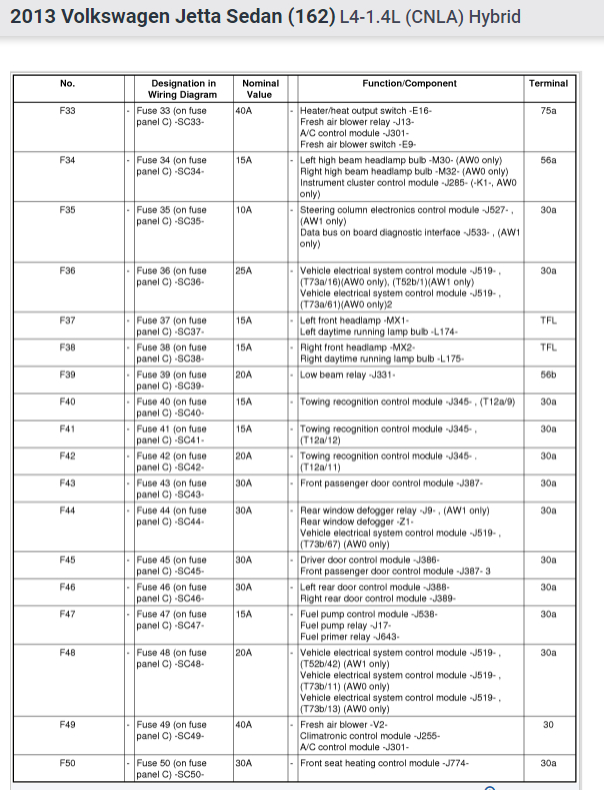

Look below for the fuses and relay diagrams and descriptions.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Let me know of any questions.
Thank you.

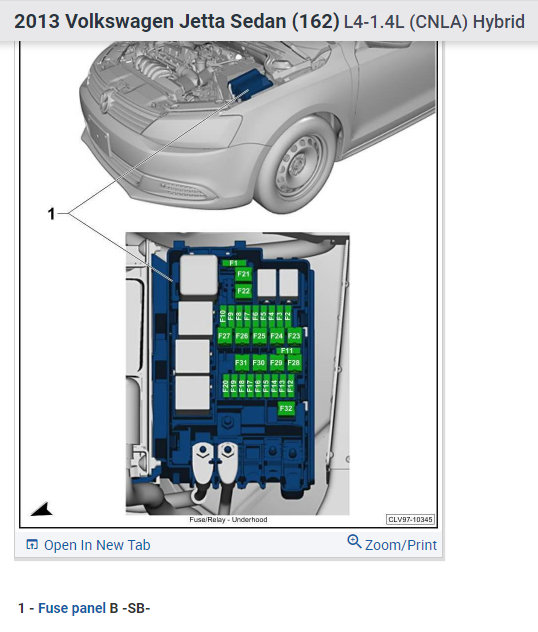

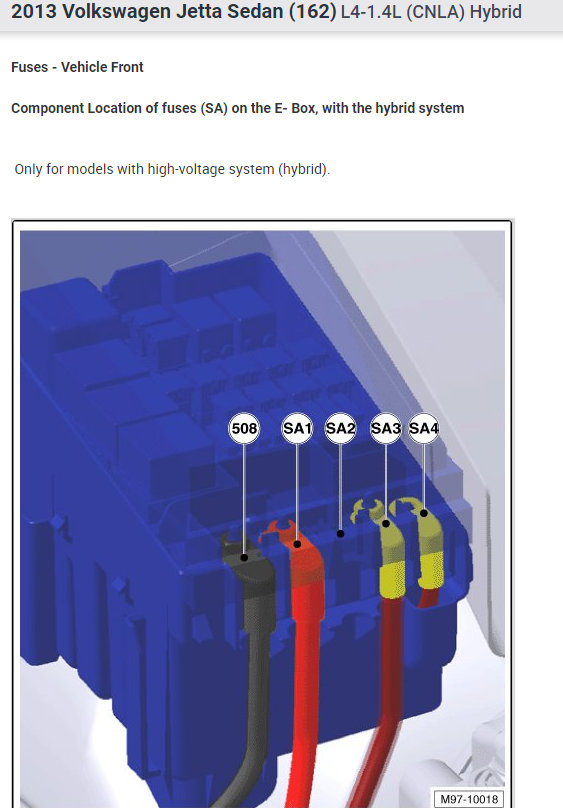

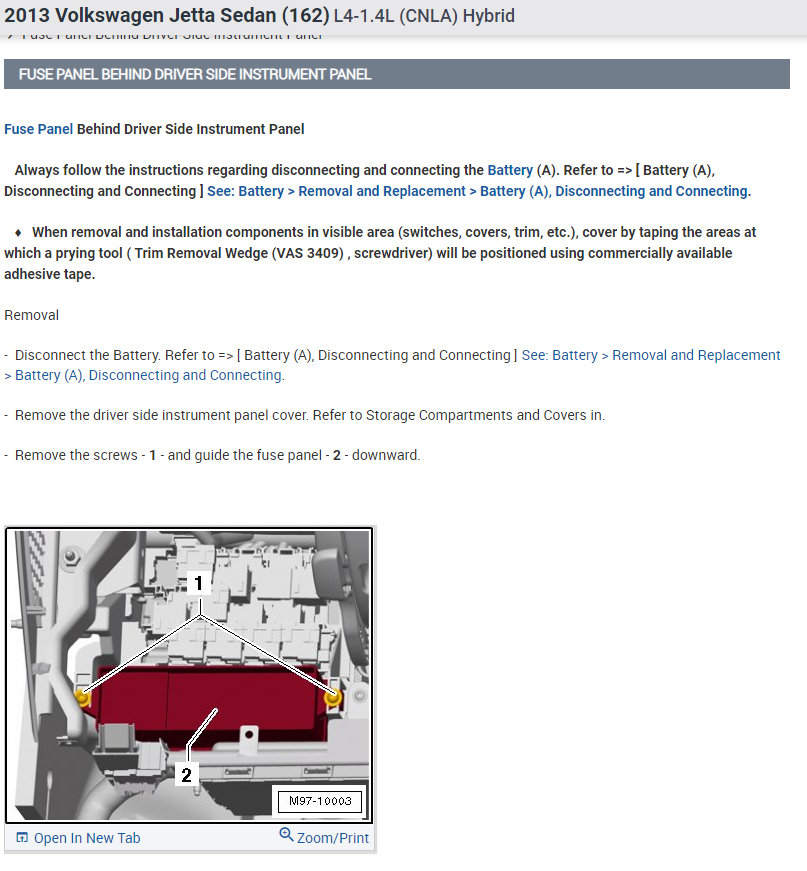

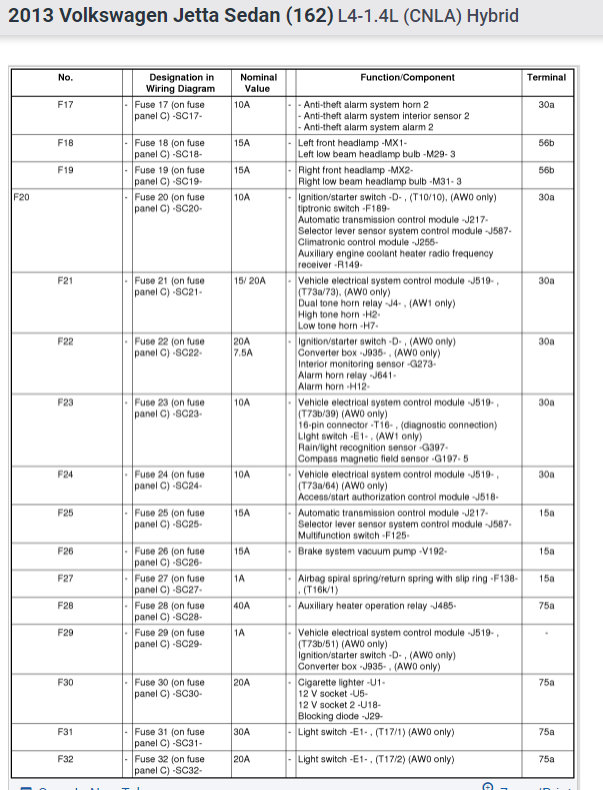

Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 13, 2021 at 2:43 AM (Merged)
