Fuse diagram needed for under dash

MOUSE357

MEMBER
1988 FORD F-150
5.0L
2WD
AUTOMATIC
184,652 MILES

Need to know what the fuses go to so we can hook the inside components up. Thank you for your time.

Sunday, March 29th, 2020 AT 10:47 PM

3 Replies

ASEMASTER6371

MECHANIC
52,797 POSTS

Good morning,

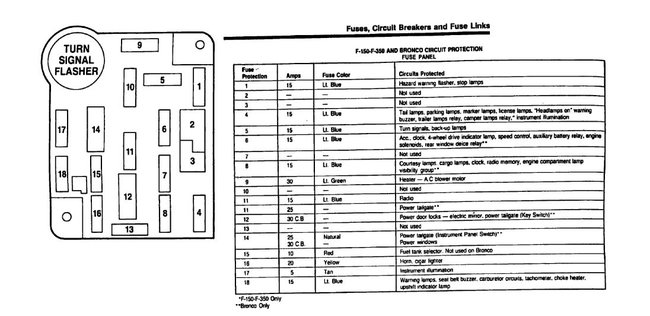

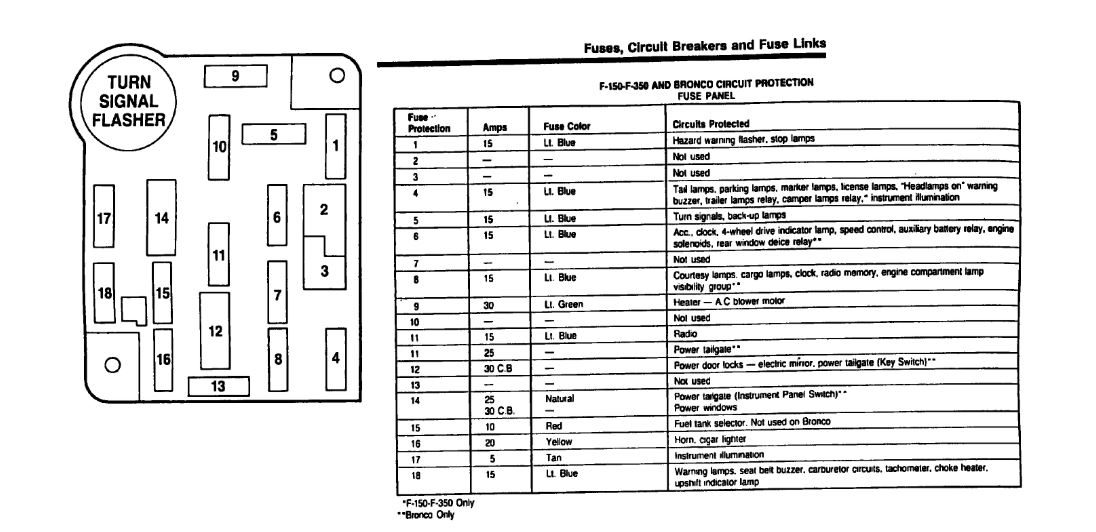

I attached a diagram of the fuse block with fuse locations, amps and what they control.

Roy

Image (Click to make bigger)
