Fuse diagram?

2009 VOLKSWAGEN JETTA
200,000 MILES • 2.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
LYLESCOTT77
I don’t have the manual so I don’t have the fuse diagram. can you send me the one under the hood and under the dash?
Aug 8, 2025 at 2:42 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,494 POSTS
  • ASE Certified Mechanic

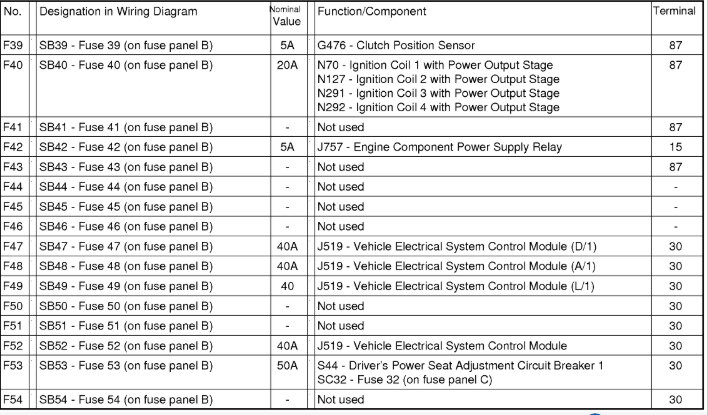

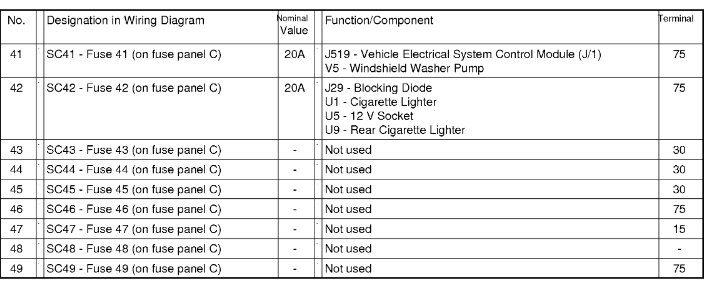

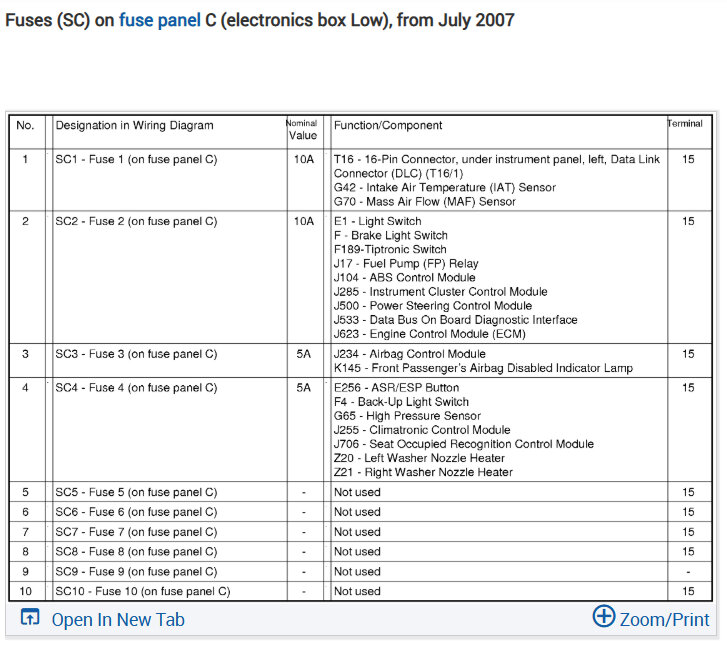

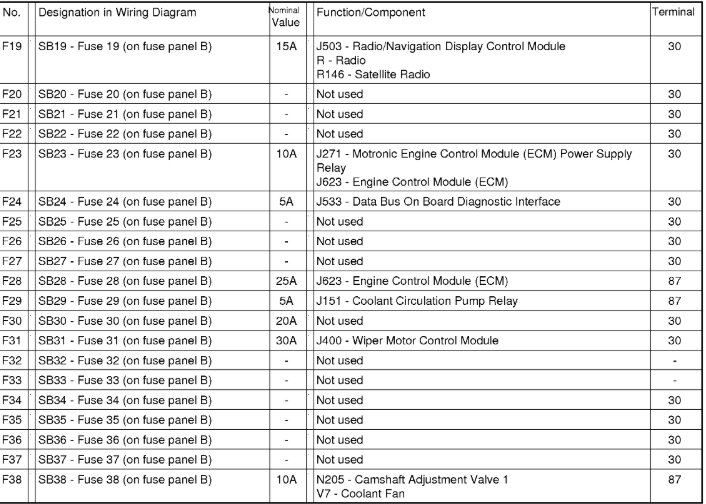

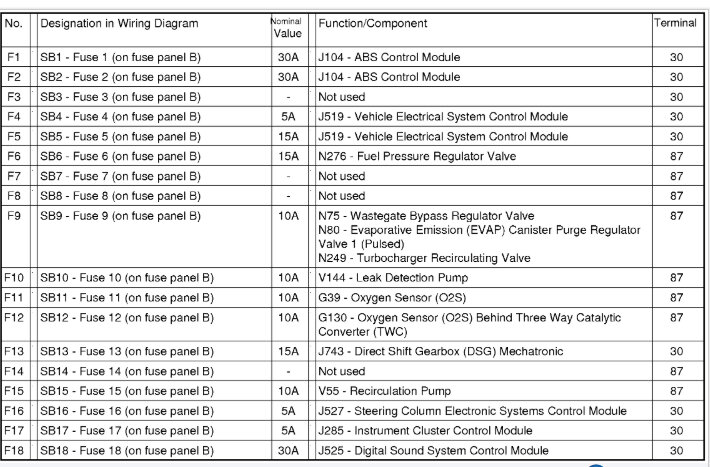

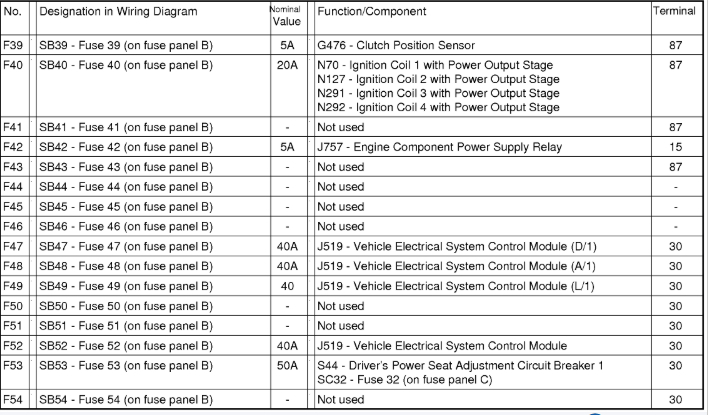

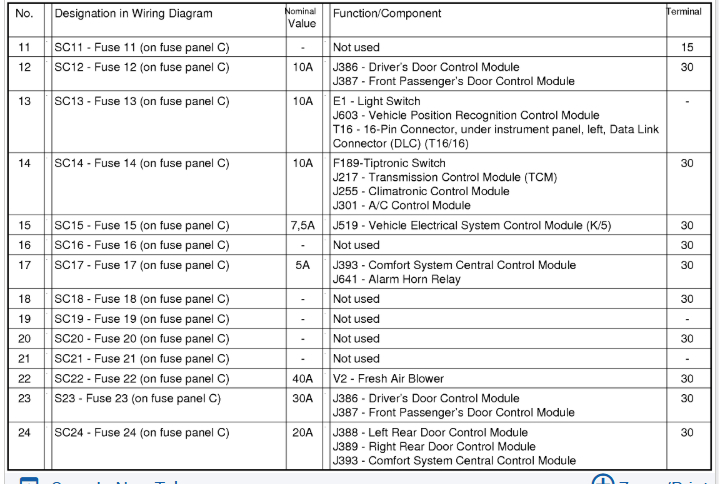

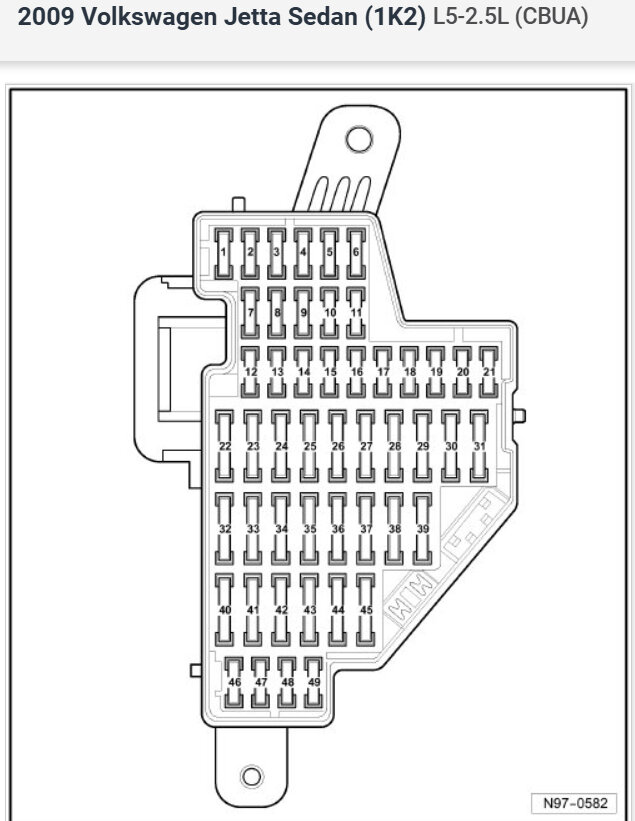

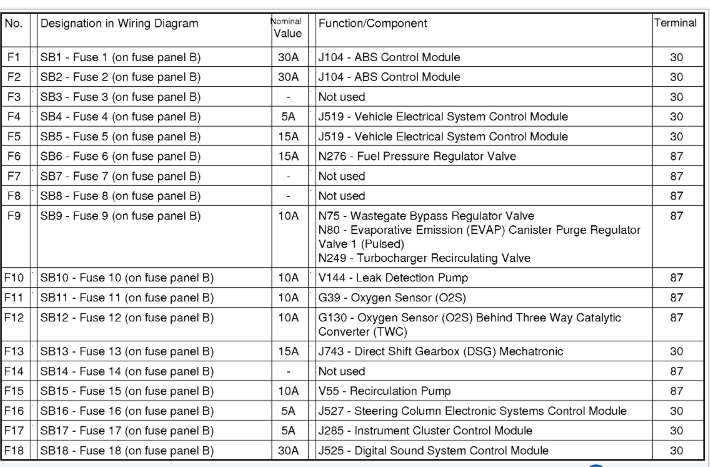

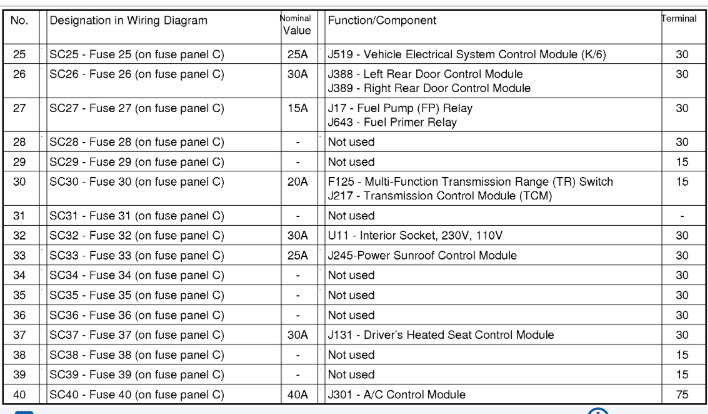

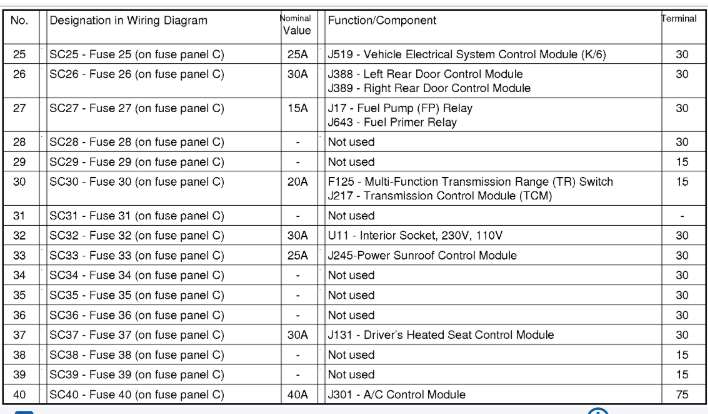

This information is a little vague but here is wat I found. I hope it helps you. Check out the images (below). Let us know if you need anything else. The first three are for the engine room fuse panel.



Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
