Fuse diagram

CHRIS KENT2

MEMBER
1989 FORD CROWN VICTORIA
0.5L
33,000 MILES

Cannot find reliable diagram.

Sunday, July 12th, 2020 AT 11:55 AM

1 Reply

DANNY L

MECHANIC
5,648 POSTS

Hello, I'm Danny.

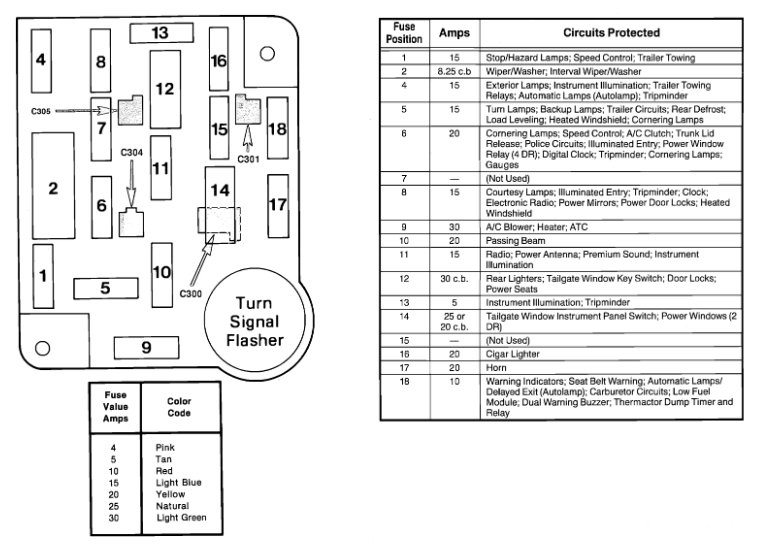

I've attached a picture below of the fuse block you requested. Let me know if this what you were looking for. Hope this helps and thanks for using 2CarPros.

Image (Click to make bigger)
