Fuse box diagram needed

1991 ACURA INTEGRA
80,512 MILES • AUTOMATIC
Avatar
TONYA HUDSON2
  • MEMBER
  • 15 POSTS
I need a detailed breakdown of the fuse box diagram both under the hood and kick side panel.
May 27, 2022 at 3:09 AM
Advertisement
Avatar
SQM
  • ✓ASE Certified Mechanic
  • 6,383 POSTS
  • ASE Certified Mechanic
Hello,

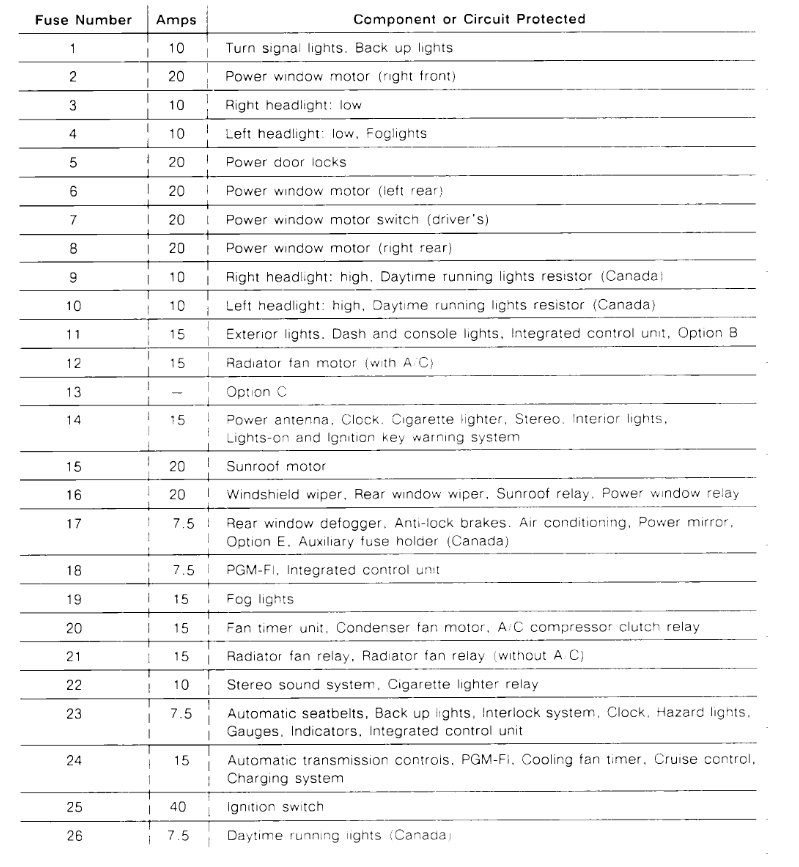

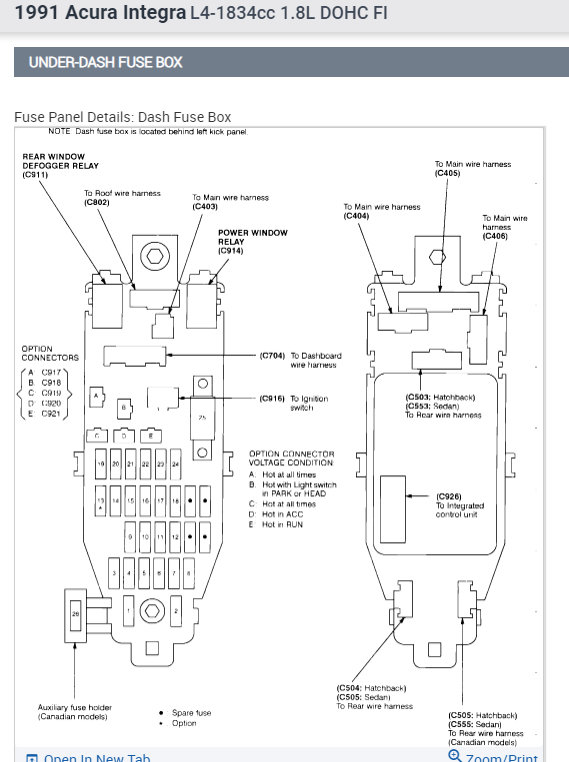

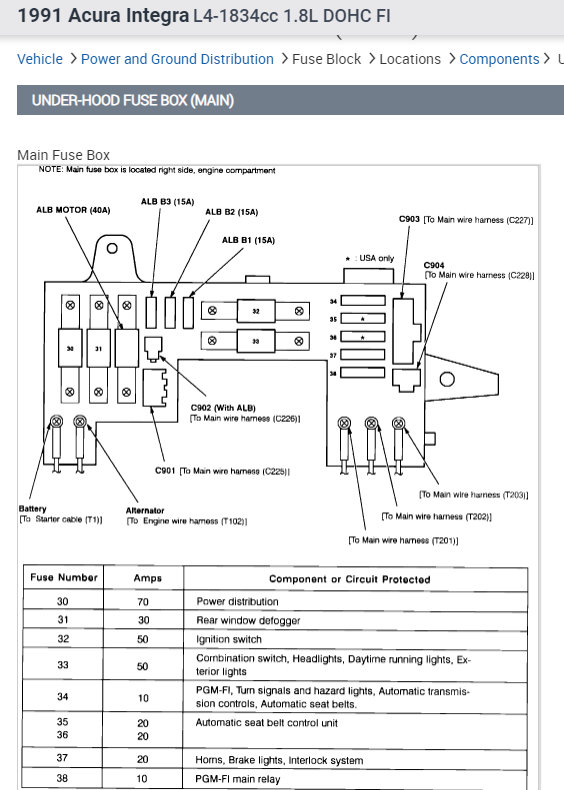

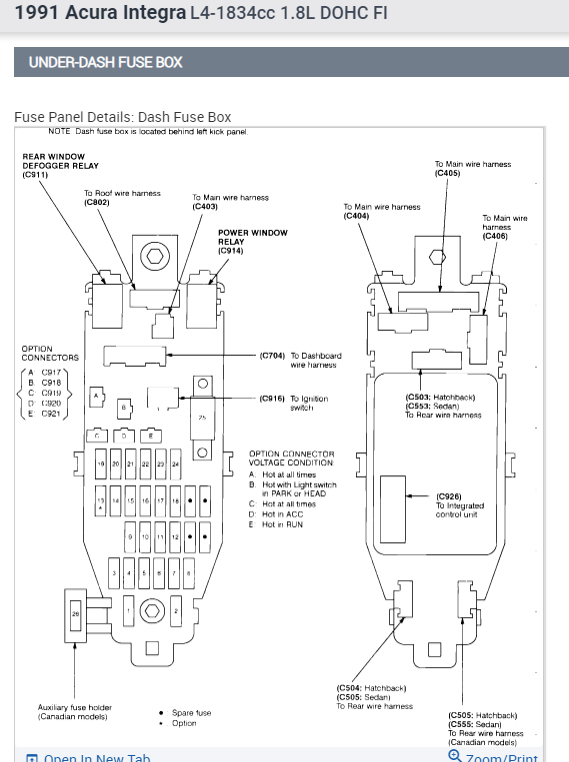

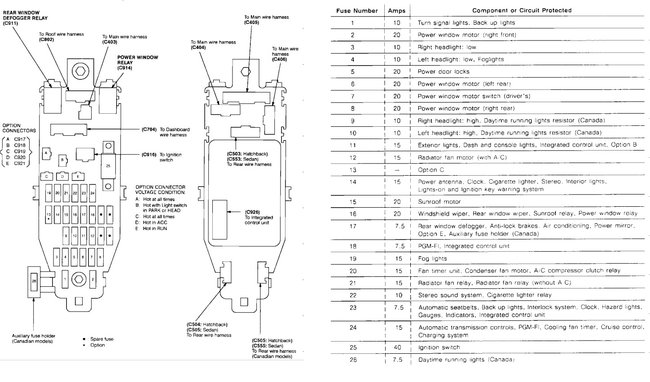

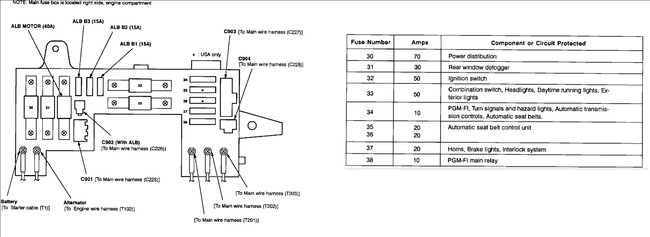

See attached for both fuse box diagram.

Let me know of any questions.
Thank you.
