Fuse box diagram needed?

Tiny
LAXGOD45
  • MEMBER
  • 2012 VOLKSWAGEN JETTA
  • 2.5L
  • 5 CYL
  • 4WD
  • AUTOMATIC
  • 156,000 MILES
I need a diagram and labels for my car listed above.
Thursday, November 17th, 2022 AT 8:06 AM

3 Replies

Tiny
CARADIODOC
  • MECHANIC
  • 33,873 POSTS

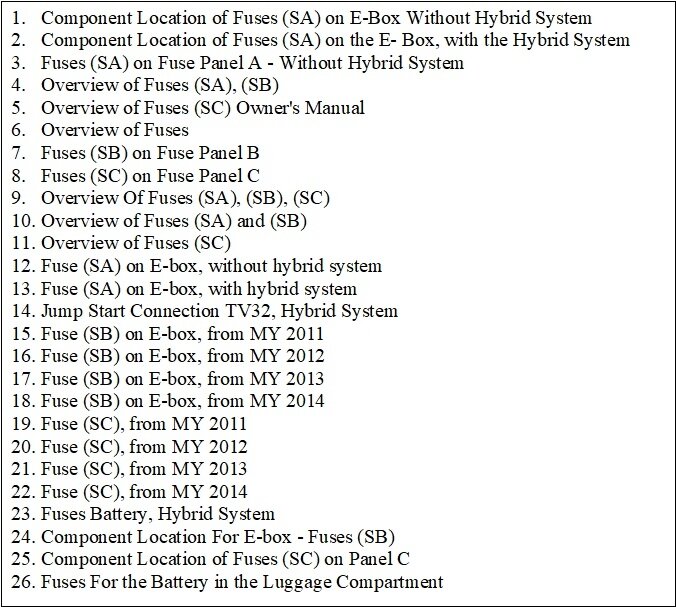

There's way too many options to format for posting. Also, I only have a listing for a 2.0L turbo engine. Use this list and drawing to choose which diagrams apply to your car. It will take a little time for me to post them. My service literature doesn't specifically list a hybrid model, but that is an option on this fuse list, so you'll need to specify that too. There's also multiple model years on this list. We shouldn't need those unless your car was built early or late in the model year.
Was this
answer
helpful?
Yes
No
Thursday, November 17th, 2022 AT 11:48 AM
Tiny
CARADIODOC
  • MECHANIC
  • 33,873 POSTS
This is taking way too long. I have to delete, then update the page for each diagram I delete. One of the first ones had a tiny error in the title, then none of the others showed up. I'm sorry if you got a dozen notices over and over telling you I posted a reply. Let me try this again.
Was this
answer
helpful?
Yes
No
Thursday, November 17th, 2022 AT 7:53 PM
Tiny
CARADIODOC
  • MECHANIC
  • 33,873 POSTS

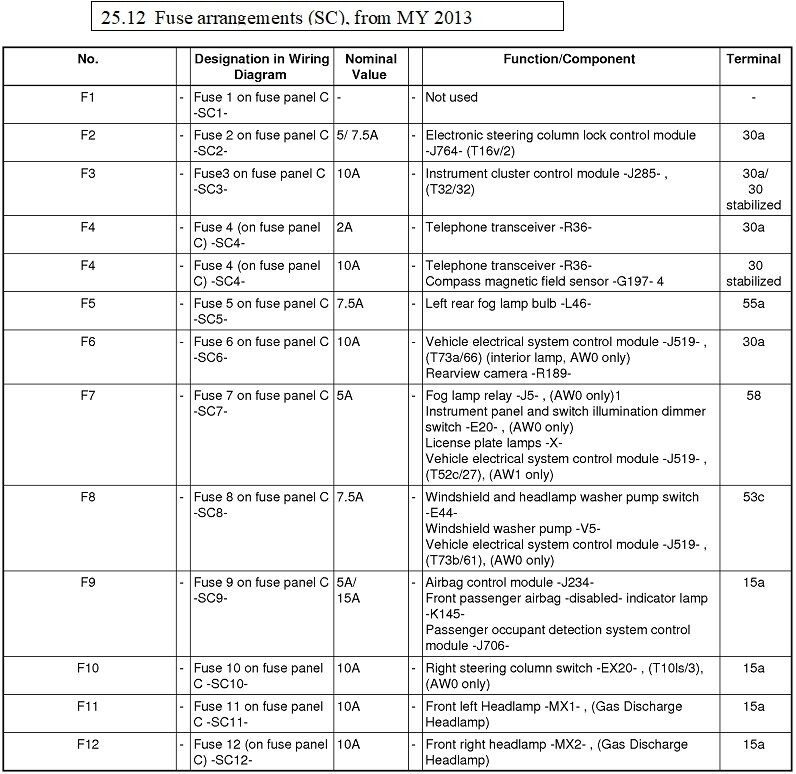

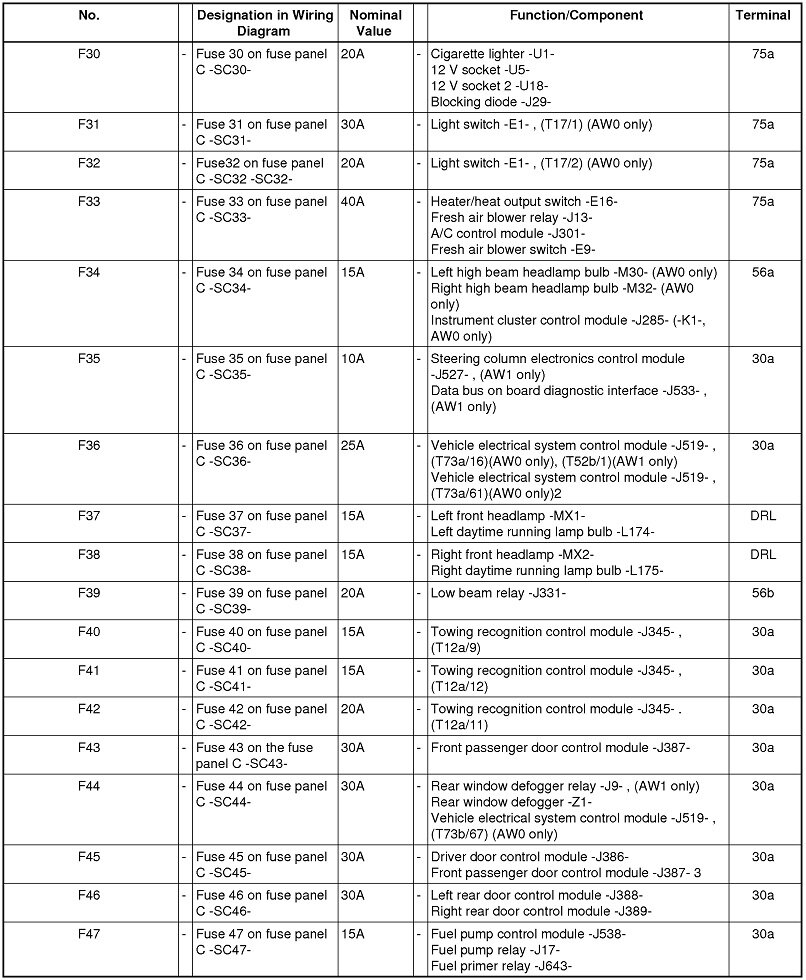

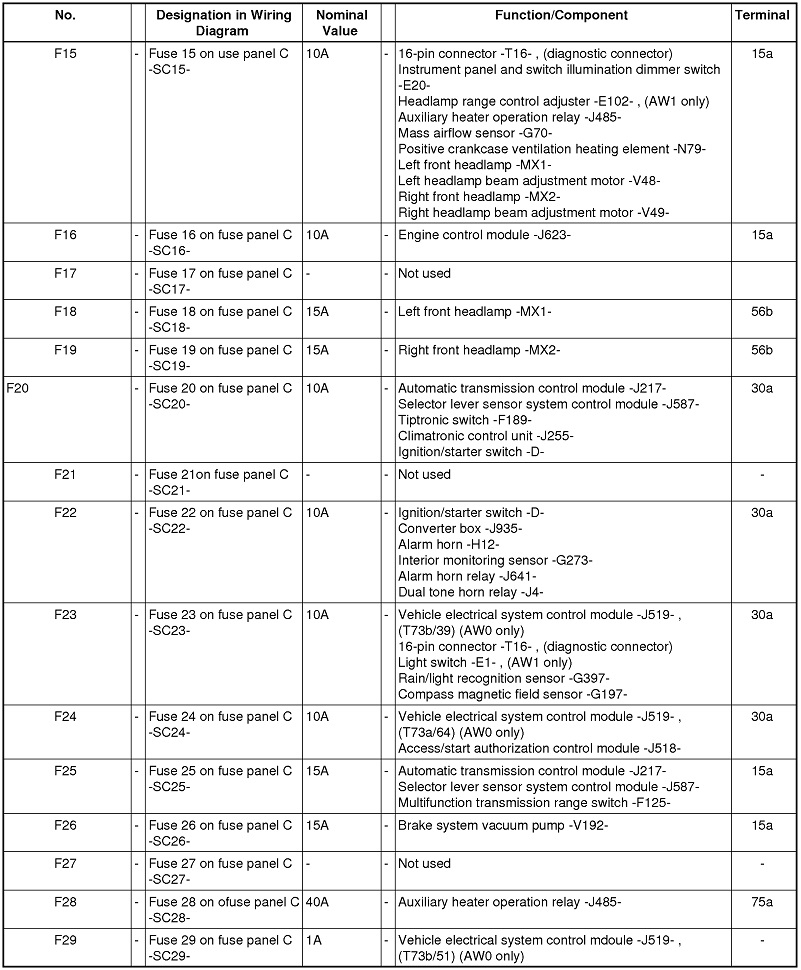

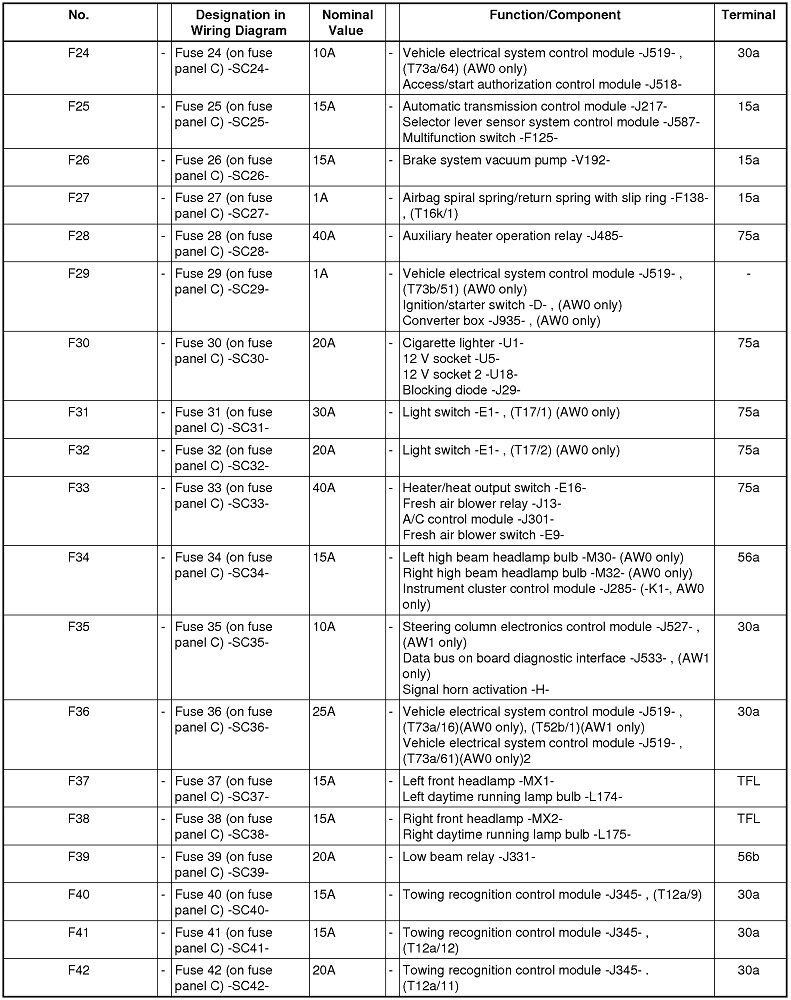

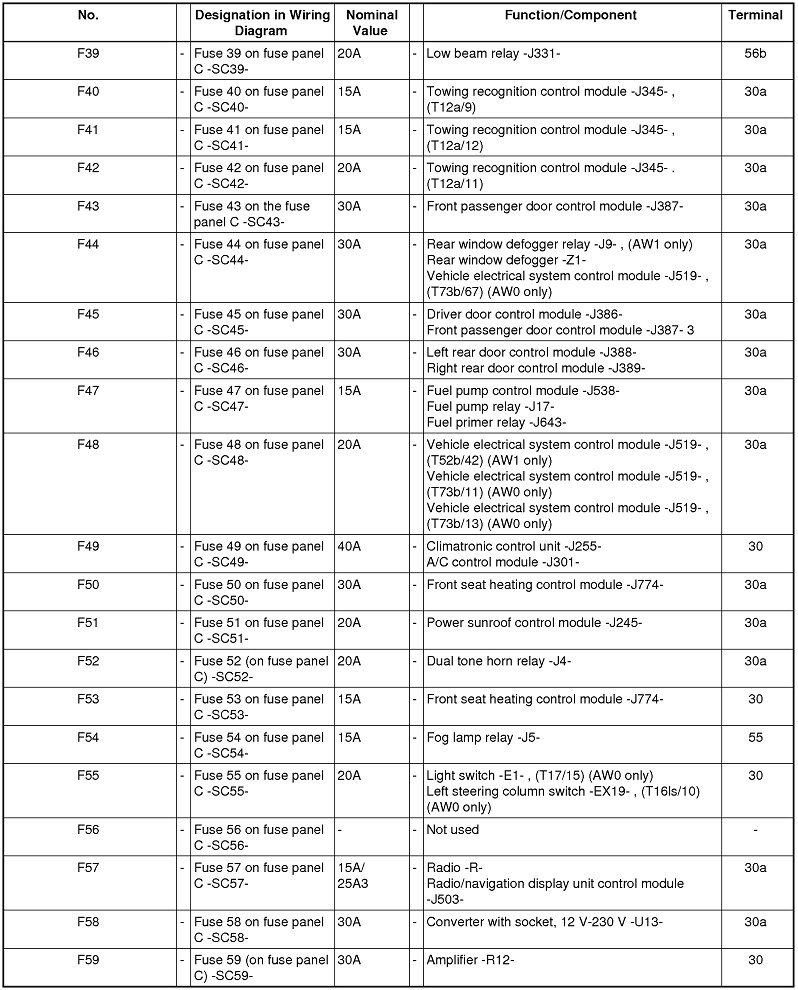

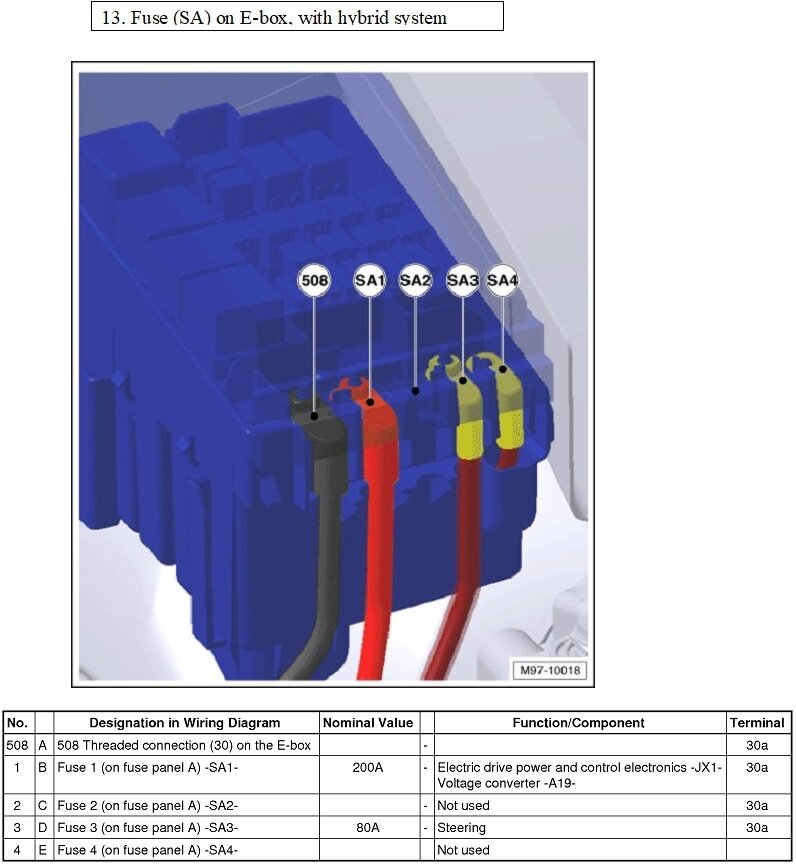

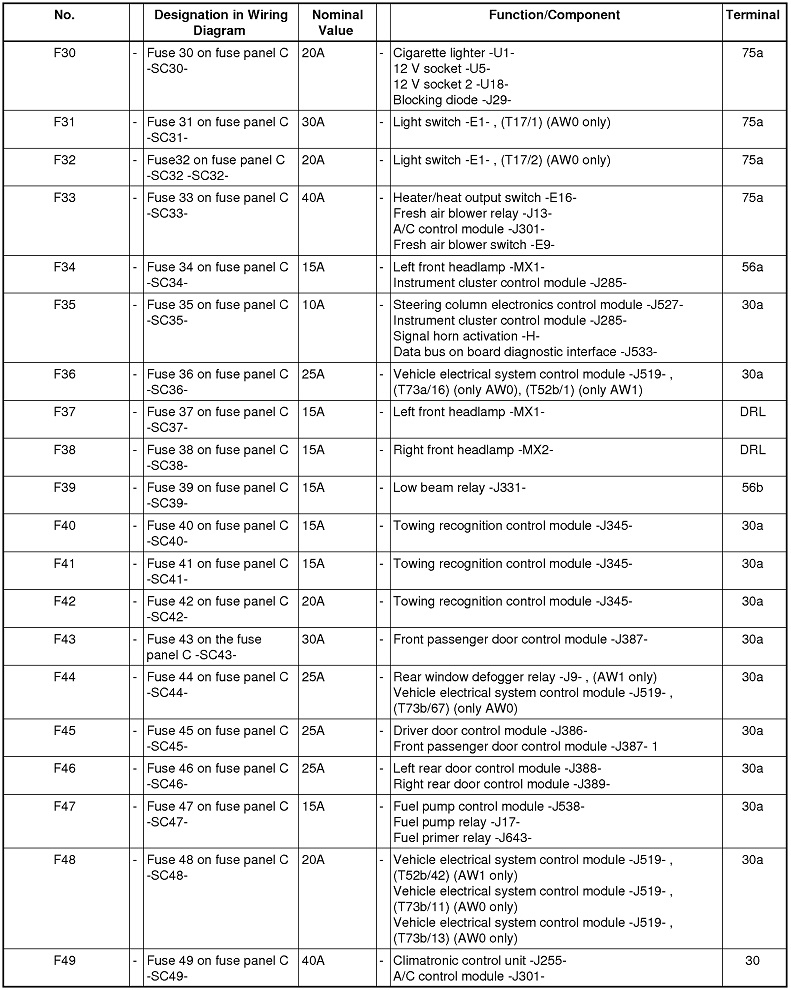

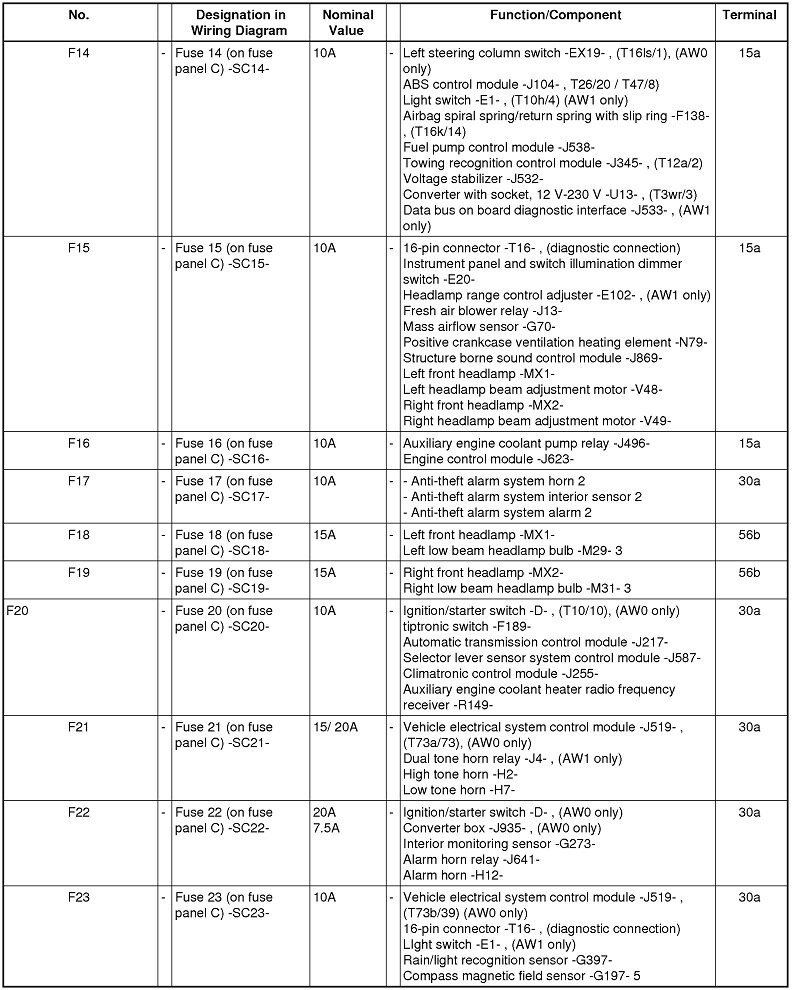

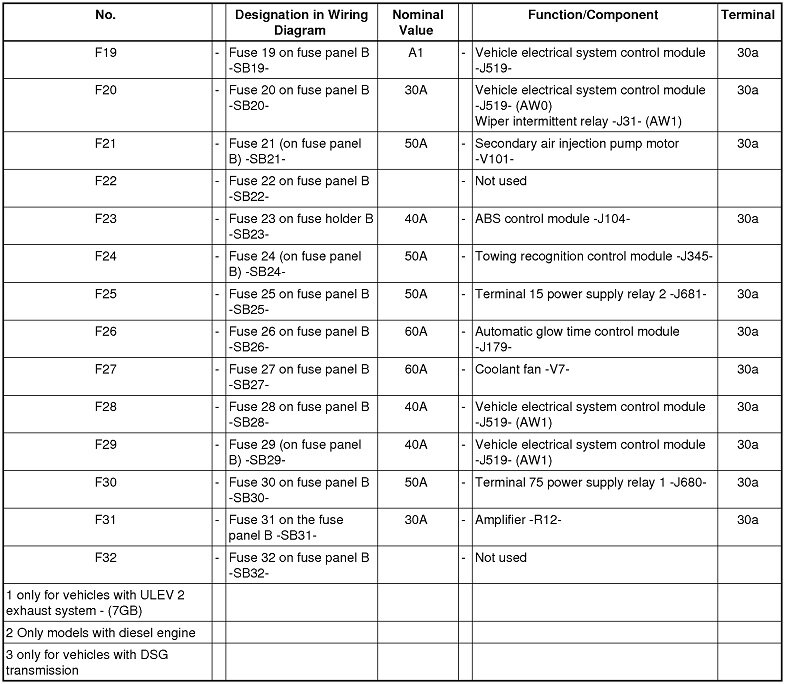

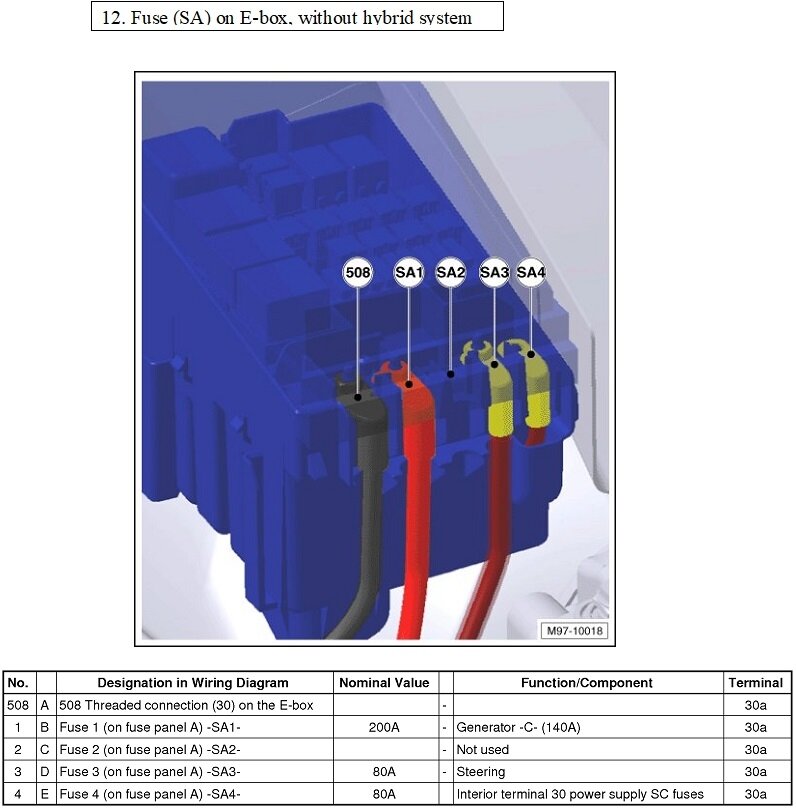

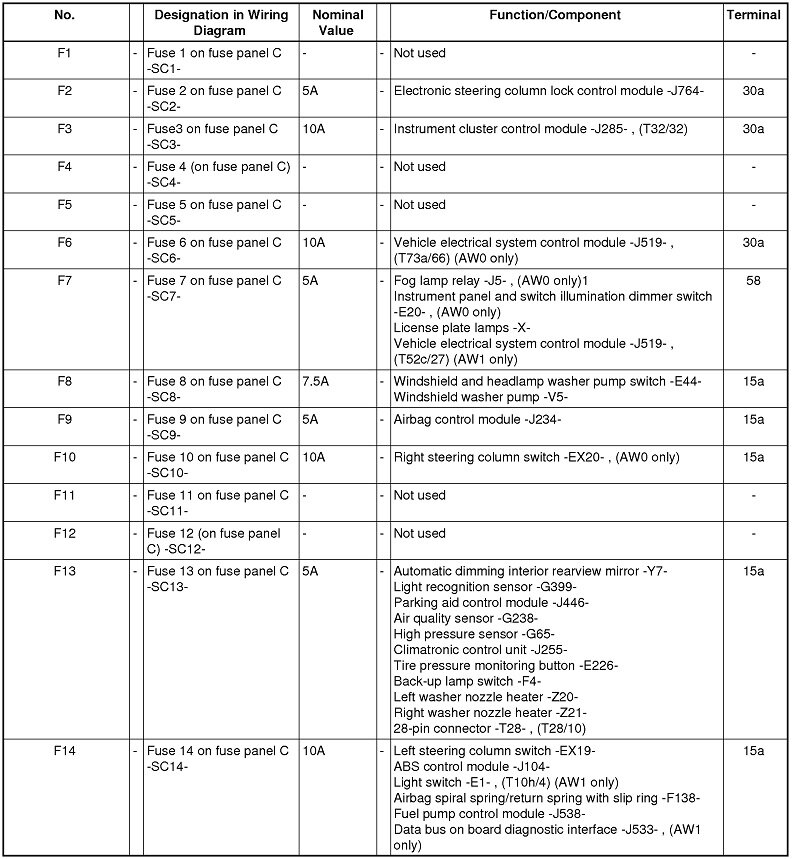

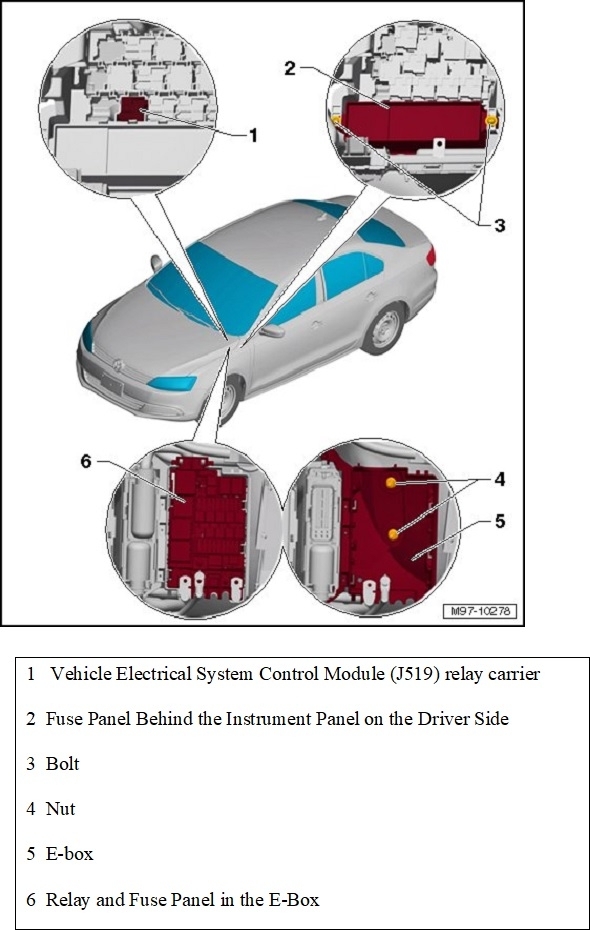

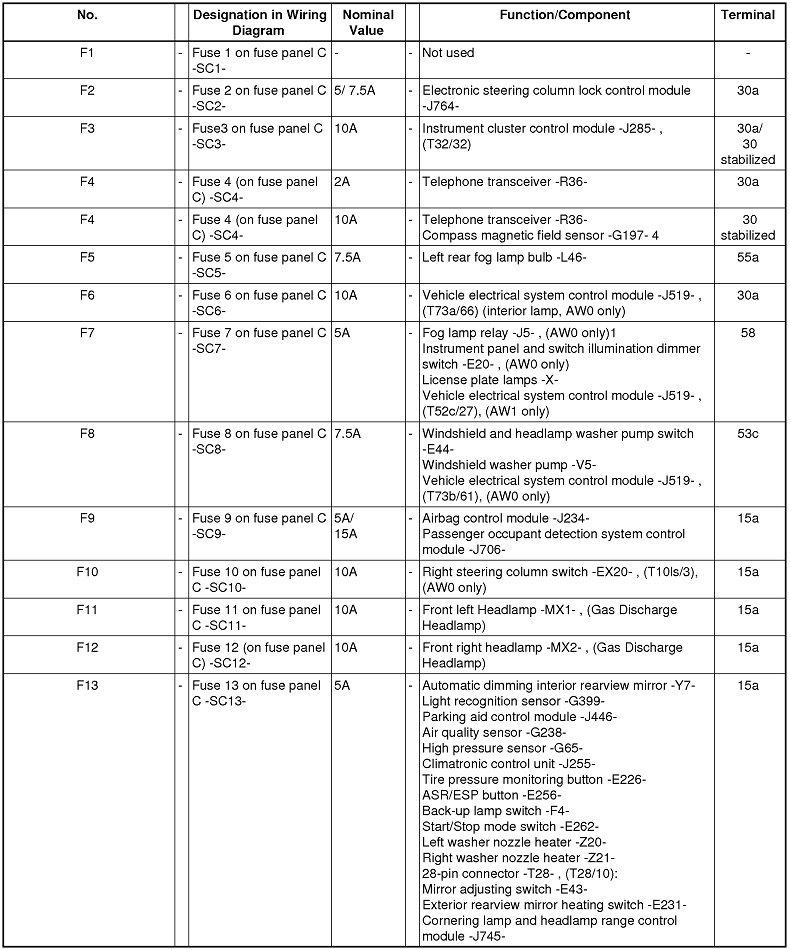

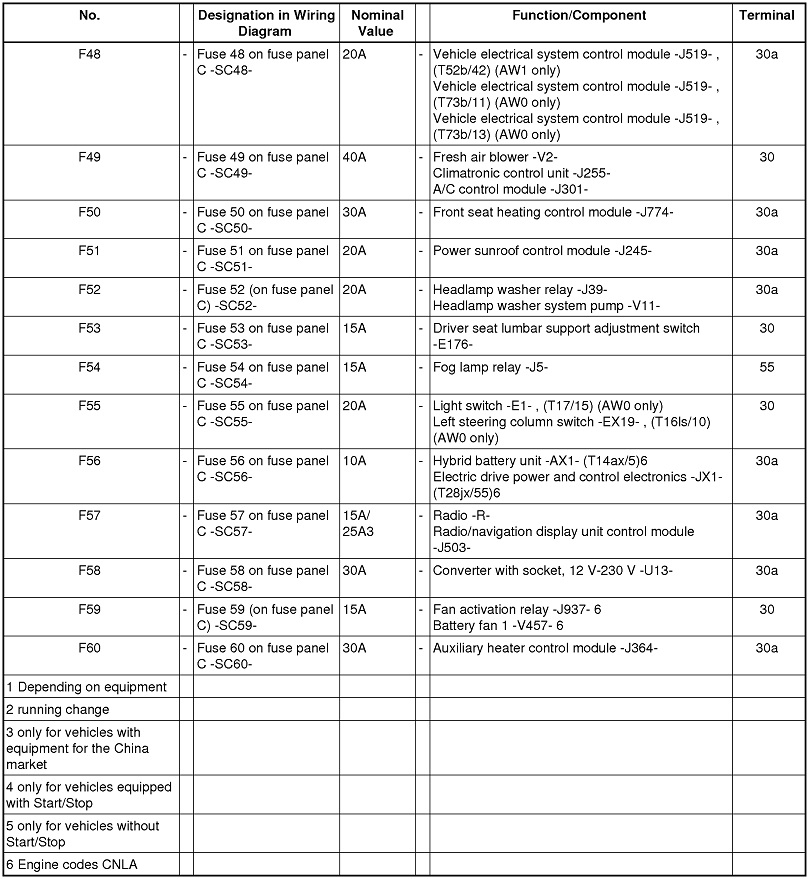

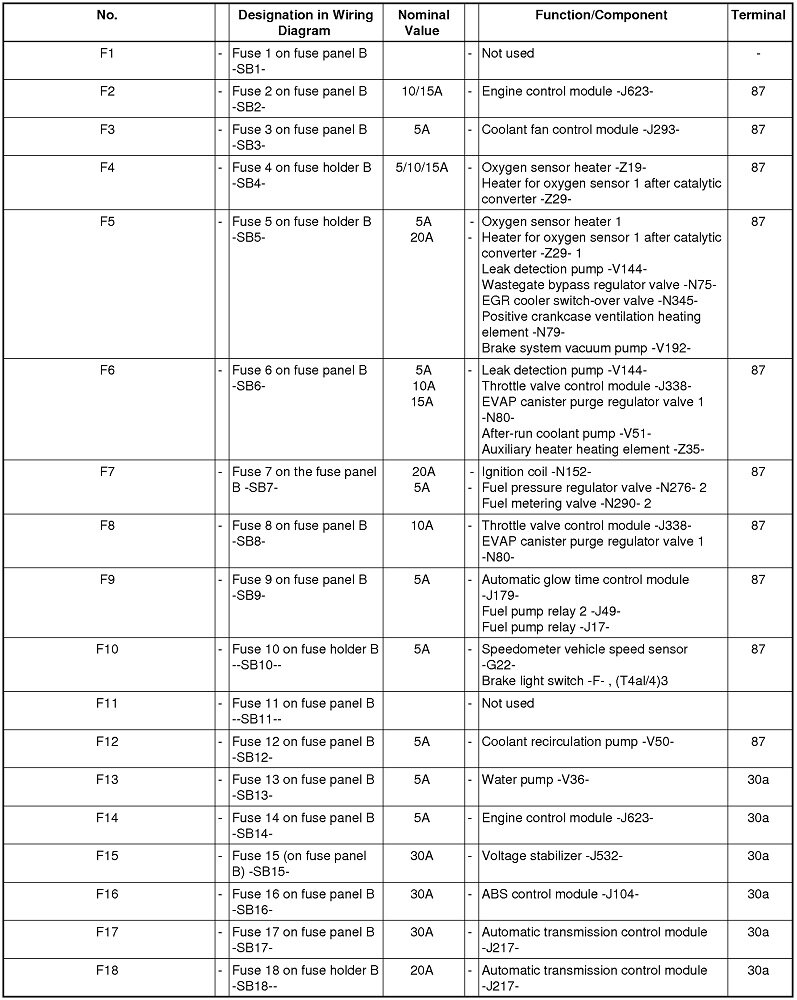

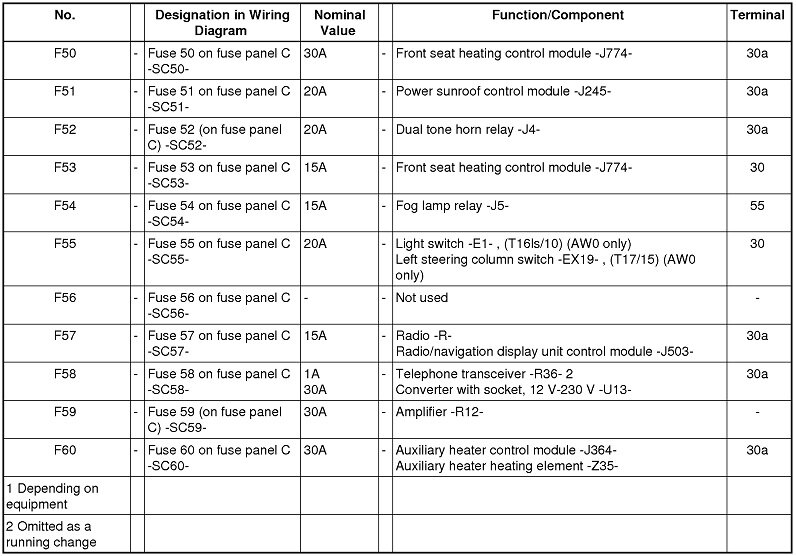

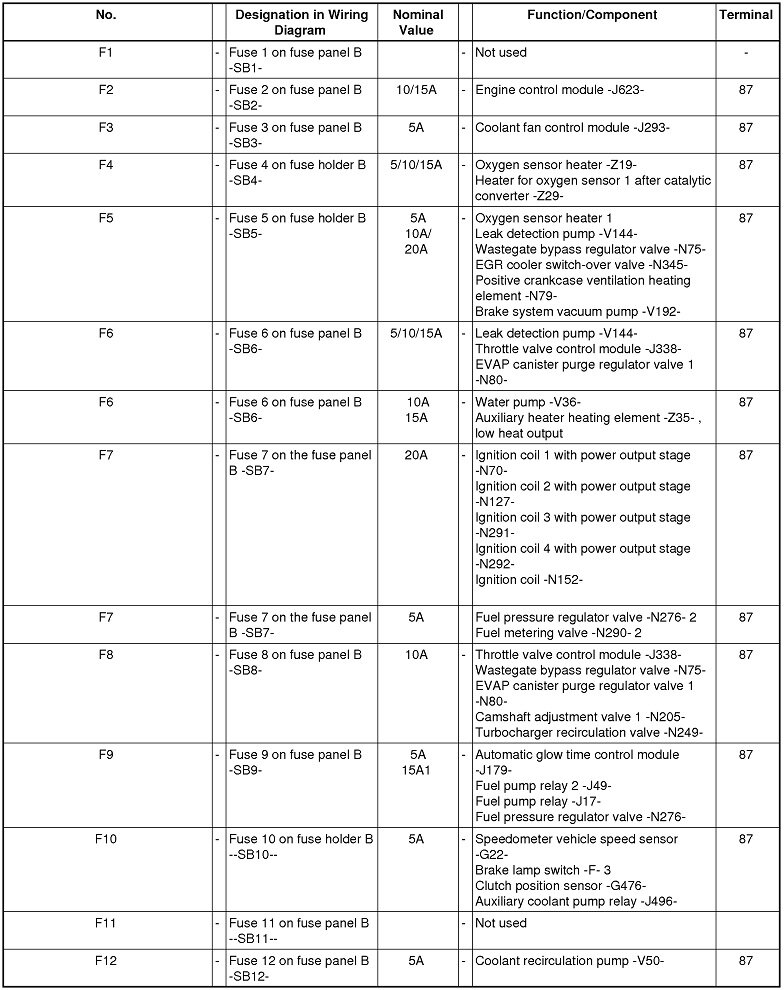

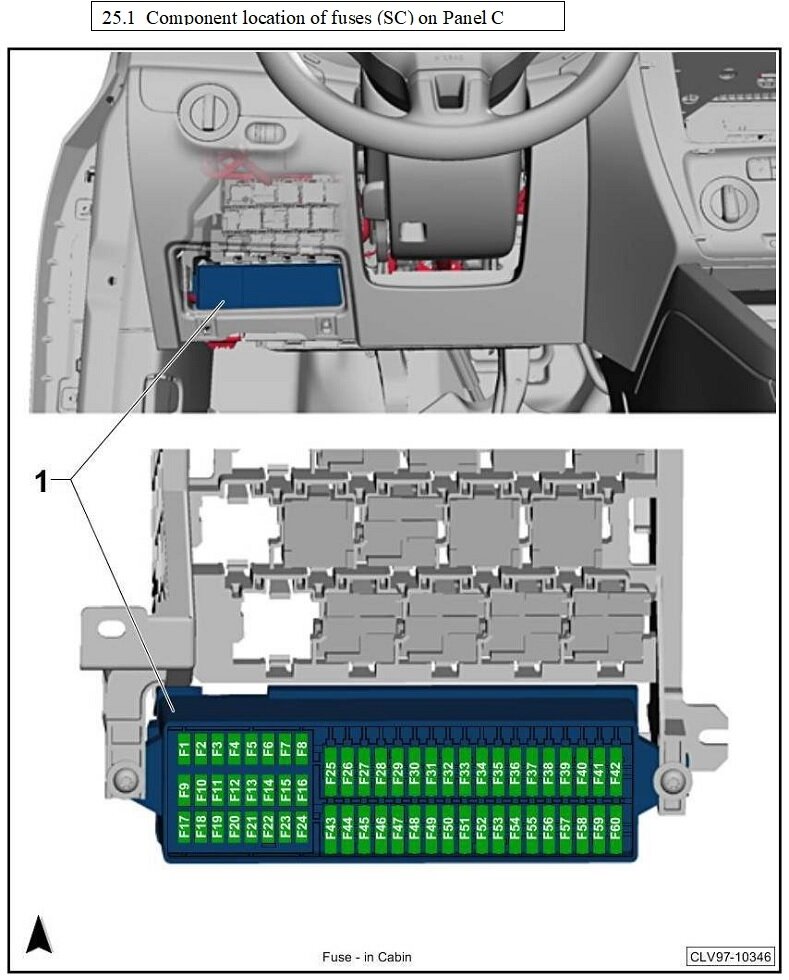

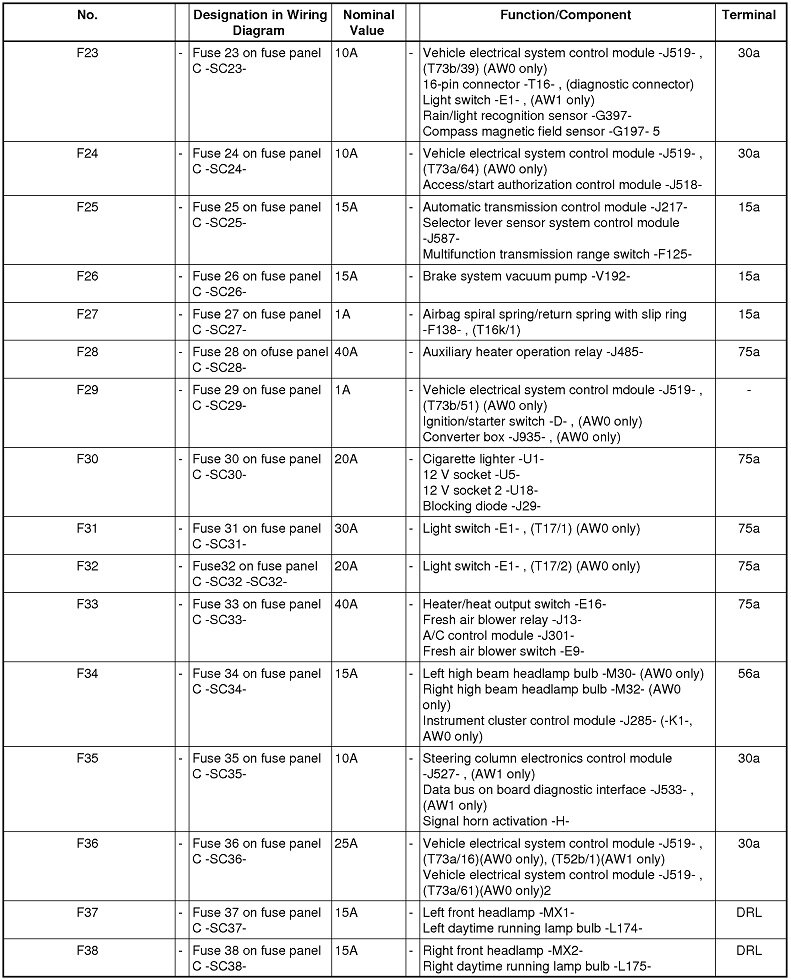

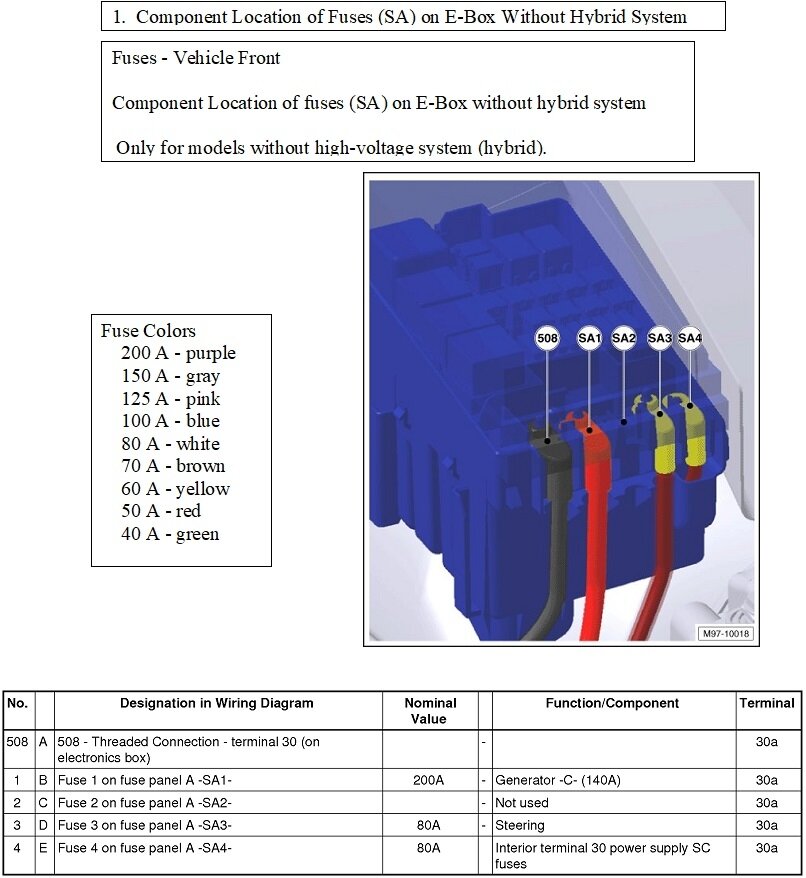

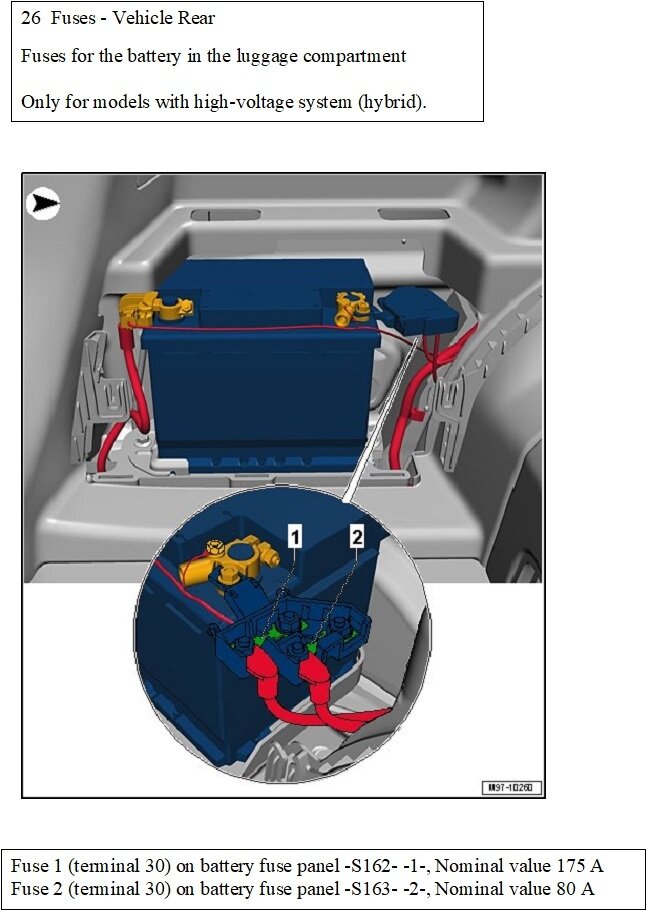

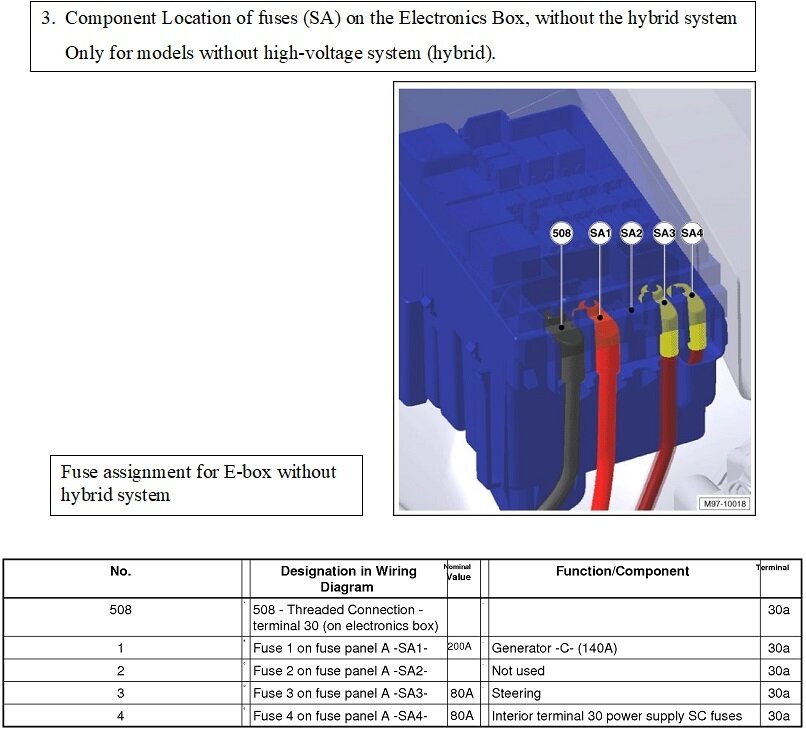

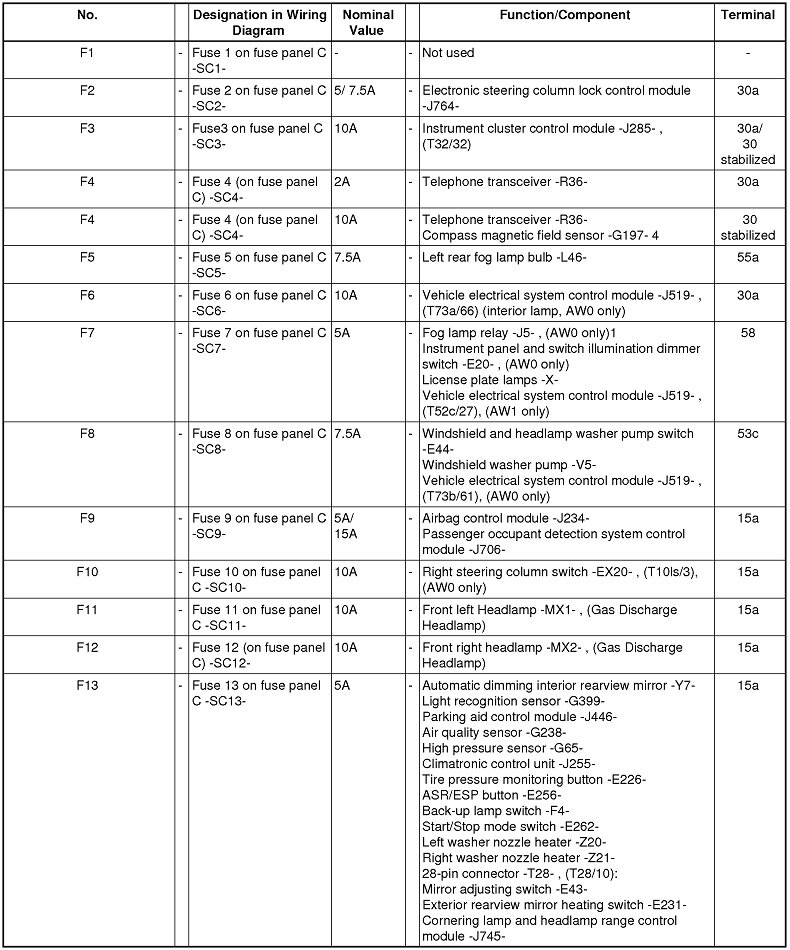

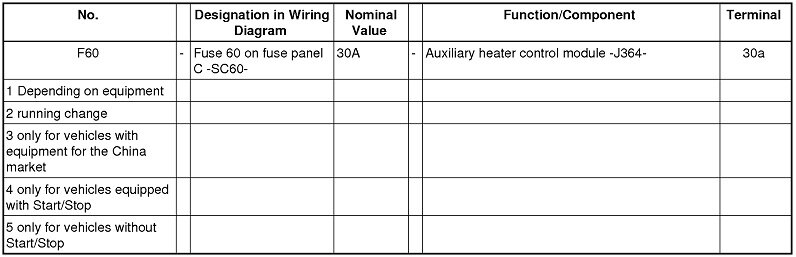

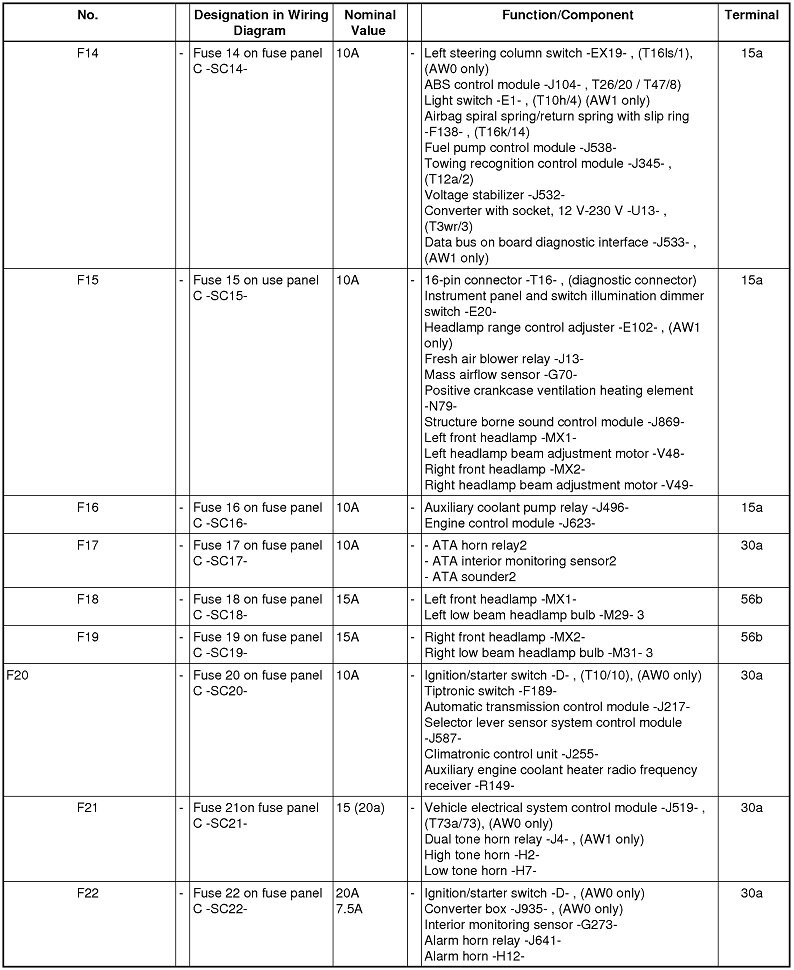

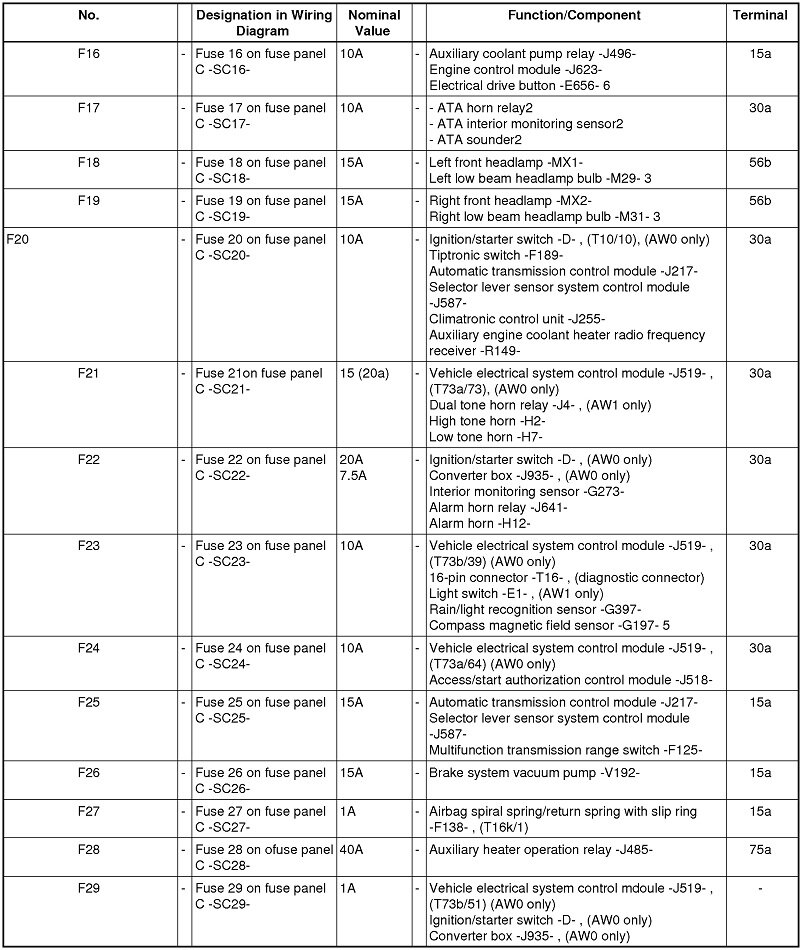

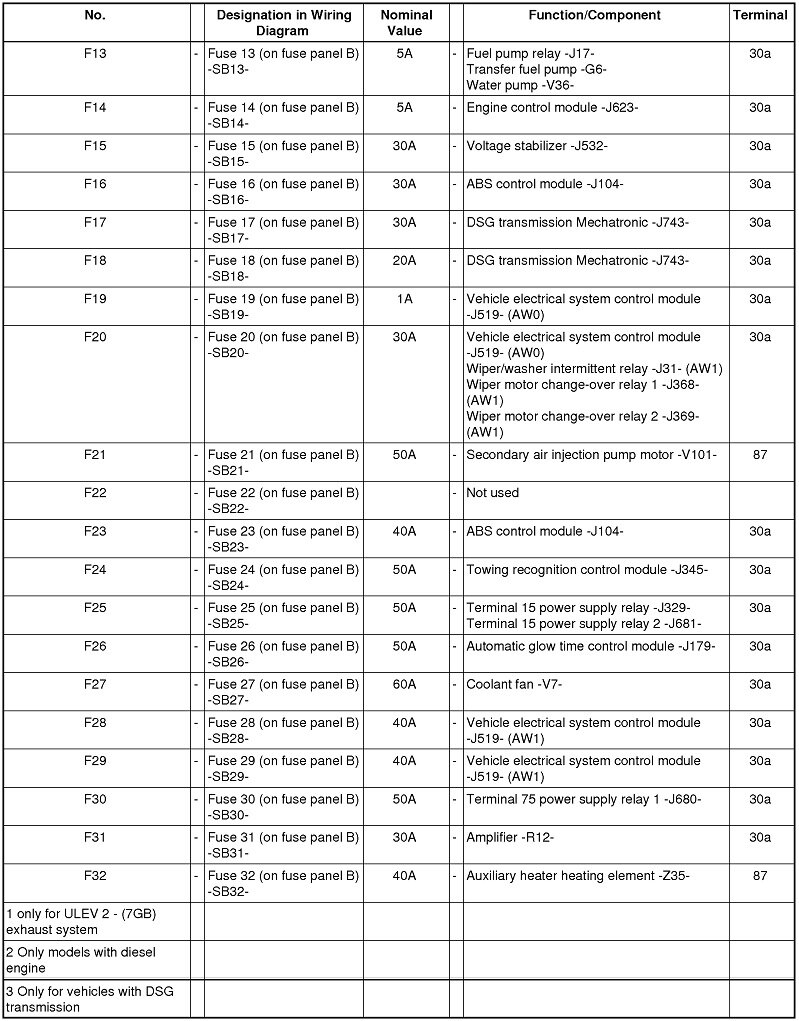

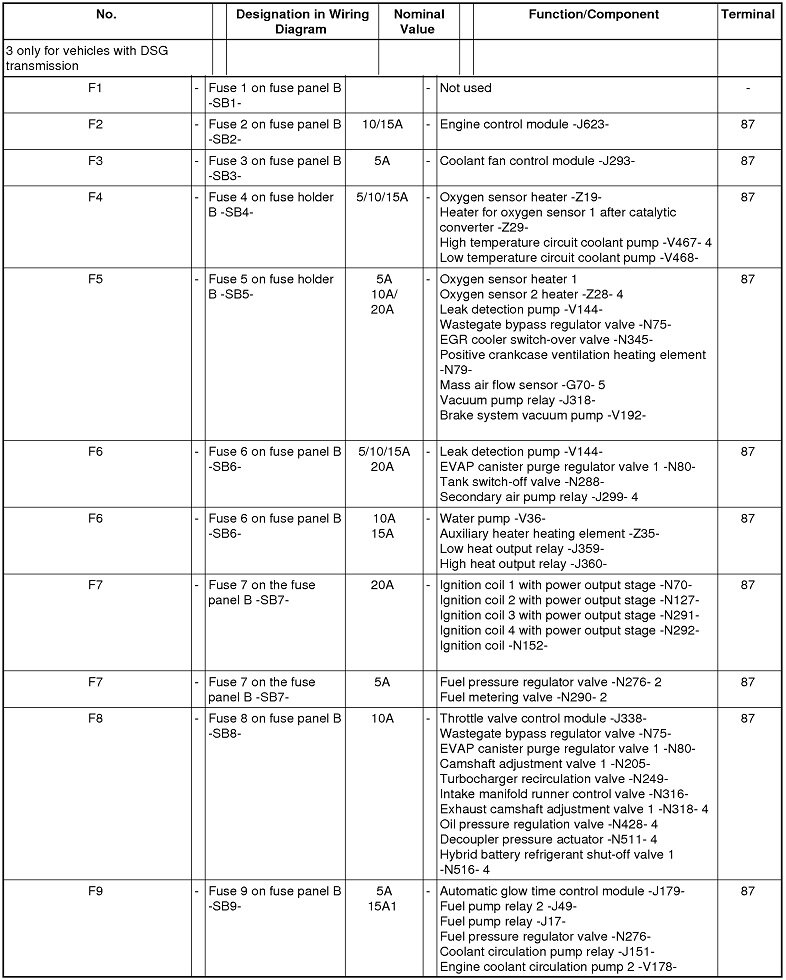

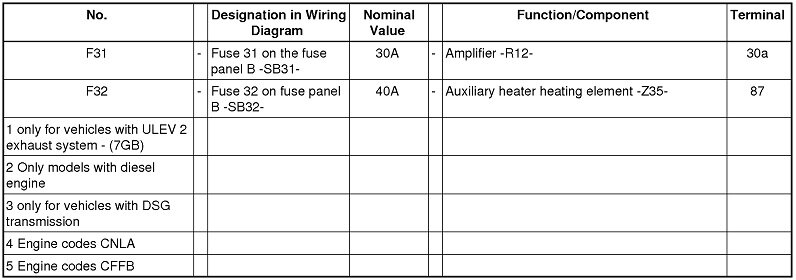

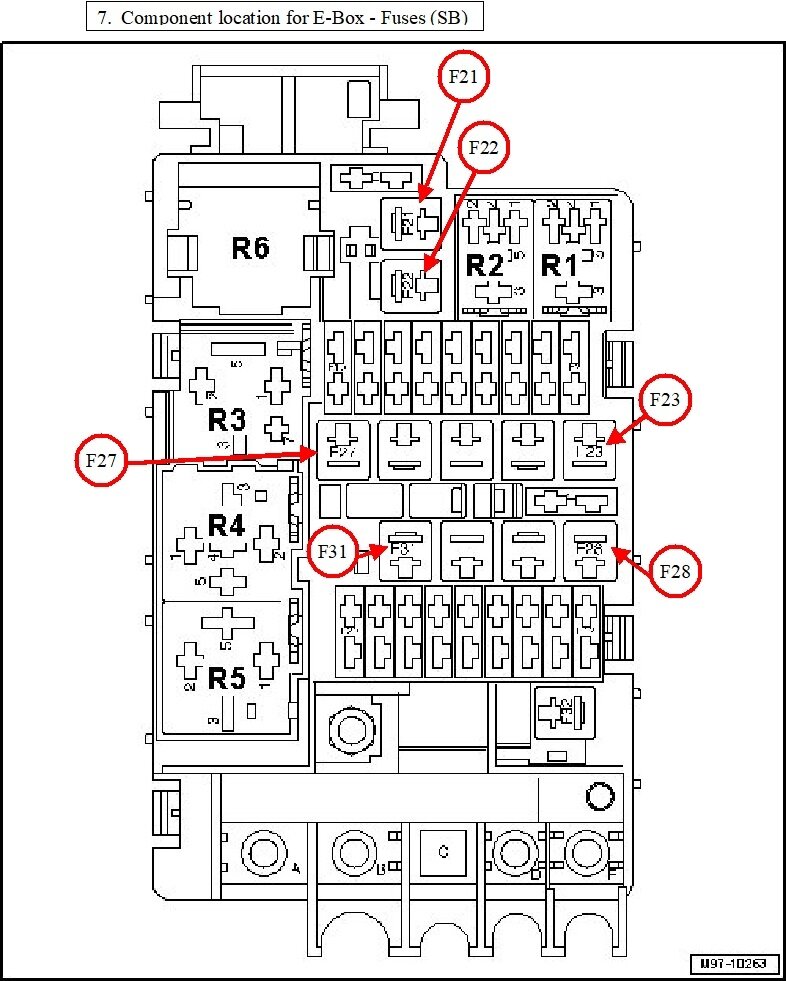

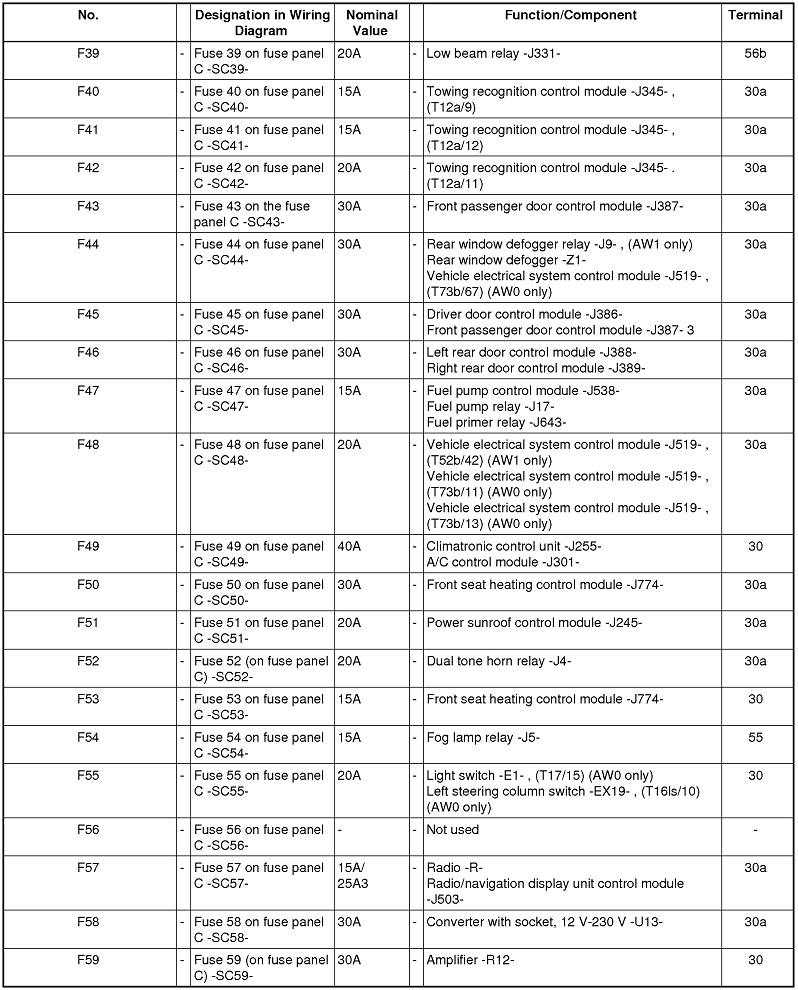

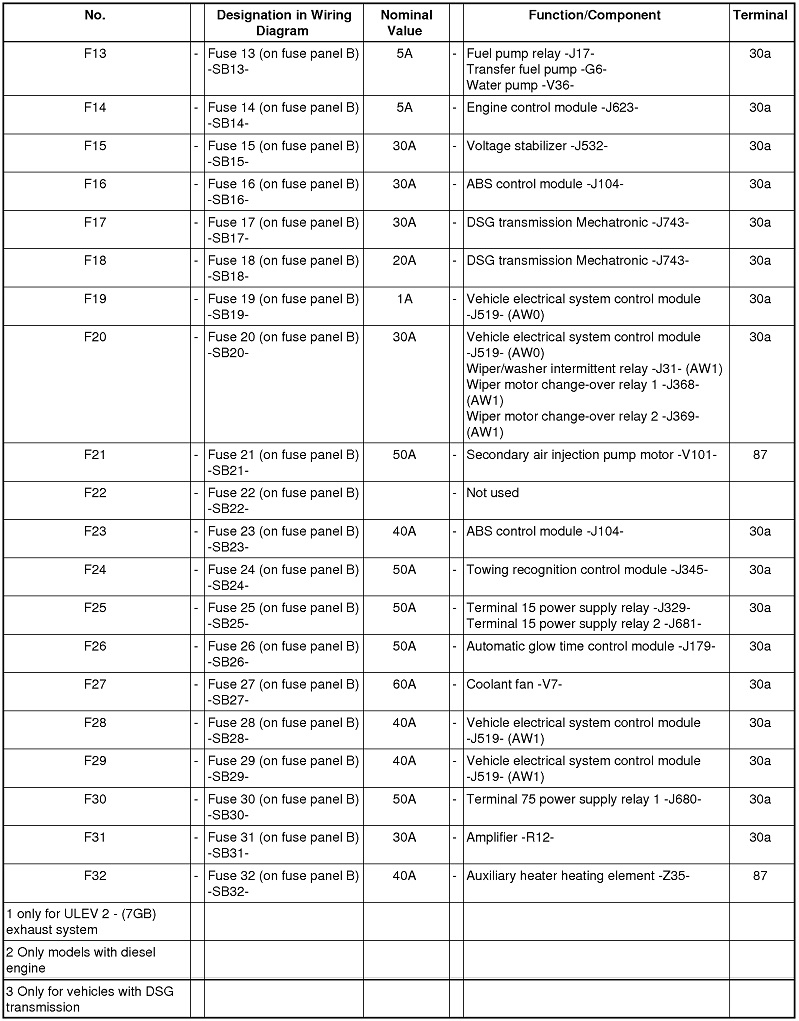

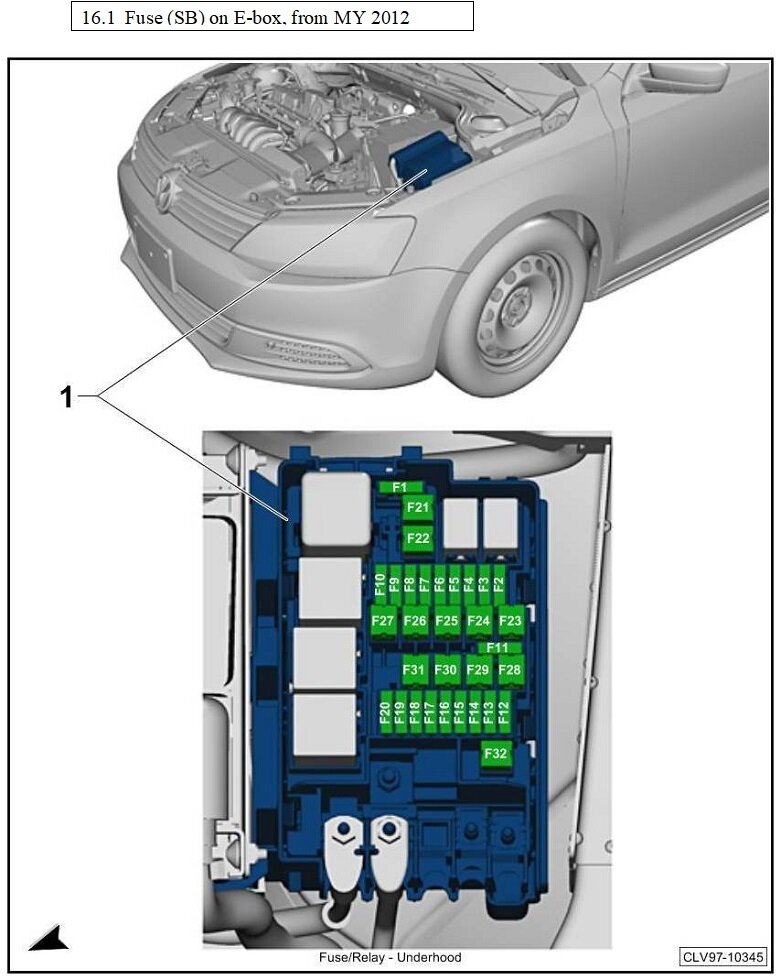

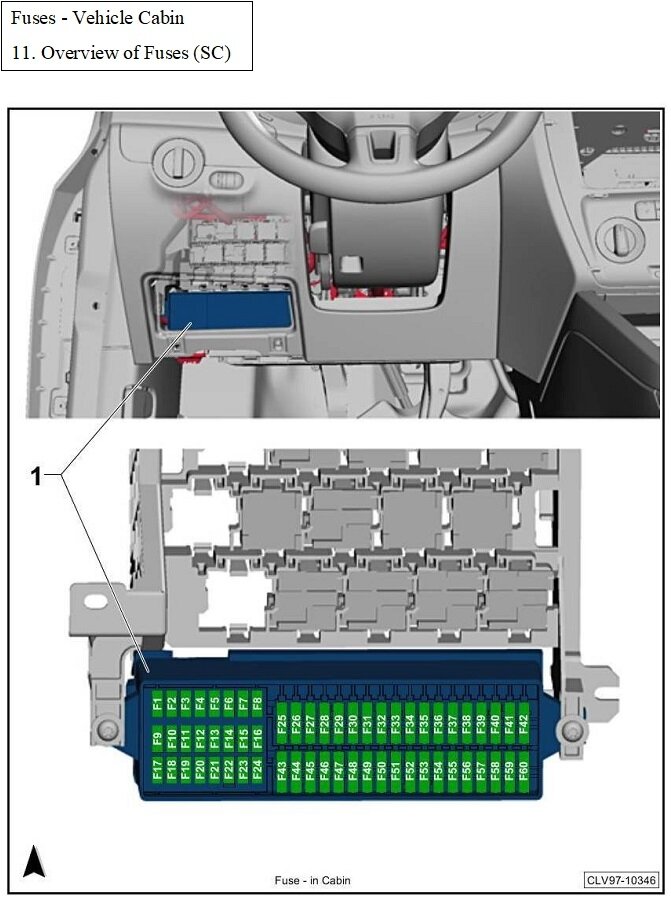

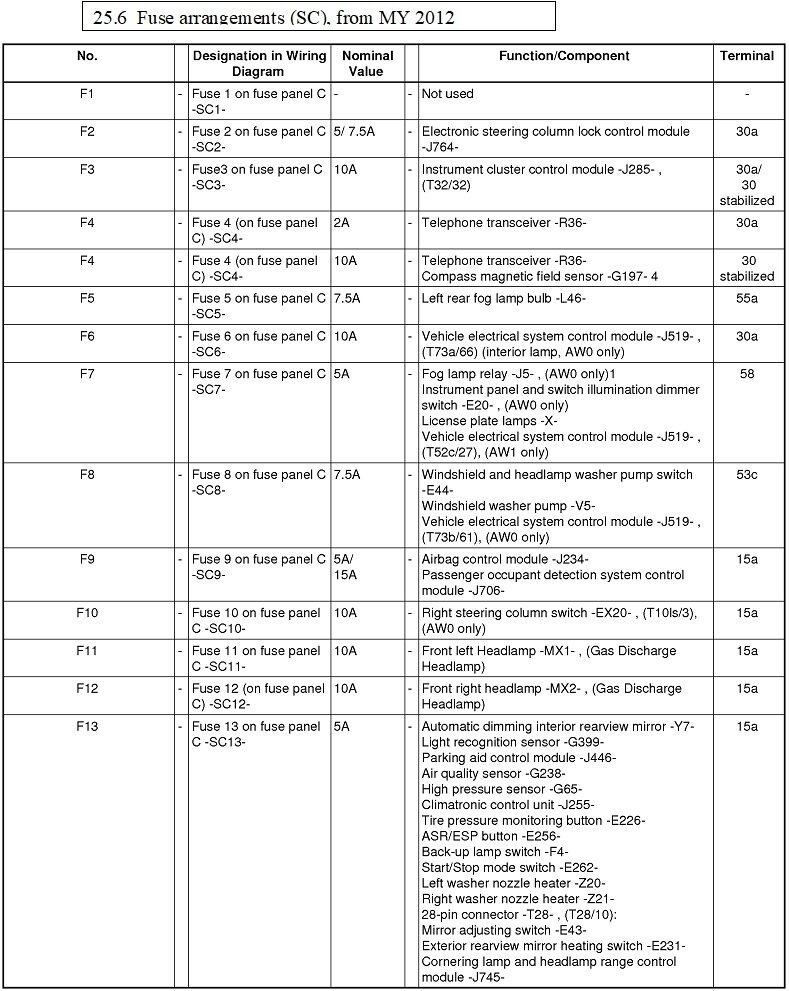

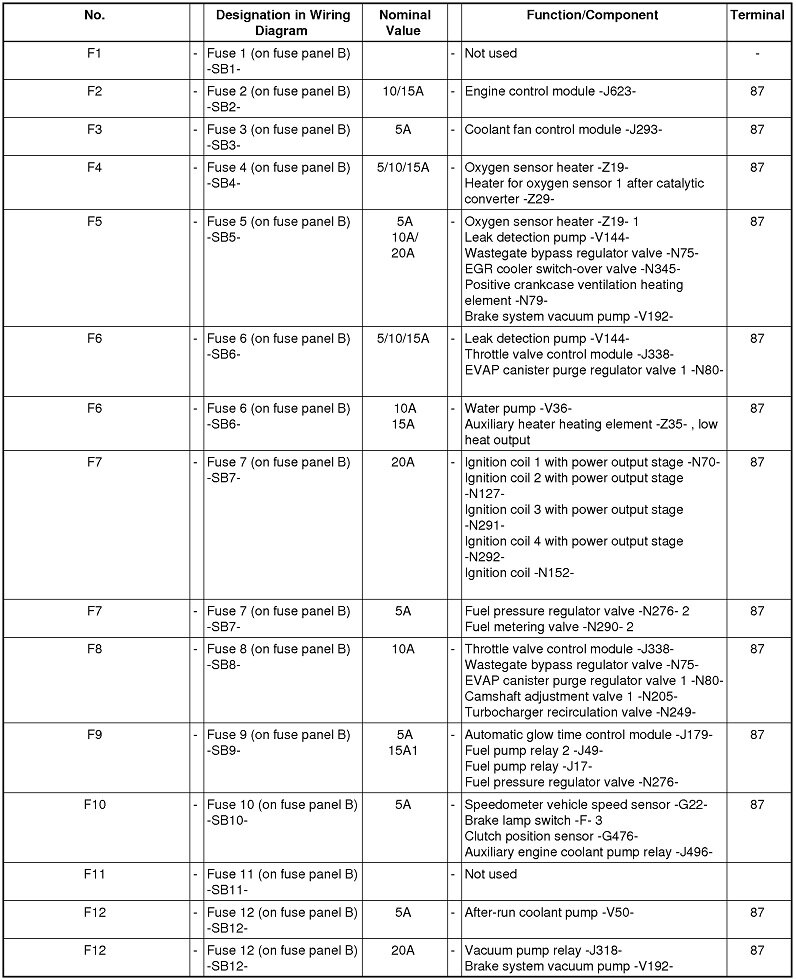

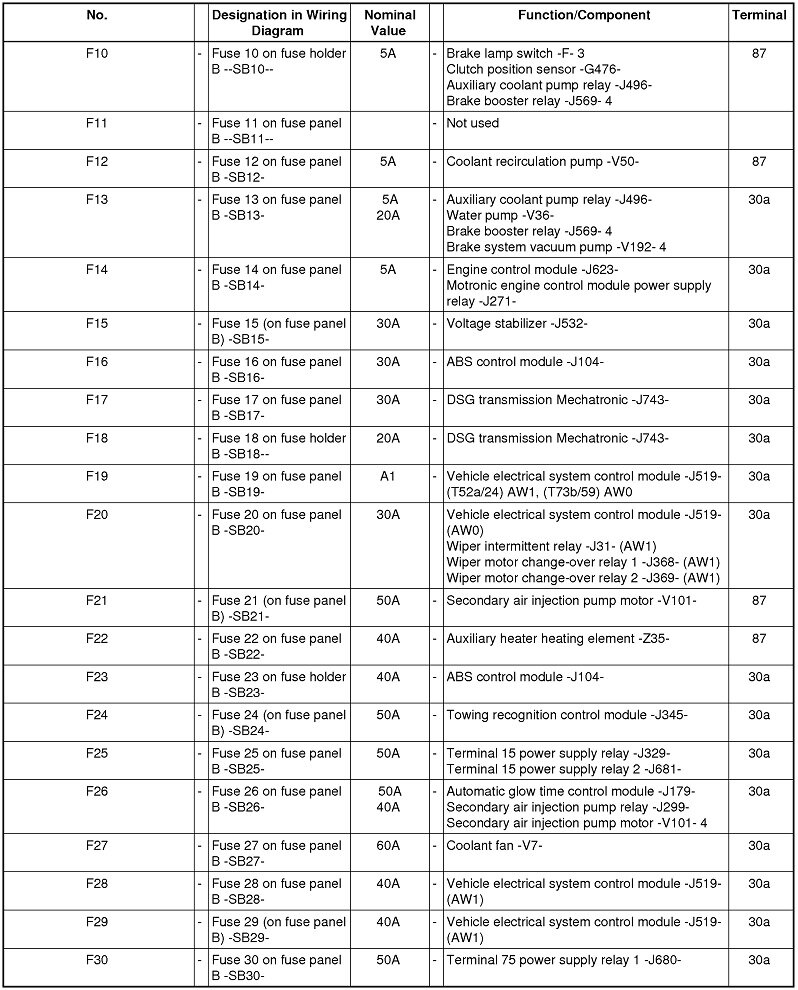

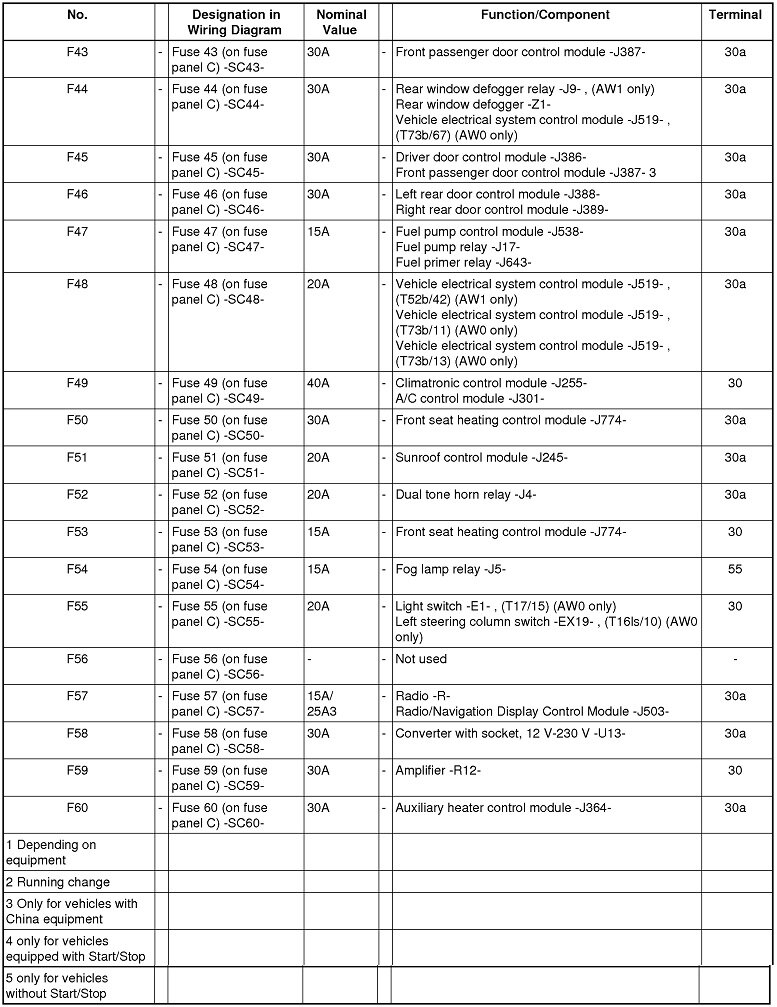

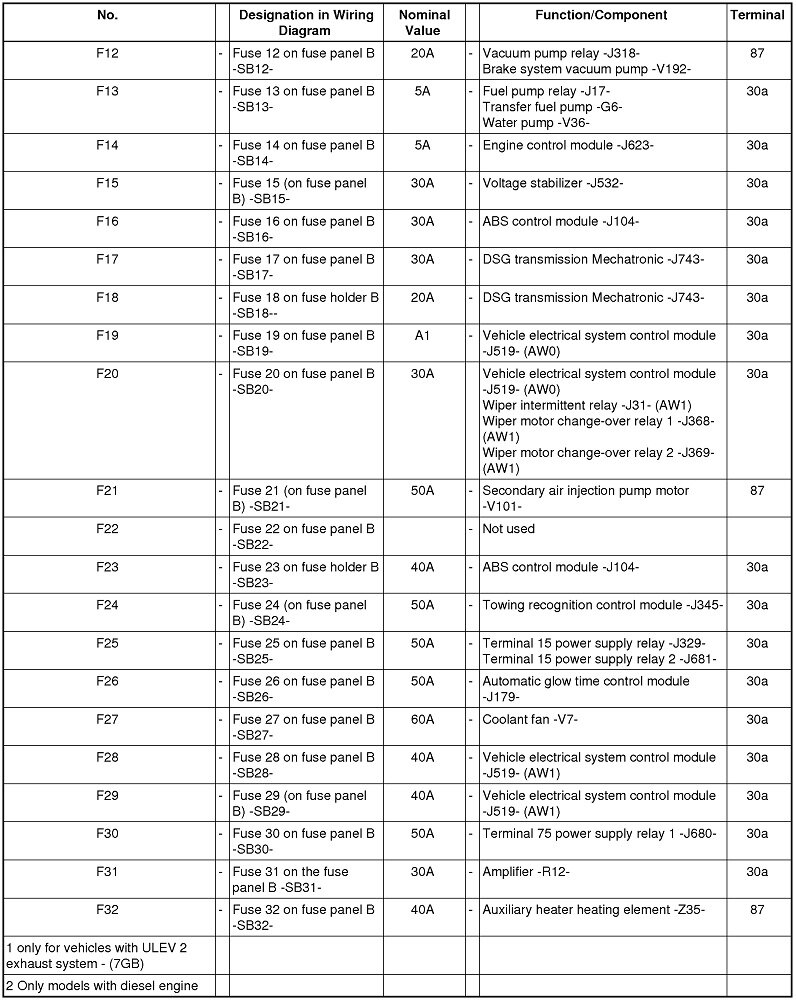

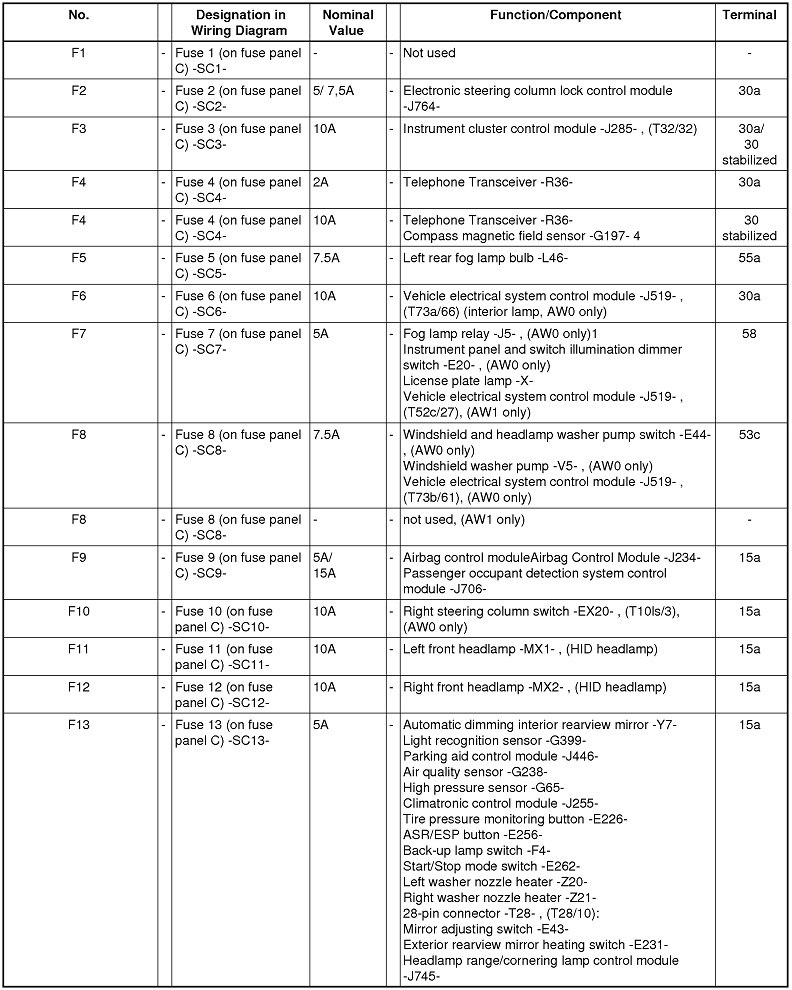

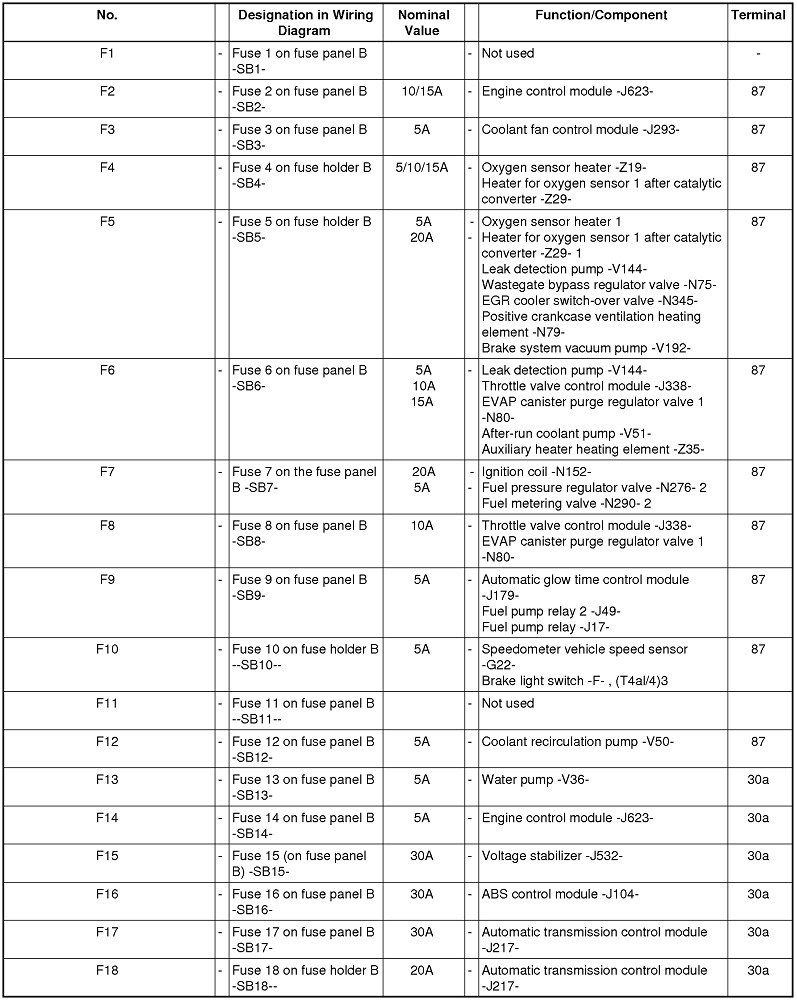

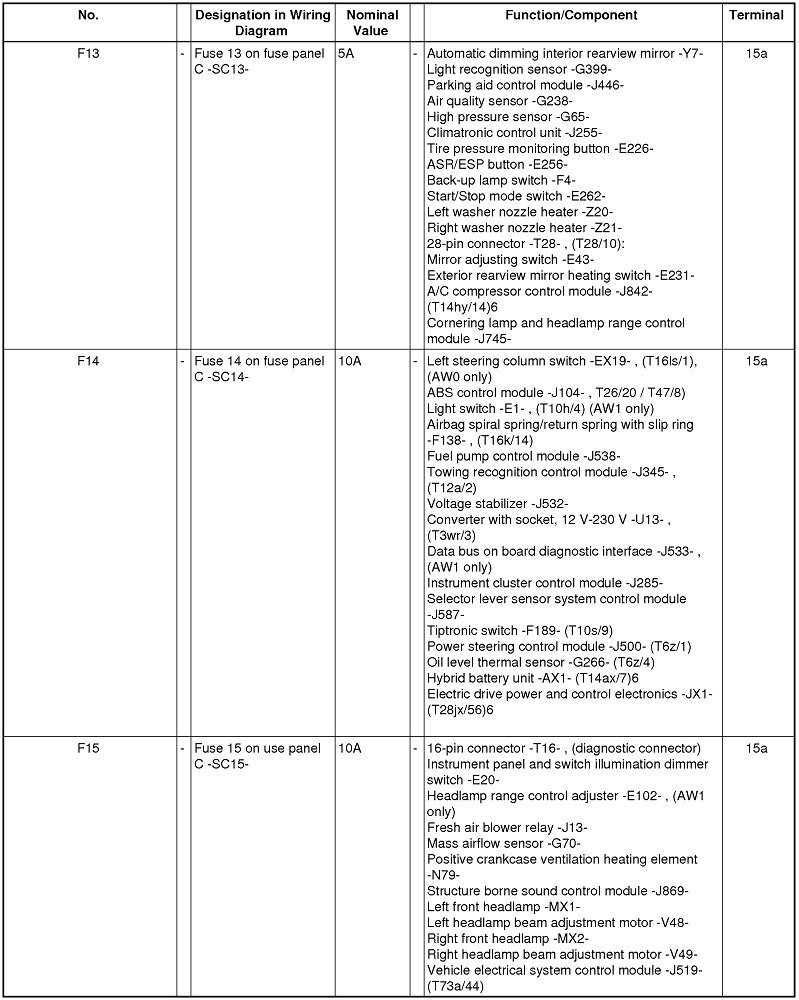

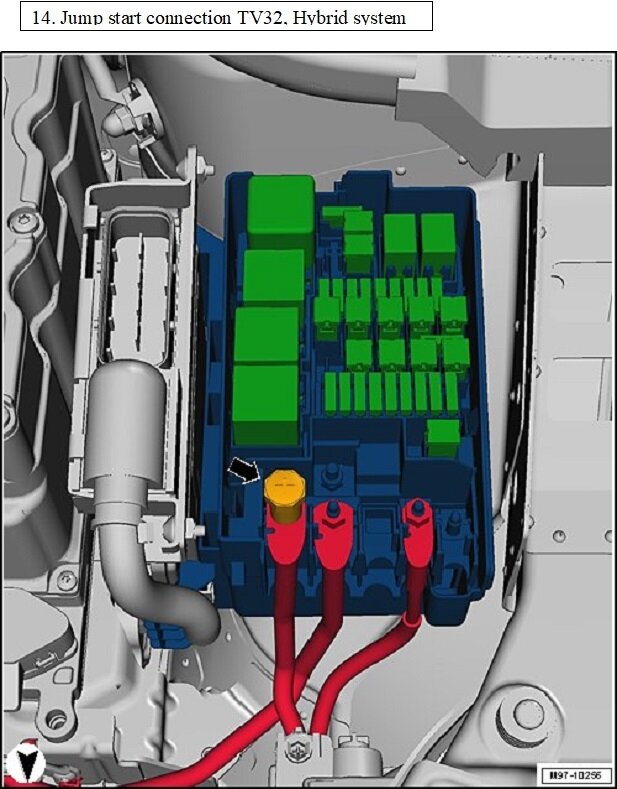

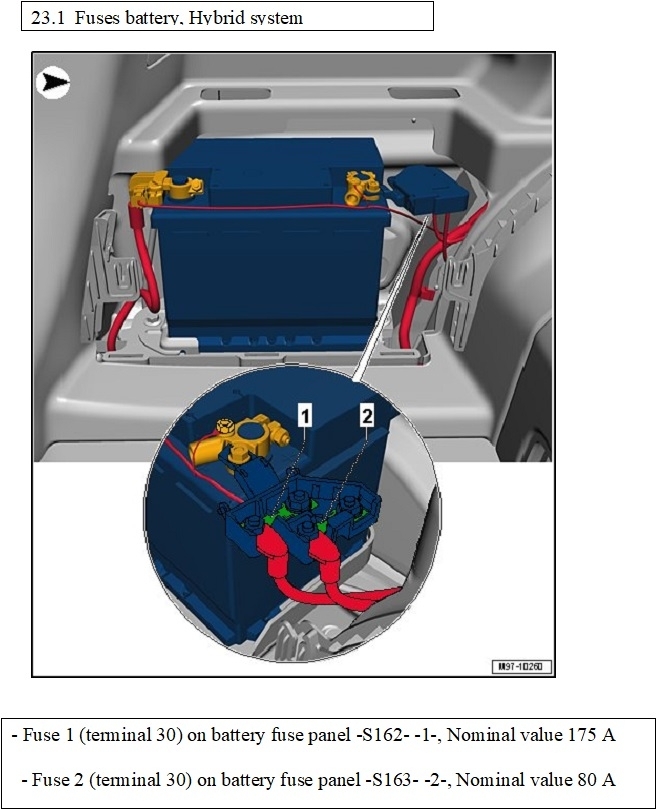

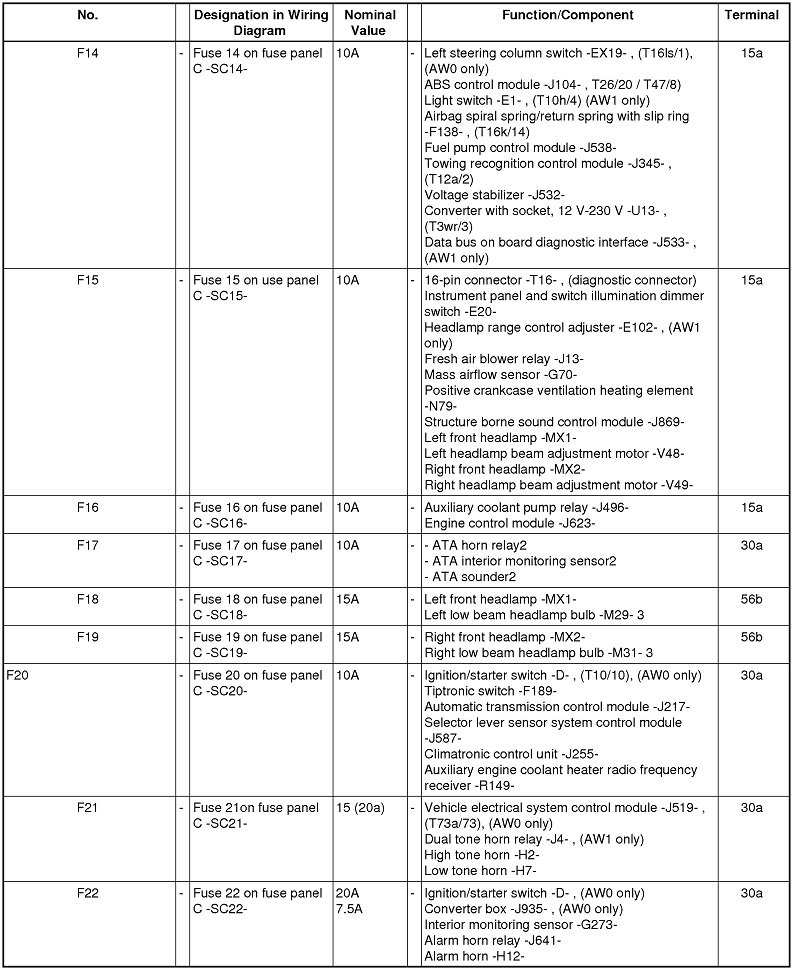

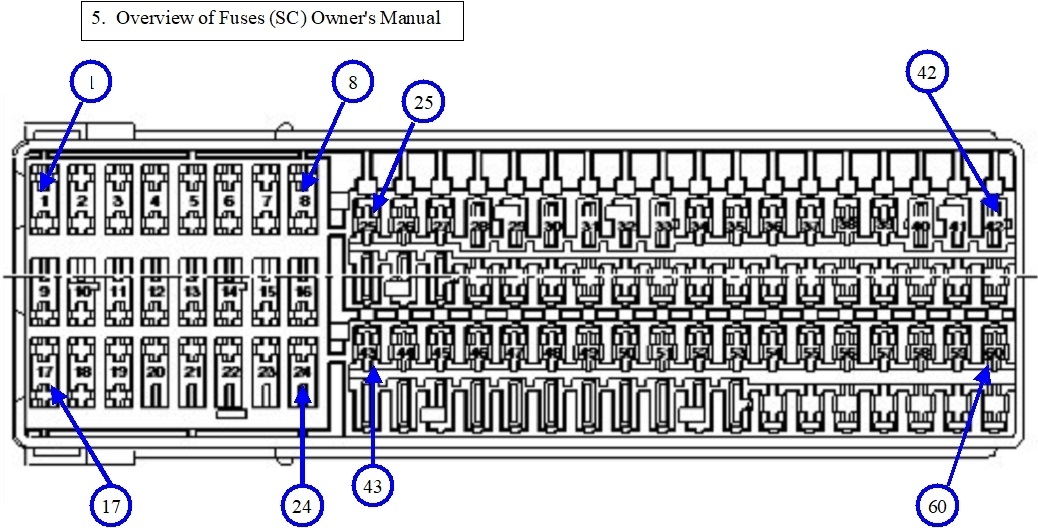

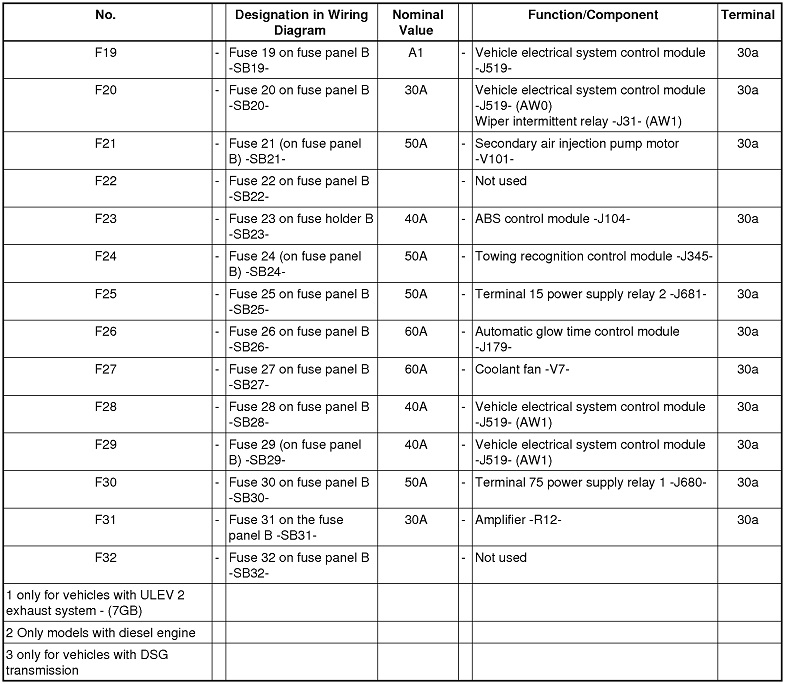

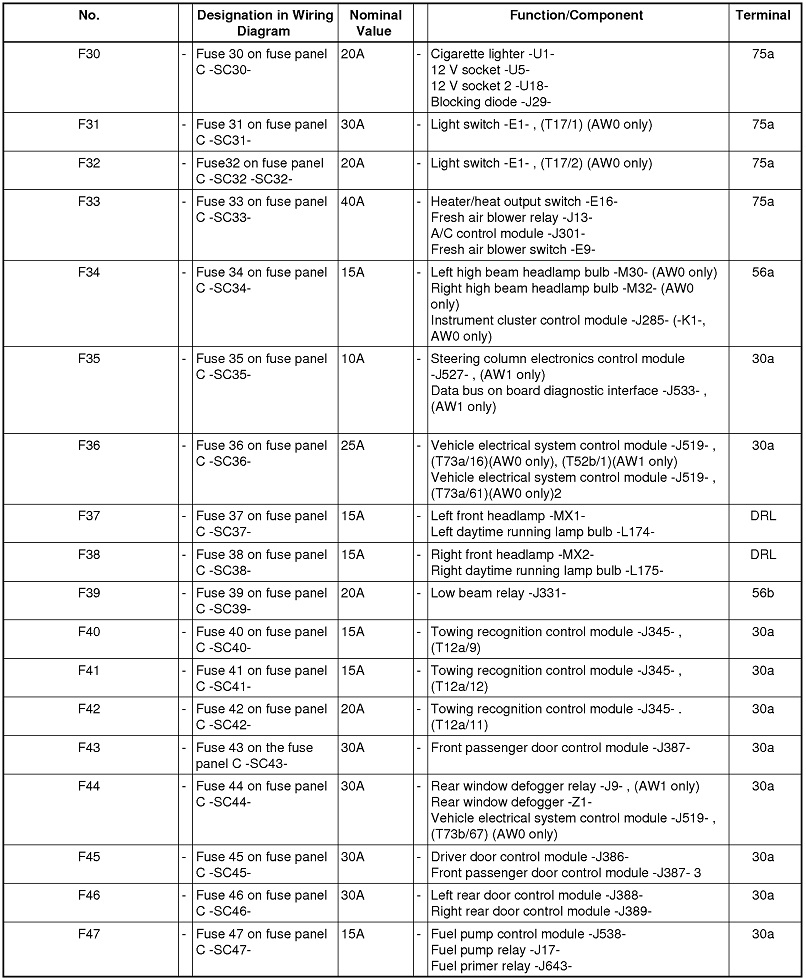

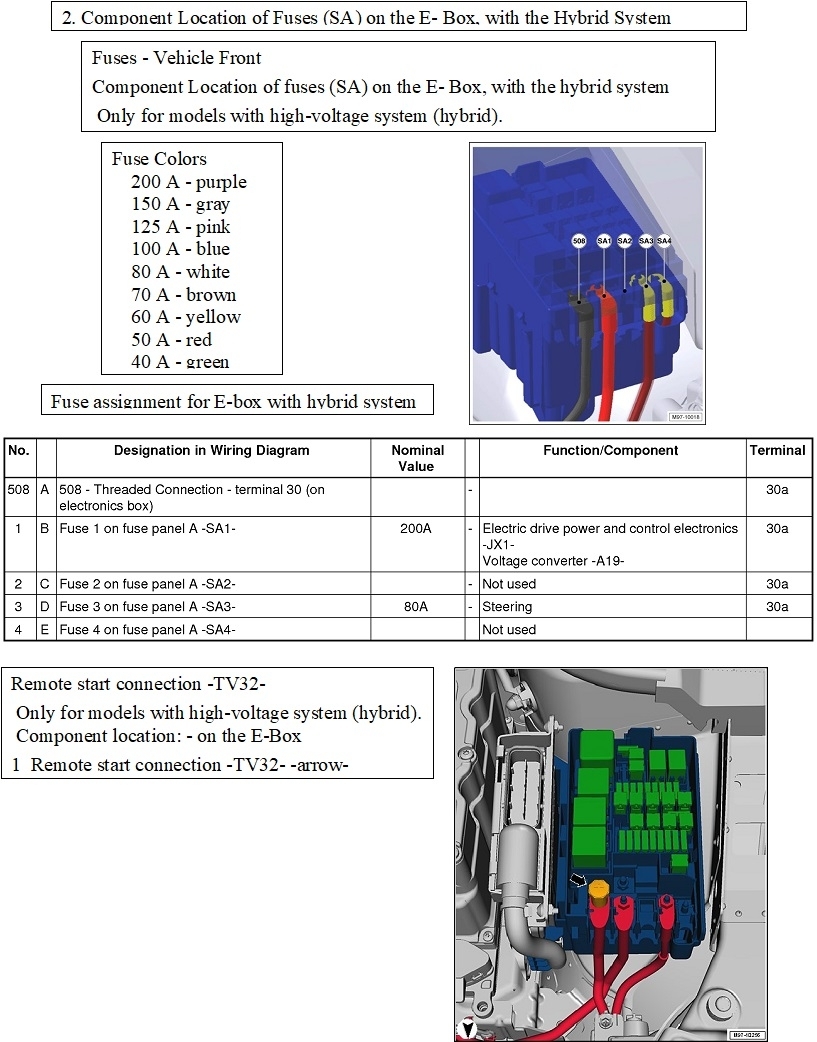

Okay, here's what it takes to work on a VW. This is only half of what I downloaded for you. The other pages pertain to other model years. There will likely be some pages here too that don't apply. You'll have to look at the photos to figure out which fuse box you're working with, then look at the appropriate lists.
