I have been trying to find a diagram of the fuse box

1998 CHEVROLET CHEYENNE
150,000 MILES • 6.5L • V8 • TURBO • AUTOMATIC
Avatar
ELIZABETH ARTEAGA
  • MEMBER
  • 2 POSTS
i have been trying to find a diagram of the fuse box for my truck listed above turbo diesel, but i haven't had much success. can you help me?
Feb 3, 2021 at 12:58 PM
Advertisement
Avatar
ASEMASTER6371
  • ✓ASE Certified Mechanic
  • 52,796 POSTS
  • ASE Certified Mechanic
Good afternoon,

There are 3 fuse boxes in your truck.

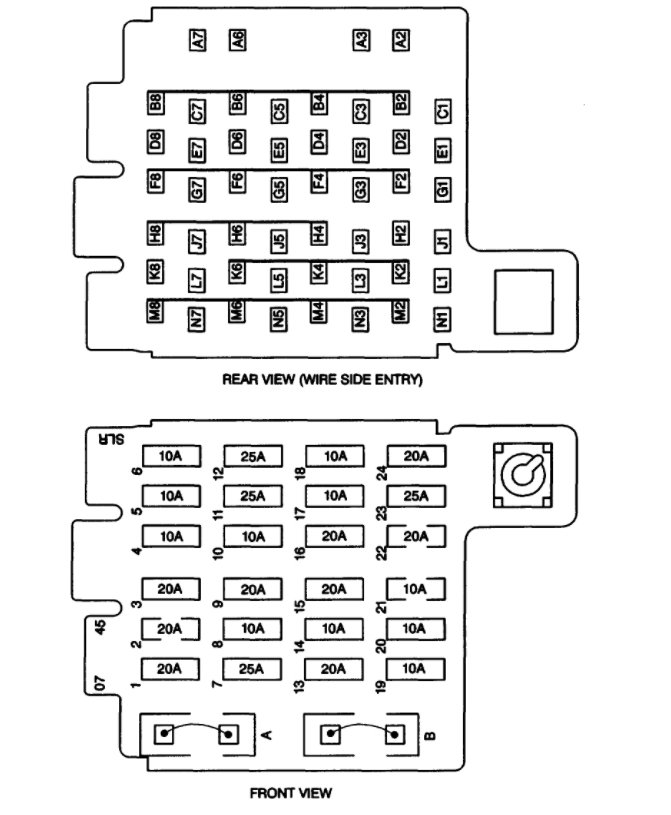

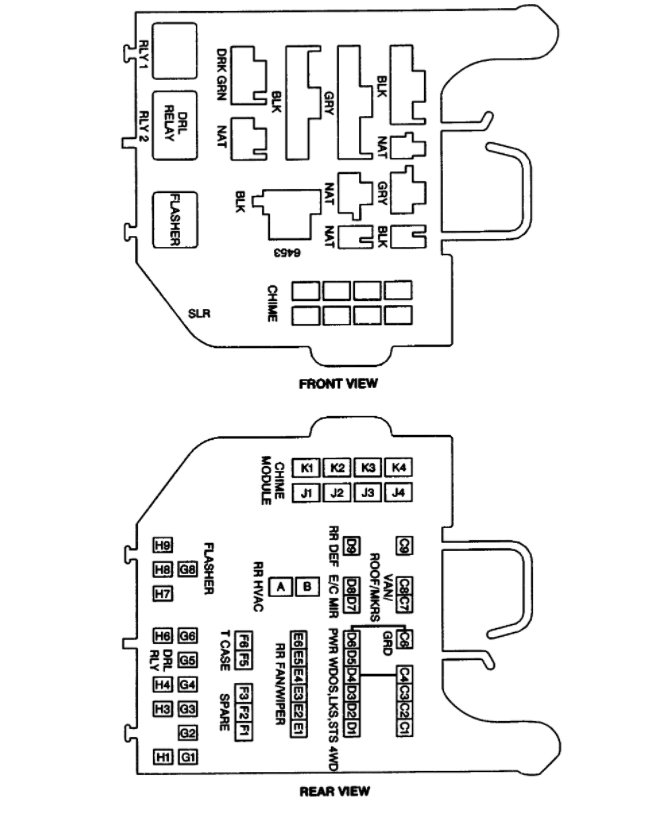

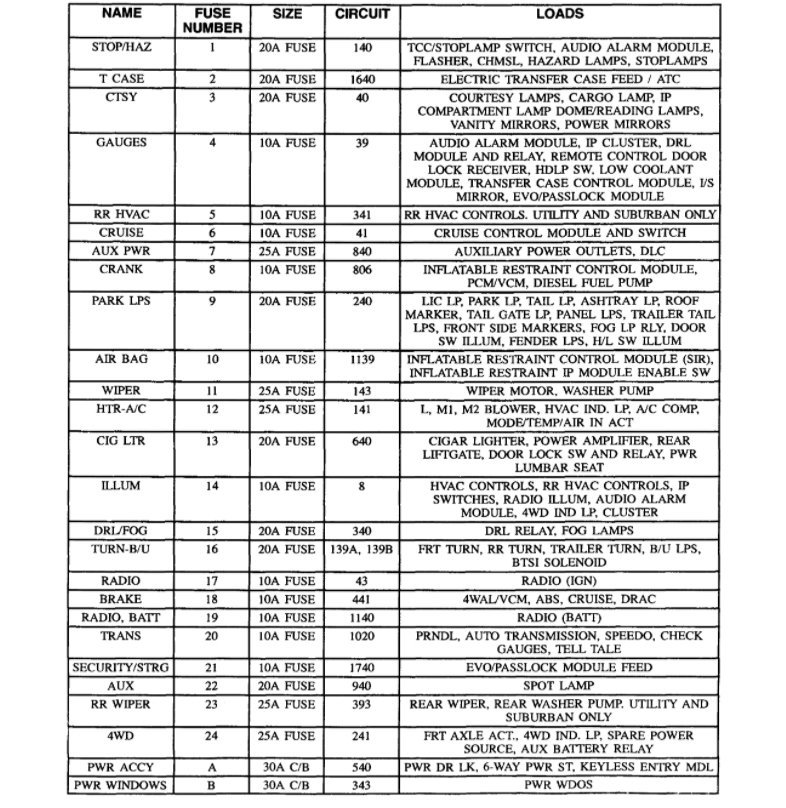

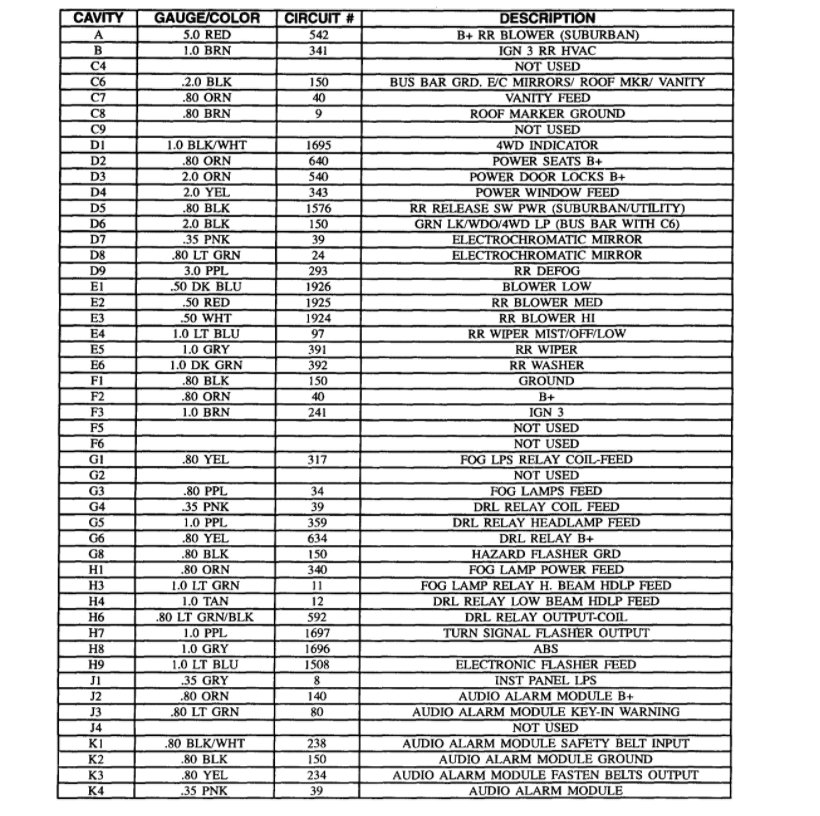

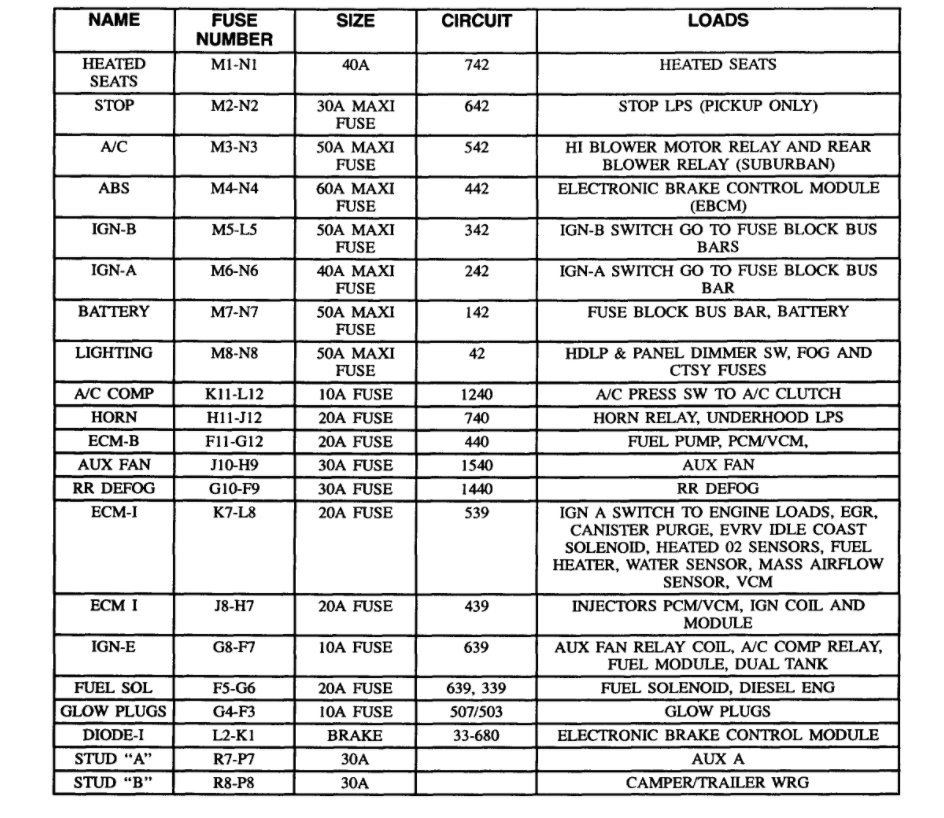

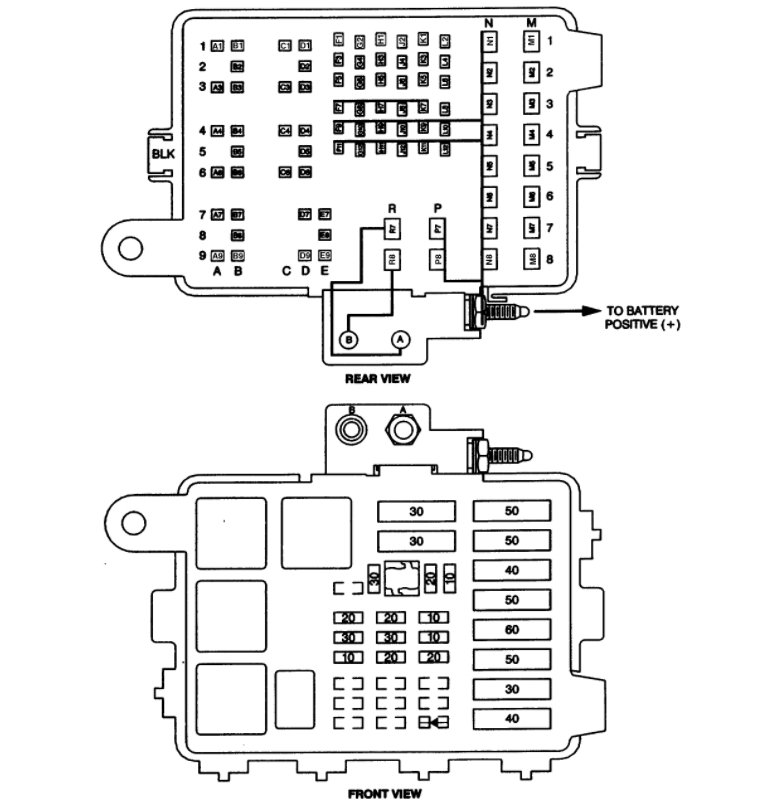

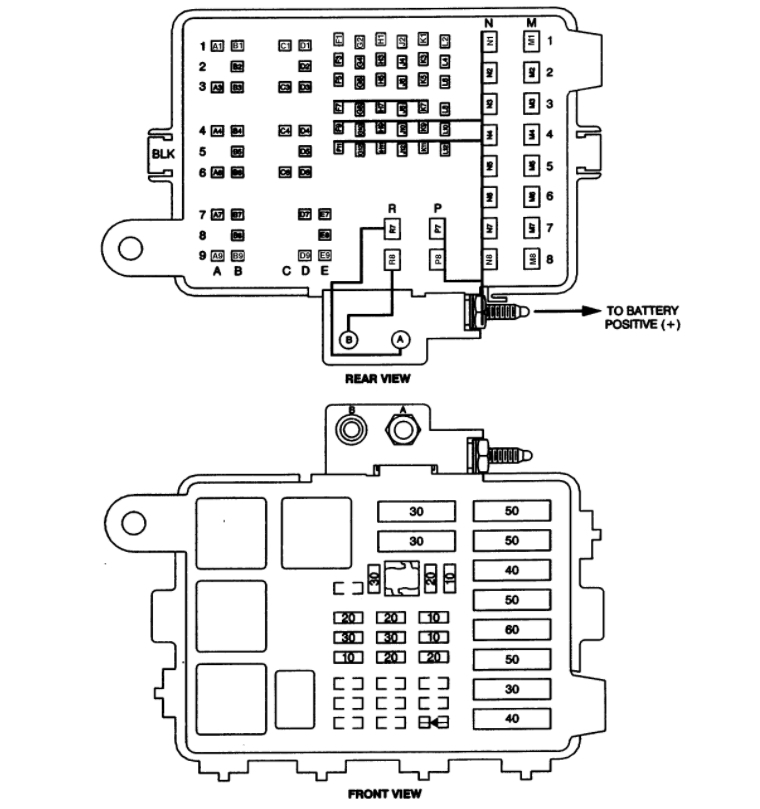

I attached views of all 3 fuse boxes for you to view.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Roy
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 3, 2021 at 1:17 PM
Avatar
ELIZABETH ARTEAGA
  • MEMBER
  • 2 POSTS
thank you.
Feb 3, 2021 at 6:15 PM
Avatar
ASEMASTER6371
  • ✓ASE Certified Mechanic
  • 52,796 POSTS
  • ASE Certified Mechanic
You are welcome.

Always glad to help.

Roy
Feb 4, 2021 at 1:16 AM
