I need the diagram to interior fuse box passenger side.

RANDYR40

MEMBER
2004 FORD F-150
5.4L
V8
2WD
AUTOMATIC
125,000 MILES

Friday, June 7th, 2019 AT 1:07 PM

1 Reply

ASEMASTER6371

MECHANIC
52,797 POSTS

Good afternoon,

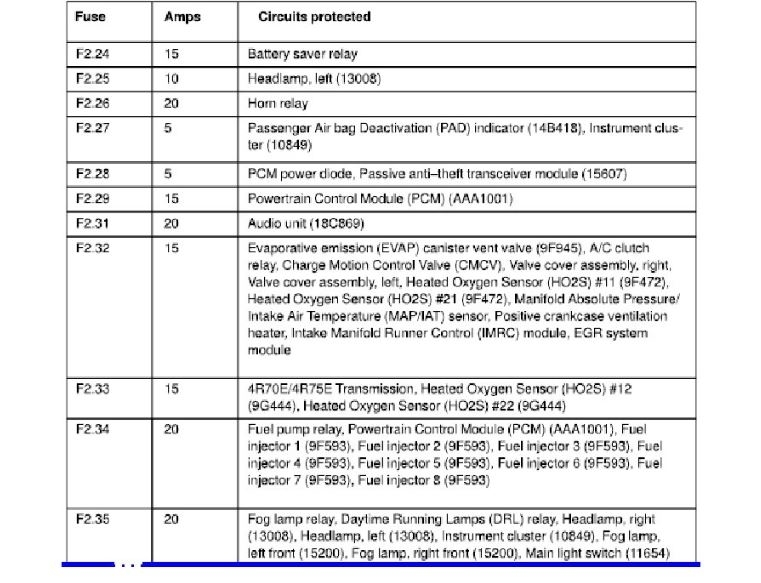

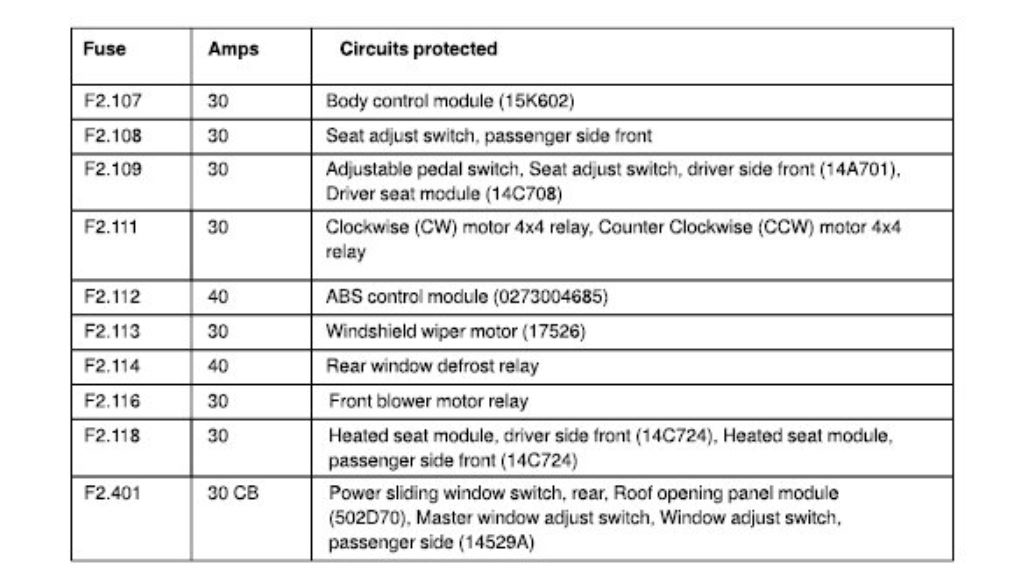

I will attach the fuse box legend. This guide can help as well

https://www.2carpros.com/articles/how-to-check-a-car-fuse

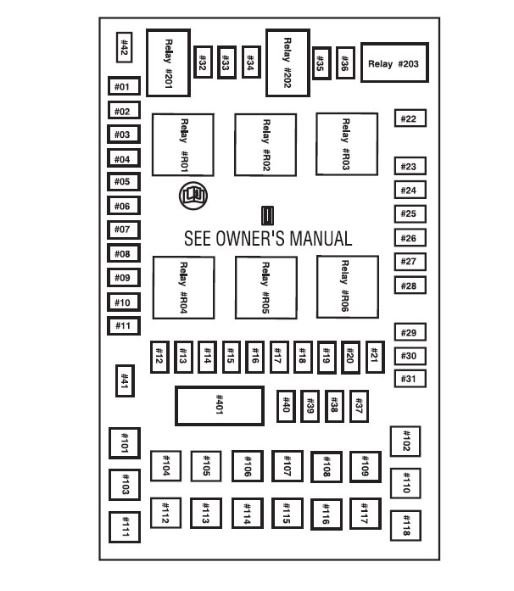

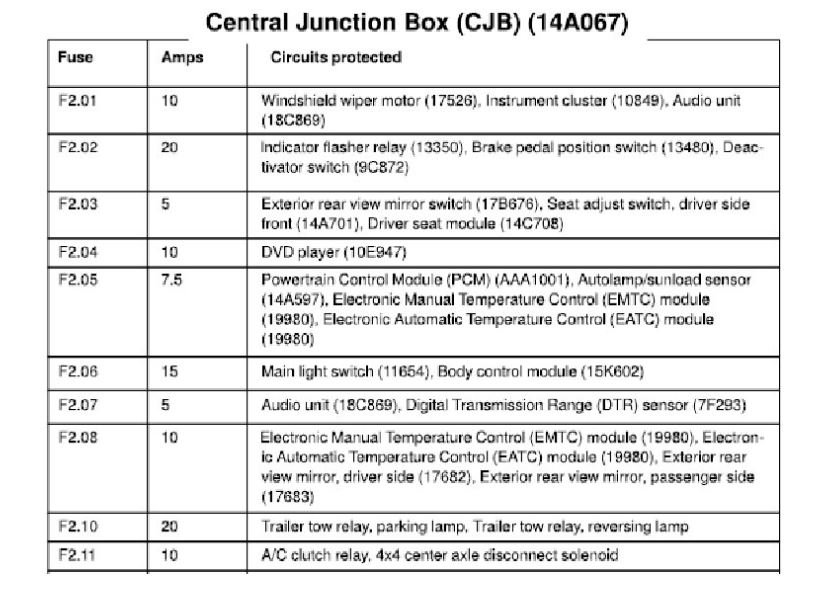

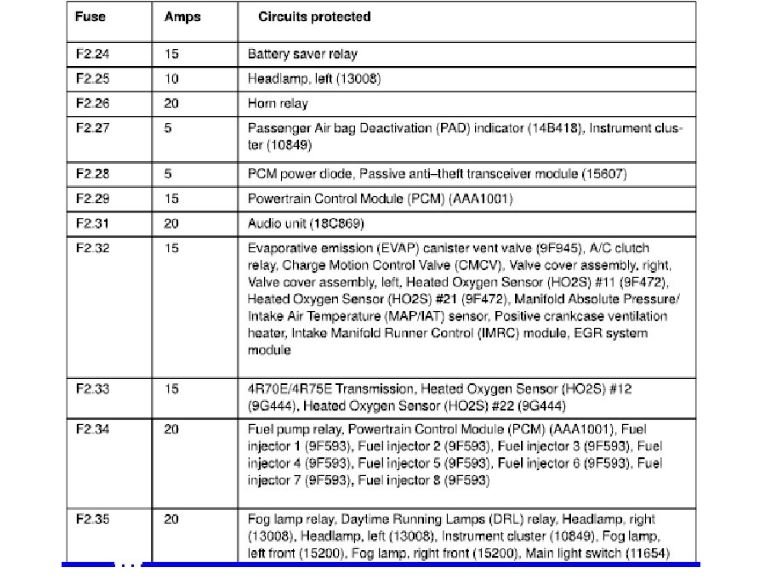

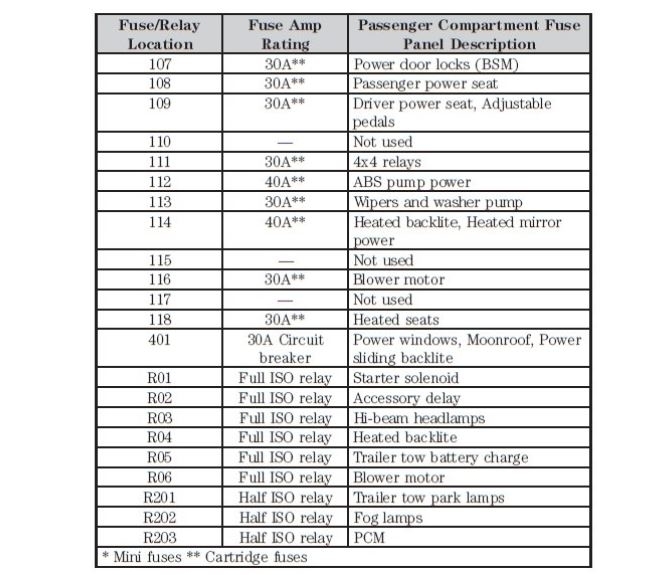

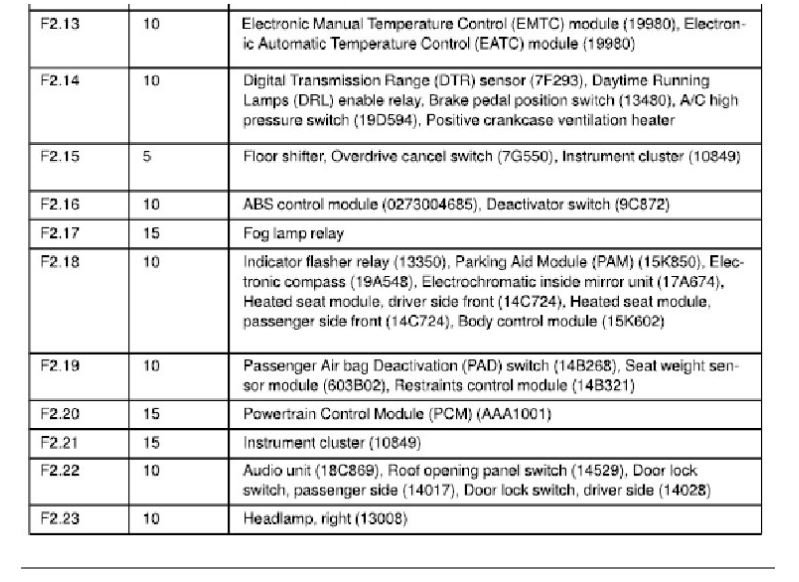

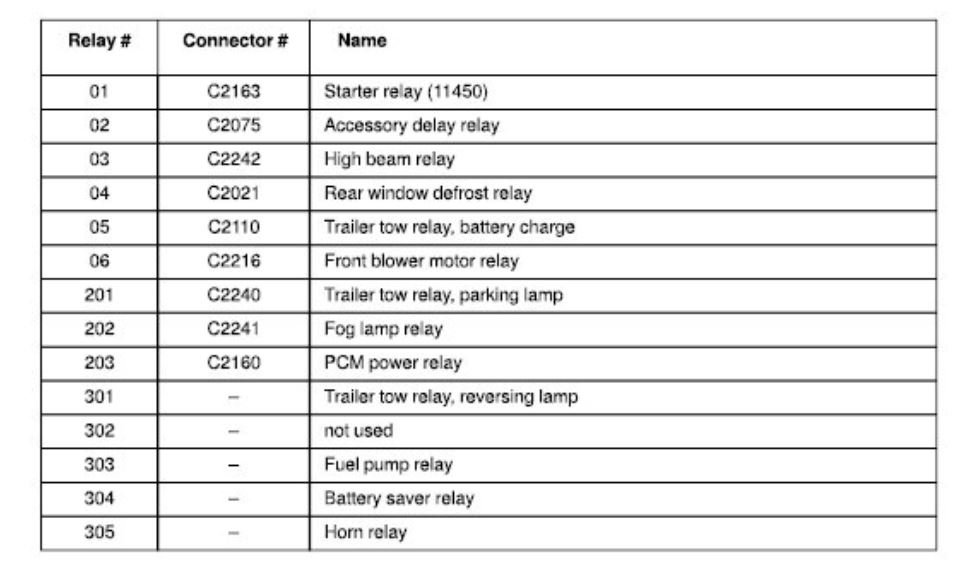

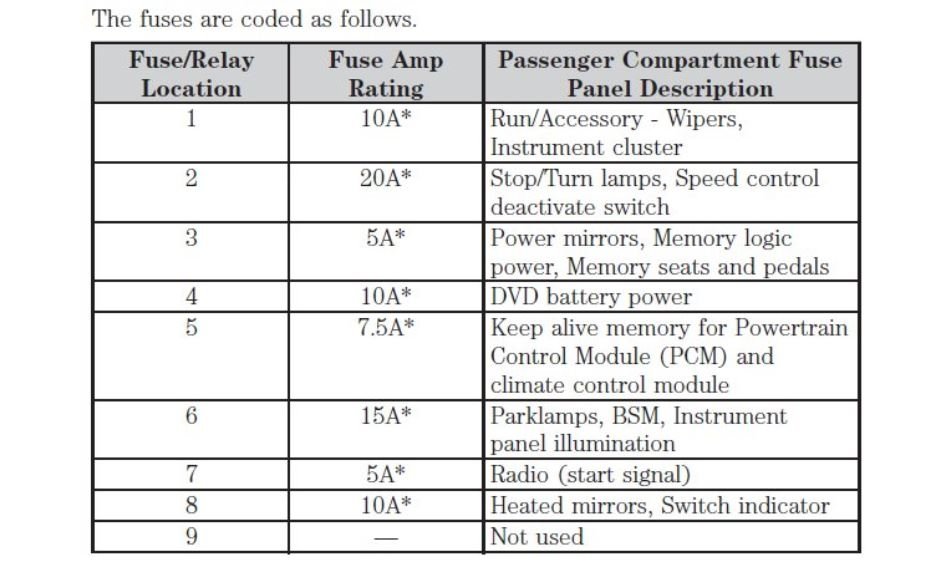

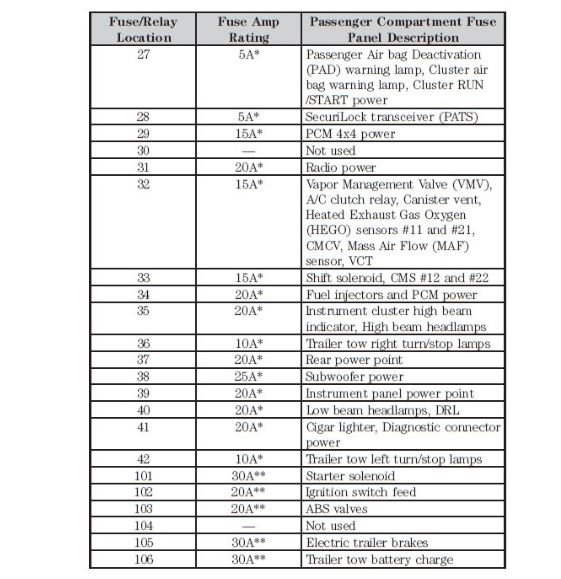

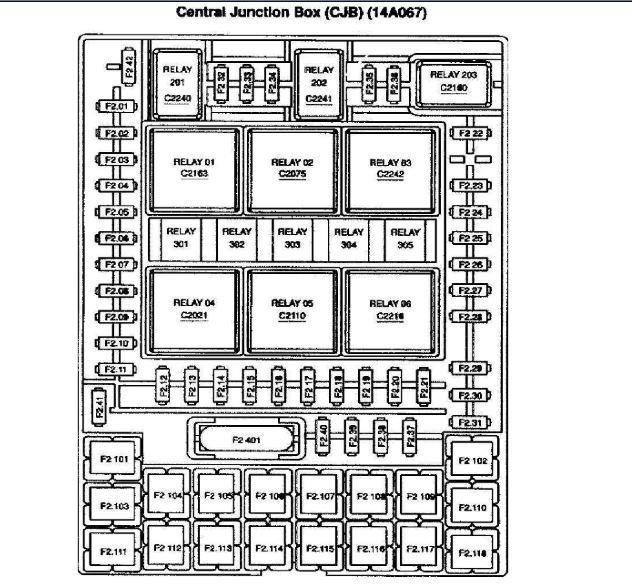

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Images (Click to make bigger)
