Fuse box color wiring diagram needed

1992 CHEVROLET CAVALIER
82,000 MILES • 2.2L • 4 CYL • 2WD • AUTOMATIC
Avatar
REGINA LYNN PARTON
  • MEMBER
  • 1 POST
working on my car listed above. I'm having a wiring problem and cannot find a schematic for the wires going into the fuse box especially showing the color of the wires and a rear view of the fuse. can you help?
Oct 10, 2019 at 10:52 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Welcome to 2CarPros.

I have schematics, but nothing in color because of the year. The schematics I have are very basic. Is there a specific component you are having trouble with? I may be able to help you better if I can break it down.

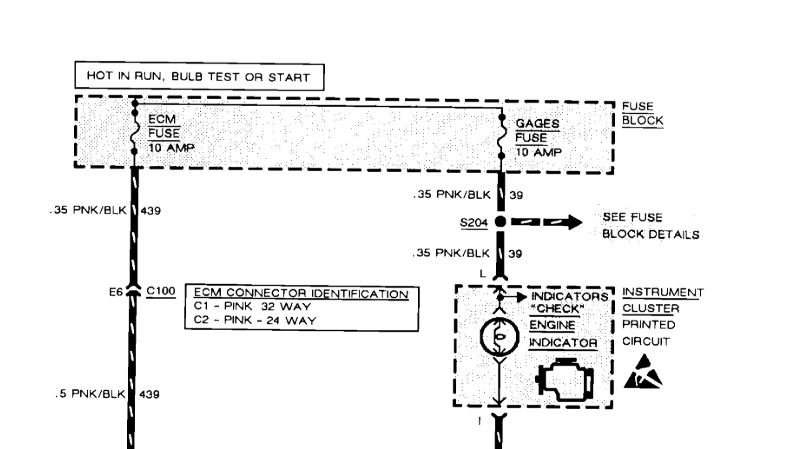

I attached a pic of how I have to look things up. If you have a specific circuit, I may be able to help.

Let me know.

Joe
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
