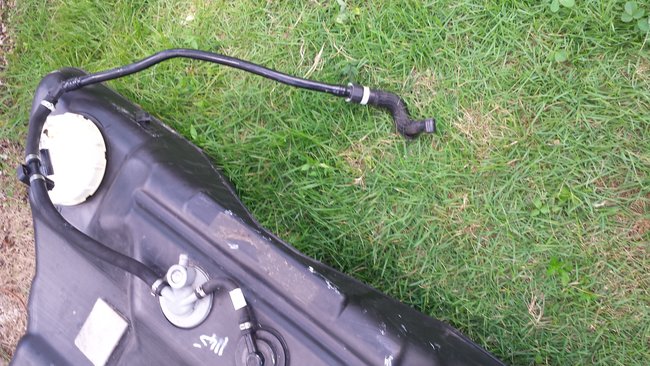

Hello, good afternoon. Can you please show me a diagram explaining how or where to connect the hoses on the tank in the image below?
Can you also tell how or where to connect the sensor in the image below? Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 20, 2018 at 10:46 AM
Advertisement
Avatar
STEVE W.
  • ✓ASE Certified Mechanic
  • 15,200 POSTS
  • ASE Certified Mechanic

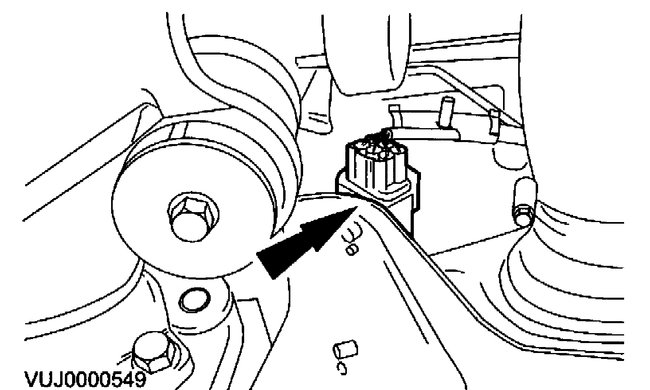

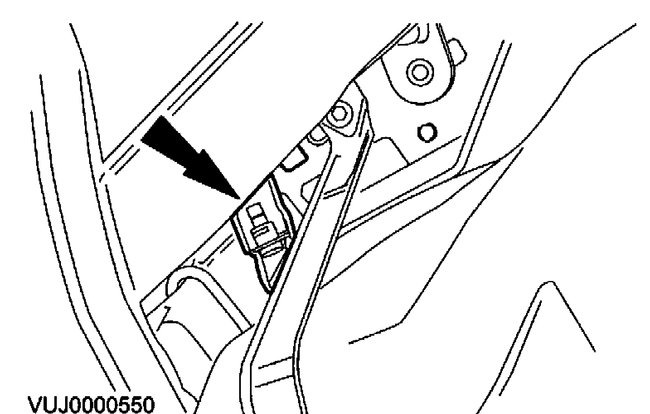

One is the EVAP system hose it should connect to a fitting up under the car hidden behind a suspension mount. It is shown in the third image I posted on your earlier post. The other connector should mate up to one under the car as well it is in the fourth image I posted there. Can you see those pictures?
Aug 20, 2018 at 11:12 AM
Avatar
AUSTINO
  • MEMBER
  • 228 POSTS
Thanks, but no I cannot see the pictures.
Aug 20, 2018 at 11:39 AM
Avatar
STEVE W.
  • ✓ASE Certified Mechanic
  • 15,200 POSTS
  • ASE Certified Mechanic
Try these. The first shows the EVAP hose second the wiring. They should be easy to find under the car. They will be in the same area as they are on the tank.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 20, 2018 at 11:58 AM
Avatar
AUSTINO
  • MEMBER
  • 228 POSTS
Thank you.
Aug 20, 2018 at 12:04 PM
Avatar
STEVE W.
  • ✓ASE Certified Mechanic
  • 15,200 POSTS
  • ASE Certified Mechanic
Could you see those?
Aug 20, 2018 at 12:19 PM
Avatar
AUSTINO
  • MEMBER
  • 228 POSTS
Yes, I could see the pictures. You are helpful. Thank you sir.
