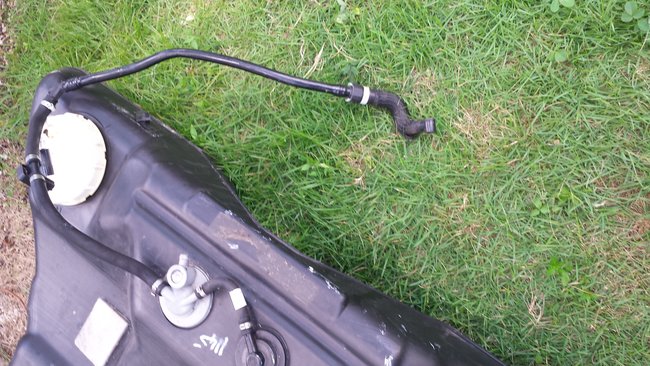

Hello, good afternoon. Can you please show me a diagram explaining how or where to connect the hoses on the tank in the image below?

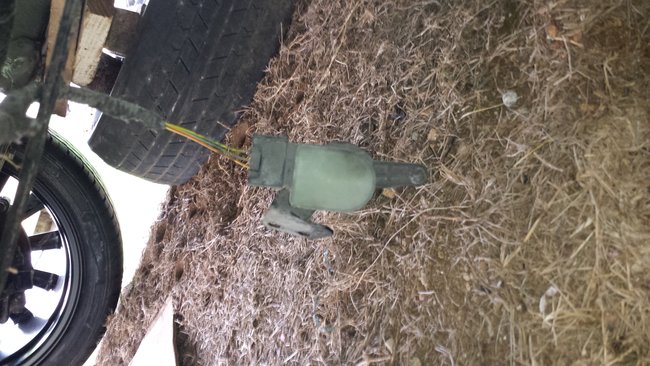

Can you also tell how or where to connect the sensor in the image below? Thank you.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Monday, August 20th, 2018 AT 10:46 AM

6 Replies

Tiny
STEVE W.
  • MECHANIC
  • 13,580 POSTS
One is the EVAP system hose it should connect to a fitting up under the car hidden behind a suspension mount. It is shown in the third image I posted on your earlier post. The other connector should mate up to one under the car as well it is in the fourth image I posted there. Can you see those pictures?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, August 20th, 2018 AT 11:12 AM
Tiny
AUSTINO
  • MEMBER
  • 211 POSTS
Thanks, but no I cannot see the pictures.
Was this
answer
helpful?
Yes
No
Monday, August 20th, 2018 AT 11:39 AM
Tiny
STEVE W.
  • MECHANIC
  • 13,580 POSTS

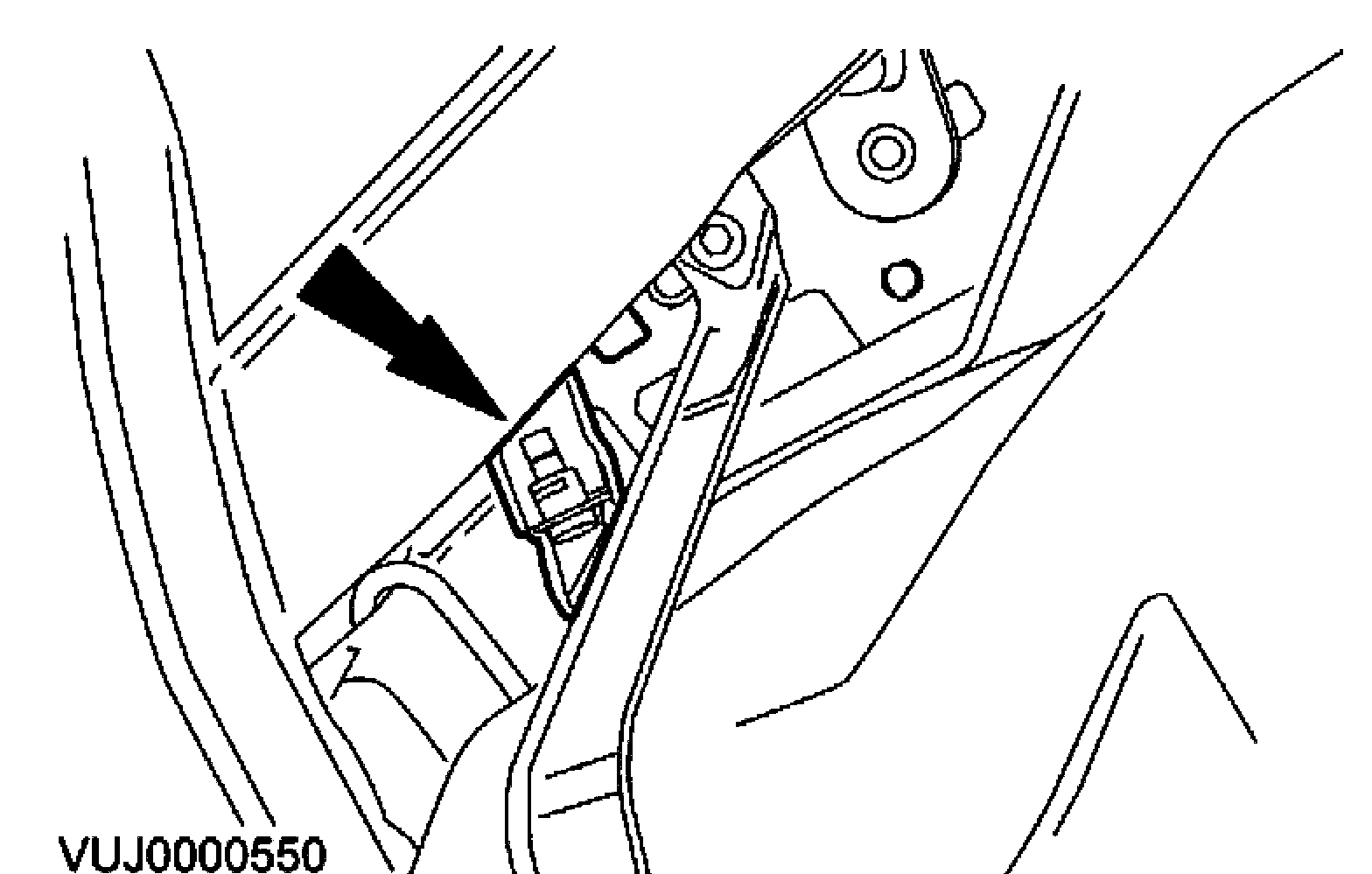

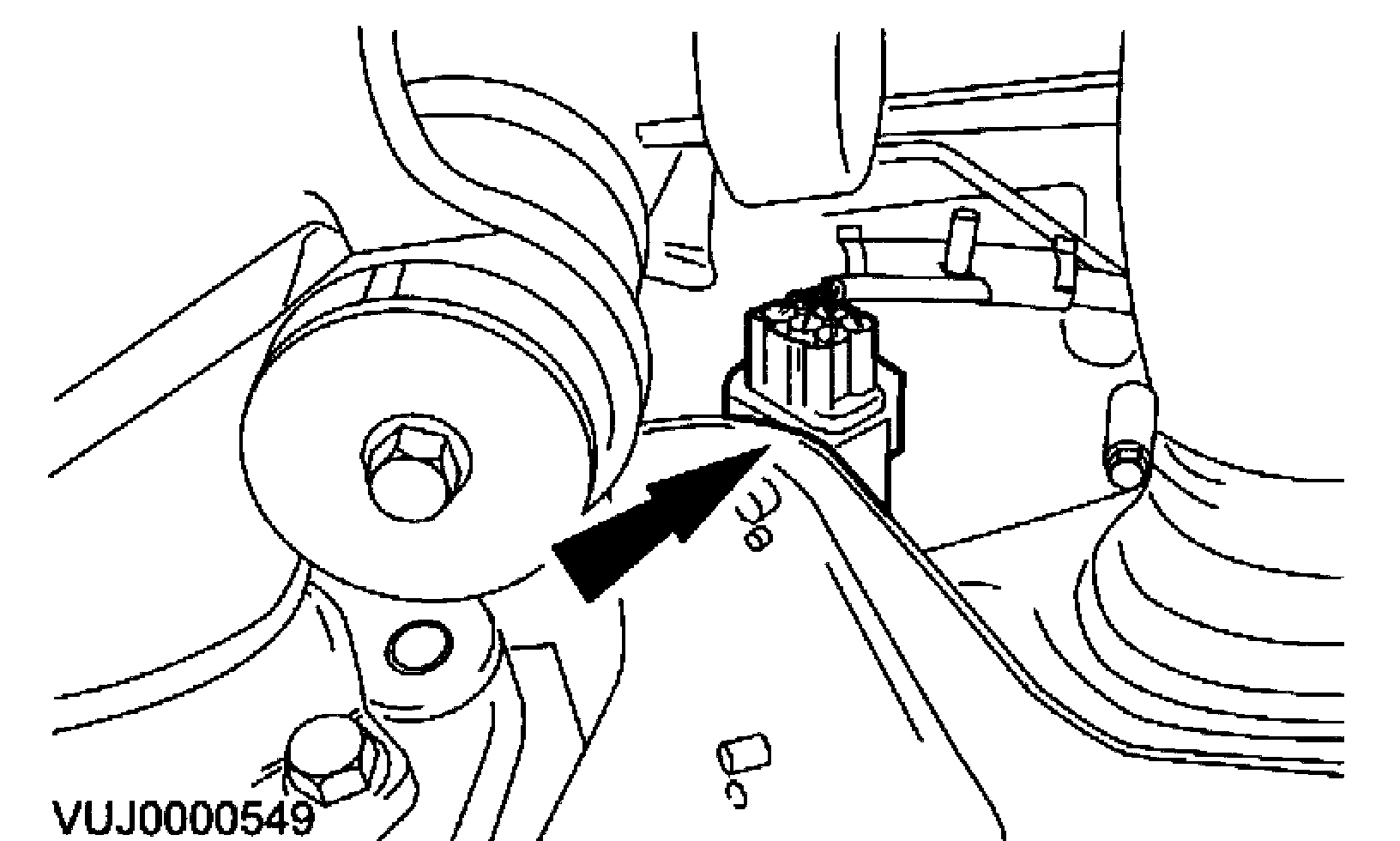

Try these. The first shows the EVAP hose second the wiring. They should be easy to find under the car. They will be in the same area as they are on the tank.
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Monday, August 20th, 2018 AT 11:58 AM
Tiny
AUSTINO
  • MEMBER
  • 211 POSTS
Thank you.
Was this
answer
helpful?
Yes
No
Monday, August 20th, 2018 AT 12:04 PM
Tiny
STEVE W.
  • MECHANIC
  • 13,580 POSTS
Could you see those?
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Monday, August 20th, 2018 AT 12:19 PM
Tiny
AUSTINO
  • MEMBER
  • 211 POSTS
Yes, I could see the pictures. You are helpful. Thank you sir.
Was this
answer
helpful?
Yes
No
Monday, August 20th, 2018 AT 12:36 PM
