Fuel system flow chart/diagram

Tiny
OPTIMPRI
  • MEMBER
  • 2006 MERCEDES BENZ E350
  • 120,000 MILES
I have the PZEV with code 917 version 2006 Mercedes-Benz e350 and I would like to know what the purpose of each fuel line attached to the fuel filter does. I would like them each identified and explained consecutively with a diagram/s if possible.
Sunday, October 28th, 2018 AT 2:24 PM

8 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Hello,

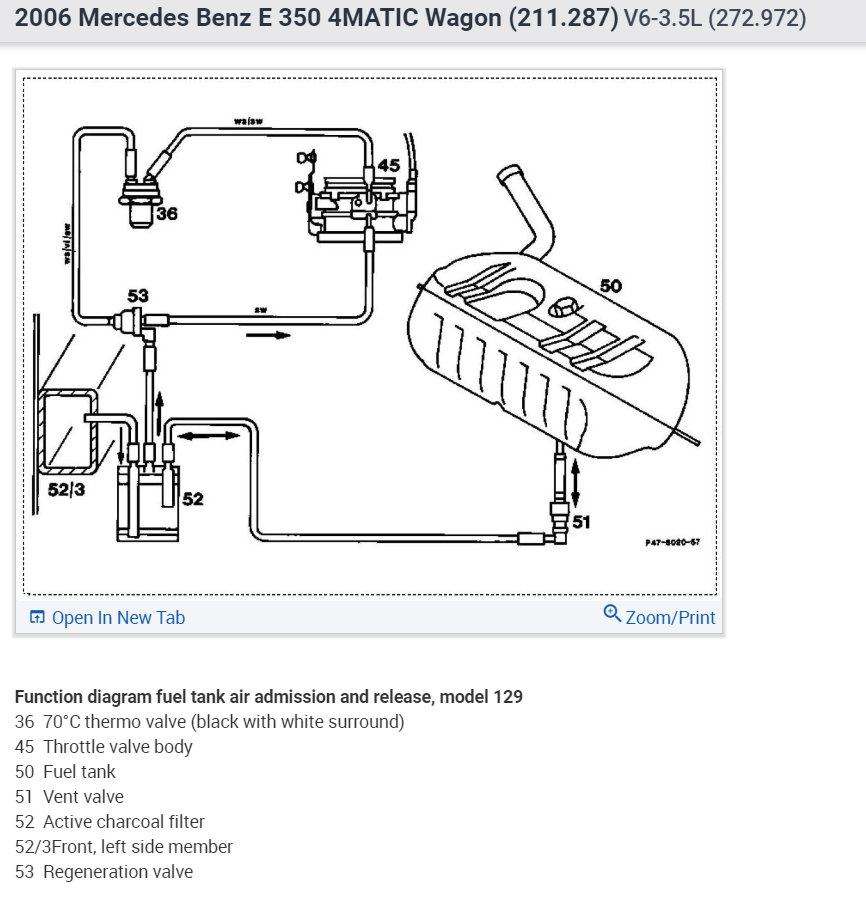

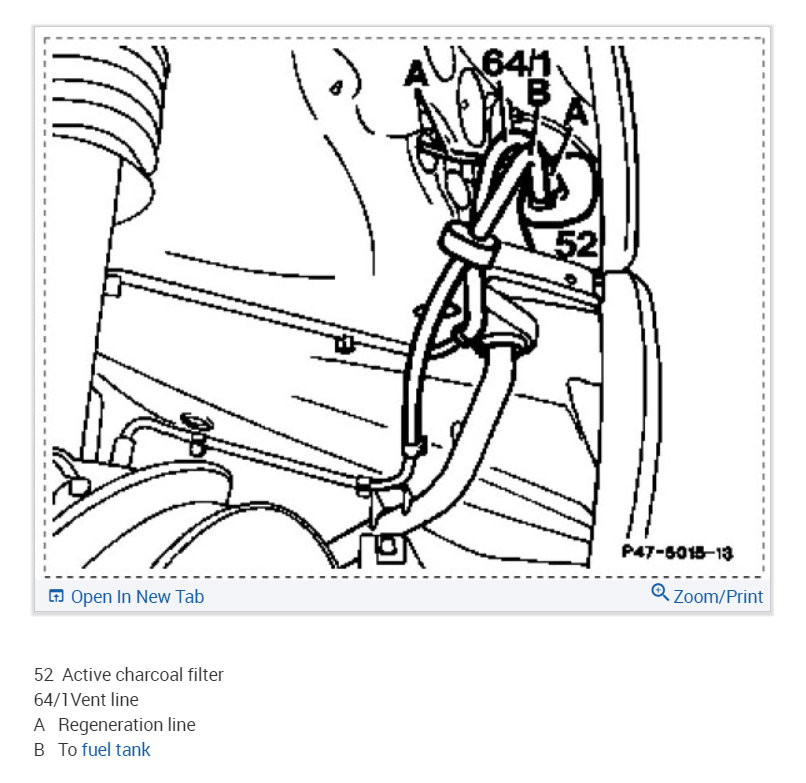

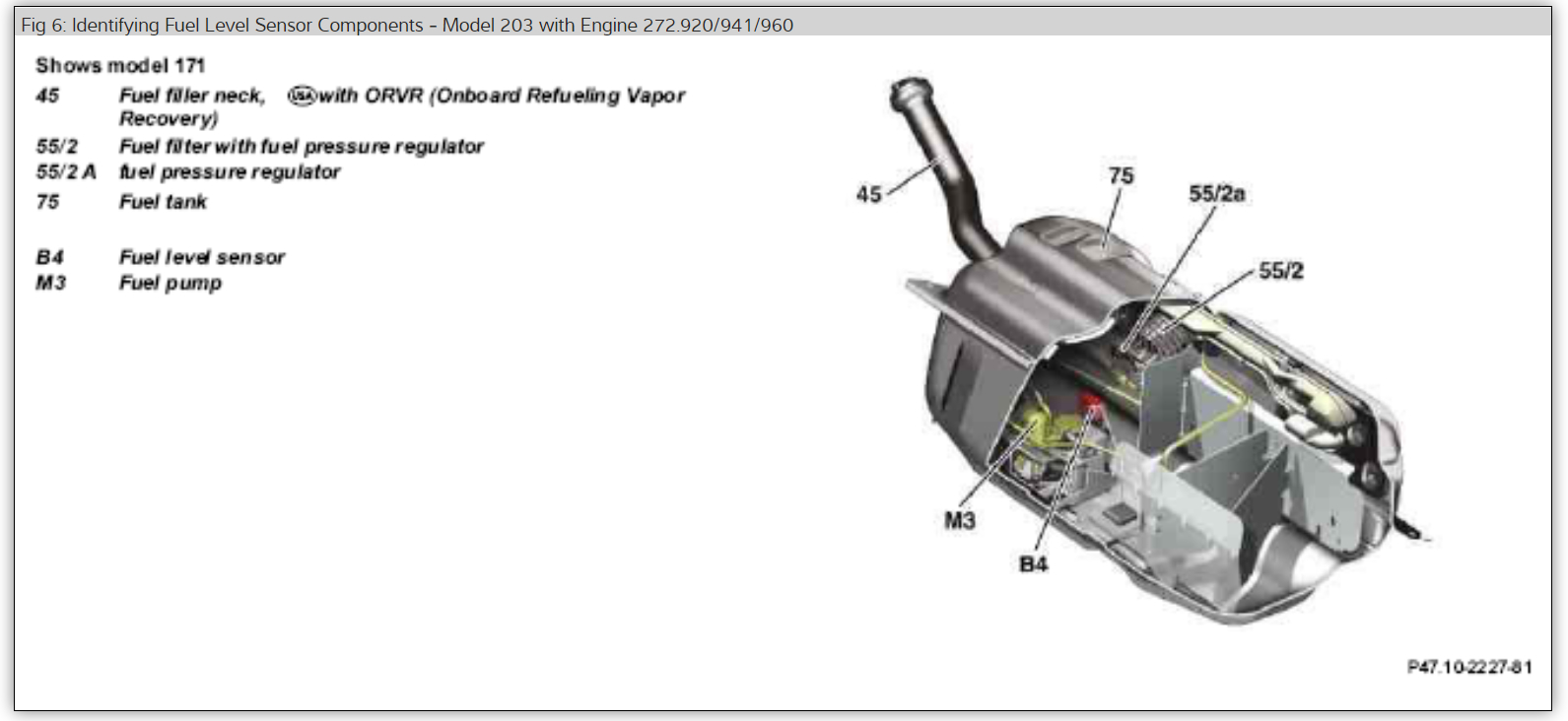

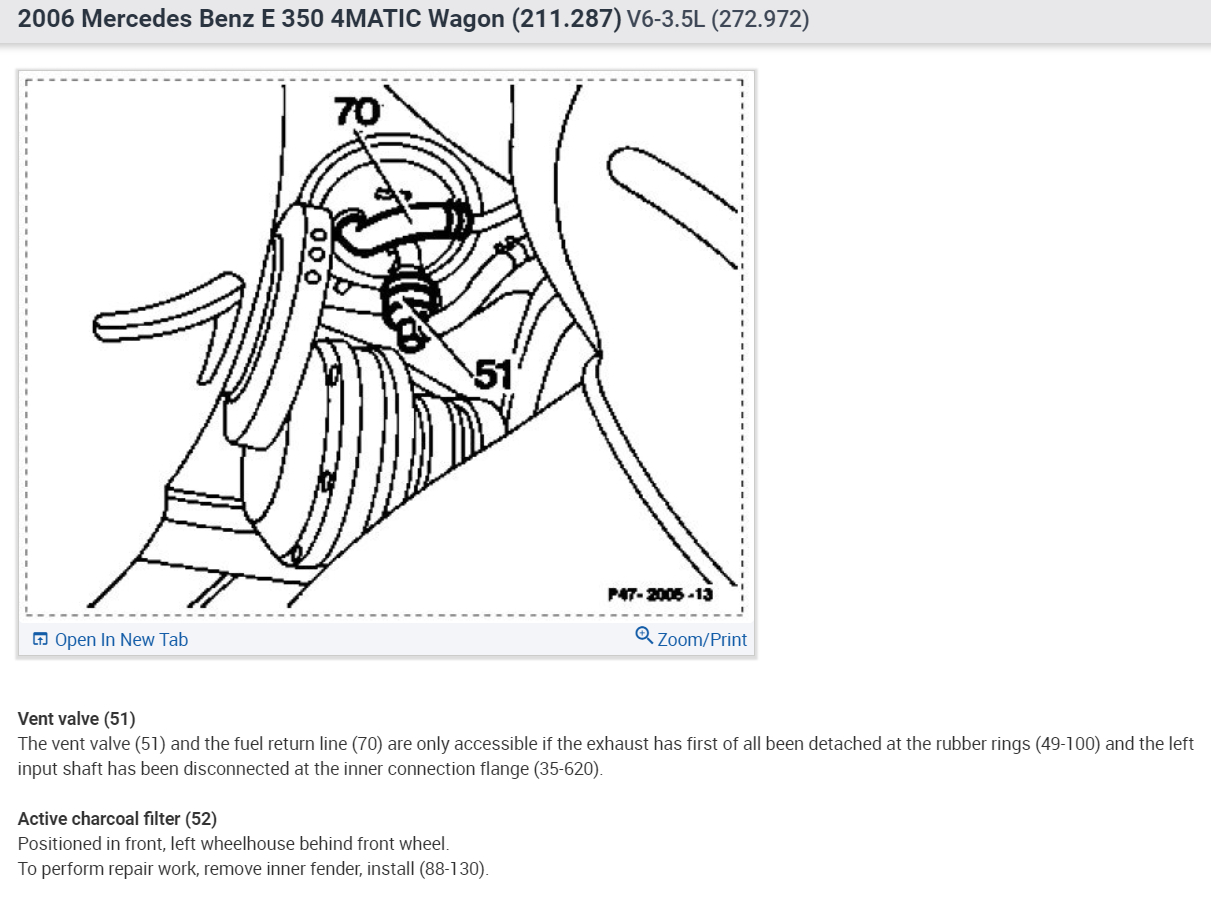

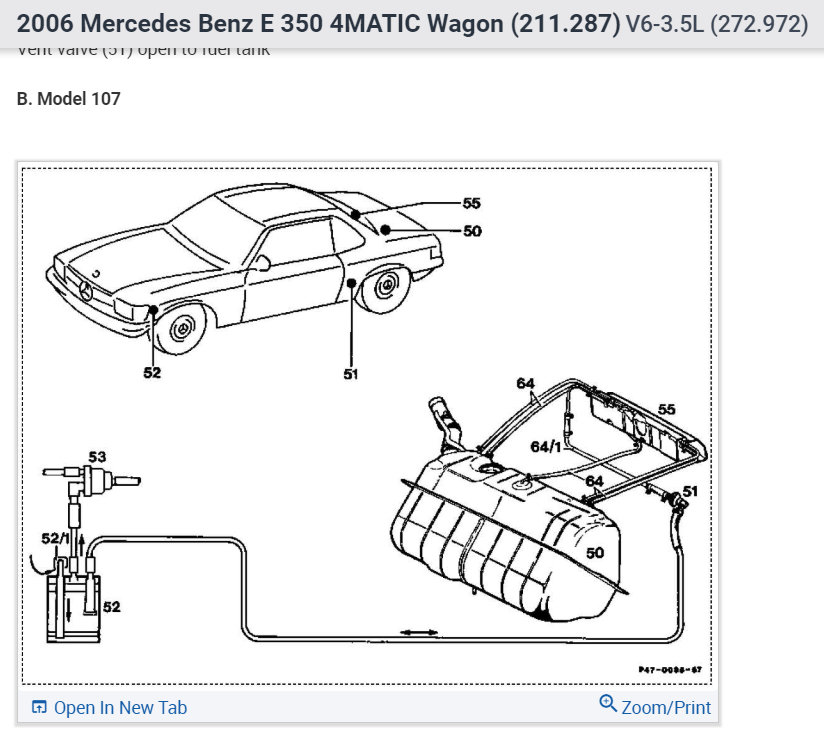

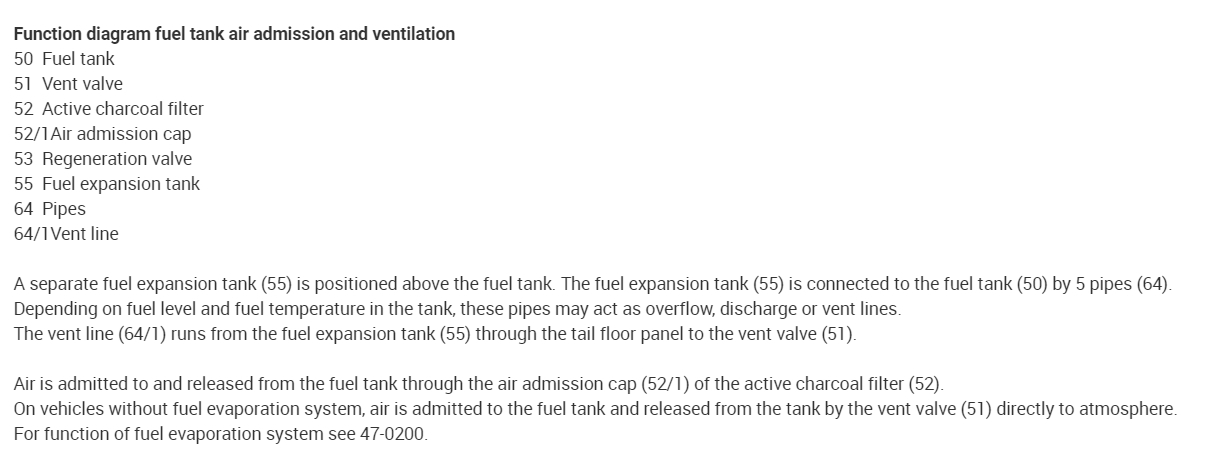

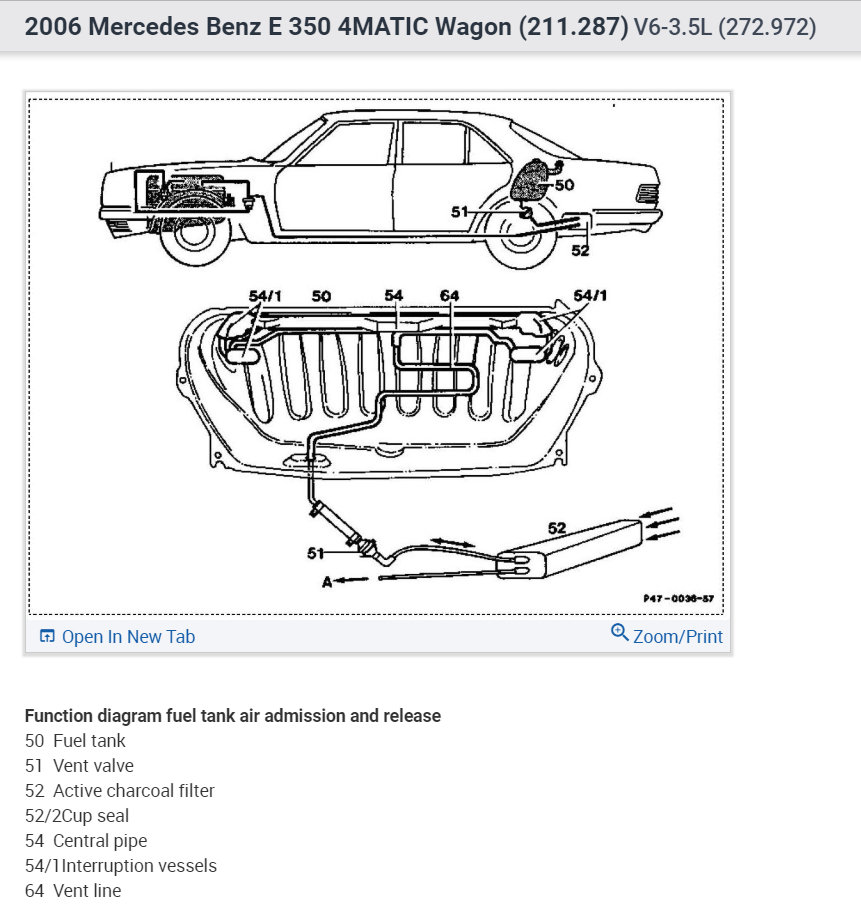

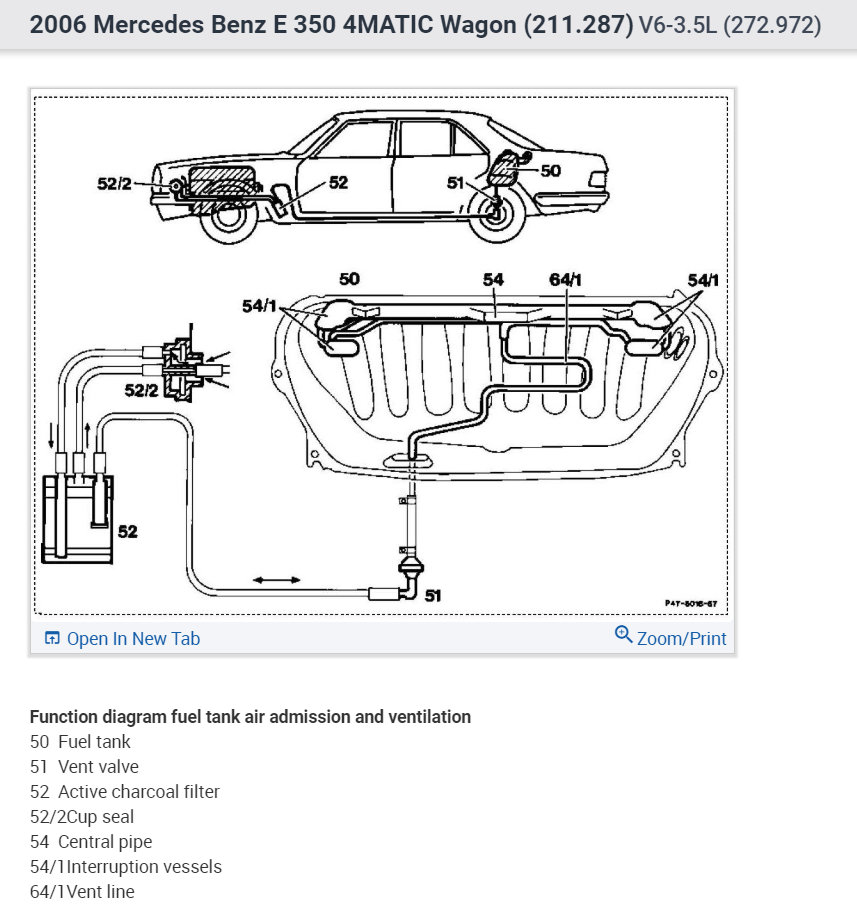

Here are all of the fuel system descriptions and diagrams I could find on your car. Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Tuesday, October 30th, 2018 AT 12:44 PM
Tiny
OPTIMPRI
  • MEMBER
  • 4 POSTS
I asked specifically for fuel lines connected to the filter, flow charts. These are vacuum diagrams.
Was this
answer
helpful?
Yes
No
Tuesday, October 30th, 2018 AT 3:51 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS

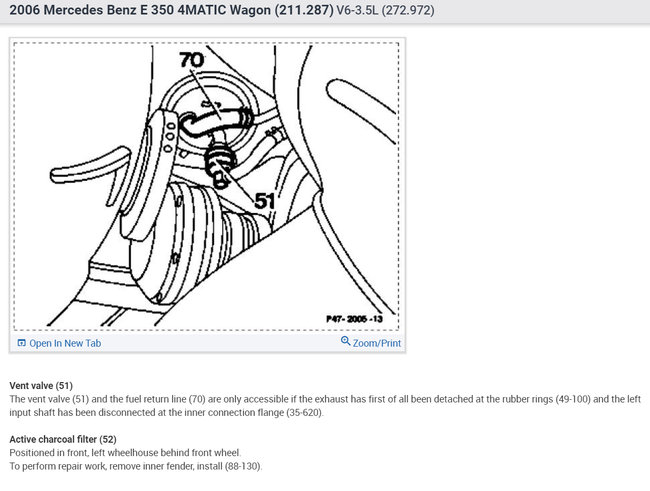

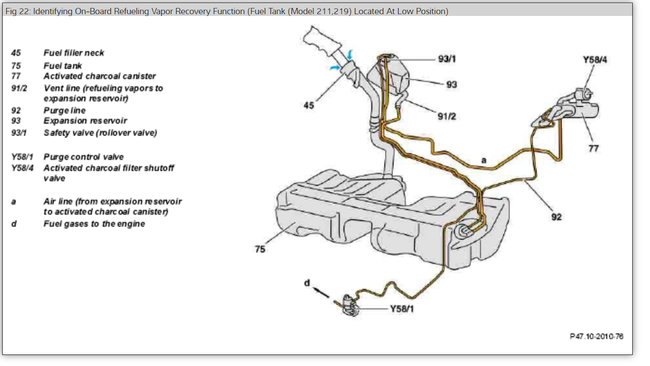

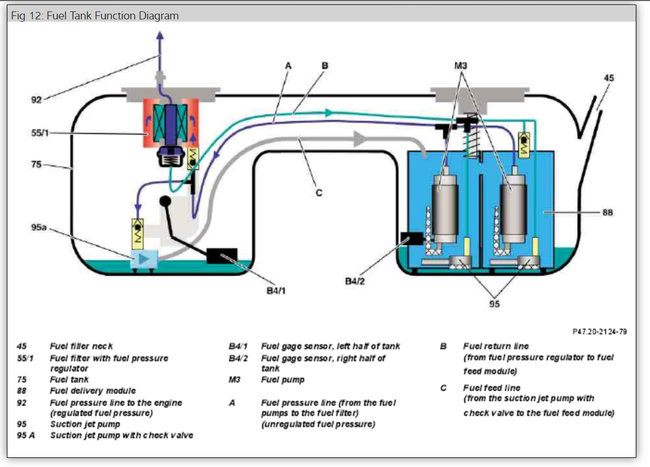

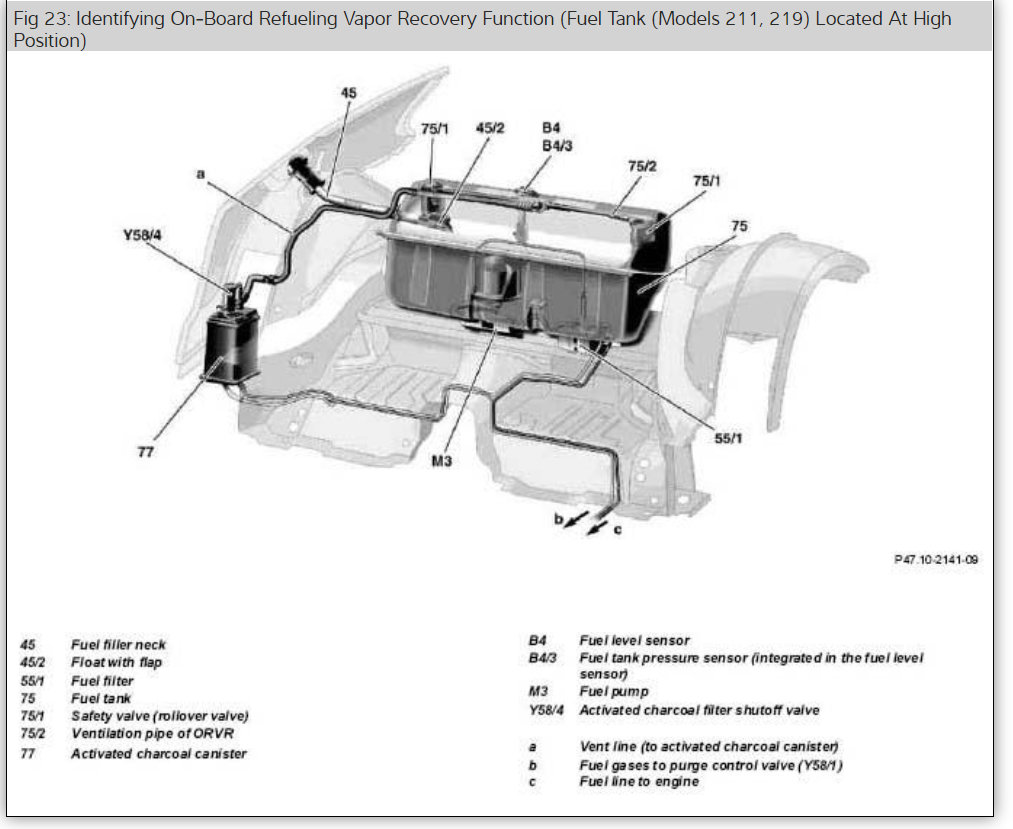

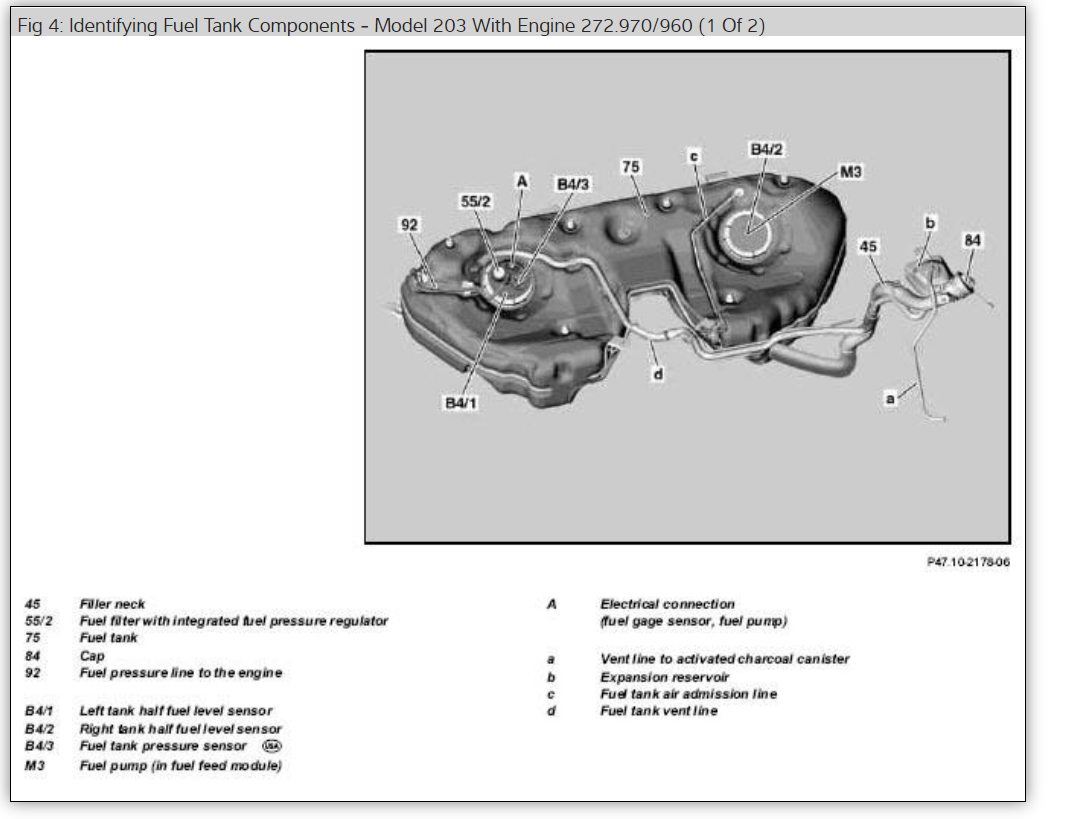

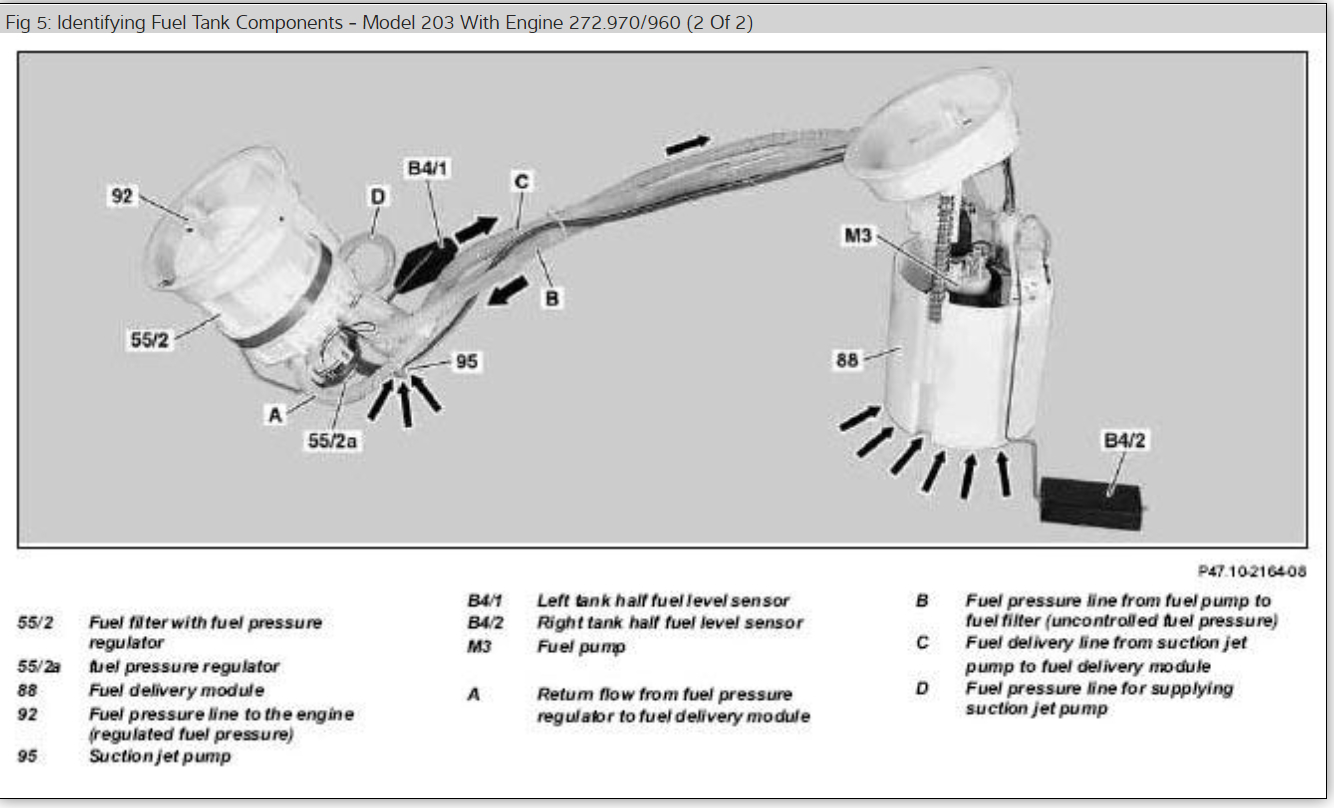

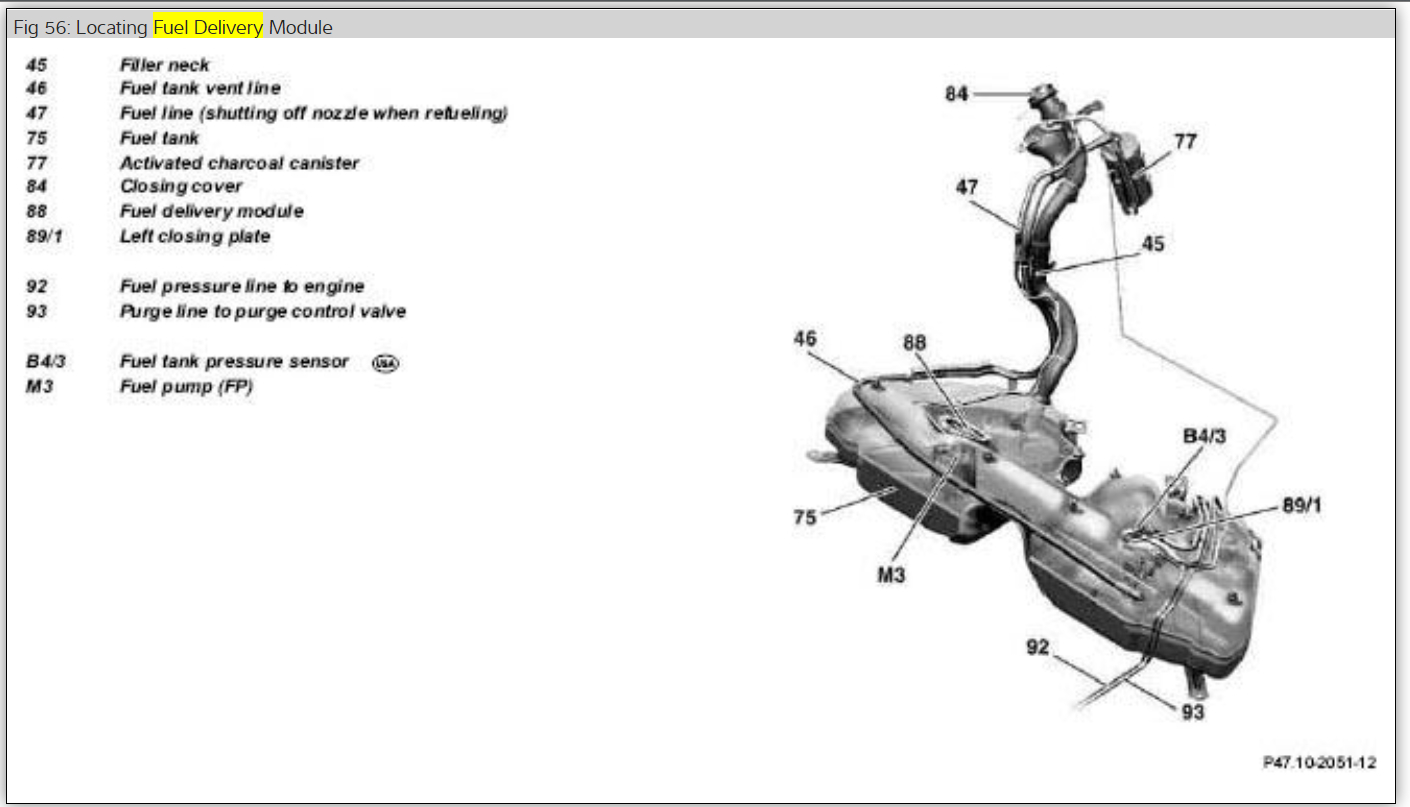

Sorry about that here is what else I found. Let me know if that helps.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
+1
Wednesday, October 31st, 2018 AT 11:16 AM
Tiny
OPTIMPRI
  • MEMBER
  • 4 POSTS
Thanks, but I have already figured it out.
Was this
answer
helpful?
Yes
No
-1
Wednesday, October 31st, 2018 AT 11:26 AM
Tiny
OPTIMPRI
  • MEMBER
  • 4 POSTS
What database was did you use. I went to the dealership and even they, were lost. Their system could not pull up anything for the PZEV blueprint.
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, October 31st, 2018 AT 11:30 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
We use All Data and Mitchell 1. Use 2CarPros anytime, we are here to help. Please tell a friend.

Cheers, Ken
Was this
answer
helpful?
Yes
No
Wednesday, October 31st, 2018 AT 11:40 AM
Tiny
EELTURKI
  • MEMBER
  • 1 POST
Hello,

That is very helpful. My case is that fuel smell then later fuel pump stopped working. My question please is the fuel sending unit with integrated fuel pressure sensor the same for PZEV and non-PZEV tank?
Thank you
Was this
answer
helpful?
Yes
No
Sunday, May 14th, 2023 AT 12:27 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS
Here is what is said about the problem:

In the 2006 Mercedes-Benz E350, the fuel sending unit with an integrated fuel pressure sensor may not be the same for PZEV (Partial Zero Emission Vehicle) and non-PZEV tanks. The PZEV designation is typically used to indicate vehicles that meet stricter emissions standards. These vehicles often have additional emissions control components and systems compared to non-PZEV vehicles.

To ensure the correct fuel sending unit with an integrated fuel pressure sensor for your specific vehicle, it is recommended to consult the vehicle's manual, contact a Mercedes-Benz dealership, or reach out to a trusted parts supplier who can verify the compatibility based on your vehicle's VIN (Vehicle Identification Number).
Was this
answer
helpful?
Yes
No
+1
