Fuel system components diagram needed?

2010 MERCEDES BENZ E350
120,000 MILES • 2.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
SCOTTOBLOTTO
  • MEMBER
  • 2 POSTS
I'm trying to identify the main components of the fuel and vapor recovery system specifically around the rear seat area (above the tank). Any help would be great.
Apr 7, 2023 at 2:43 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

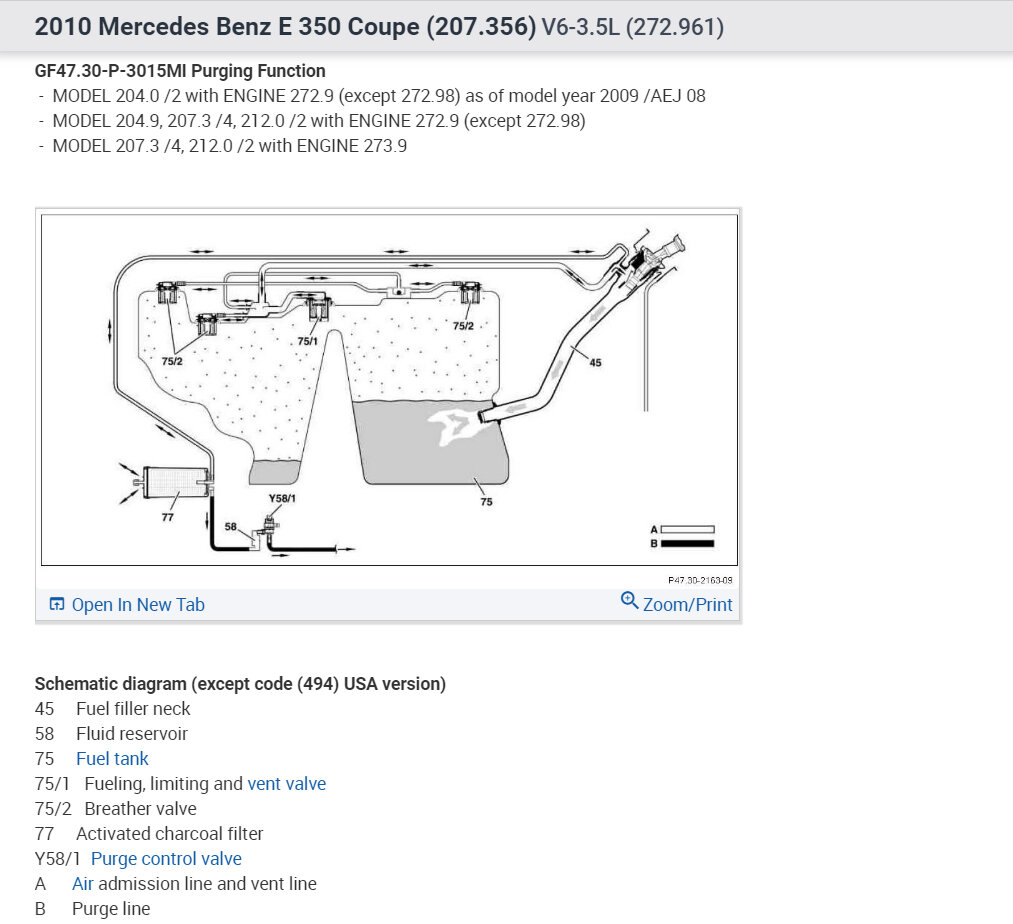

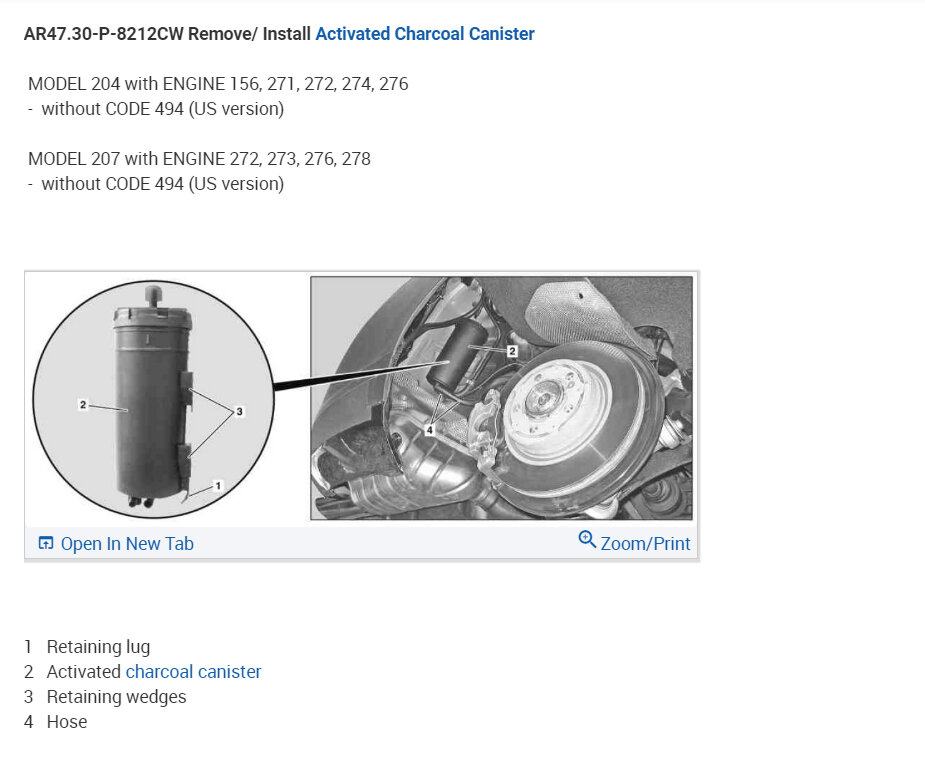

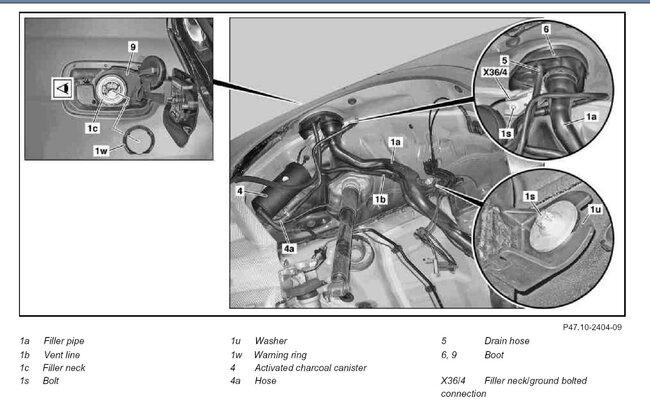

Sure, here is a description of the fuel and EVAP system in the images below. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Apr 8, 2023 at 11:34 AM
Avatar
SCOTTOBLOTTO
  • MEMBER
  • 2 POSTS
Thank you so much for the diagrams listed. How about a diagram showing the 2 fuel tank ports accessible under the rear seats? Their functions?
Apr 8, 2023 at 1:14 PM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

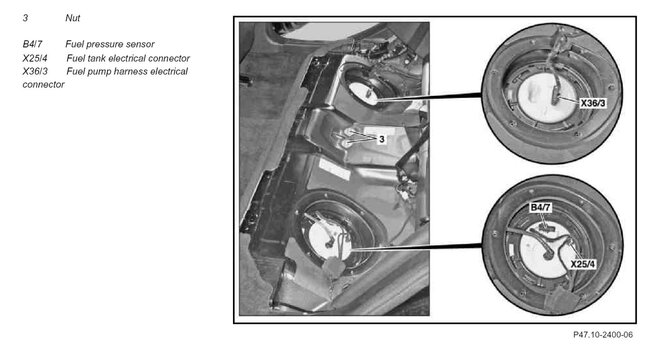

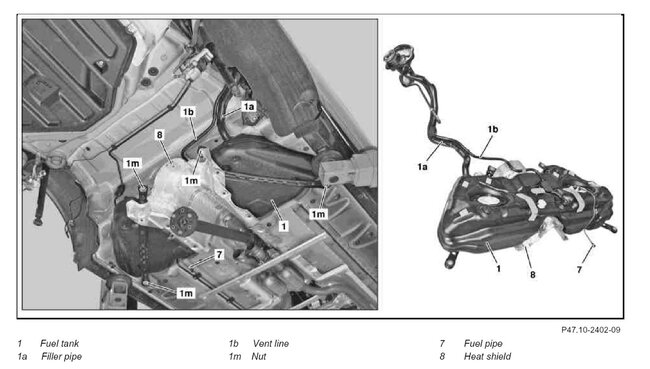

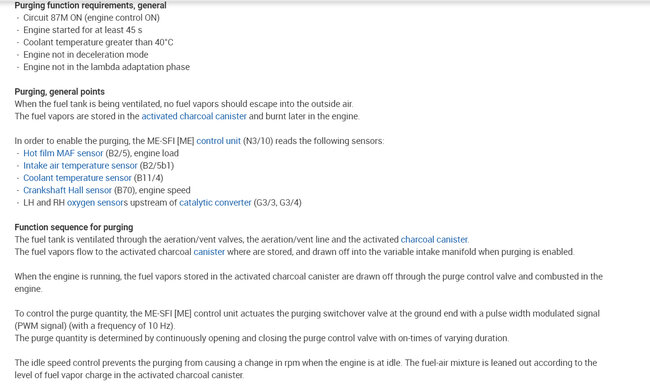

Sure, here is the information you have requested. Check out the images (below). Please let us know what happens.


Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Apr 10, 2023 at 11:57 AM
