Where is the fuel pump relay located? it is a LXI, and it says Mitsubishi Motor Company under the hood. Mine is a coupe two door not a convertible.
Feb 22, 2018 at 4:12 PM
Fuel pump location
1996 CHRYSLER SEBRING
MICHAEL HAMBY
- MEMBER
- 1 POST
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

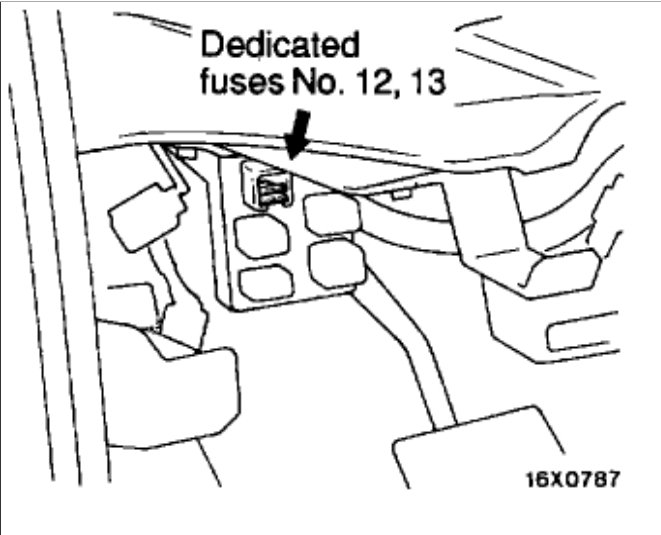

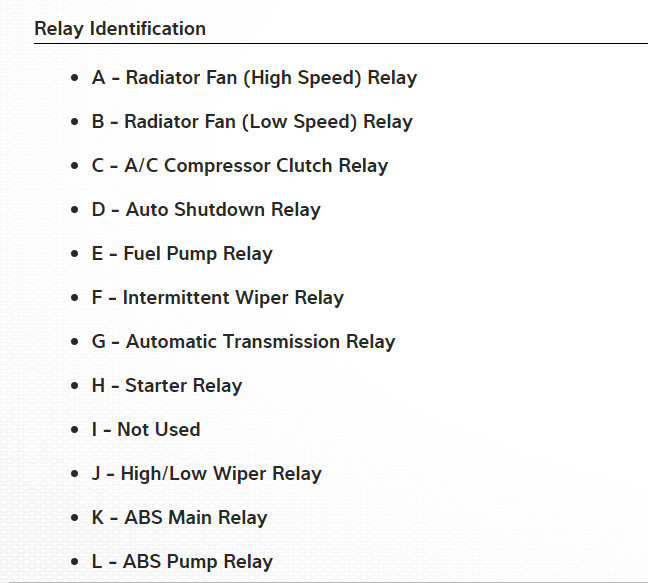

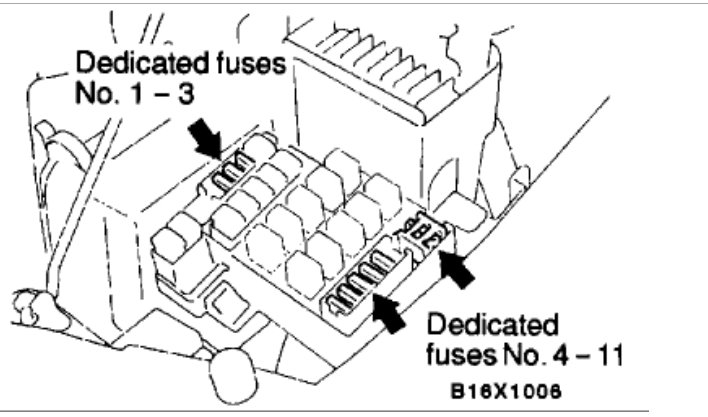

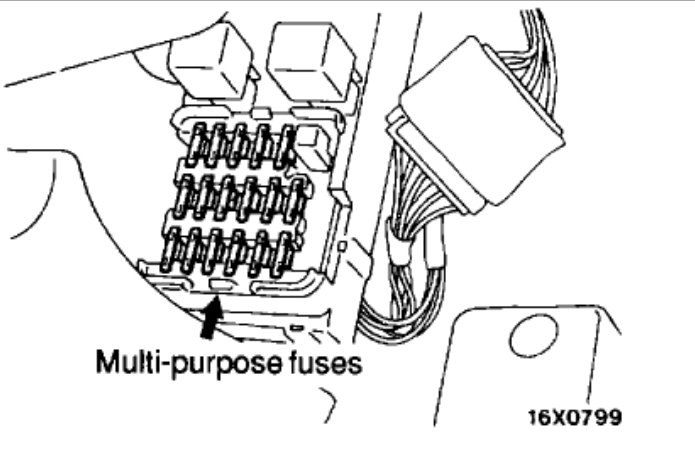

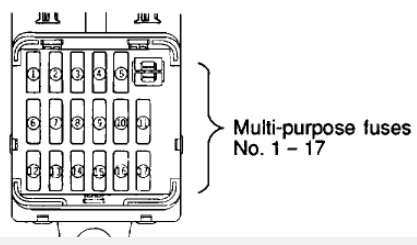

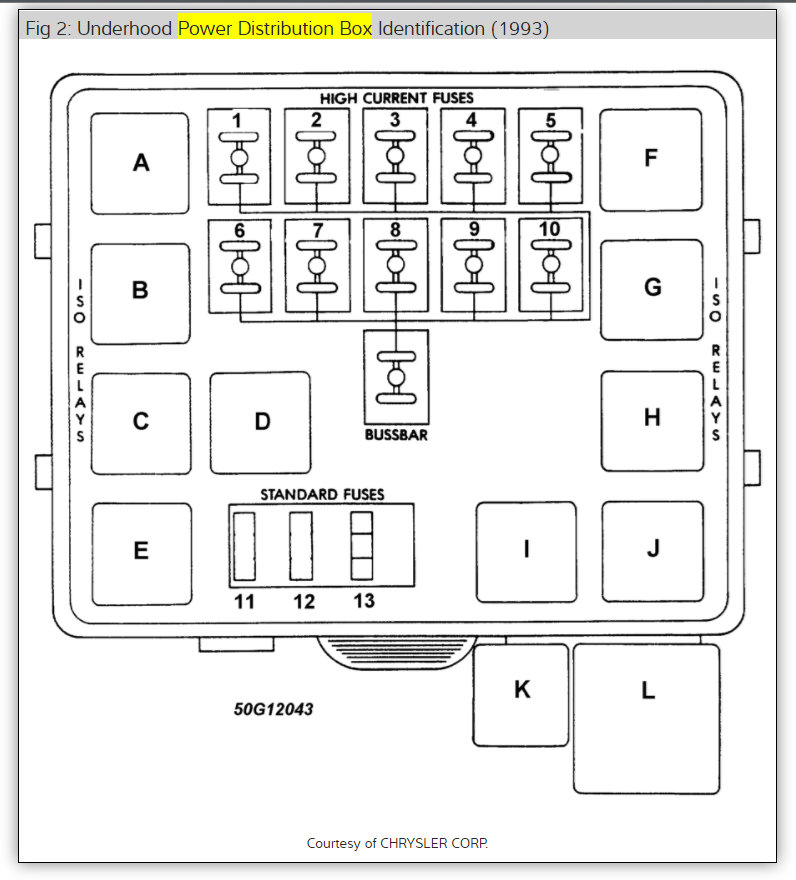

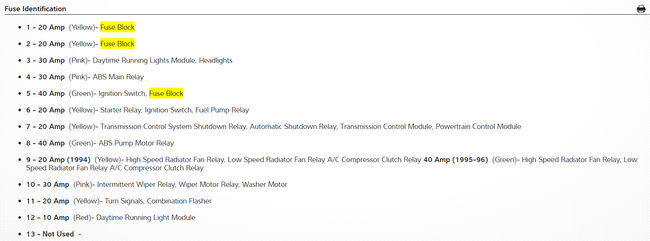

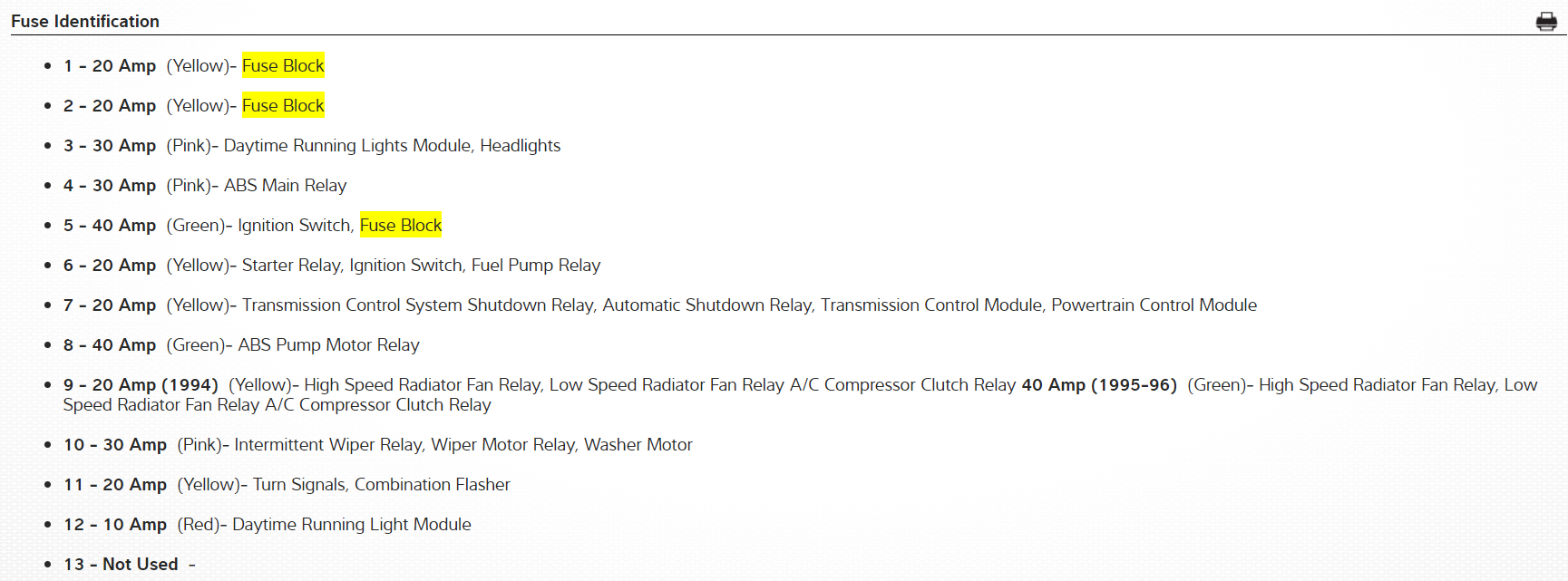

Depends on the model. Here is the layout for the under-hood fuse box for the convertible and non convertible.
This guide will help you do fuse testing.
https://www.2carpros.com/articles/how-to-check-a-car-fuse

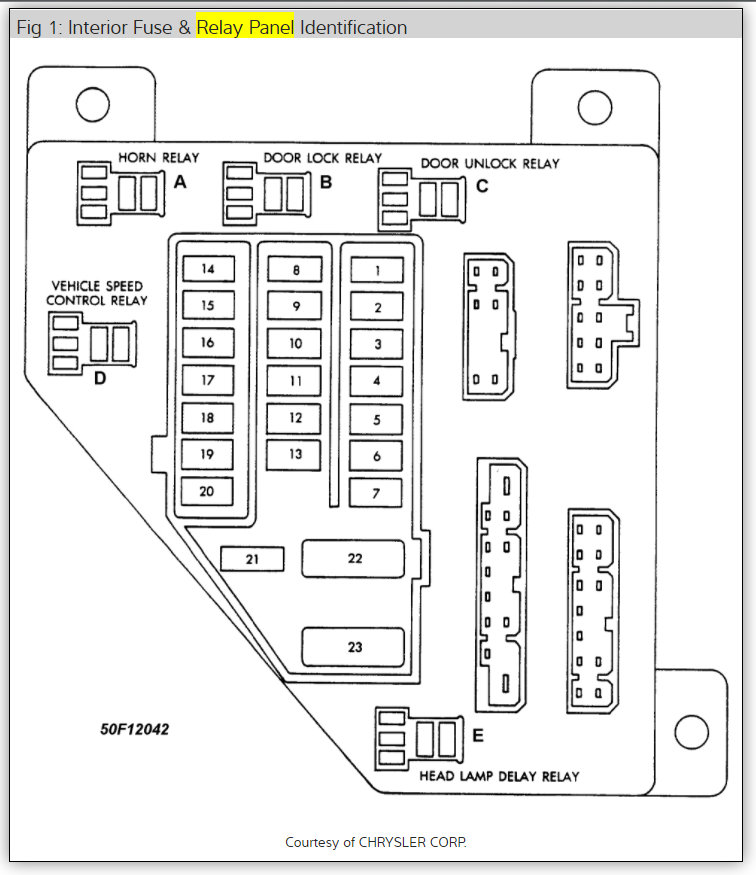

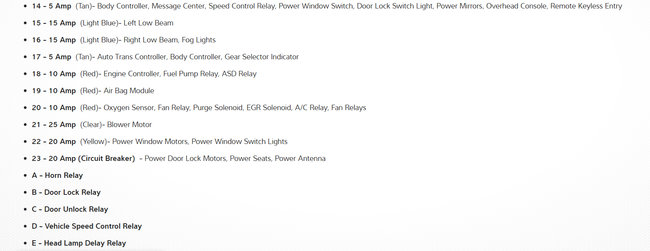

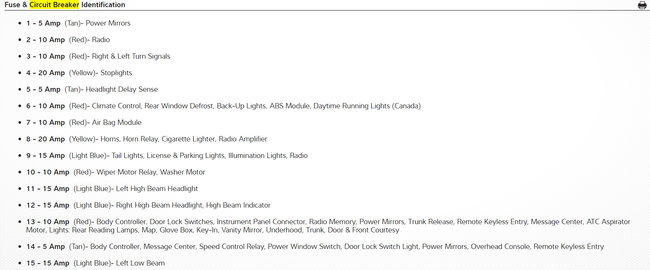

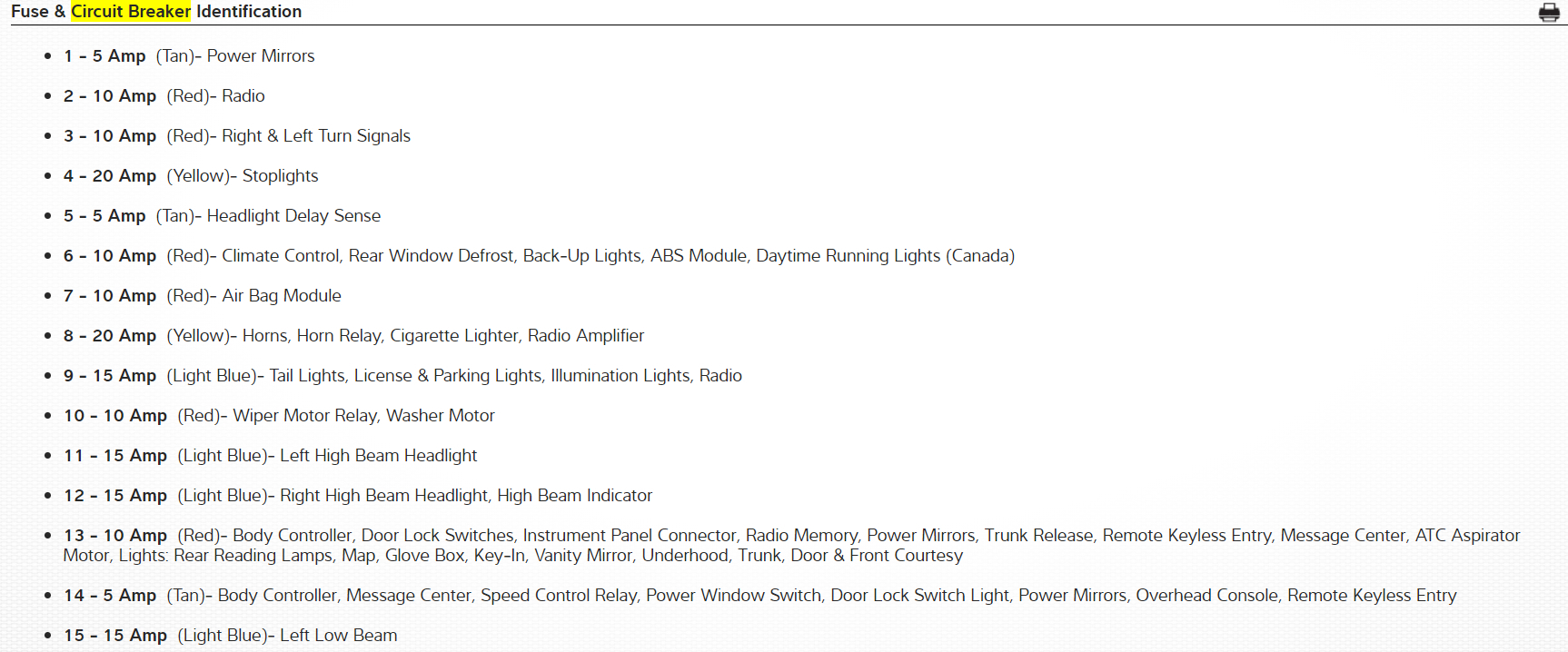

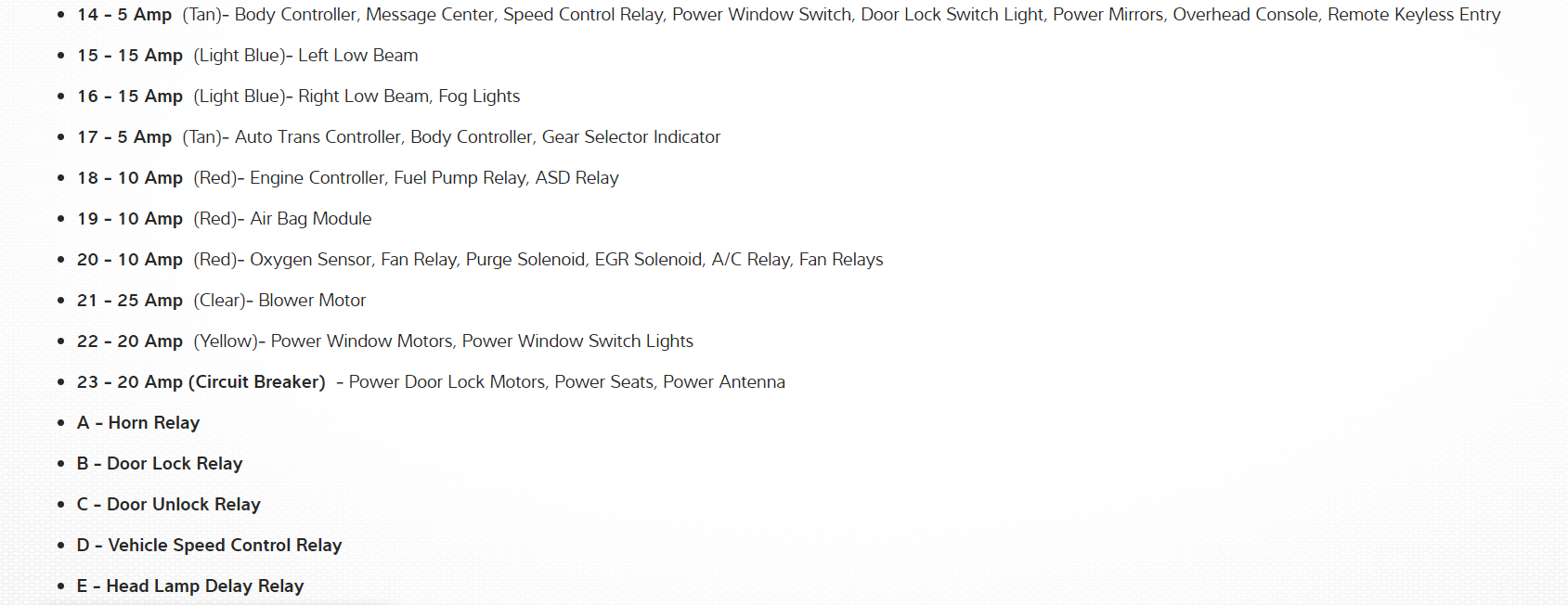

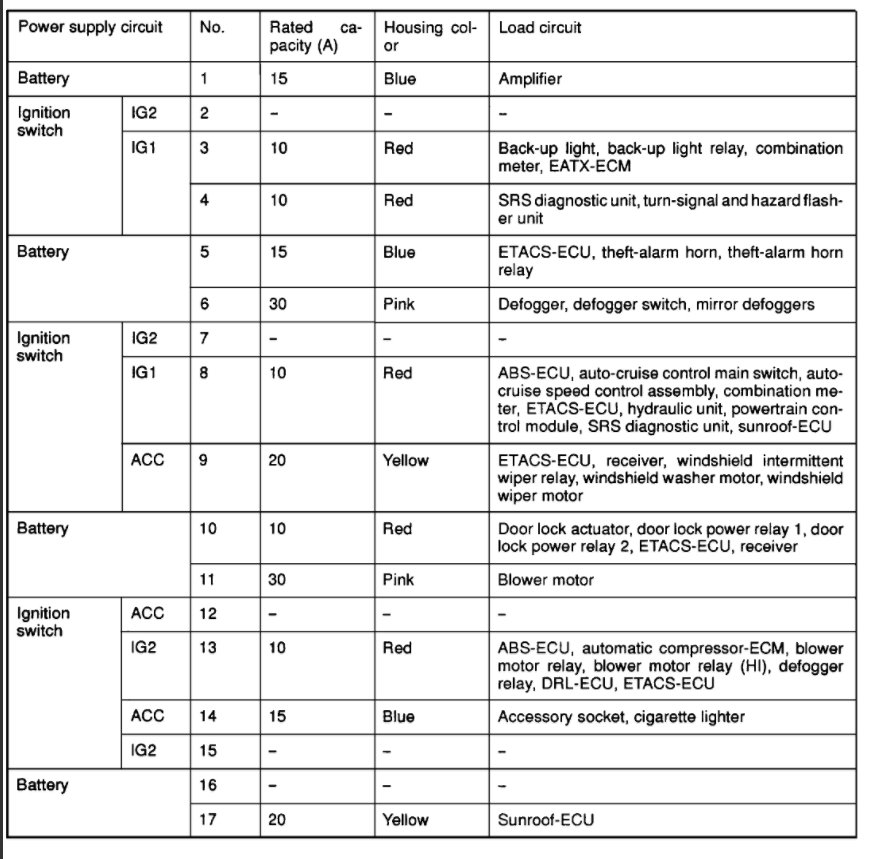

Check out the diagrams (below).
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
