Fuel pump wire colors and diagram needed?

2000 CHEVROLET TAHOE
159,000 MILES • 5.7L • V8 • 4WD • AUTOMATIC
Avatar
FRANKENHOE2000
  • MEMBER
  • 2 POSTS
I bought a new fuel pump. Did not come with very clear instructions. My truck harness has the following colors, large green, black, purple, gray. New pump wire harness has org/blk, gray, purple, black. I am at a loss as what goes where.
Jan 13, 2023 at 6:32 AM
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,244 POSTS
Hi,

That's a tough one for me to answer. Did it come with a wiring schematic or anything that indicates what each of their wire colors is for?

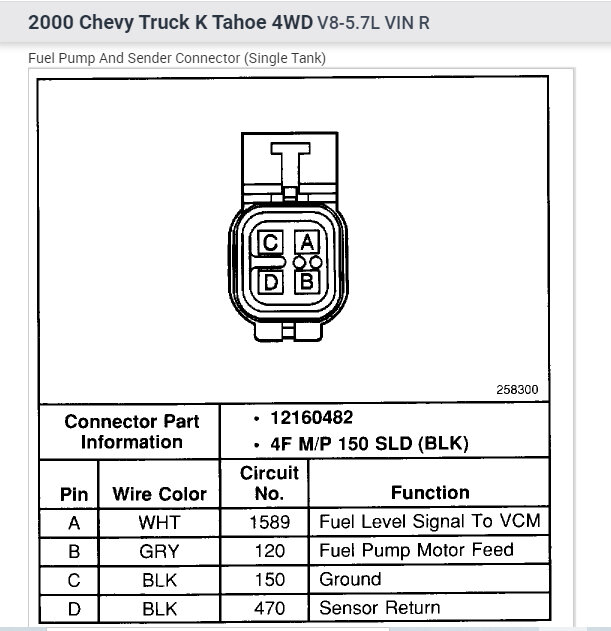

I attached the connector schematic below that should be on your vehicle, but the colors are different than what you mentioned. Take a look at the pic below.

Also, let me know if they provided any information on their wiring.

Take care,

joe

See pic below.
Image (Click to enlarge)
Attached Media
Jan 13, 2023 at 1:57 PM
