Fuel pump color code wiring diagram needed?

1992 MAZDA B2600
14,000 MILES • 2.1L • 4 CYL • 4WD
Avatar
ROBERT 4×4
  • MEMBER
  • 1 POST
I dropped my tank and didn't unplug the wiring harness and all the wires come out of the plug and they were two different colors on each side. so, I don't know which colors go to what wires
Apr 30, 2023 at 12:03 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Sure, here is a guide to help you test the connections and the fuel pump wiring diagrams as you have requested.

https://www.2carpros.com/articles/how-to-check-wiring

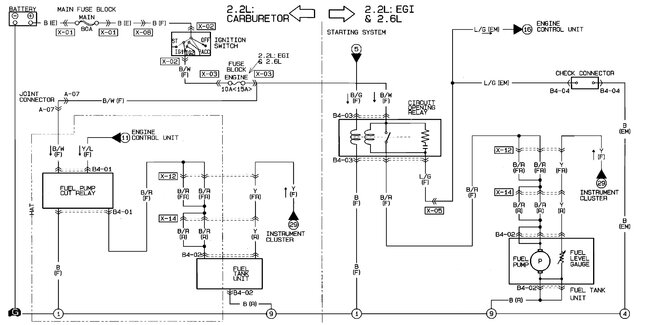

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
