1992 GMC JIMMY
4.3L
V6
4WD
AUTOMATIC
15,300,000 MILES
Where does the vacuum line go on the engine? Thank you
Wednesday, October 26th, 2016 AT 9:16 AM
1 Reply
HMAC300
MECHANIC
48,601 POSTS

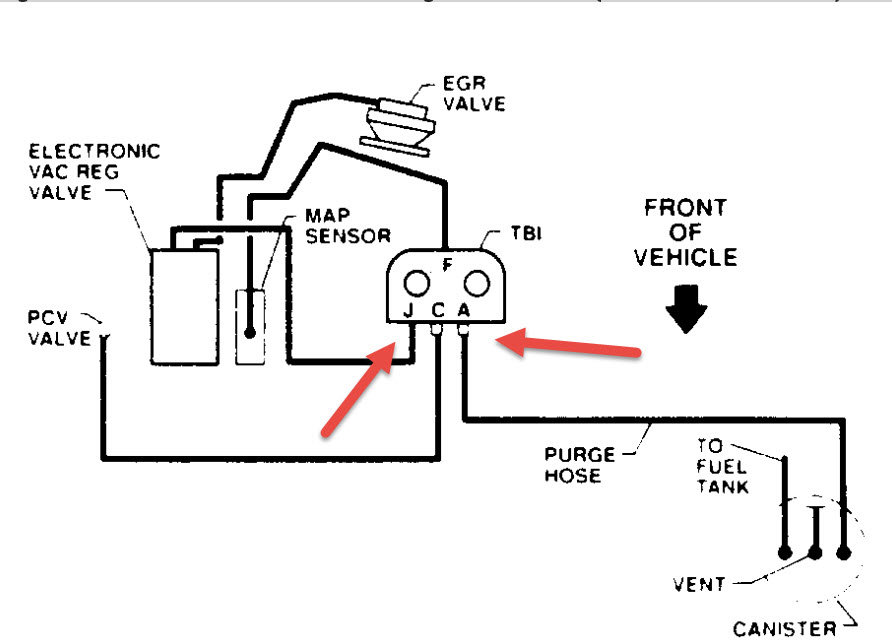

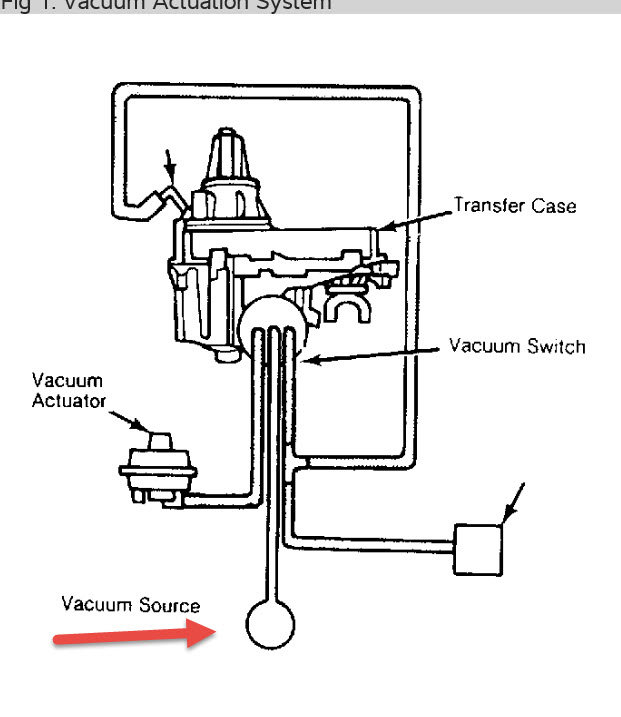

We really do not have a picture of that in our manual look for a "T" coming off of one of the lines with arrows for source see pictues.
Images (Click to make bigger)
