Fuse Box Diagram?

RAYNISHA LOVING

MEMBER
1995 FORD EXPLORER

I need a fuse box diagram for my truck?

Tuesday, August 31st, 2010 AT 3:18 PM

1 Reply

SQM

MECHANIC
6,383 POSTS

Hello,

This vehicle have two fuse boxes. One is under the dash, other is located under the hood.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

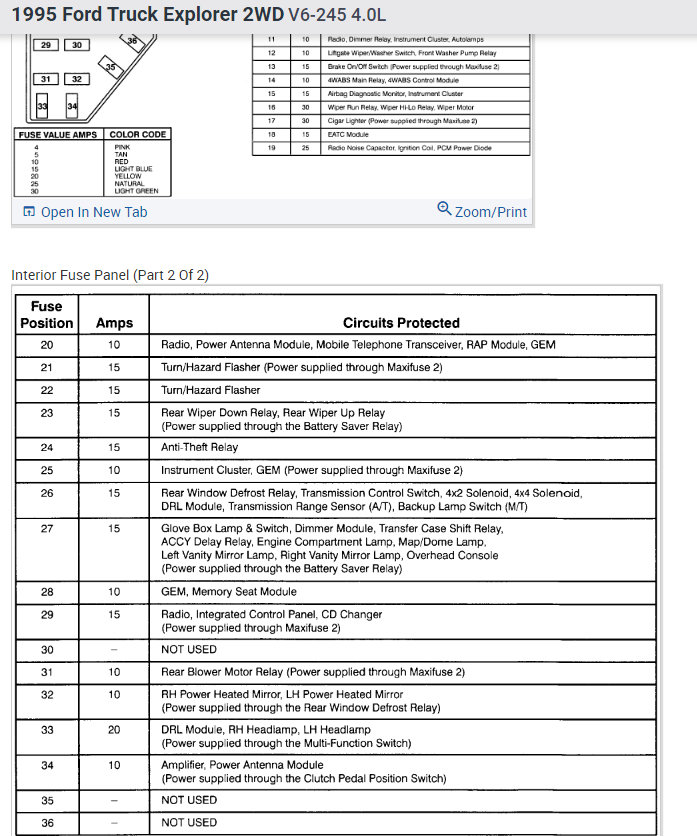

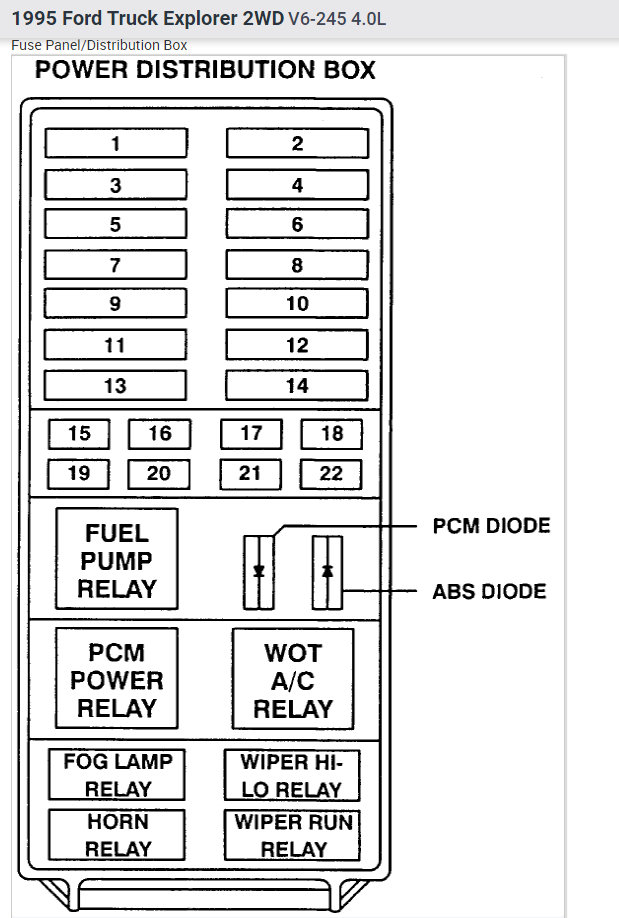

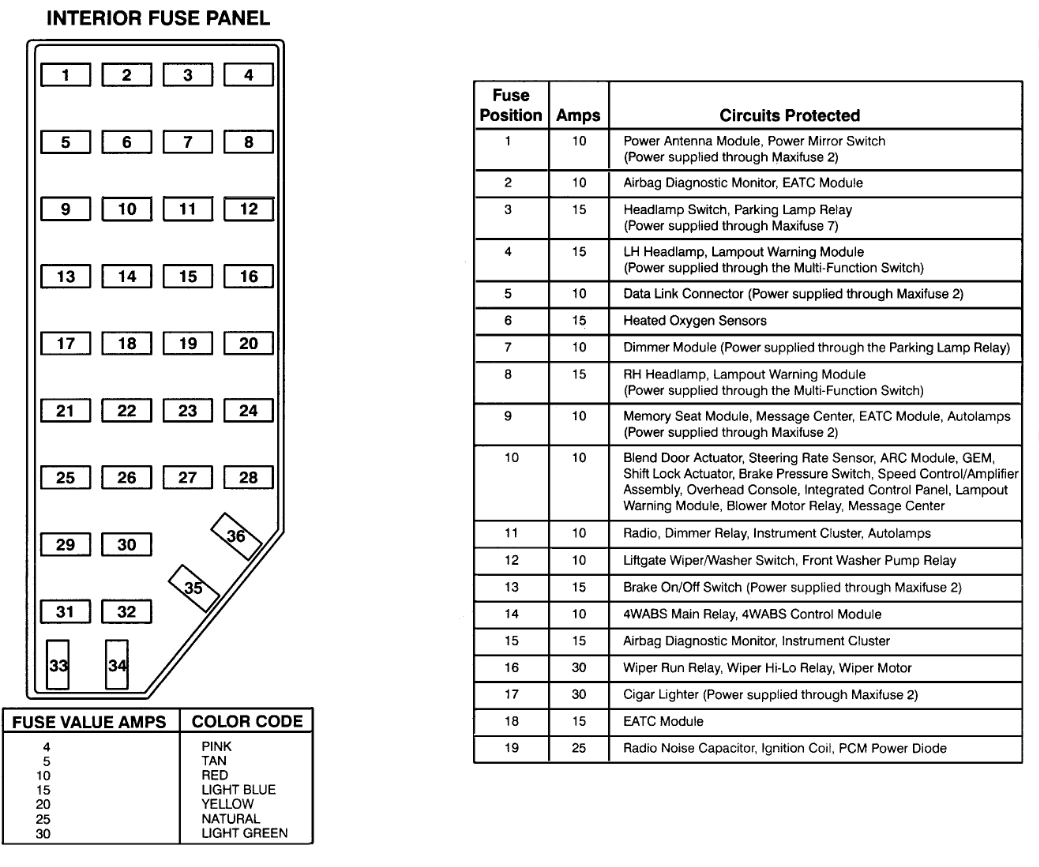

I have attached fuse diagrams for both.

Please let me know of any questions.
Thank you.

Images (Click to make bigger)
