Where is the fuel pump relay located?
Jun 4, 2009 at 4:02 AM
Fuel Pump Relay Location ?
RACHEL.WILLIS09
- MEMBER
- 2 POSTS
Advertisement
Hello,
The fuel pump relay is located in the fuse block under the hood.

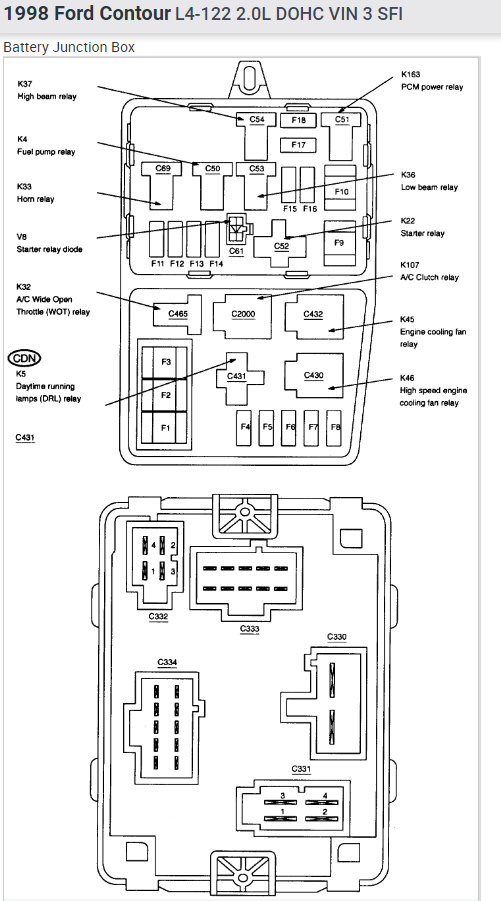

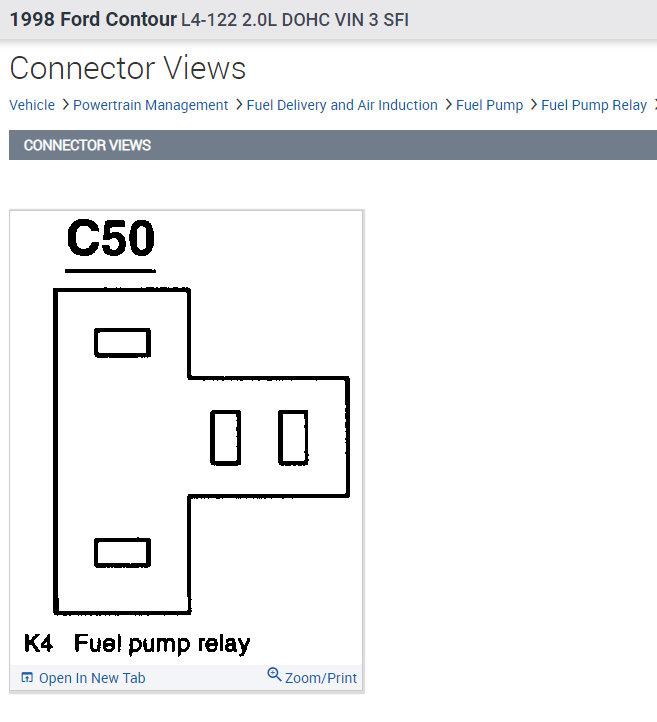

I have attached the diagram (see below) for that fuse panel. It should be number K4.
You might find this article helpful:
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
https://youtu.be/Hlna_kUt7As
Please let me know of any questions.
Thank you.
The fuel pump relay is located in the fuse block under the hood.
I have attached the diagram (see below) for that fuse panel. It should be number K4.
You might find this article helpful:
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
https://youtu.be/Hlna_kUt7As
Please let me know of any questions.
Thank you.

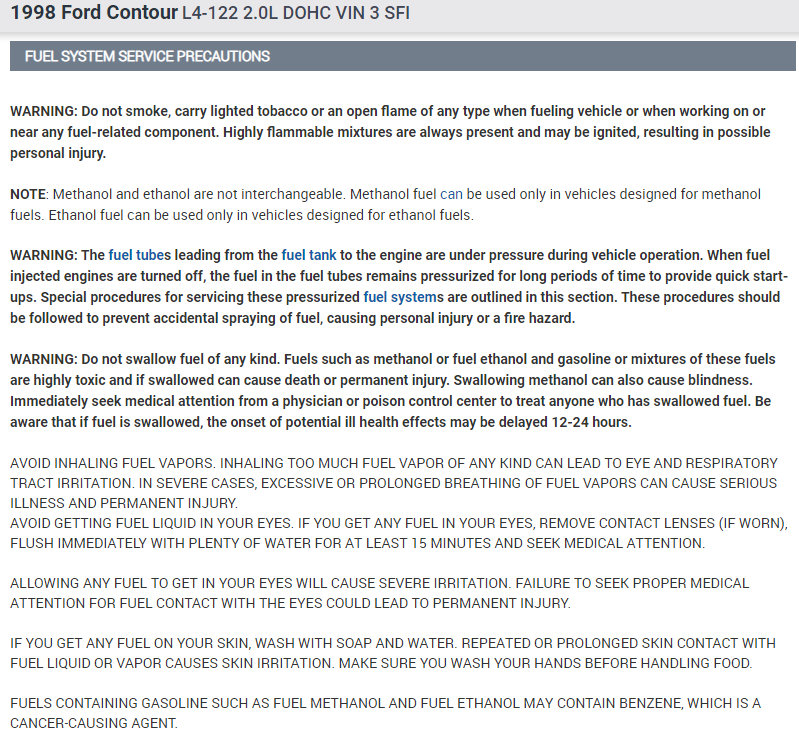

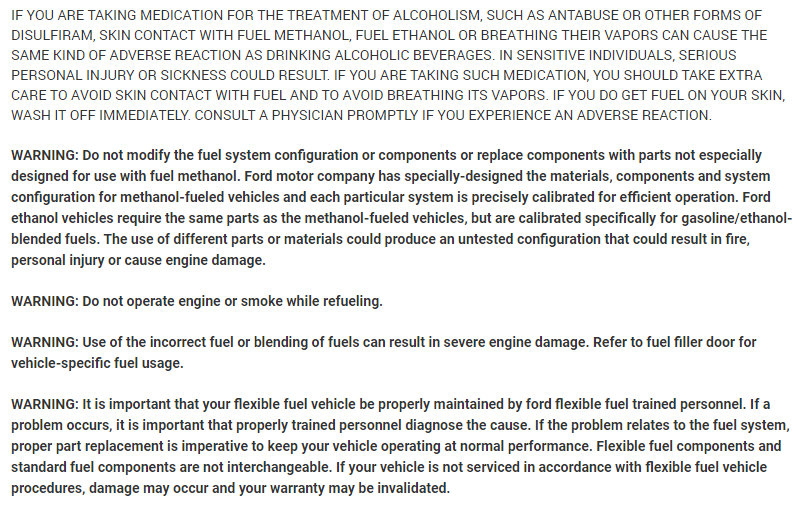

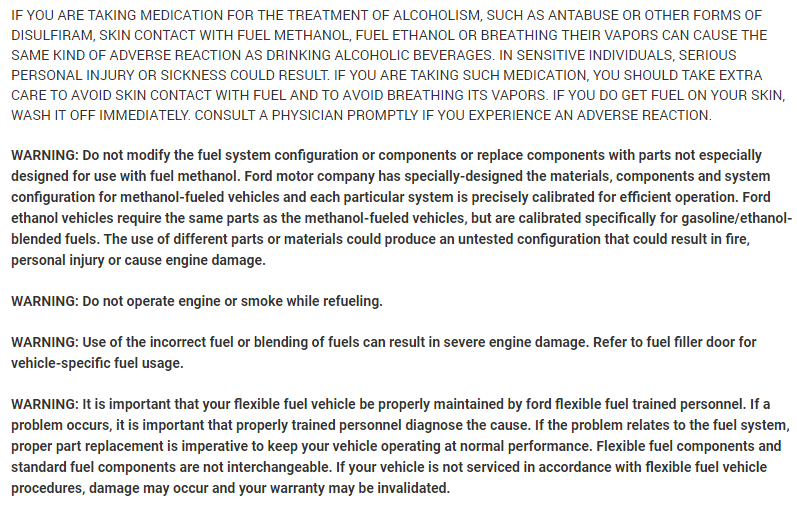

Images (Click to enlarge)
