PCM Pinout Chart needed?

Tiny
AHMED M
  • MEMBER
  • 2007 FORD F-150
  • 5.4L
  • V8
  • AUTOMATIC
  • 170,000 MILES
I can't find the pinout for the PCM. I am concerned about the transmission connector side but a comprehensive one would be amazing.

Its:
AFV3 7L3A-12A650-GAD

The truck listed above is an FX4.
Friday, August 25th, 2023 AT 1:14 AM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS

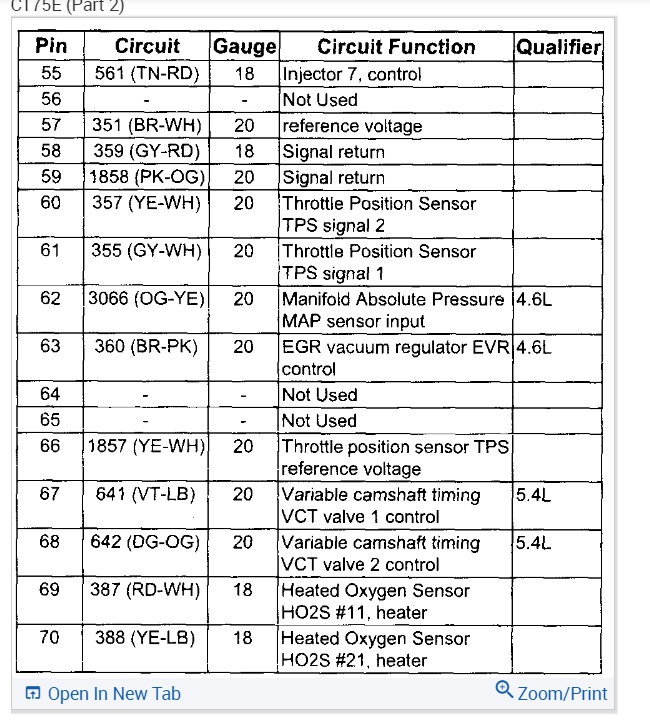

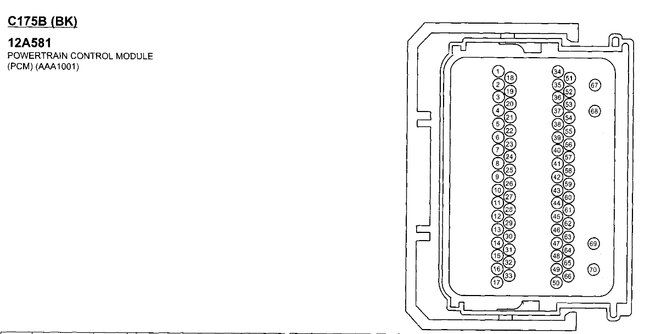

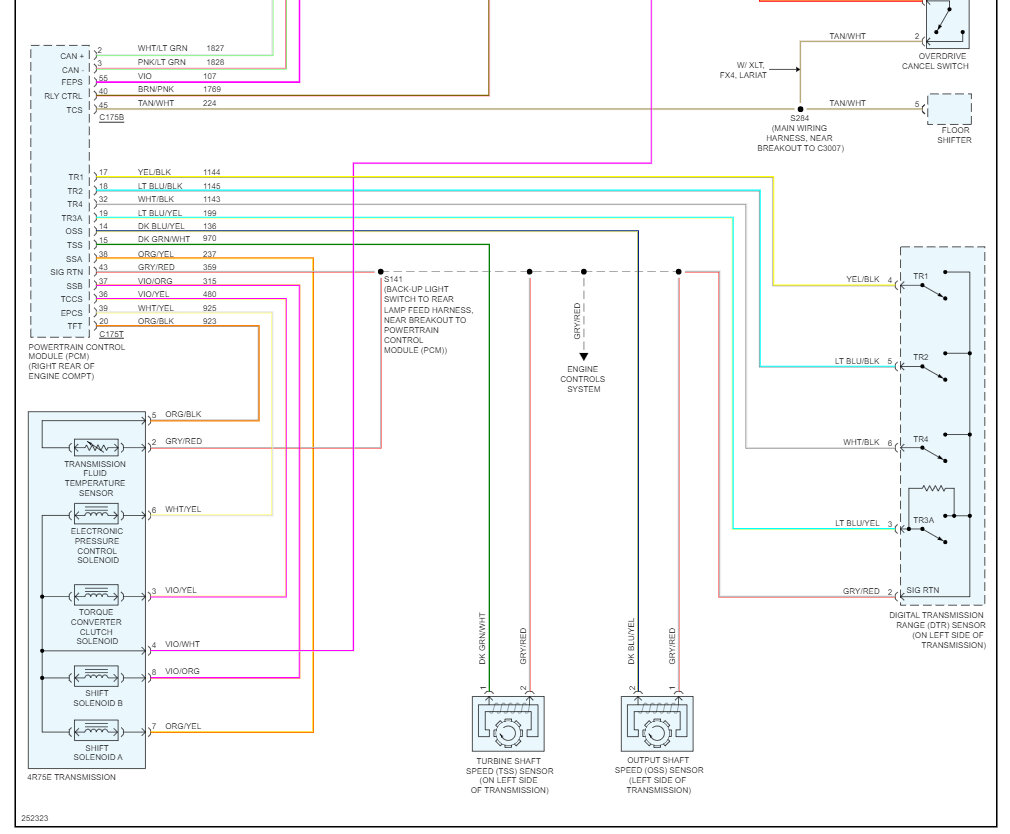

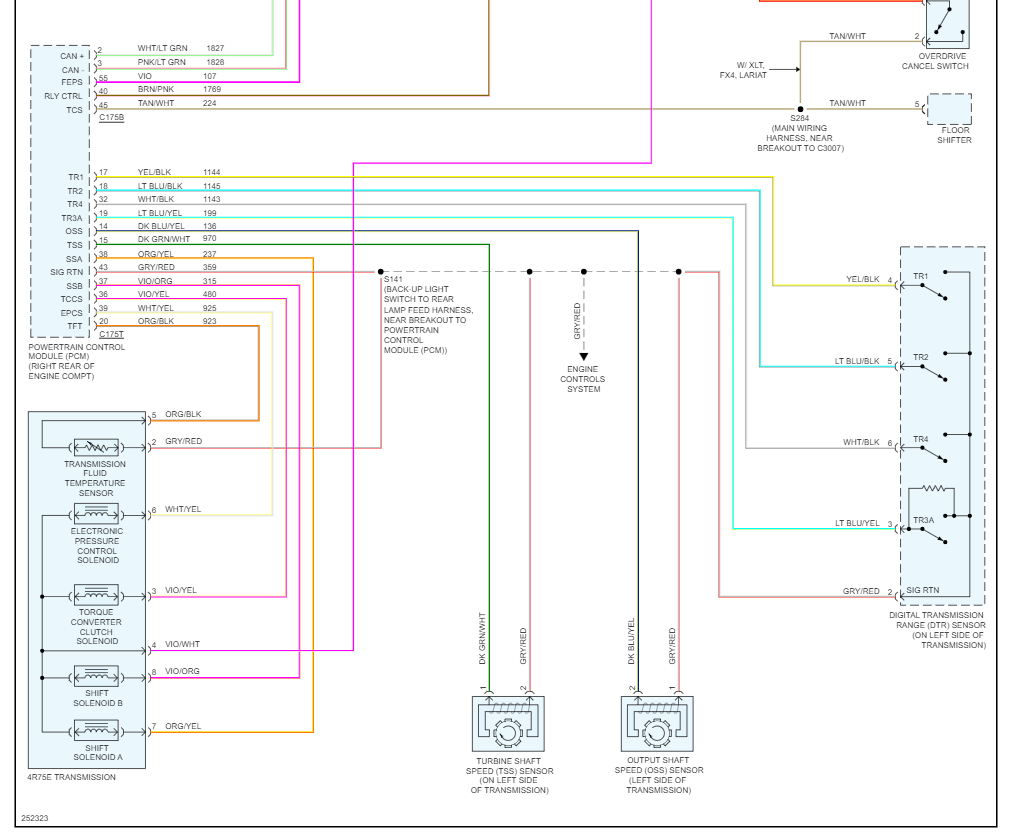

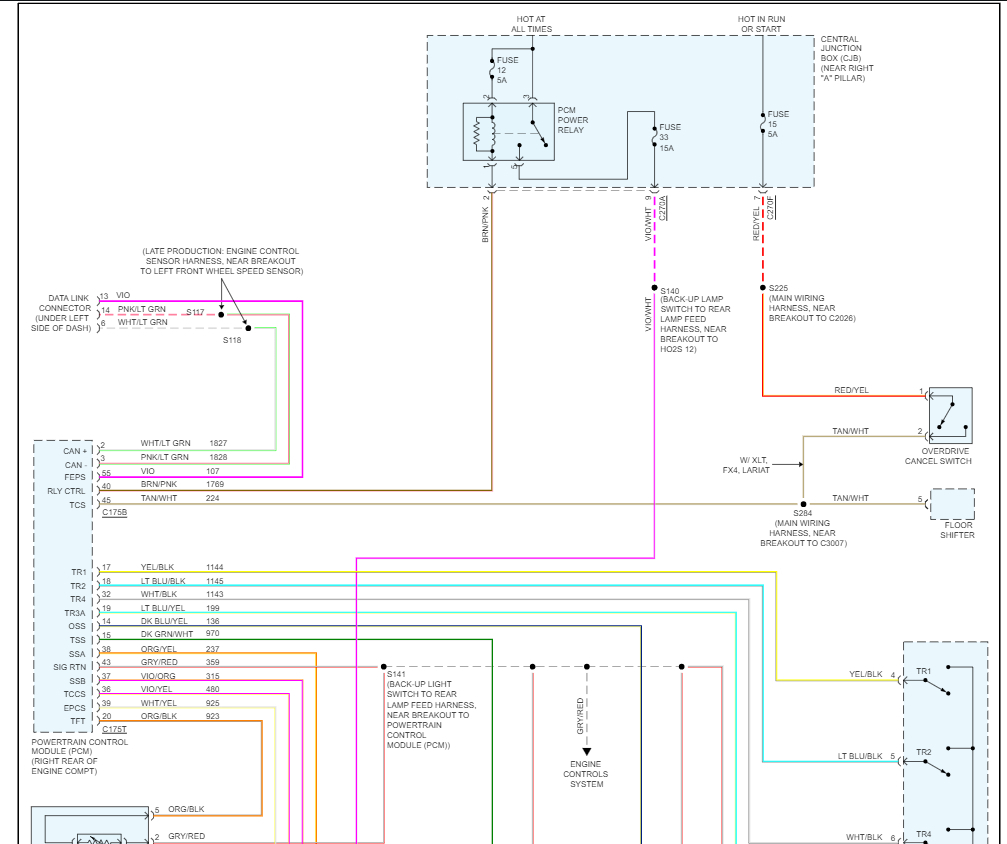

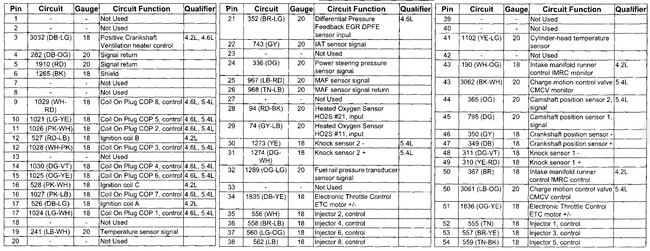

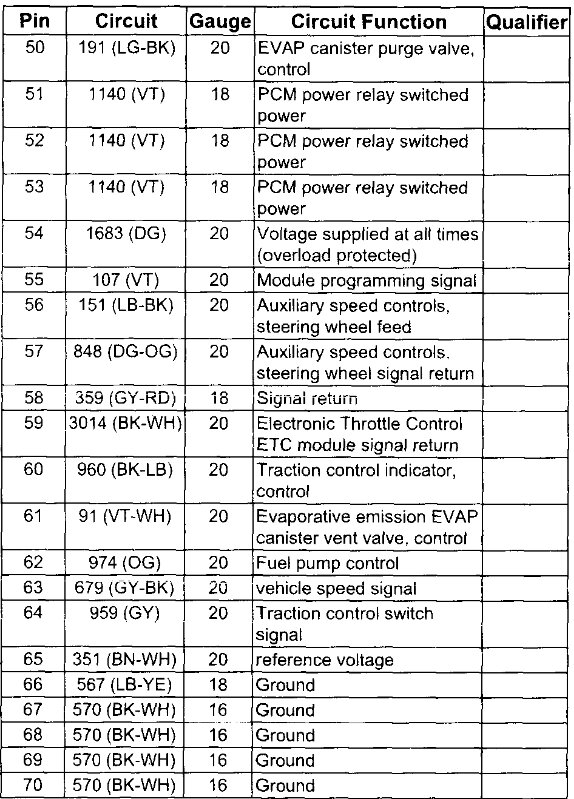

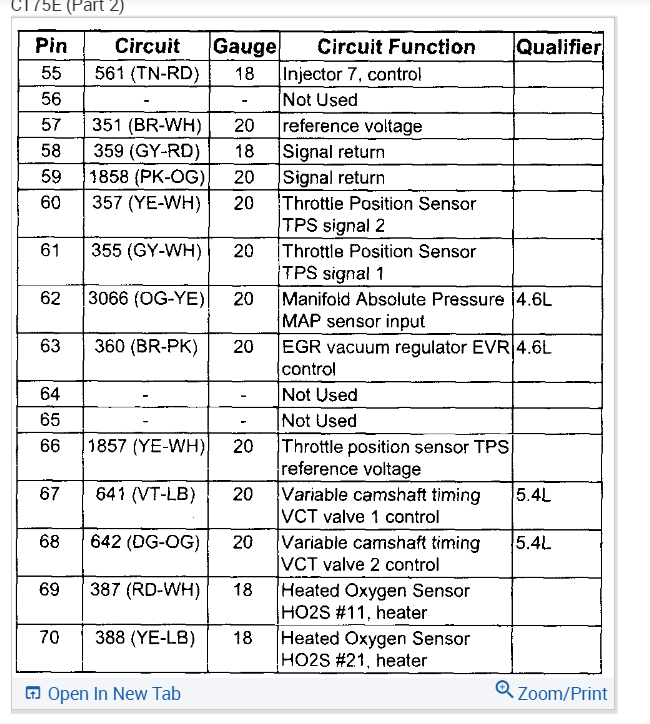

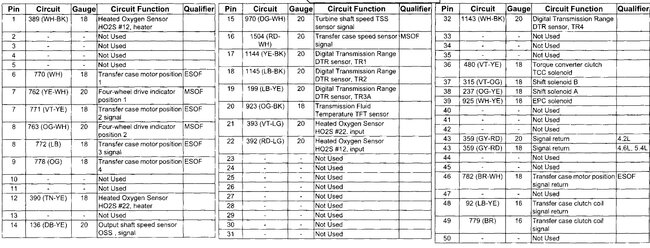

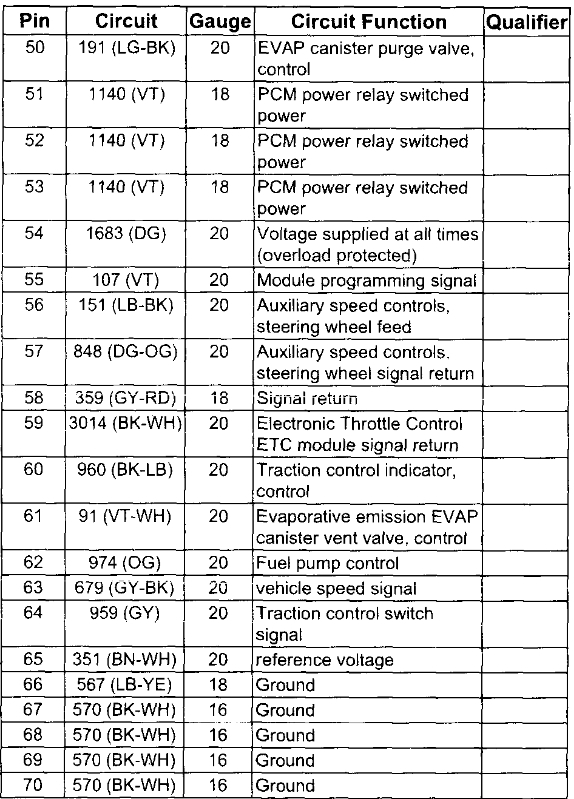

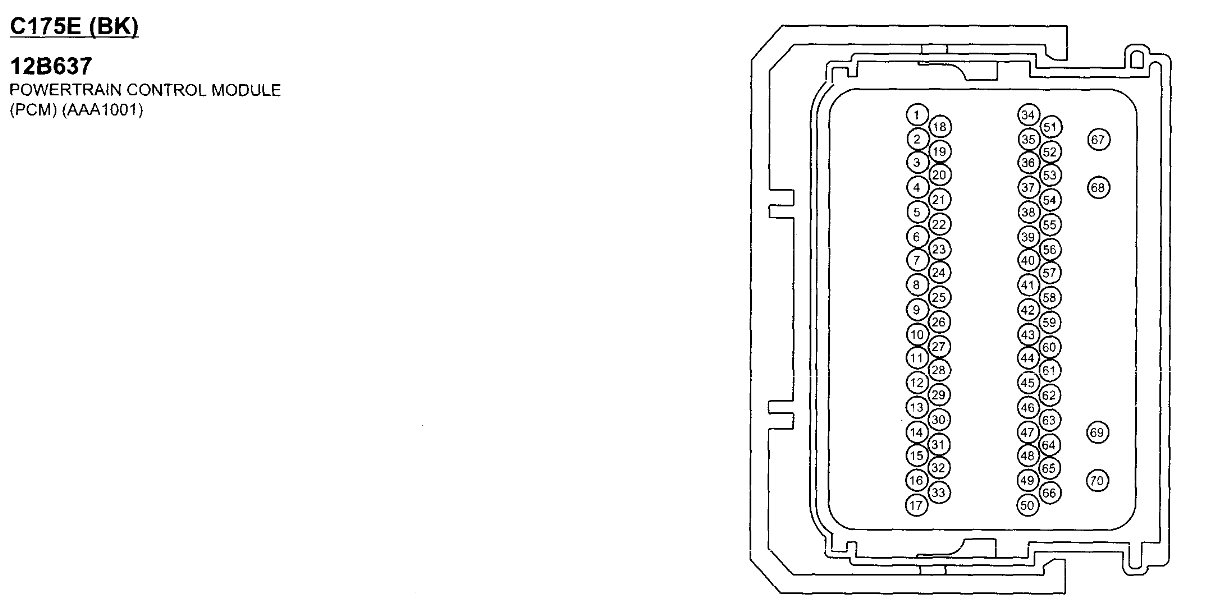

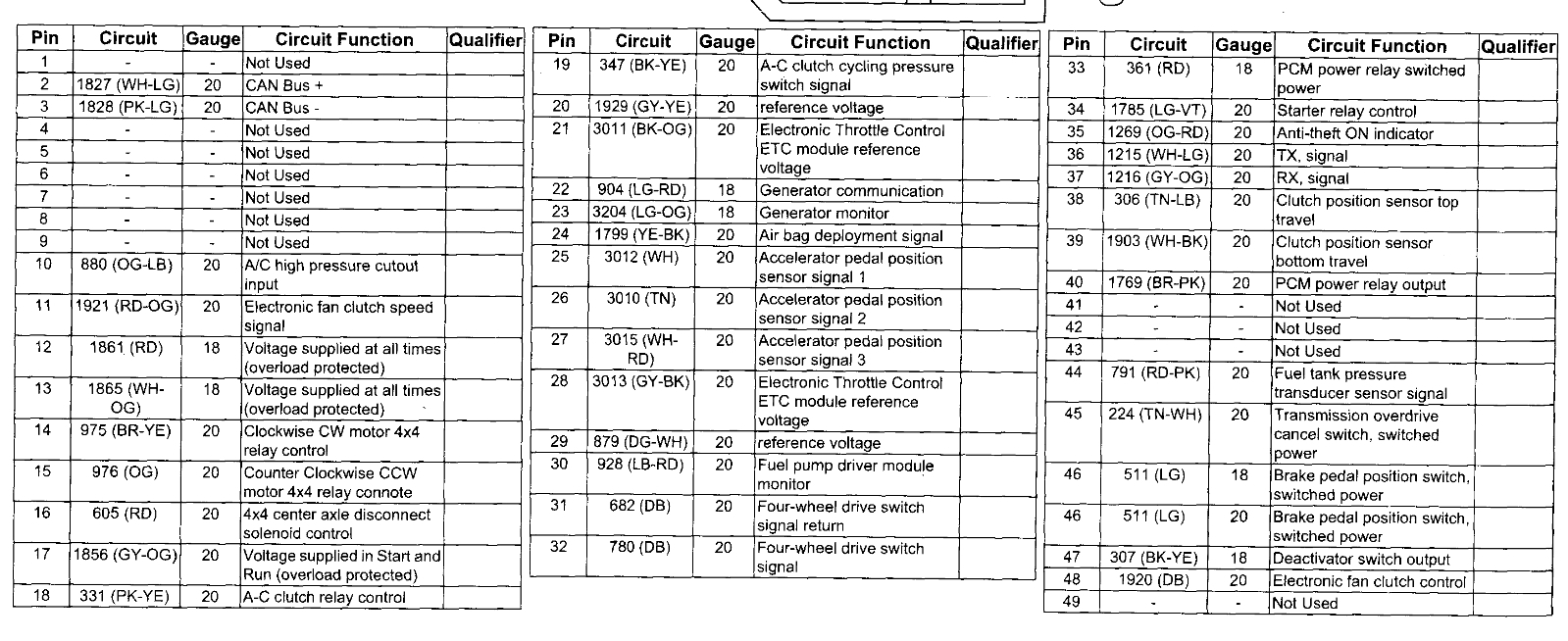

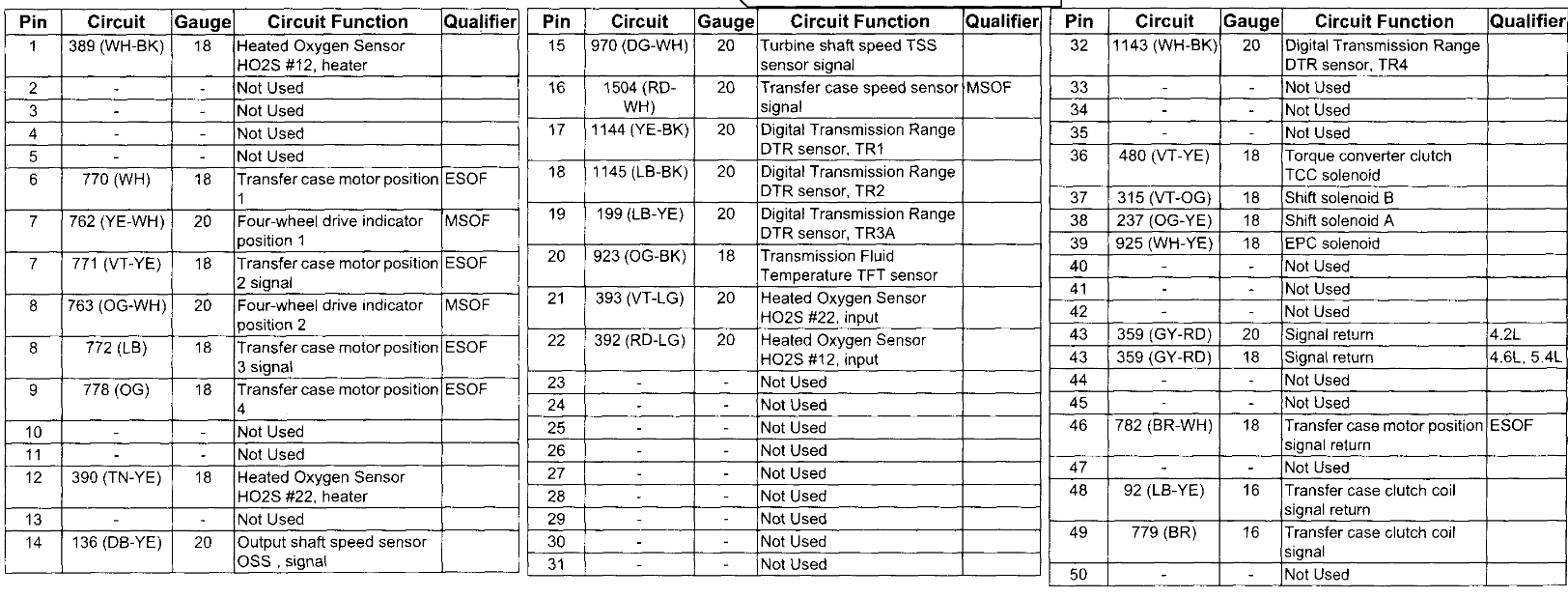

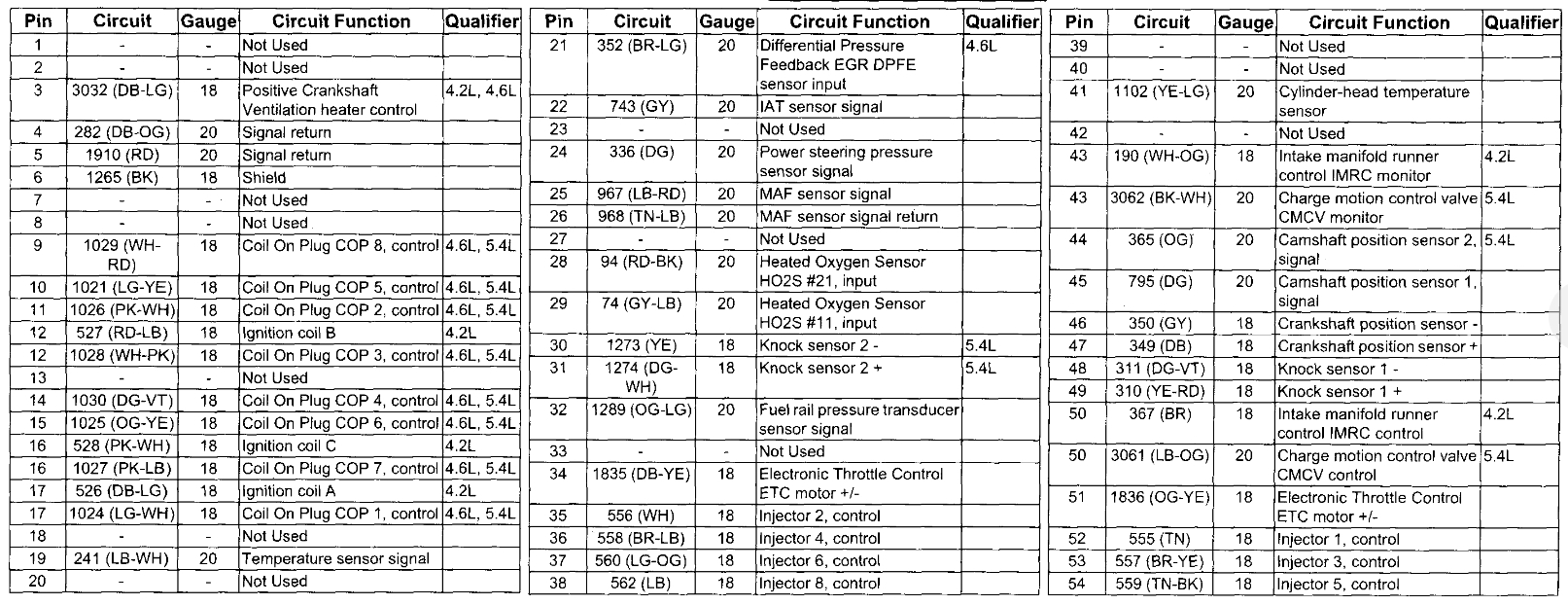

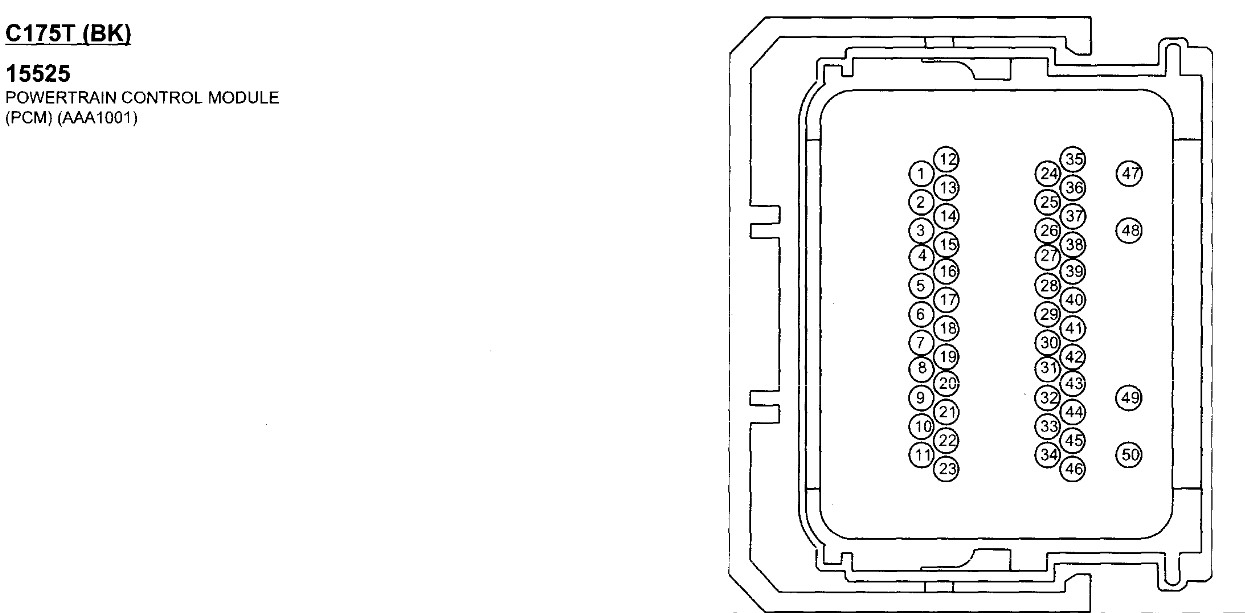

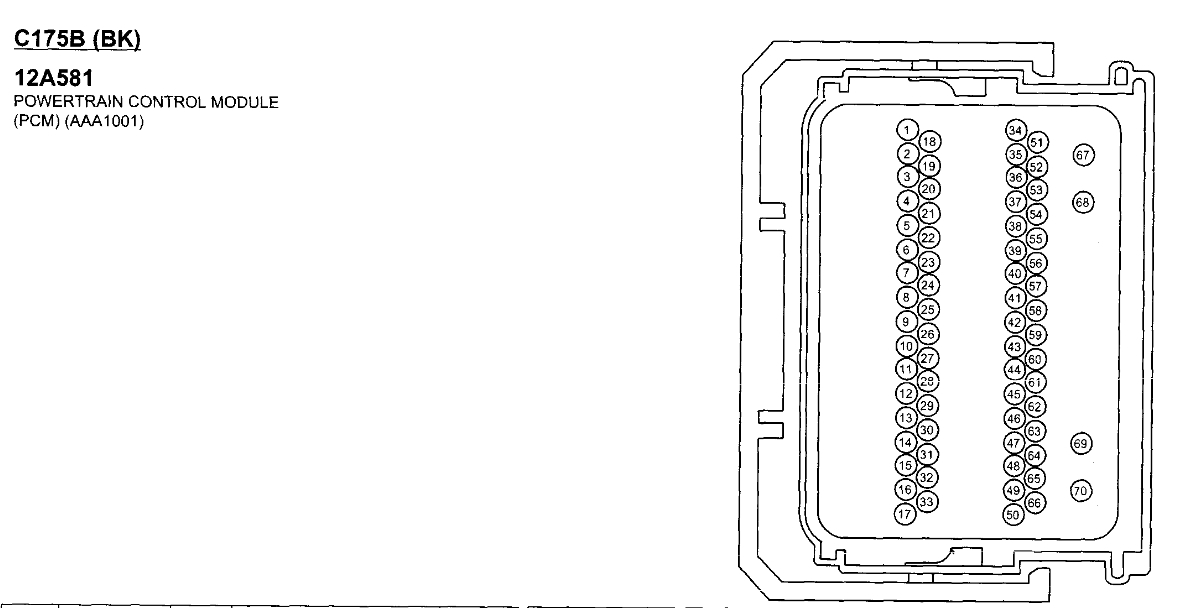

Sure here is the pinout for the PCM and I have included a guide to help you test the connections, I also included the transmission wiring diagrams.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
