External voltage regulator is failing test

Tiny
MZLULU
  • MEMBER
  • 1985 HONDA PRELUDE
  • 1.8L
  • 4 CYL
  • 2WD
  • MANUAL
  • 180,000 MILES
There is a blue and yellow wire that is connected to the harness attached to the plug that is not connected. I can't find a diagram to show me where it goes.
Tuesday, April 14th, 2020 AT 1:23 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi,

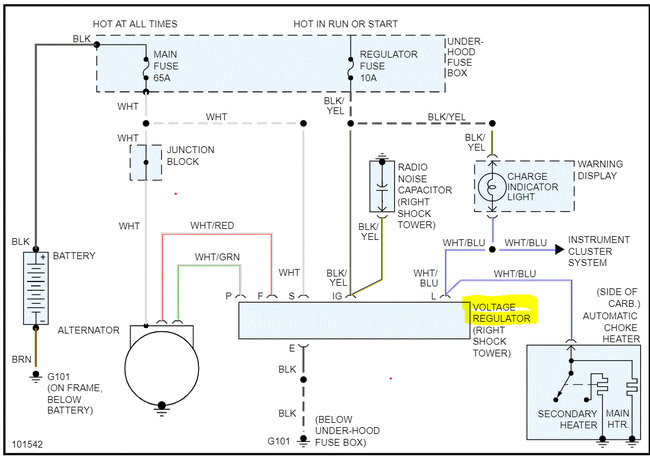

I found a wiring schematic of the charging system which includes the voltage regulator. Take a look through it and see if it helps. If you look through it and have questions, let me know.

Take care,
Joe
Image (Click to make bigger)
