turbo pipe diagram?

2000 VOLKSWAGEN PASSAT
10,000 MILES • 1.9L • MANUAL
Avatar
GEMA JIMENEZ
  • MEMBER
  • 1 POST
I am looking for the diagram of the ATJ engine turbo pipes, but I have no way, I have taken the vehicle to several workshops and the last one left them loose.
Could you please help me?
Jul 21, 2022 at 8:59 PM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,273 POSTS

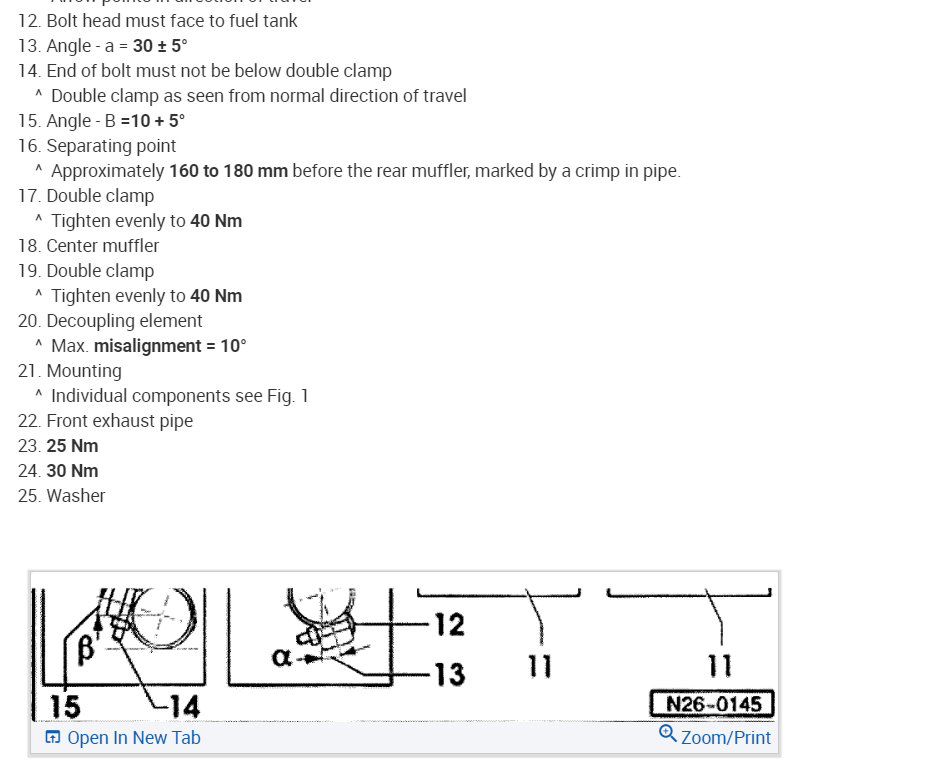

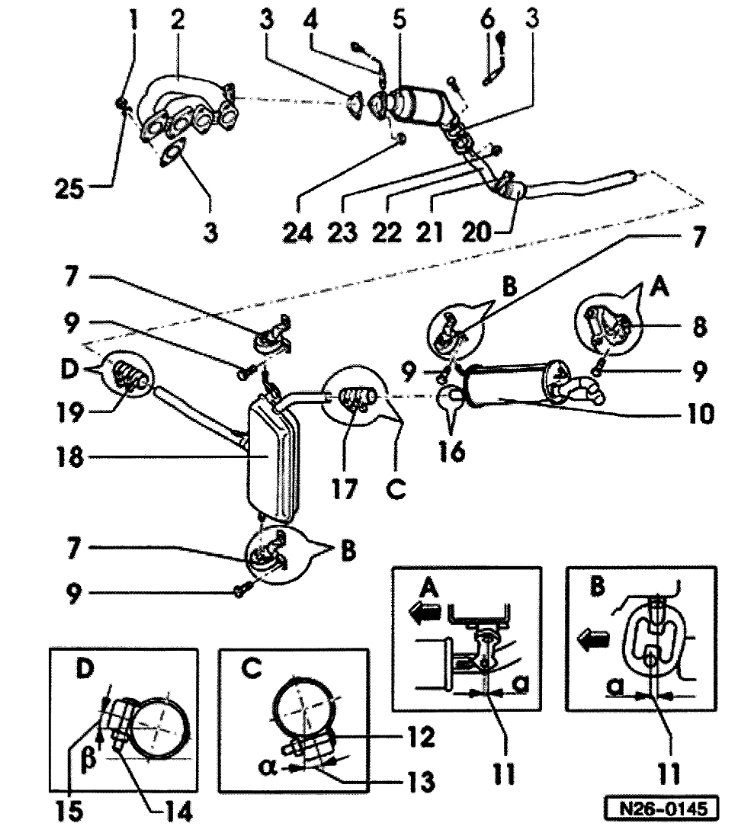

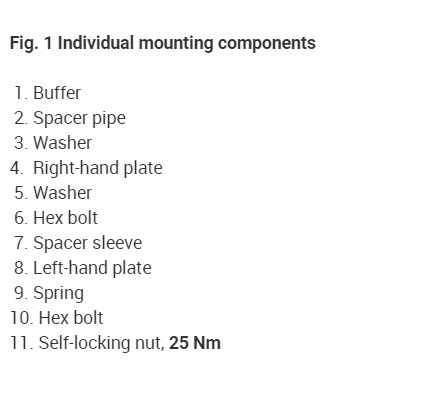

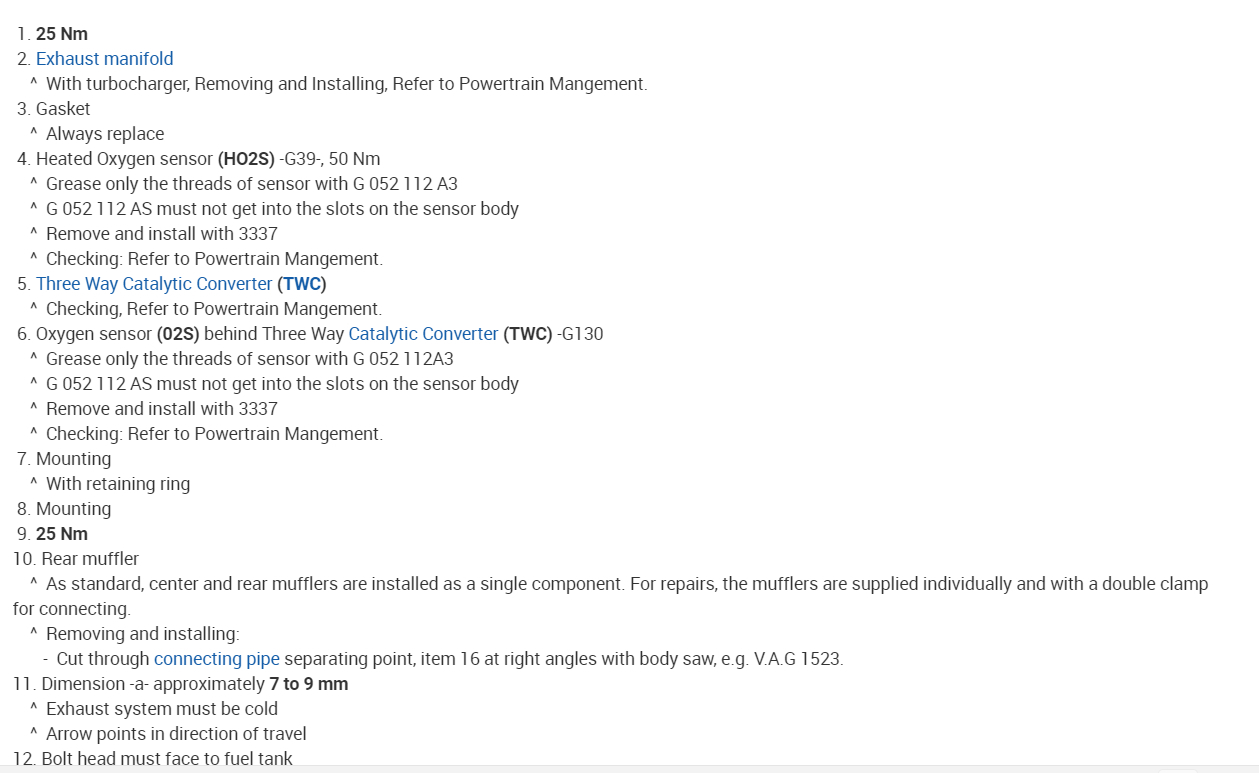

Yep, here are the diagrams for the exhaust system and turbo configuration. Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
