Engine wiring for power ground / can bus diagram needed?

2017 HYUNDAI SANTA FE
1,467 MILES • 2.7L • 4WD • AUTOMATIC
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Car caught fire, so I bought a complete wiring from a junk yard, and it was badly cut, so if I can have this diagrams it will guide me to restore.

I appreciate all efforts by 2Carpros

SANTA FE SPORT / 2017/HYUN



5XYZTDLB4HG391081
Jun 24, 2025 at 10:11 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
Sure, here is a guide to help with the testing and the CAN bus wiring system which shows the grounds.

https://www.2carpros.com/articles/how-to-check-wiring

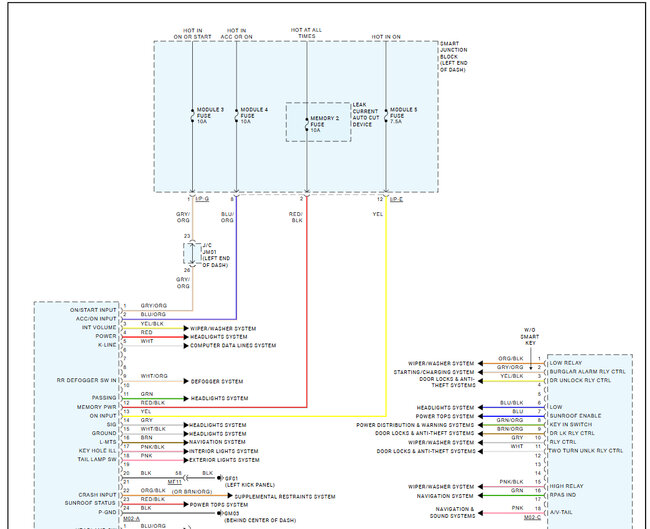

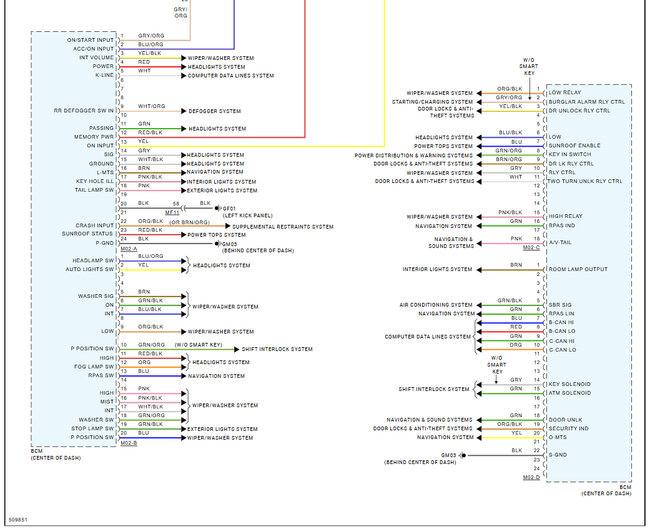

Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Jun 25, 2025 at 11:08 AM
Advertisement
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
May I also have the fuse box diagram and the ECU pin out diagrams.
Jun 26, 2025 at 3:34 AM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Hi Ken, what I got from a junk yard is a 2017, sorry to I did not mention, but the car Santa Fe that had fire, is a 2013.

So, I need the ecu pin out for this 2017.
Engine fuse box diagram pinout
Thanks!
Jun 28, 2025 at 12:43 AM
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS

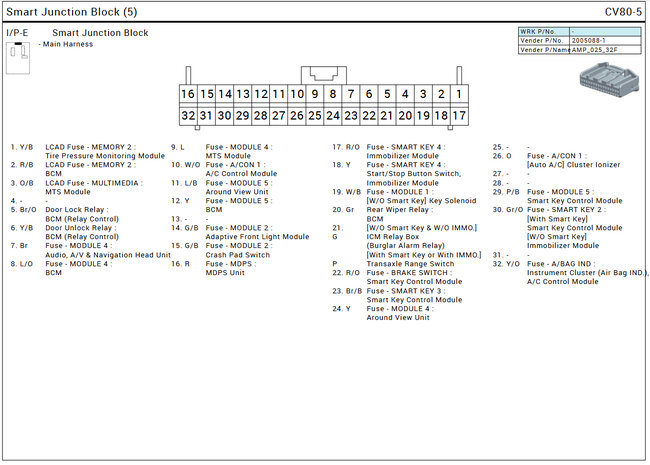

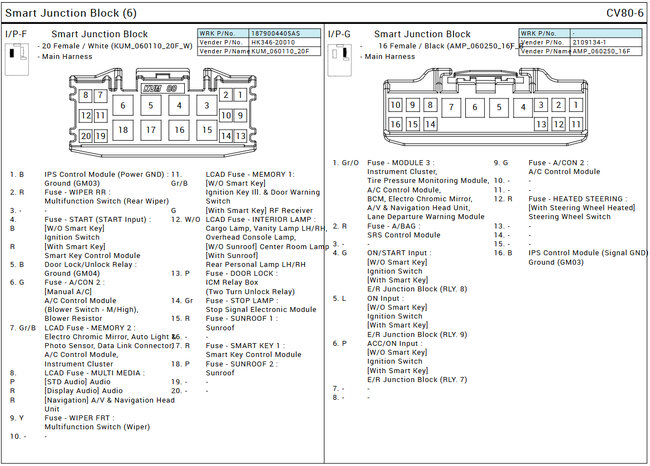

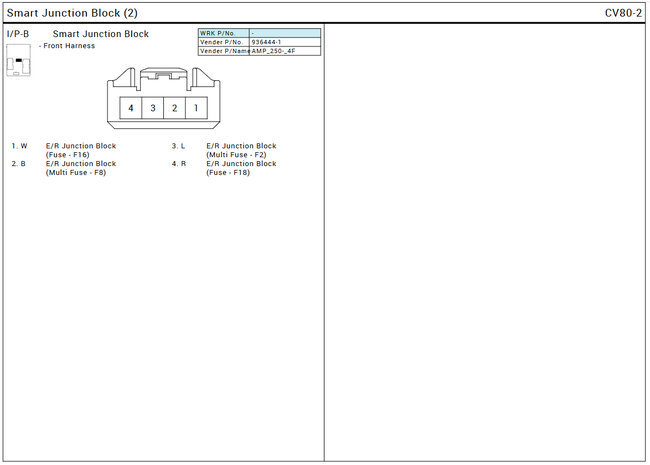

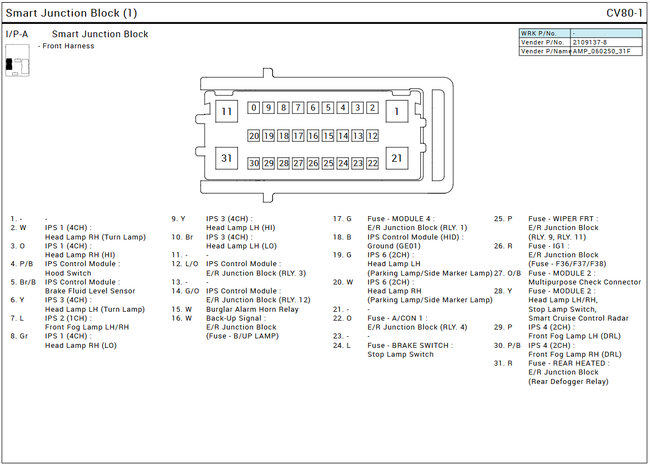

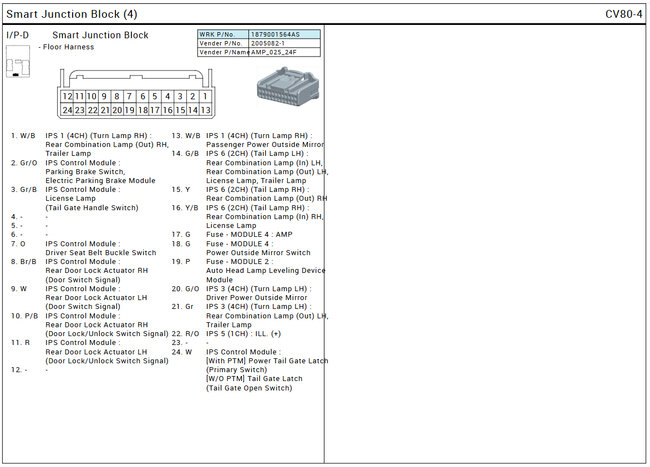

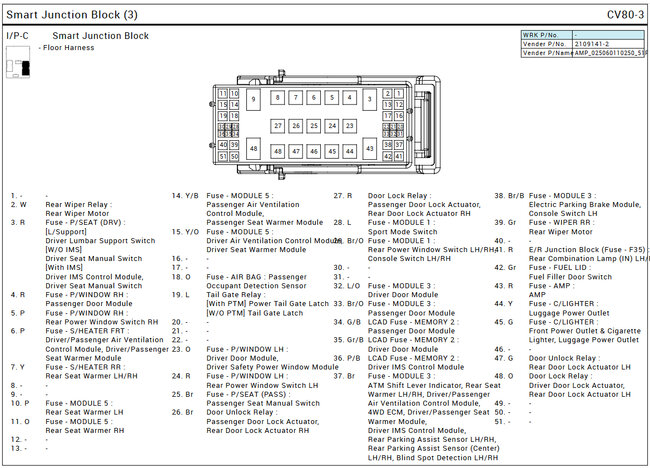

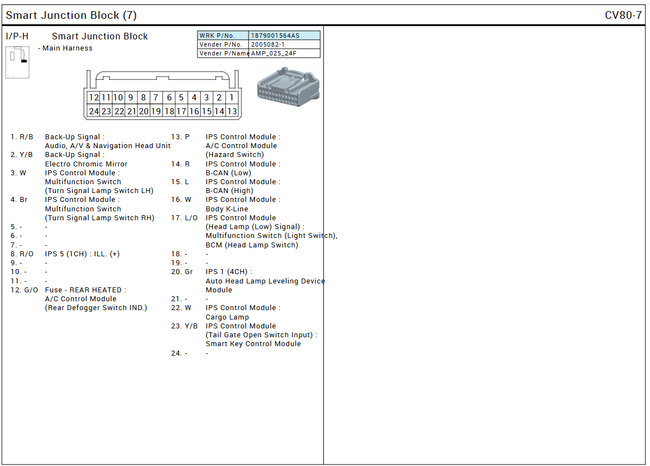

I am sorry to hear that, fires are hard to repair. Here are the pin outs for the smart junction box, (fuse panel). Check out the images (below). Let us know how it goes.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 28, 2025 at 10:36 AM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Thank you Ken.
Jun 28, 2025 at 11:27 AM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
This has made all the difference, thank you so much.
Jun 28, 2025 at 11:58 AM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Hi Ken, please may I also get the pinout diagram for the transmission connector, and gear switch range sensor.

For the engine, I think that will do. Will let you know how it goes.

Thank you so much.
Jun 28, 2025 at 12:00 PM
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
No problem, can you start a new thread? We only handle one problem per.
Jun 28, 2025 at 1:01 PM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Sure! Thank you
Jun 28, 2025 at 2:23 PM
