Engine wiring diagram?

2014 MAZDA CX-5
245,360 MILES • 2.2L • 4 CYL • TURBO • 4WD • AUTOMATIC
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Hi Ken, please could you help me with the engine wiring diagram. Some signals just don’t match. Car keeps reporting errors and after parts are replace it still complaints.

Please any wiring regarding this model, will go a long way.
Sep 16, 2025 at 8:25 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
Hi Andrin,

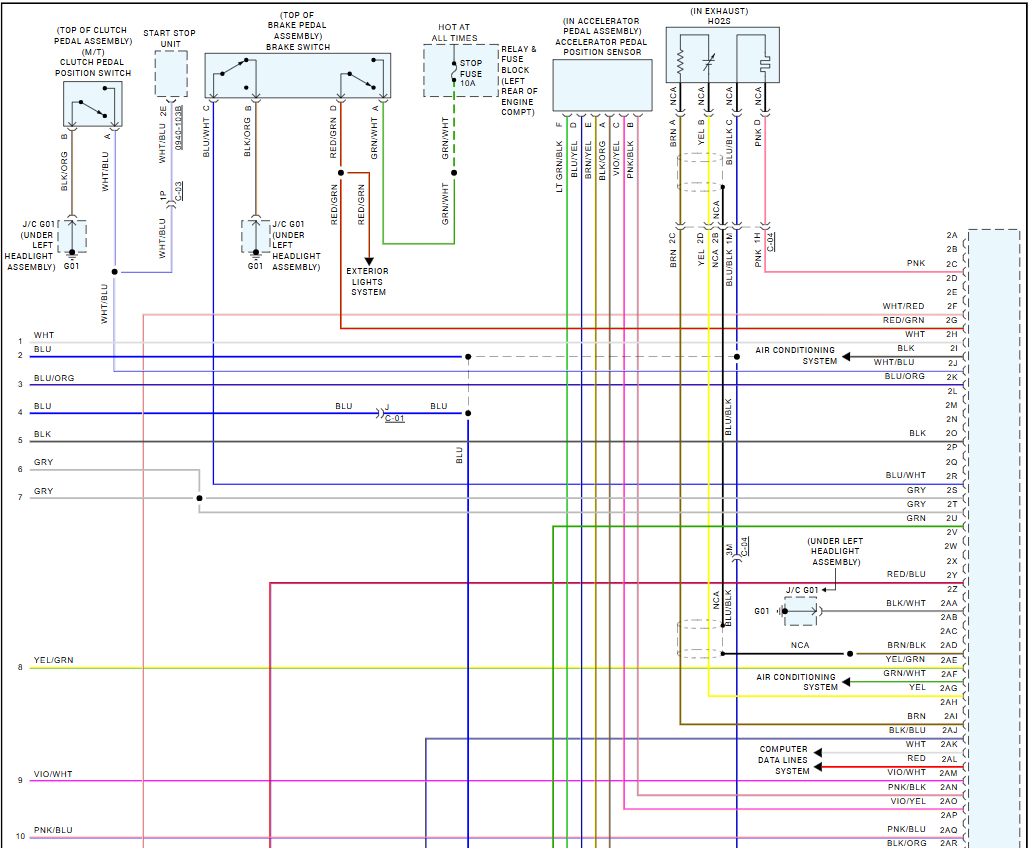

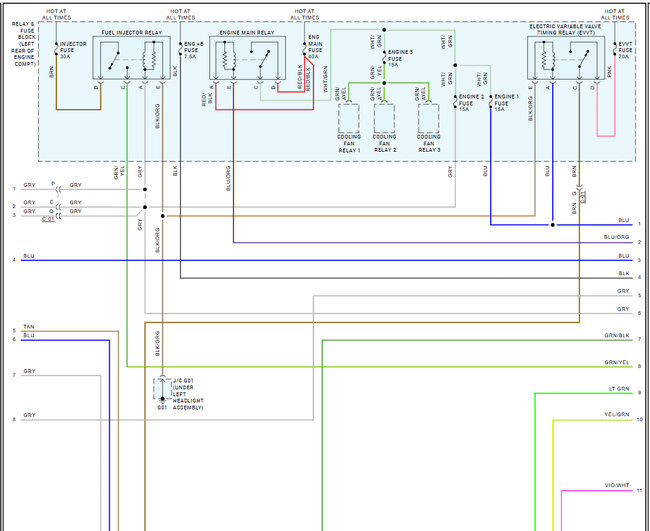

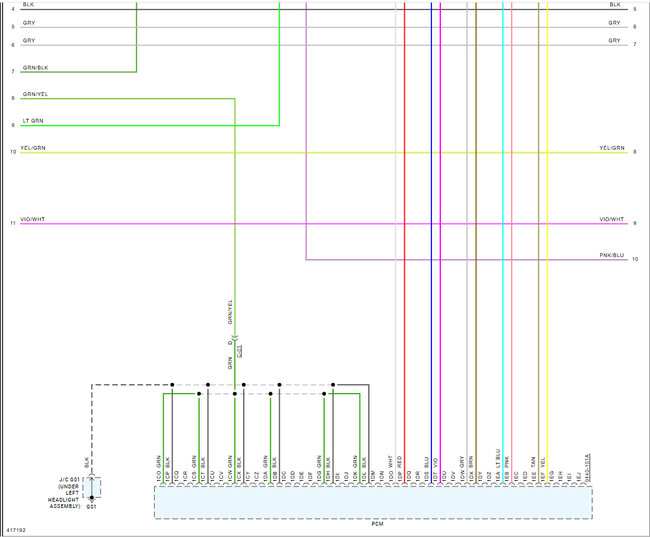

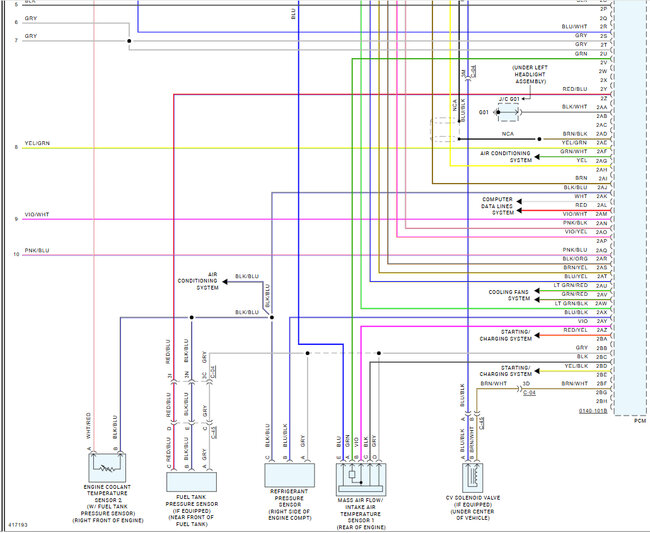

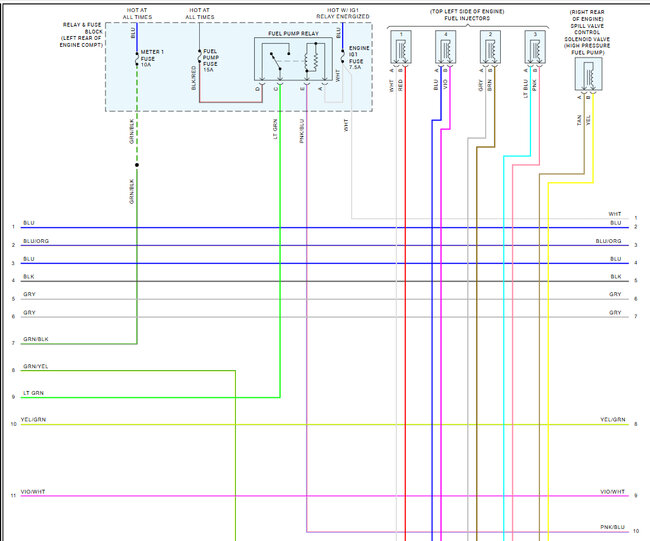

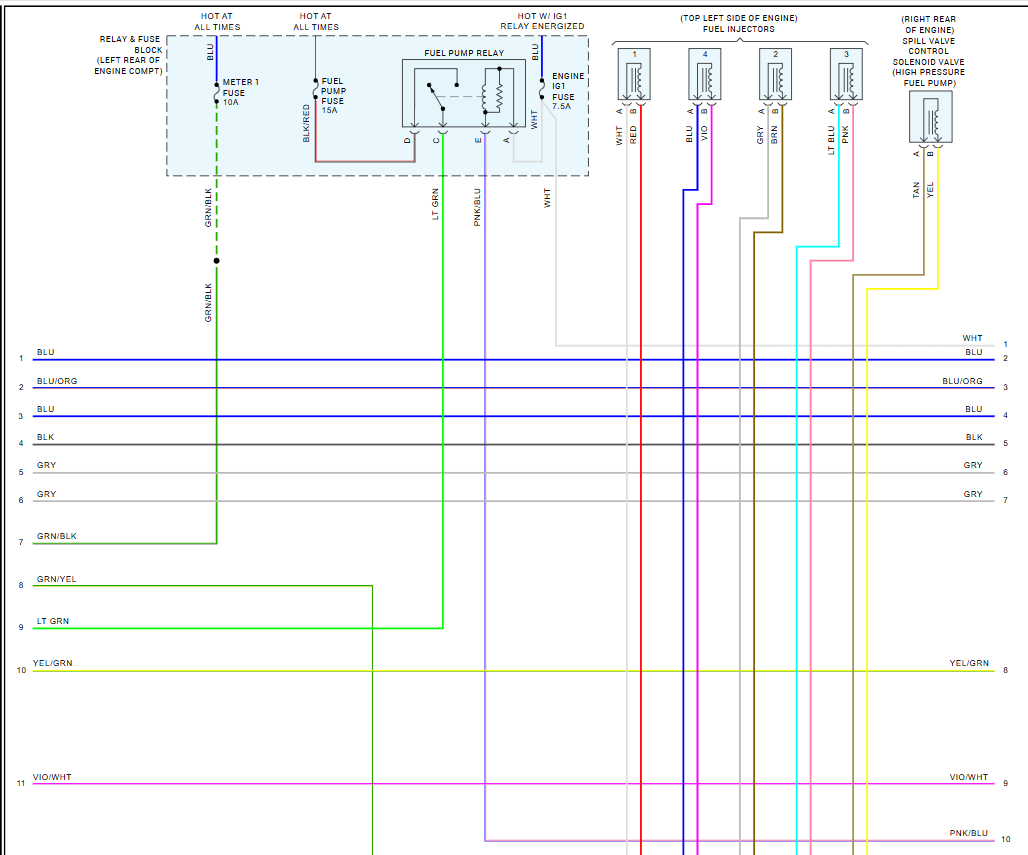

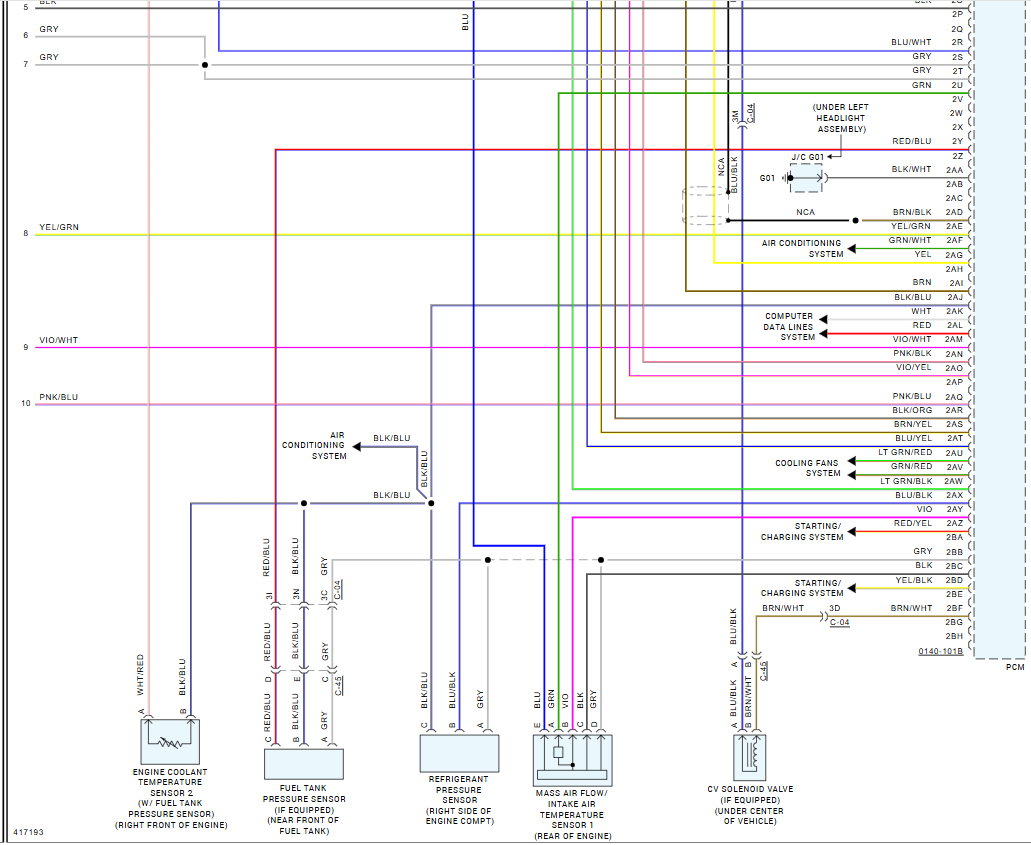

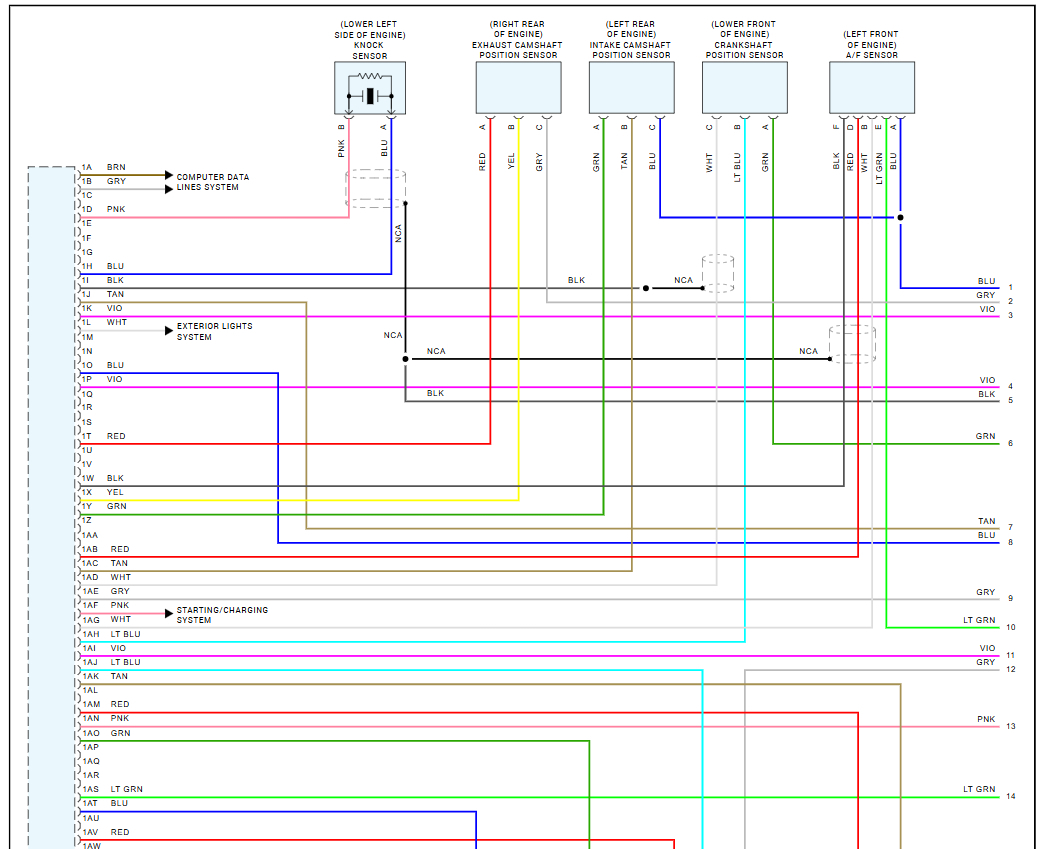

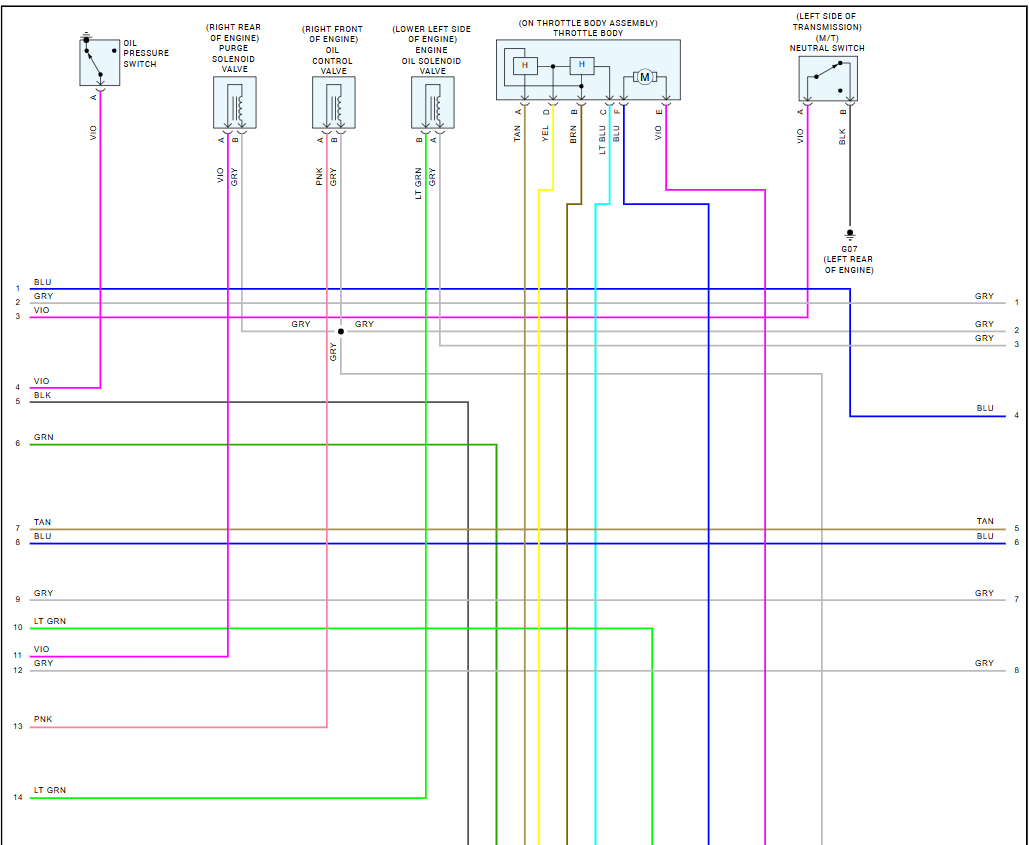

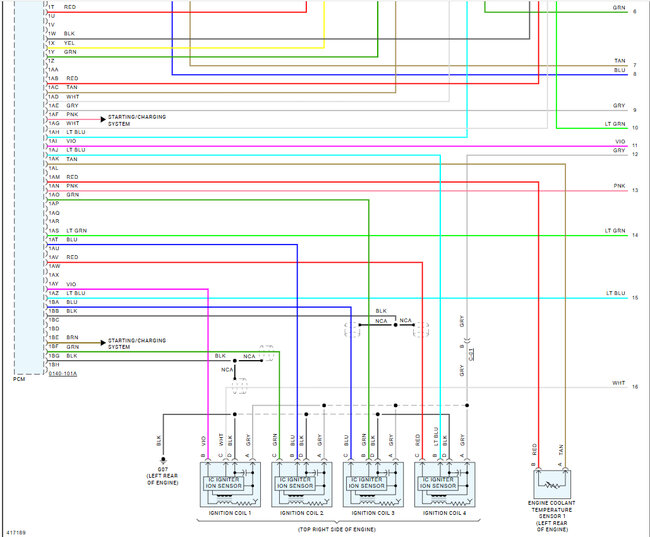

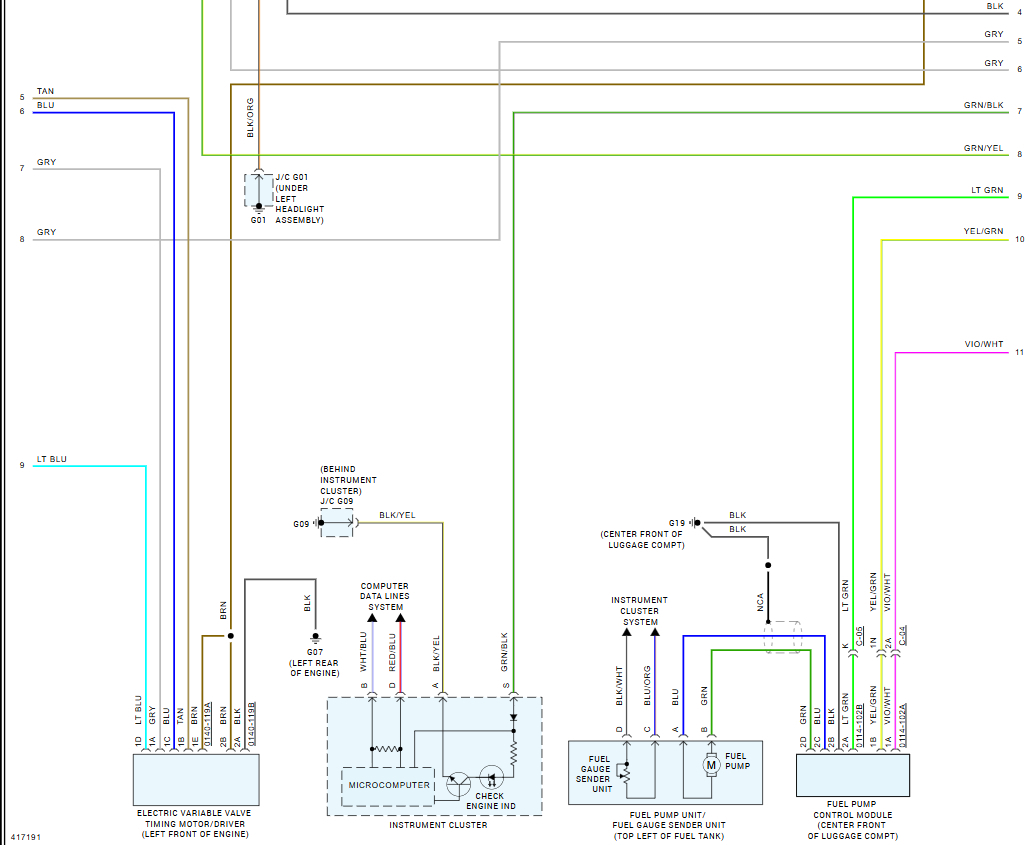

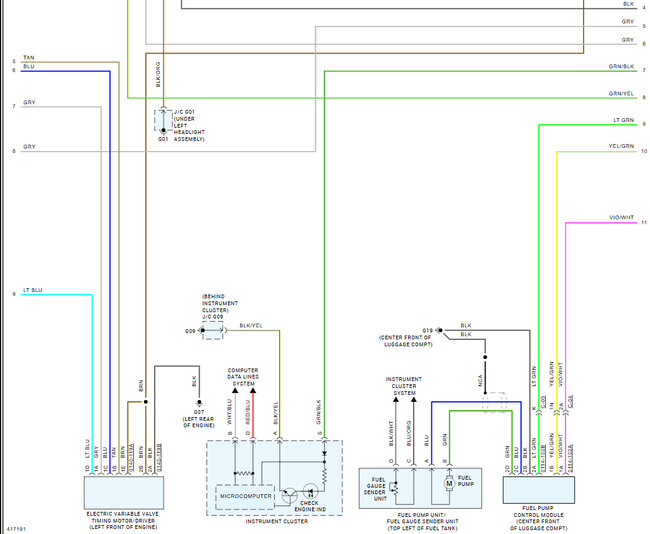

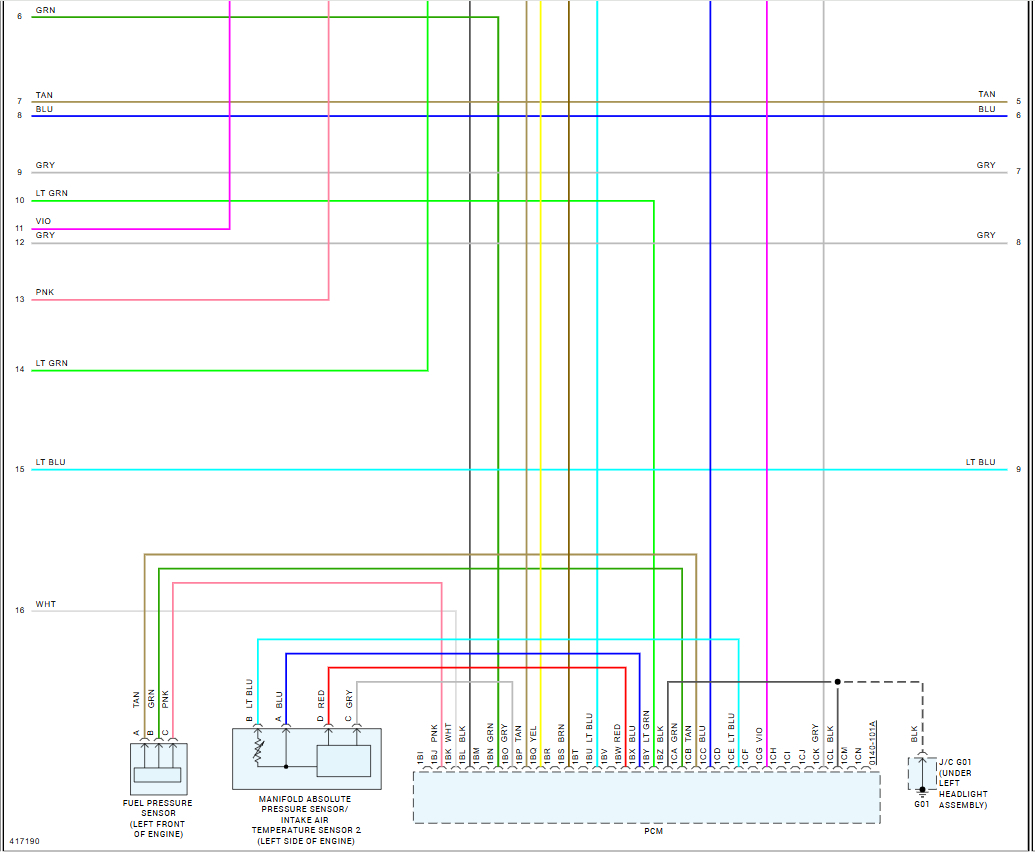

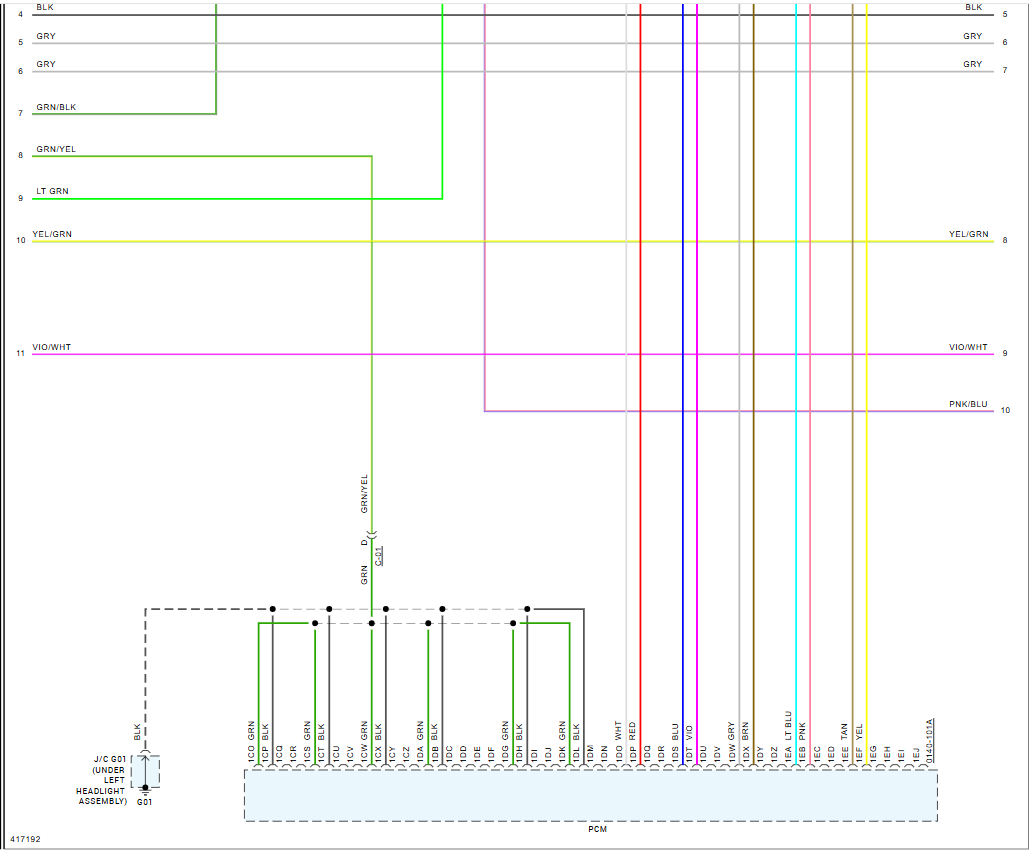

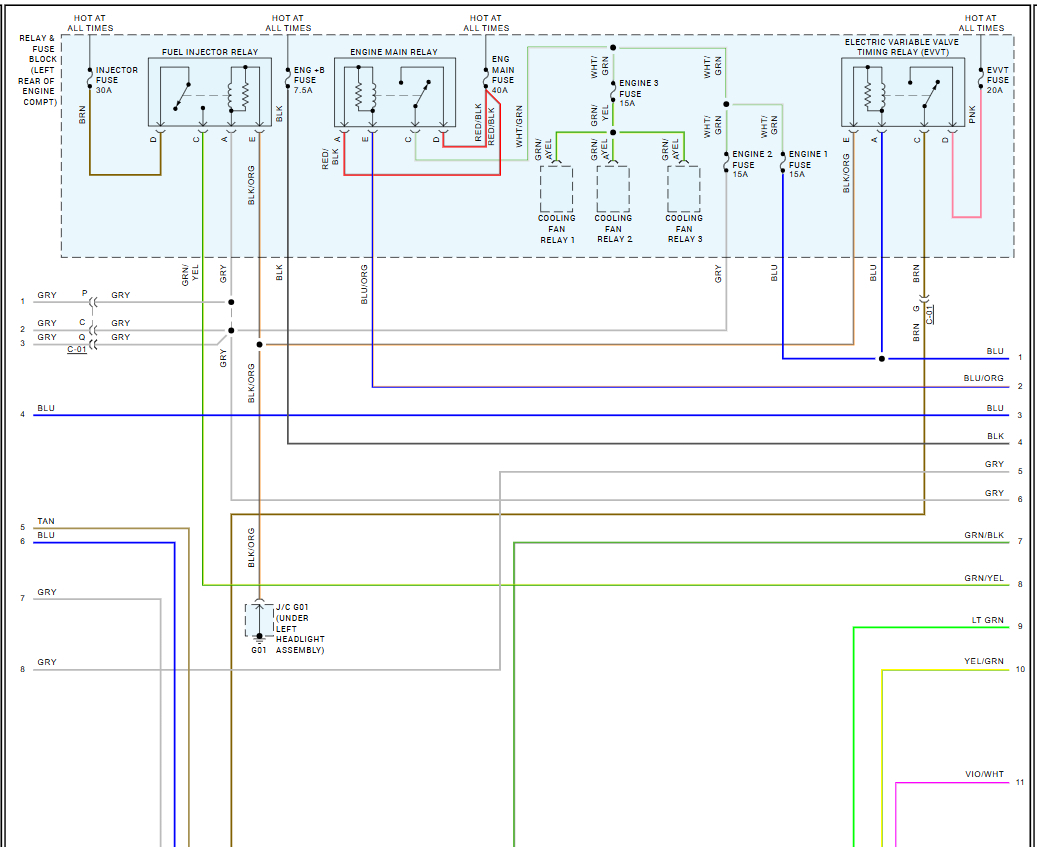

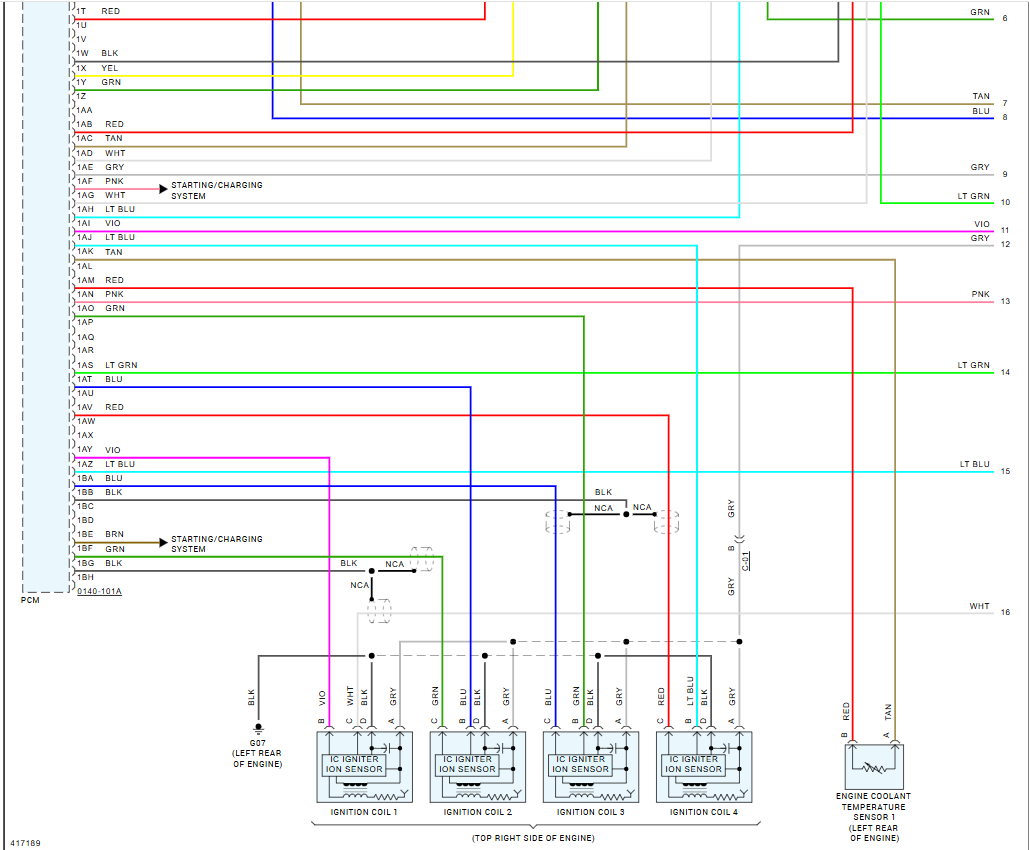

Yep, here are the engine wiring diagrams for the 2.0 liter as requested. Check out the images (below). Let us know what you find.



Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Sep 16, 2025 at 12:03 PM
Advertisement
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Thank you.
Sep 16, 2025 at 1:41 PM
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
You are welcome, please use 2CarPros anytime.
Sep 16, 2025 at 4:47 PM
Avatar
ANDRIN ATEM
  • MEMBER
  • 398 POSTS
Hi Ken. This model is Diesel engine I need. It looks the diagram you sent to me is Petrol engine.
Sep 16, 2025 at 10:12 PM
Avatar
STRAILER
  • AUTOMOTIVE REPAIR CONTRIBUTOR
  • 54,178 POSTS
They don't offer a diesel engine in the US, sorry.
