I need the torque specs on the camshaft gear bolts and the valve timing marks on the car listed above with a 16/1.8 L engine.
Saturday, November 18th, 2017 AT 12:50 AM

1 Reply

Tiny
STEVE W.
  • MECHANIC
  • 13,573 POSTS

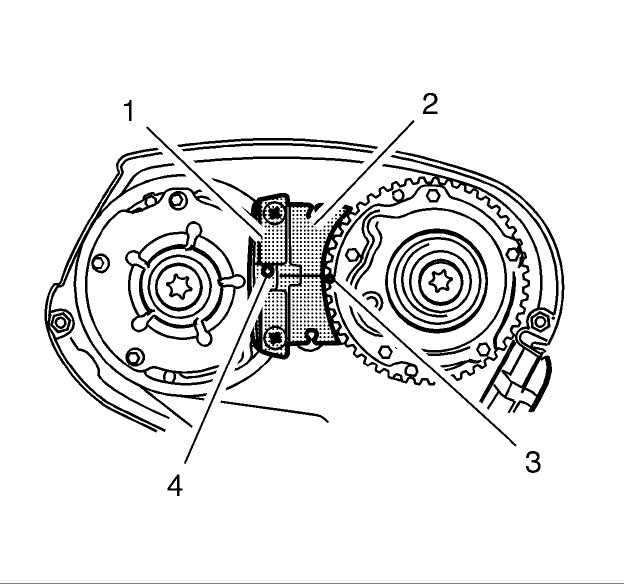

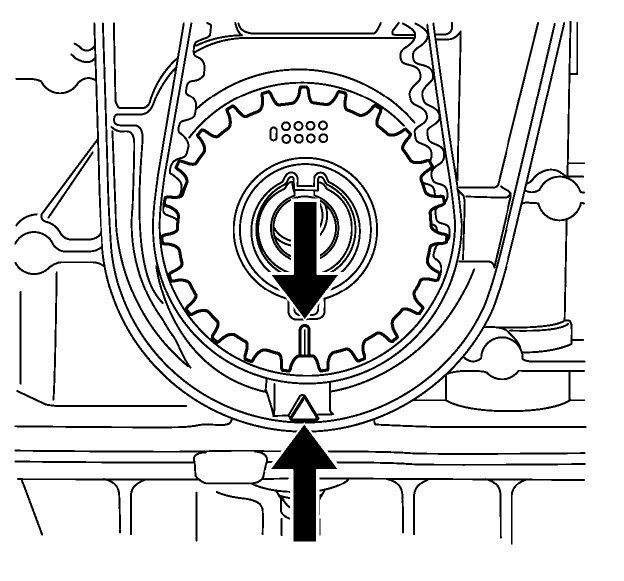

Timing marks rely on the tool used to hold the sprockets as they are not set inline but offset by a small amount. Marks 3 and 4 are the timing marks with the engine at #1 TDC.

Torque for both actuator bolts is 37 lb ft + 150°+ 15°
