every component in the engine bay?

1979 FORD RANGER
60,000 MILES • V8 • AUTOMATIC
Avatar
DDAVIS25
Hi, i just got this old 1979 Ford F150 Ranger and am trying to get familiar with the older generation of engine components, such as a durable spark box. Is there any picture or blueprint that can show me every component in the engine bay area? Any info is greatly appreciated.
Feb 16, 2025 at 8:02 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic

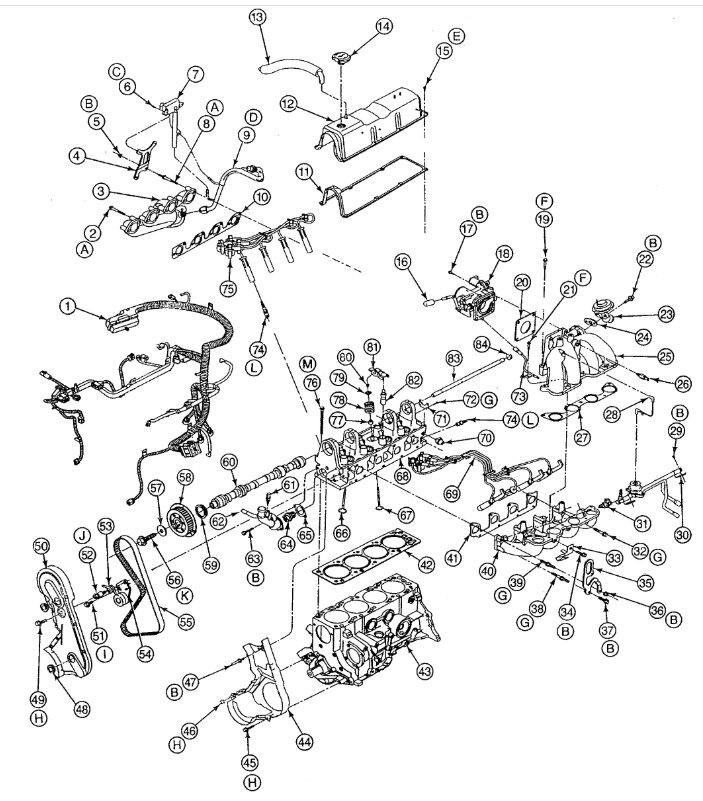

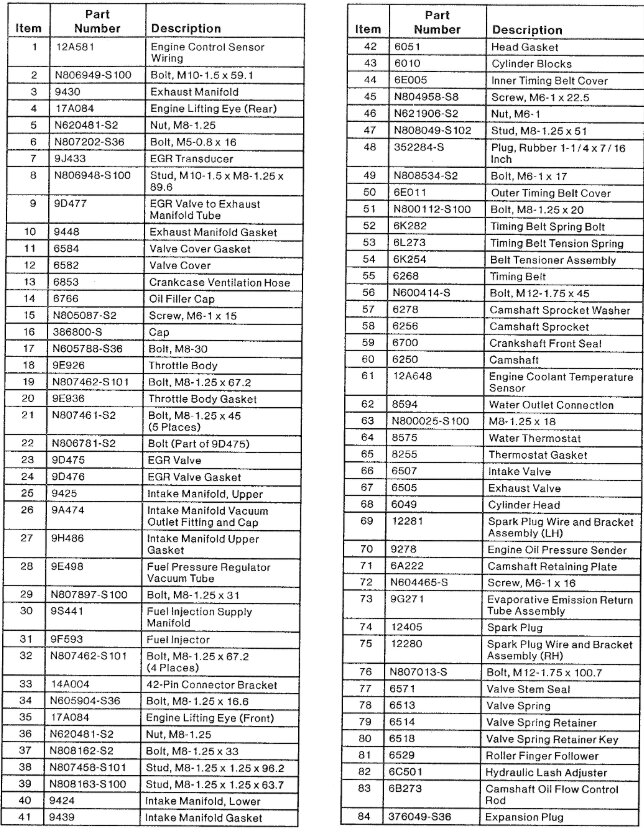

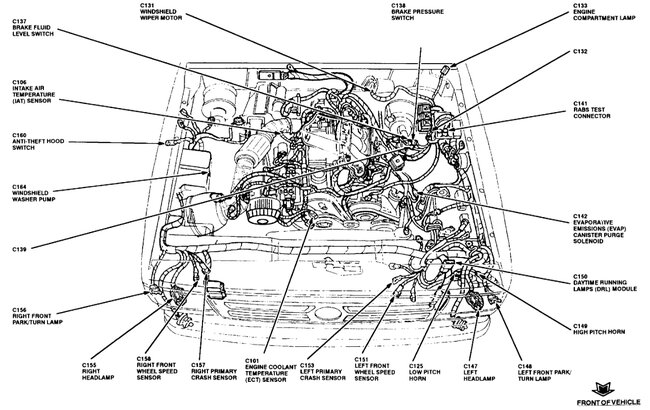

Sure, you didn't include an engine size so here is the 2.3 engine components and their location. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 18, 2025 at 10:03 AM
Avatar
DDAVIS25
  • MEMBER
  • 4 POSTS
Oh sorry, the engine size is a 351 modified ford v8. Do you have anything on that?
Feb 18, 2025 at 11:17 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,503 POSTS
  • ASE Certified Mechanic
1979 Ford Ranger did not come with this engine? If this is a full-size truck, please start a new thread.
Feb 19, 2025 at 9:47 AM
