Engine wiring harness diagrams

1995 CHEVROLET 1500
200,000 MILES • 4.3L • V6 • 2WD • AUTOMATIC
Avatar
NWILEY
  • MEMBER
  • 1 POST
1995 Chevy c1500 4.3 tbi vortec

I took the engine harness off and swapped motors and can’t remember how the harness goes in and can’t find anything about it
Jun 29, 2023 at 3:45 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

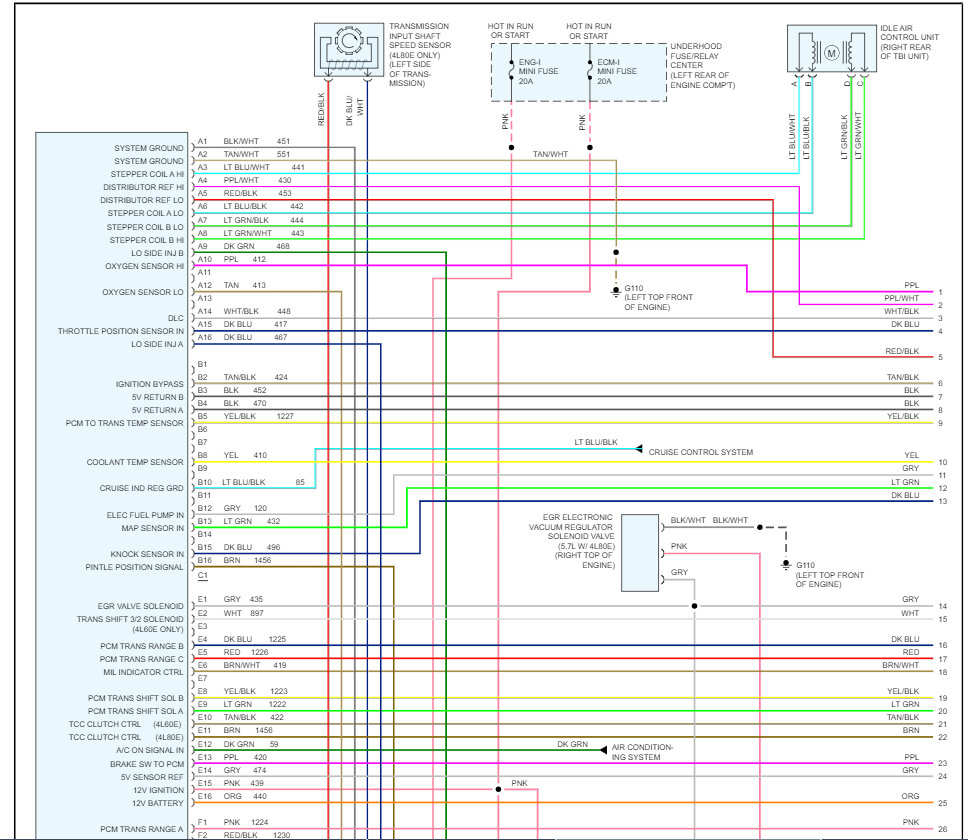

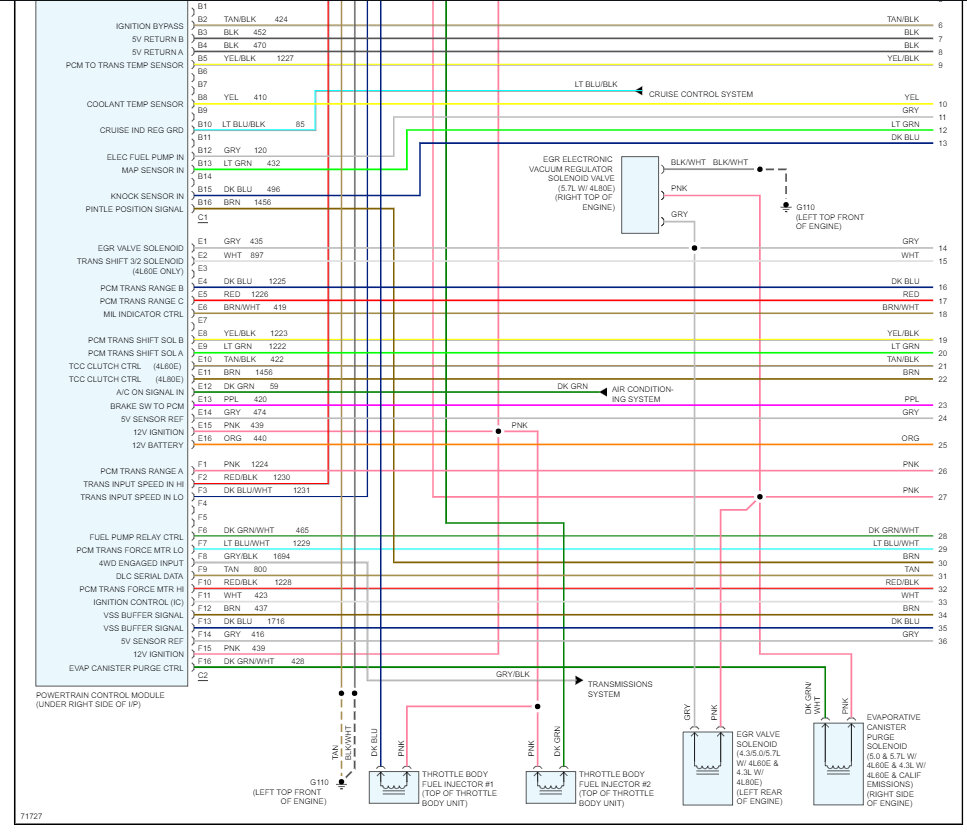

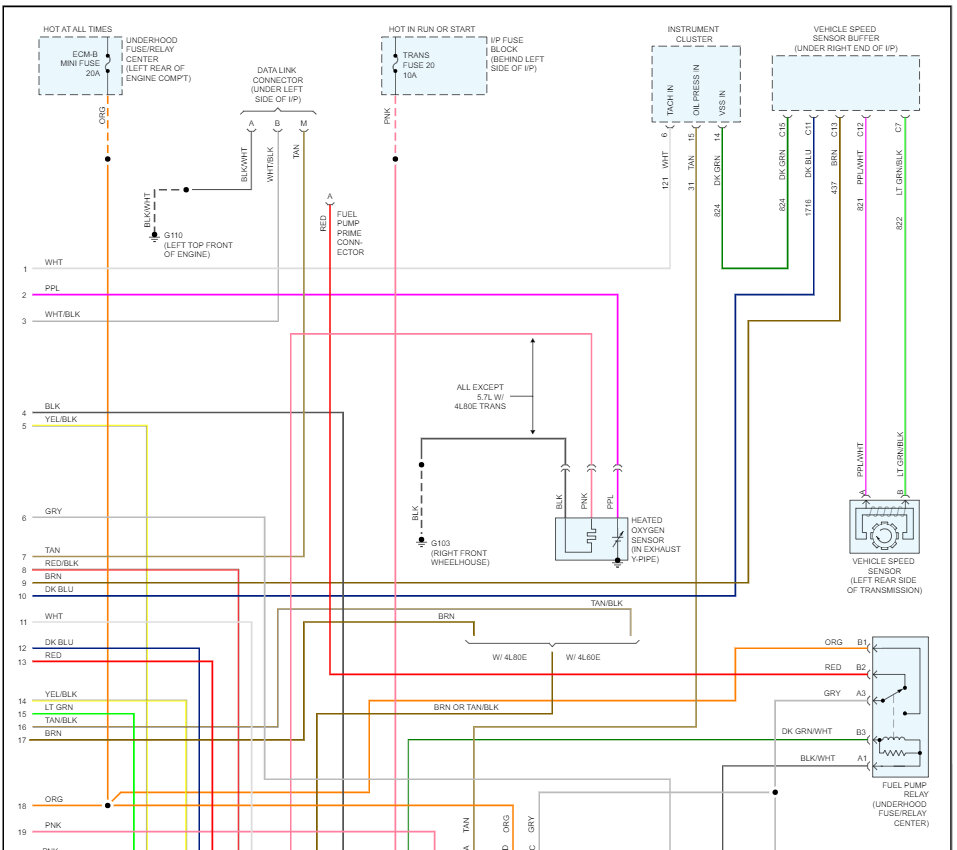

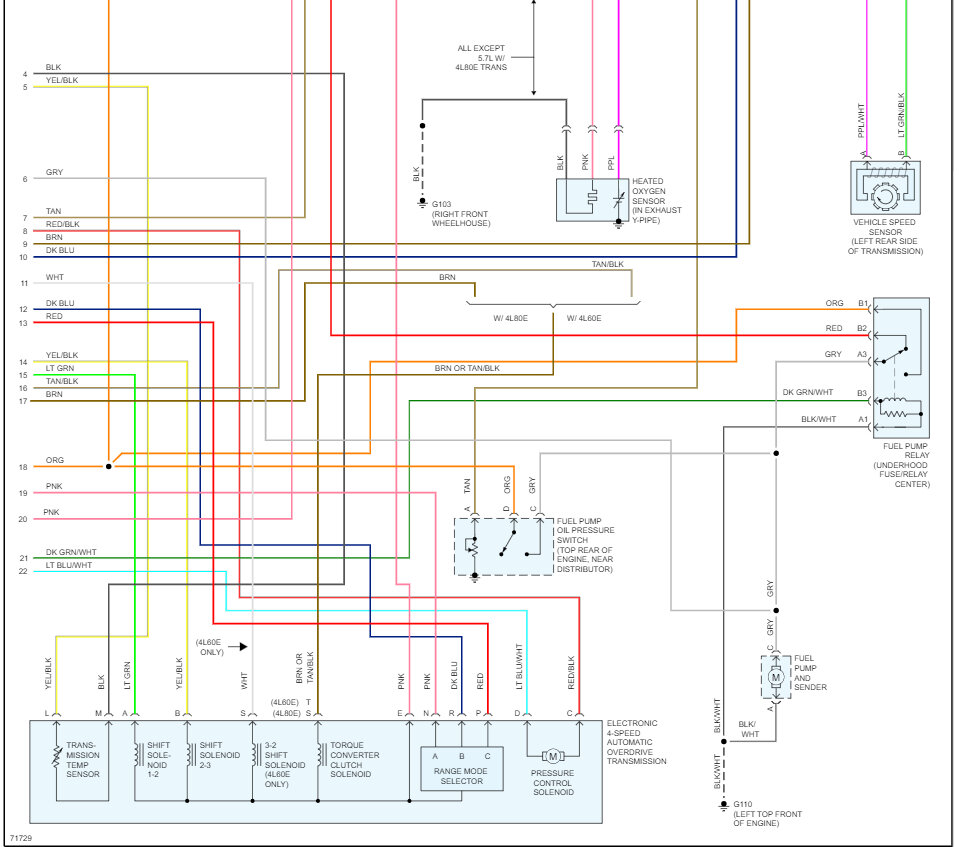

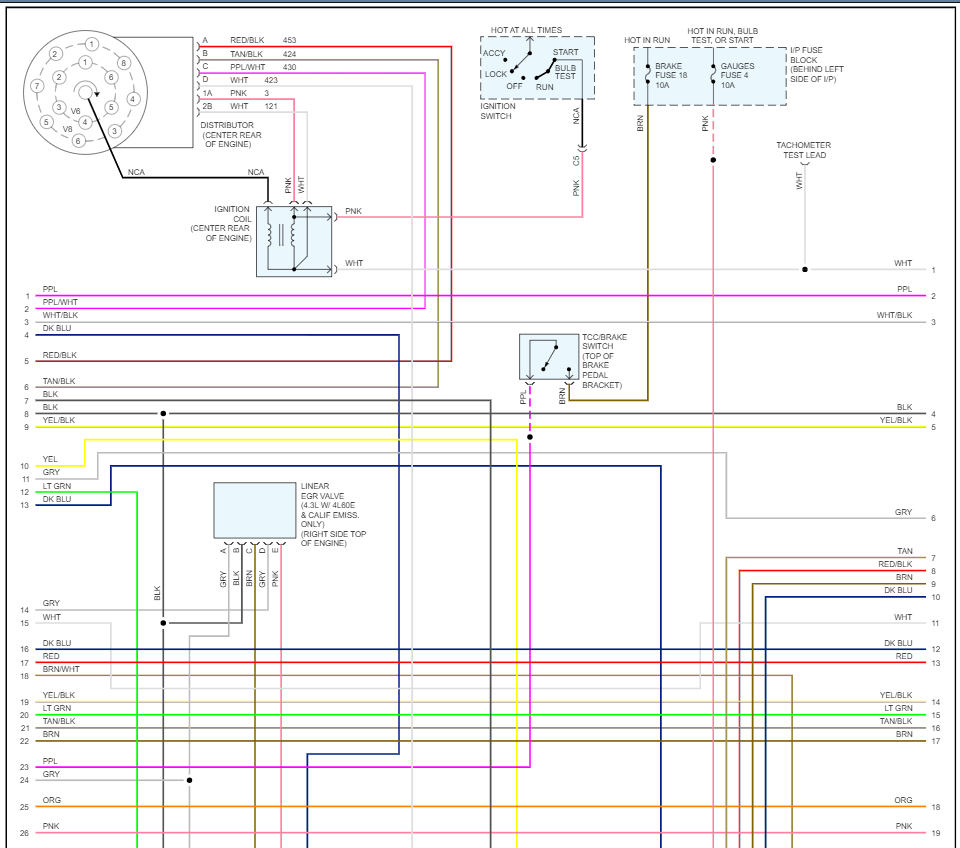

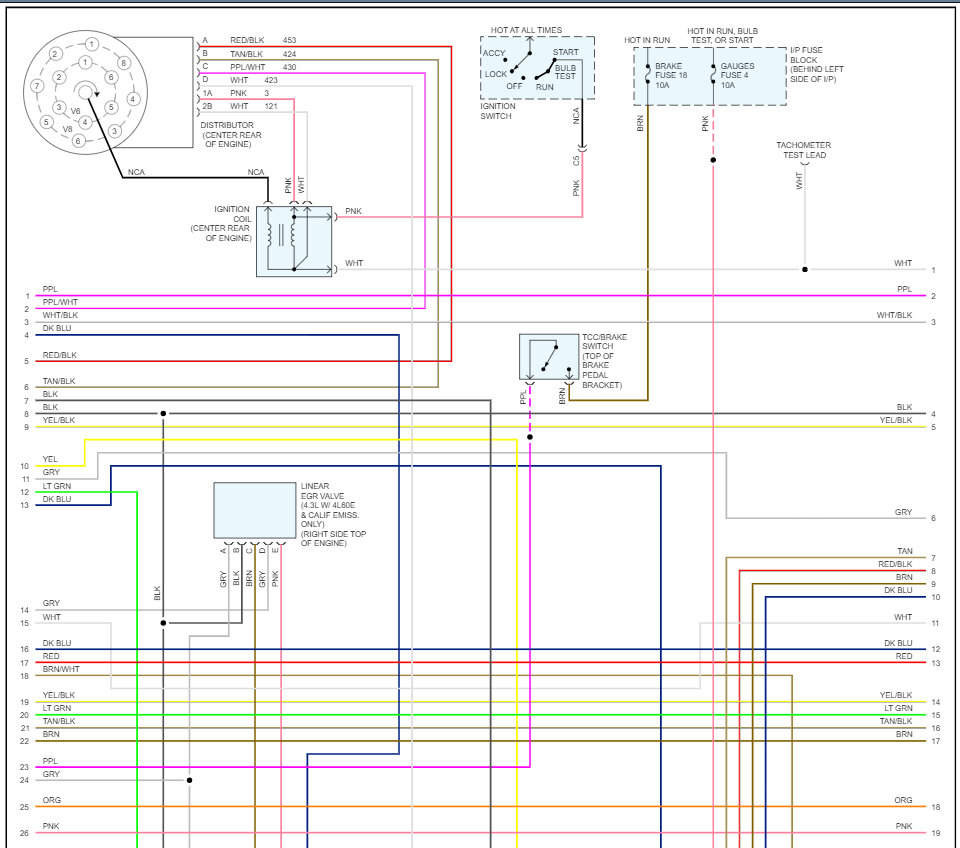

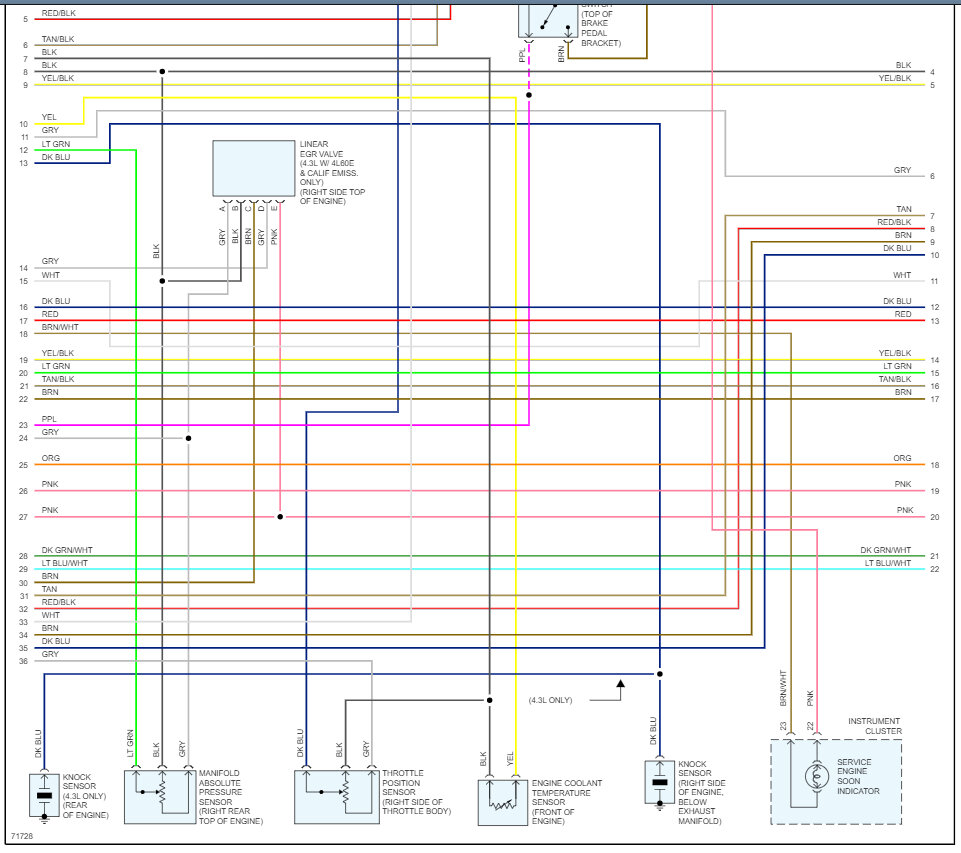

Sure, here are the engine wiring diagrams so you can see where the connectors go. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
