transmission control module connector is damaged?

2007 LINCOLN MKZ
149,000 MILES • 3.5L • 6 CYL • 4WD • AUTOMATIC
Avatar
GREG GARCIA
  • MEMBER
  • 3 POSTS

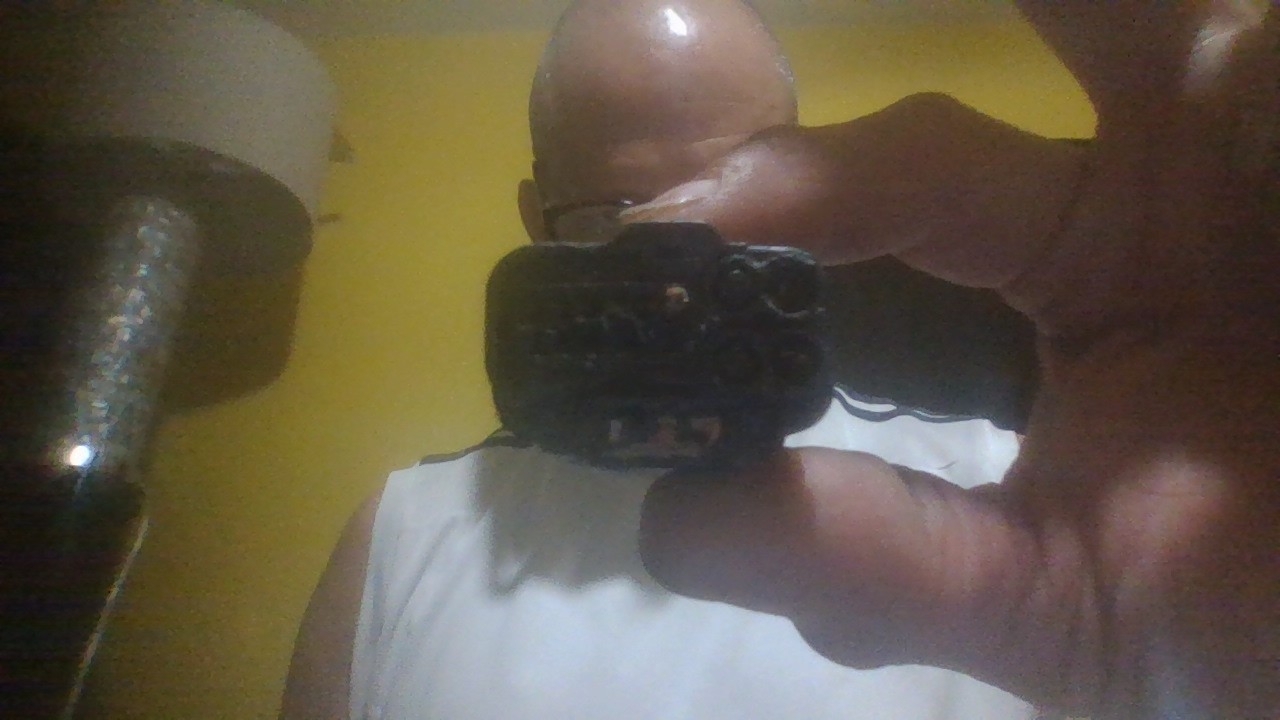

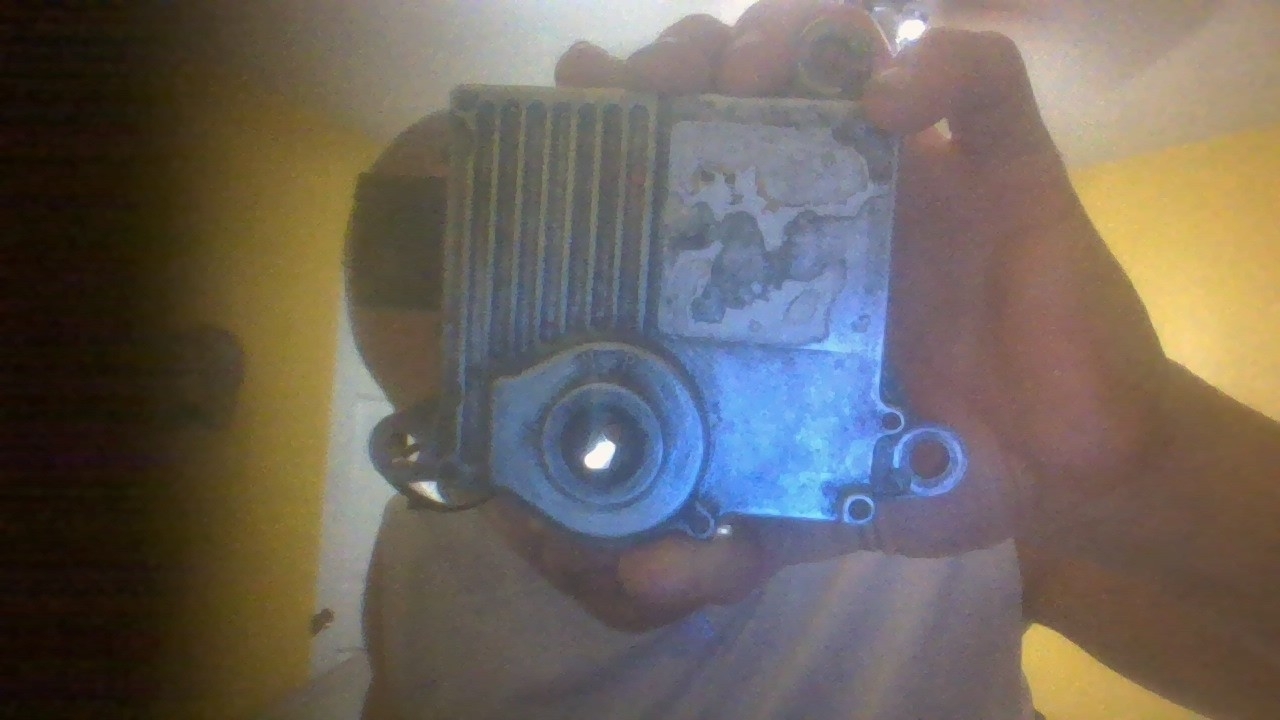

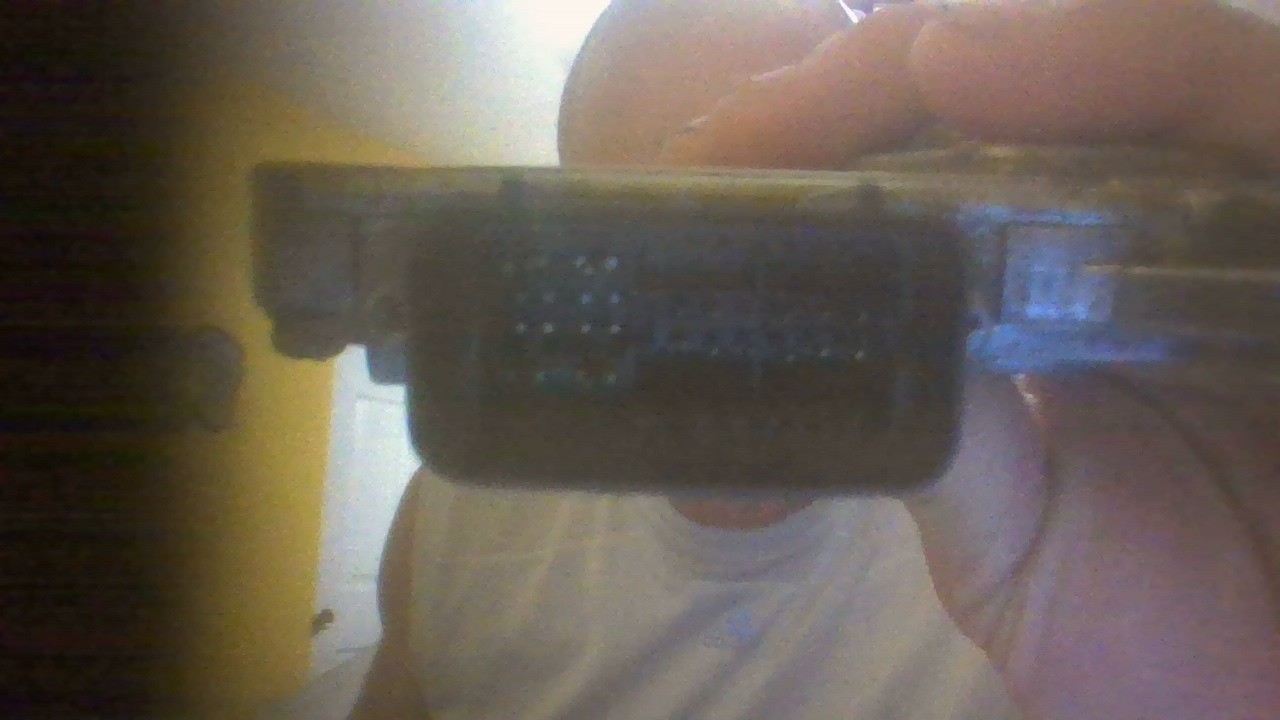

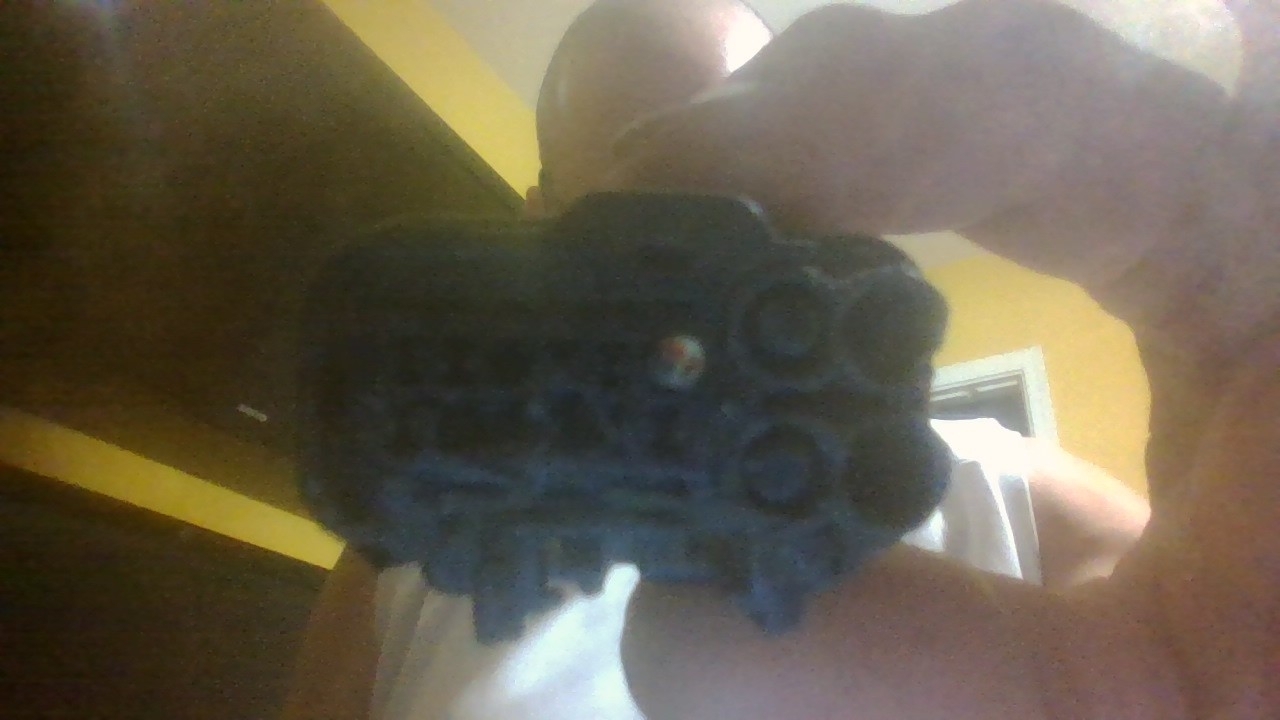

As I'm looking in the manual booklet it gives me the transmission description (Aisin AW F21 Automatic transaxle (TR-VX.) Code B. So, the female connector is damaged that goes into the control module. What wires go to which pins. Thank you...
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Mar 11, 2025 at 2:56 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

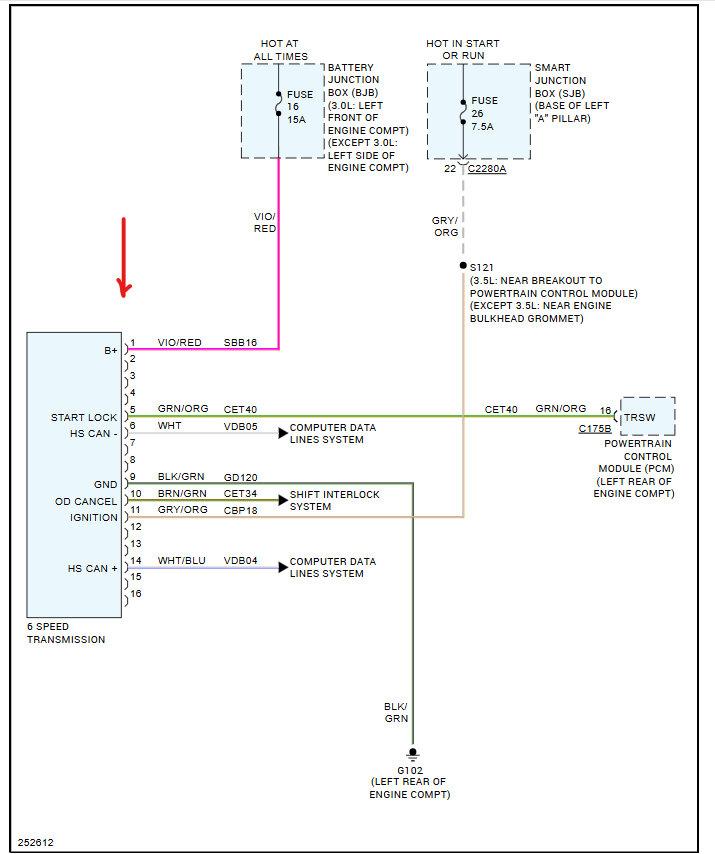

Sure, here is the wiring diagrams for the transmission control module. Thanks for the images they helped. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 12, 2025 at 11:36 AM
Avatar
GREG GARCIA
  • MEMBER
  • 3 POSTS
do you have the pinout for the connector?
Mar 12, 2025 at 12:38 PM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
No, I am sorry we don't. You can see the terminal numbers though which should be on the connector.
