complete circuit diagram of the engine with transmission?

2004 LEXUS ES 300
426,341 MILES • V6 • 2WD • AUTOMATIC
Avatar
BLESSING EWOBOR
  • MEMBER
  • 753 POSTS
The vehicle has been in a workshop and some technicians have worked on the vehicle. The vehicle is experiencing rngine misfire and most of the coil wires has been altered. Please could you help me with the complete circuit diagram of the engine with transmission to trace some of the wires.
Mar 21, 2023 at 12:26 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,583 POSTS

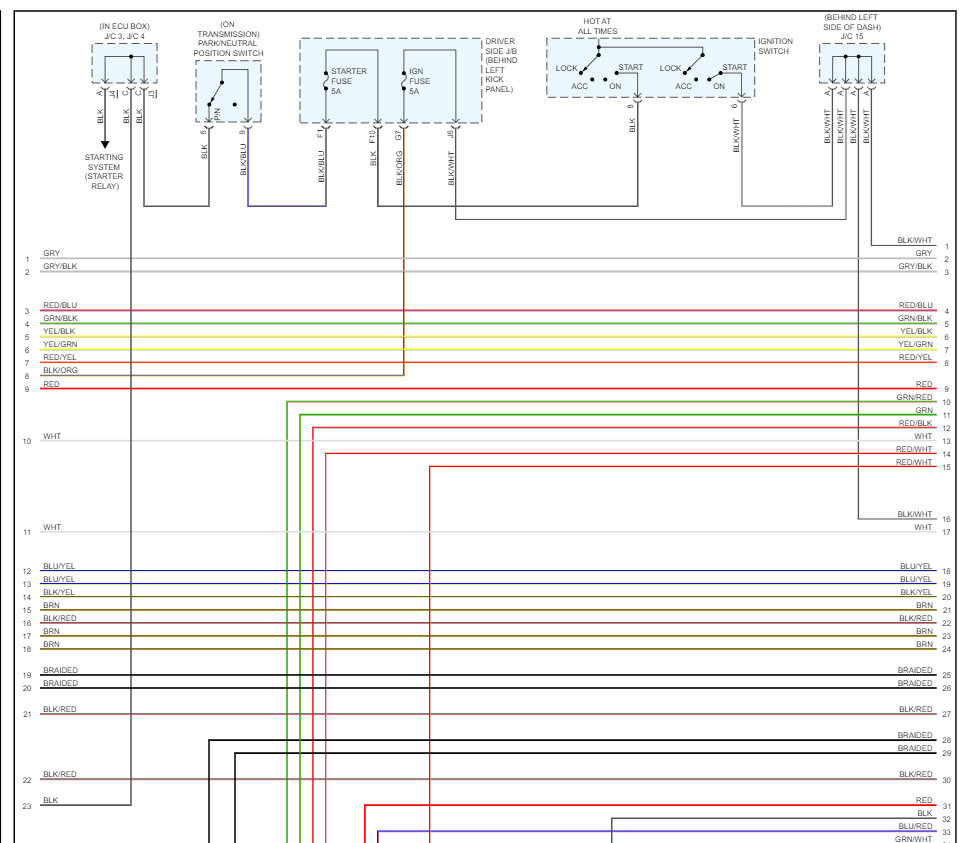

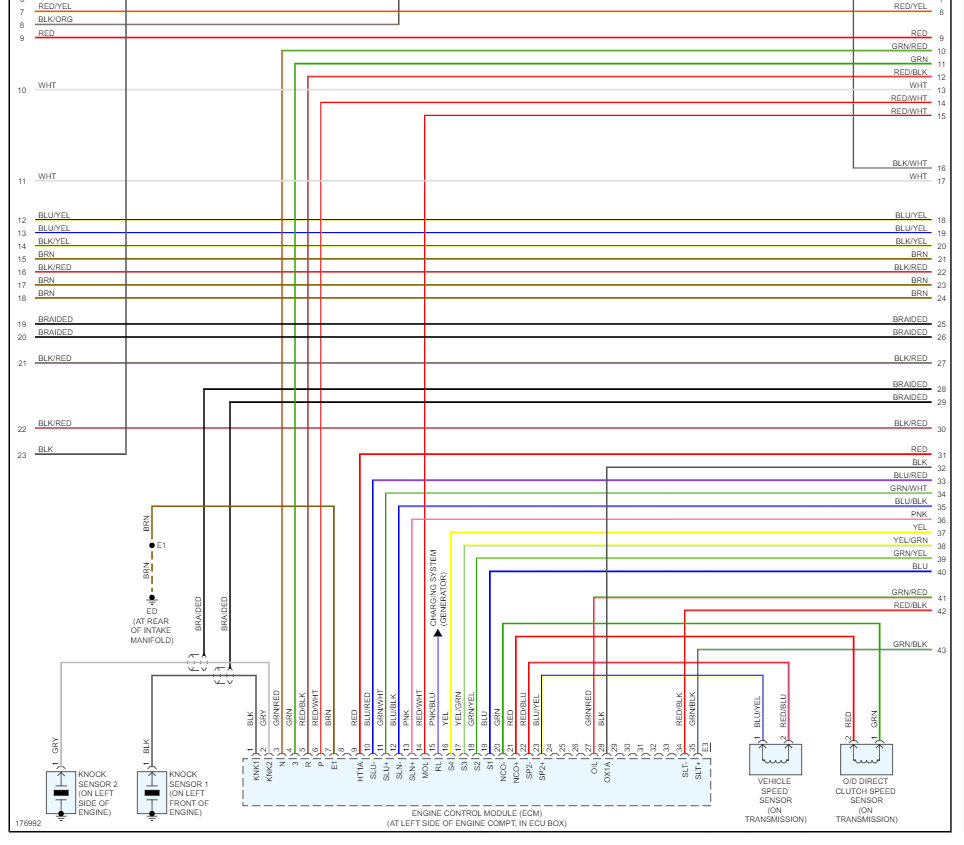

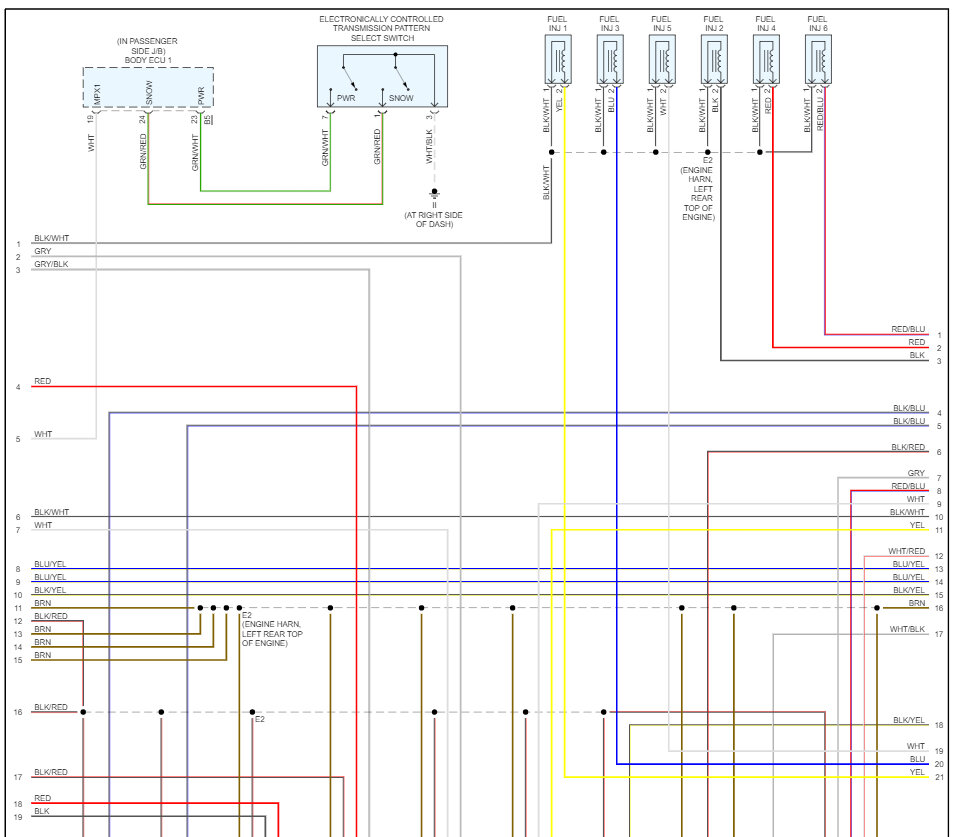

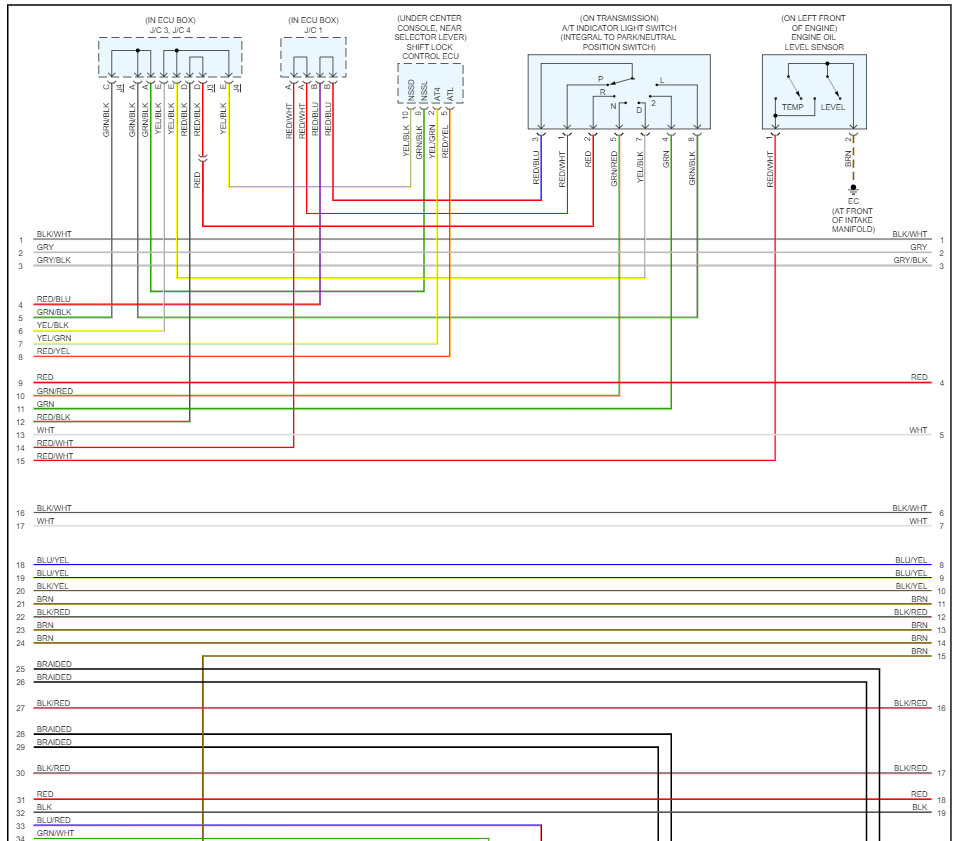

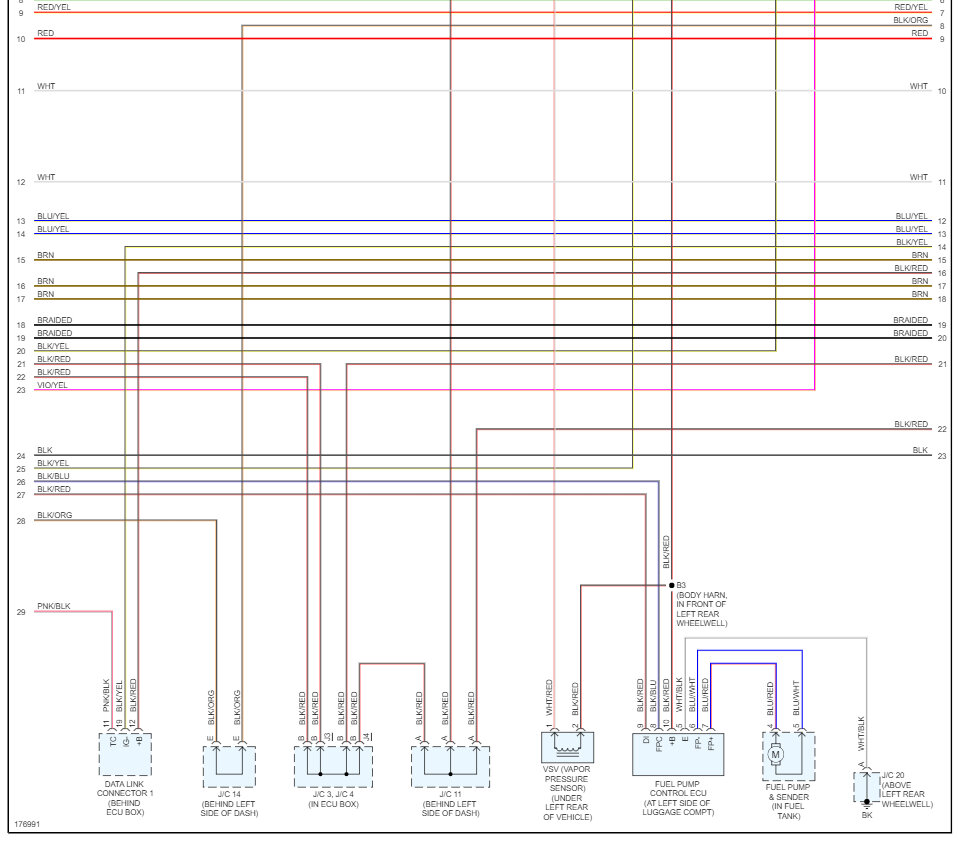

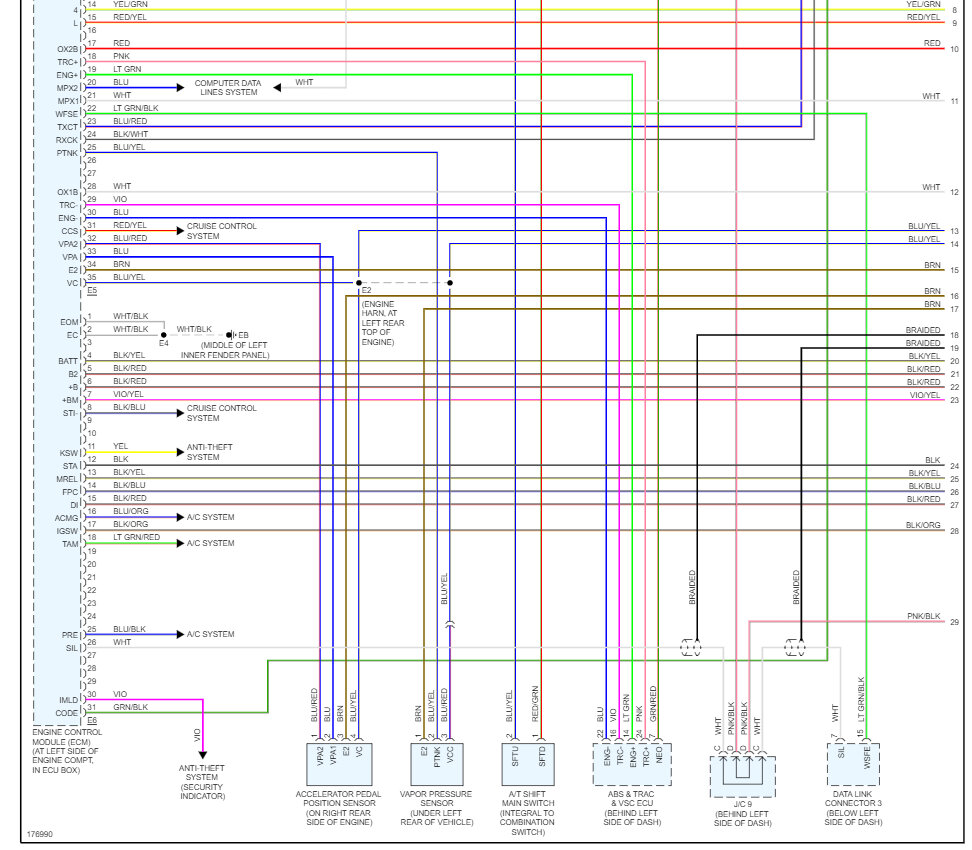

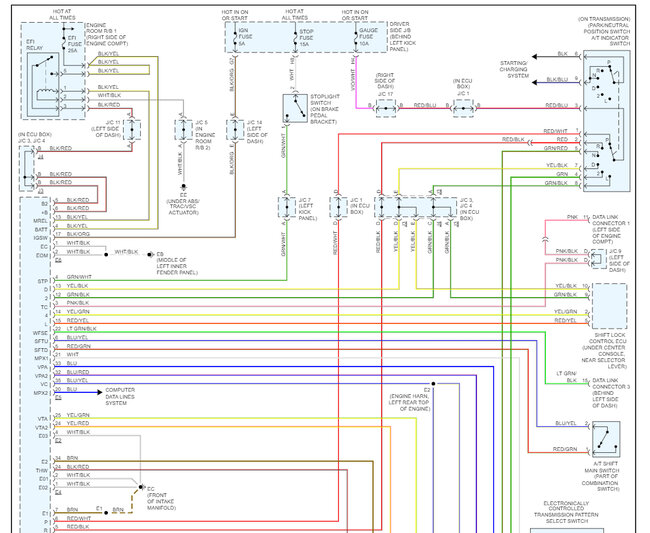

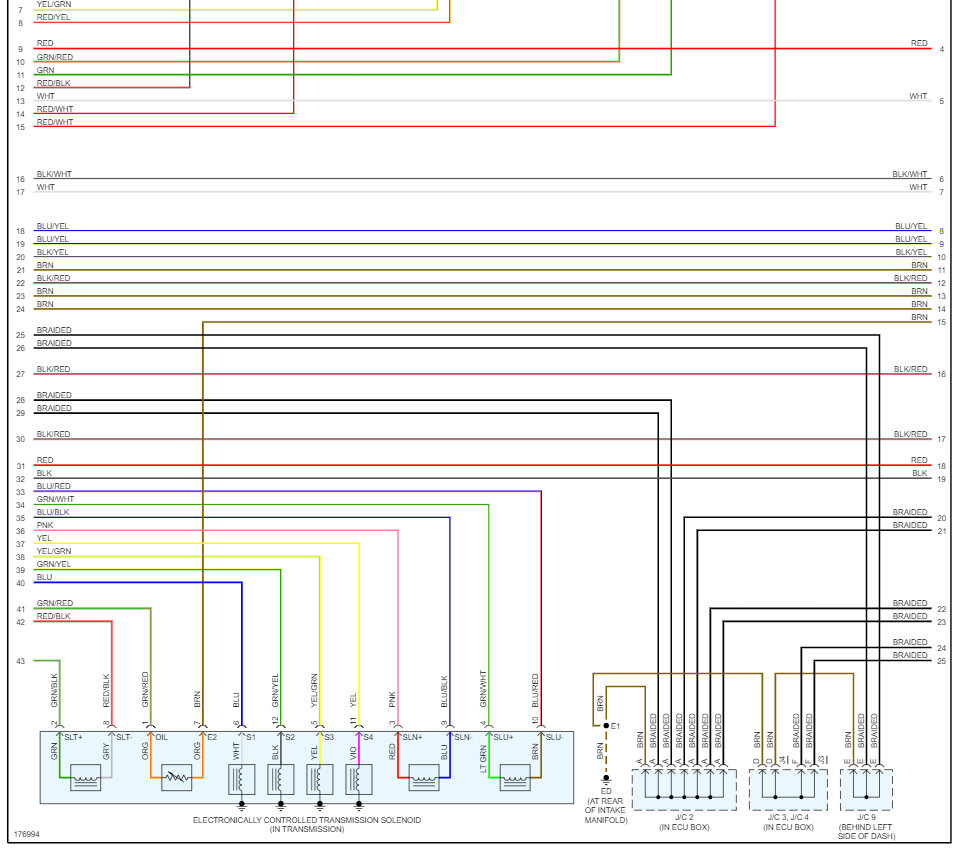

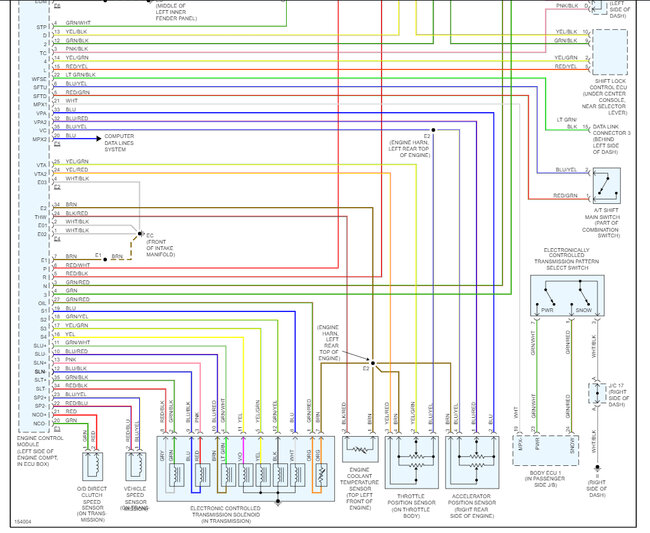

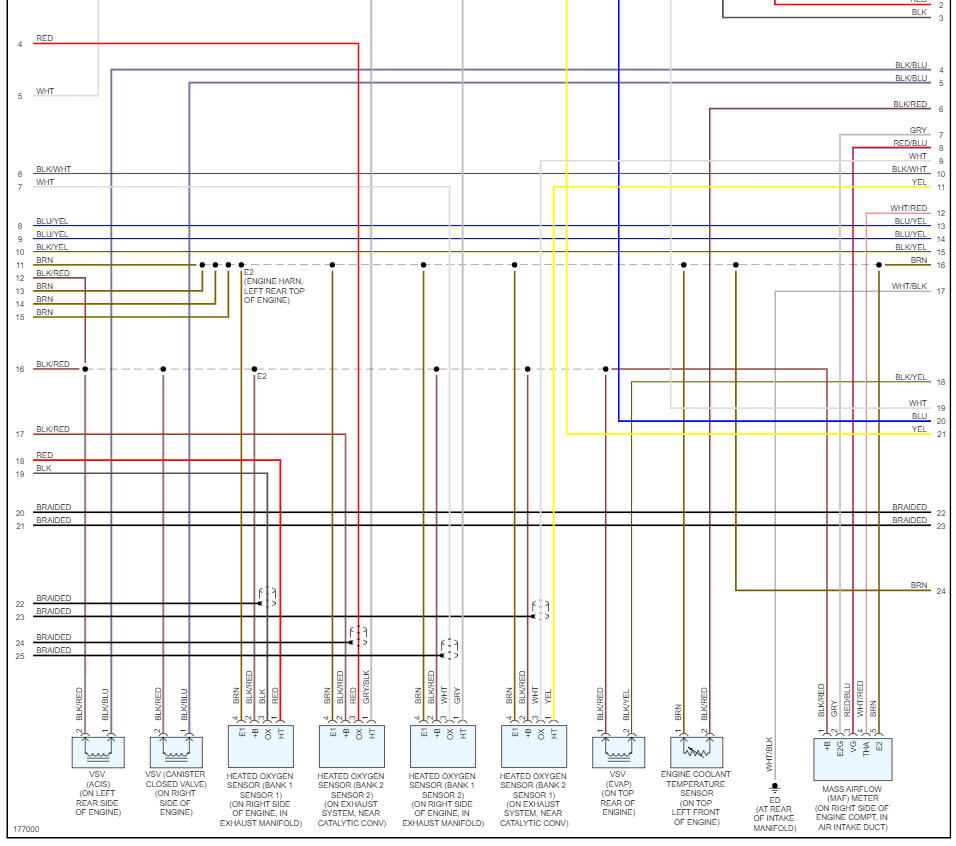

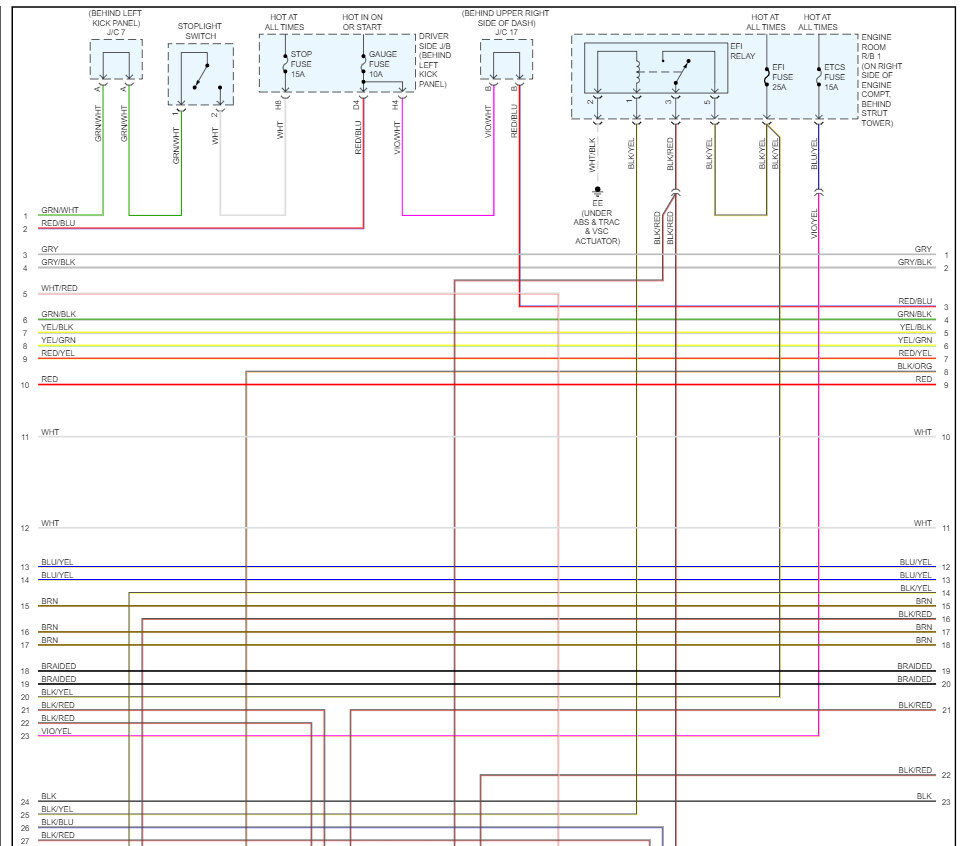

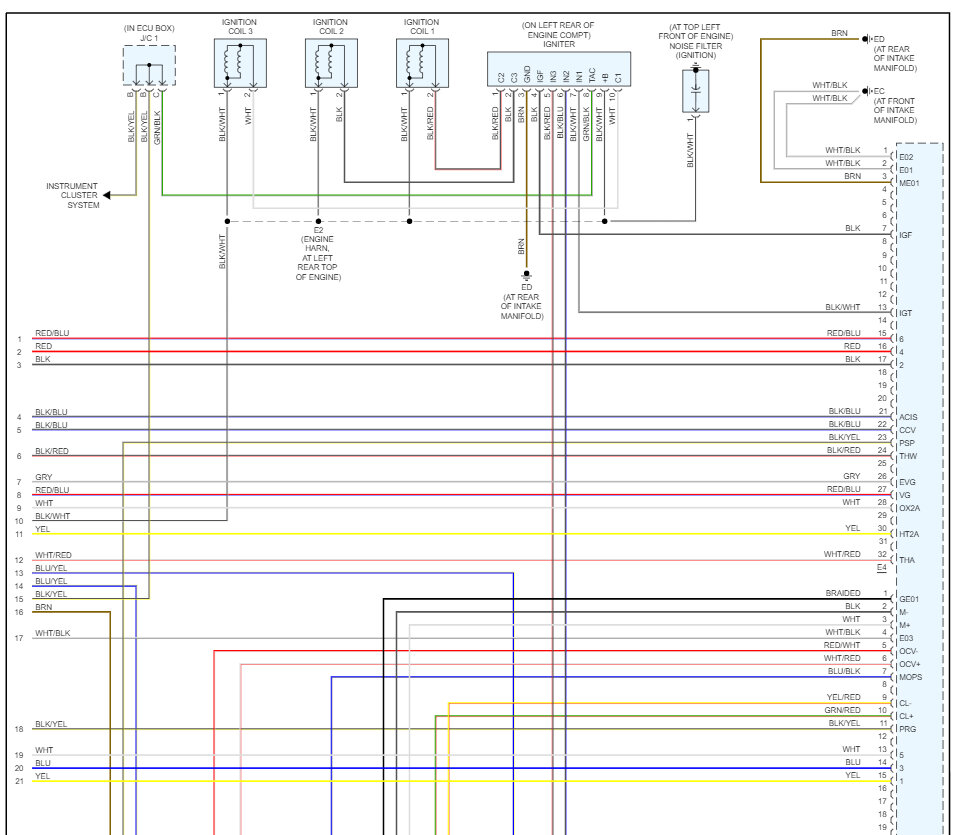

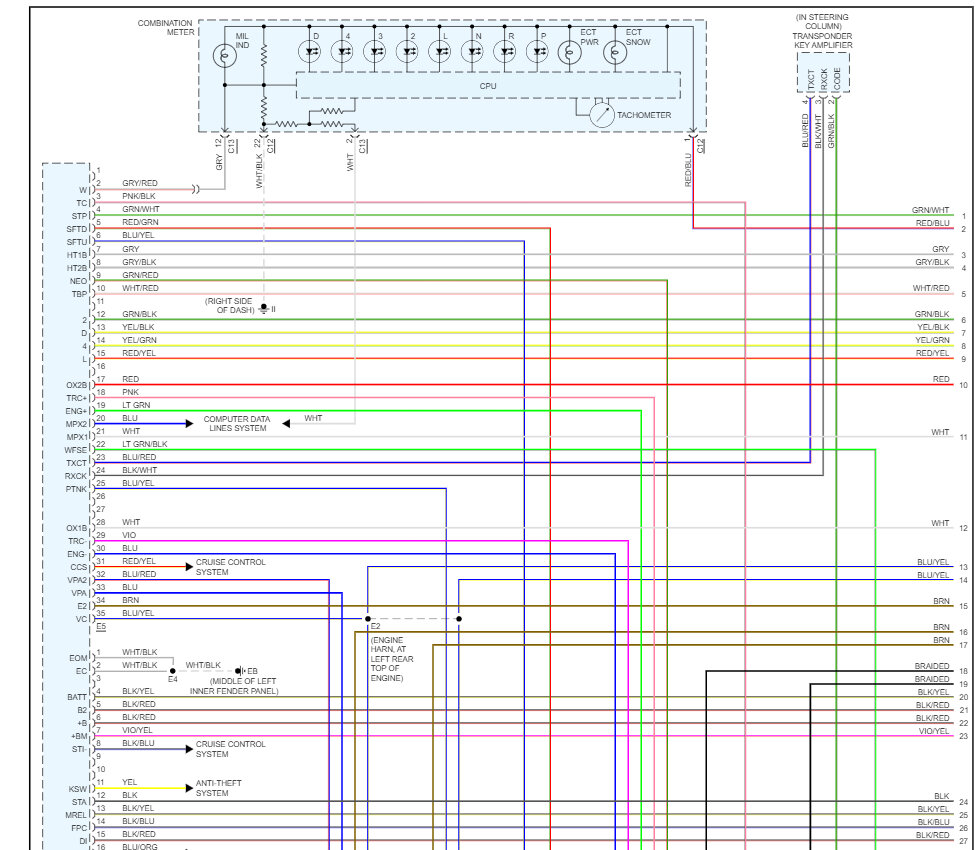

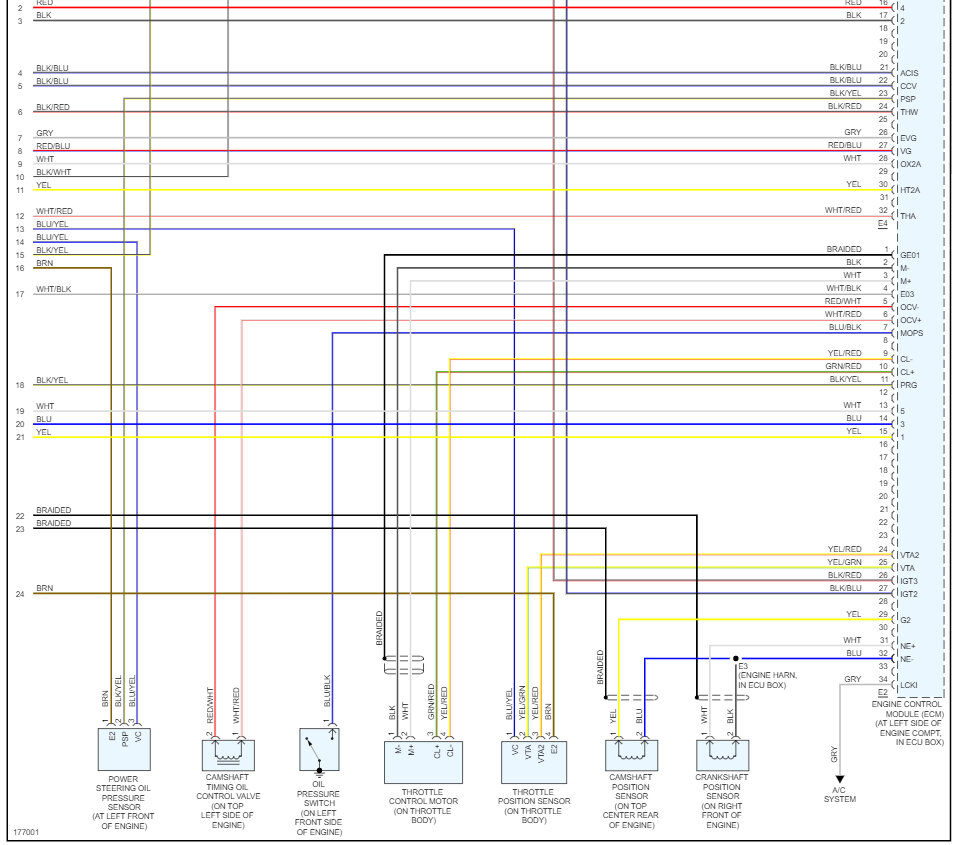

No problem, here are the engine and transmission wiring diagrams and I have included a guide to help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Mar 21, 2023 at 3:29 AM
Avatar
BLESSING EWOBOR
  • MEMBER
  • 753 POSTS
Thank you very much.
I really appreciate.
Mar 21, 2023 at 12:12 PM
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,583 POSTS
Good to hear, please use 2CarPros anytime we are here to help.
