Engine and PCM wiring schematic?

2006 FORD EXPLORER
103,500 MILES • 4.0L • V6 • 4WD • AUTOMATIC
Avatar
FONTAINE
  • MEMBER
  • 2 POSTS
Thank you for the plans. I have to rewire the oxygen sensors because I have an error code P2195/P2197 and I noticed that the cables were all stripped at the connector and the probe cable goes into which PCM connector?
Dec 28, 2023 at 1:47 AM
Advertisement
Avatar
STRAILER
  • ✓Experienced Mechanic
  • 55,238 POSTS

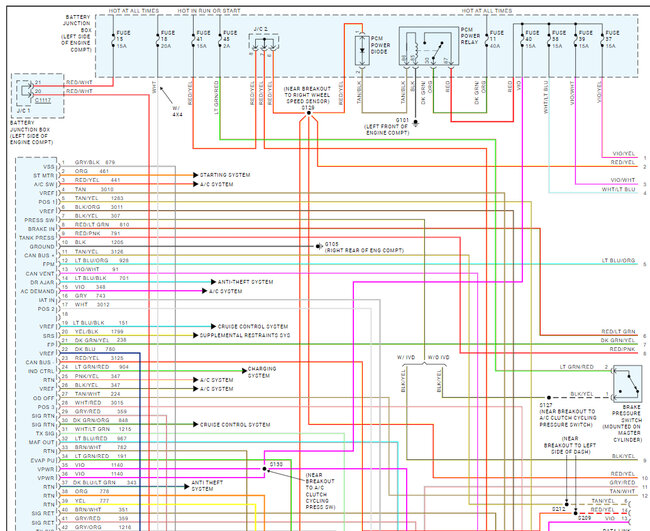

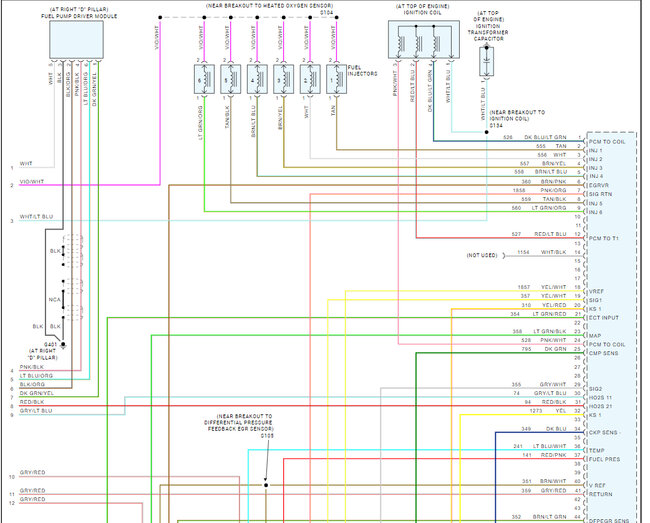

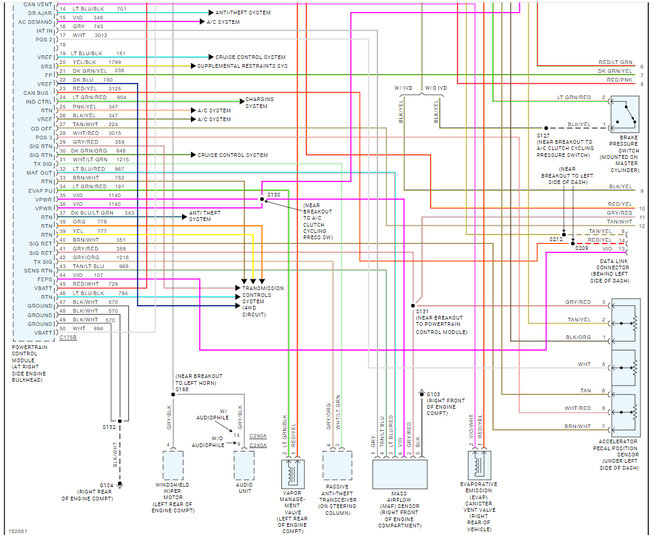

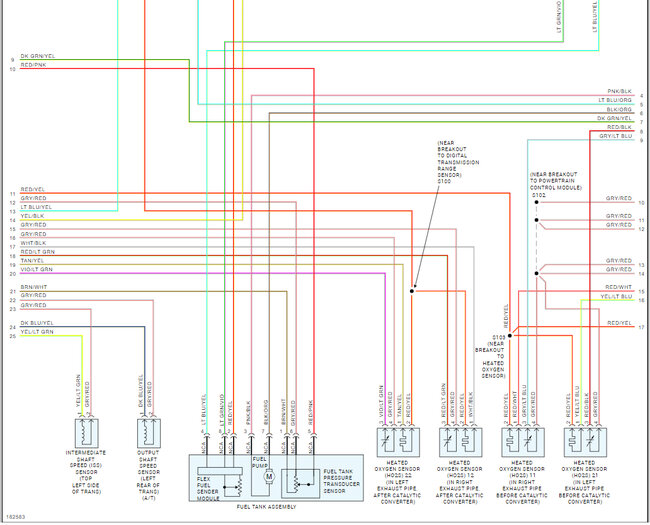

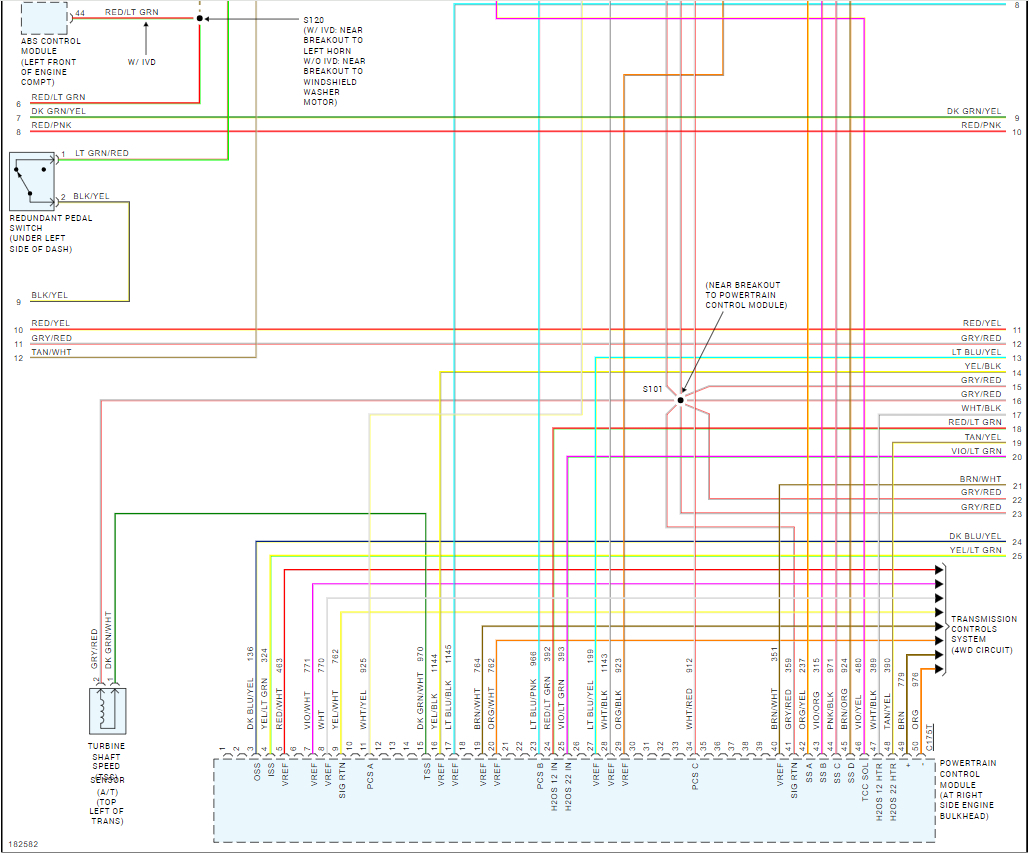

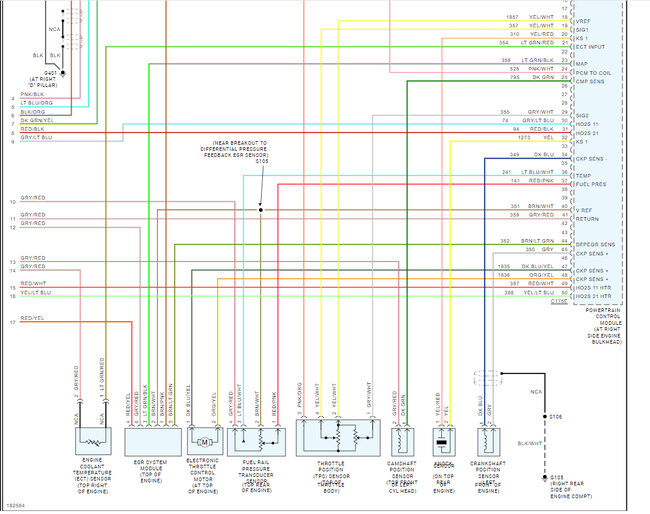

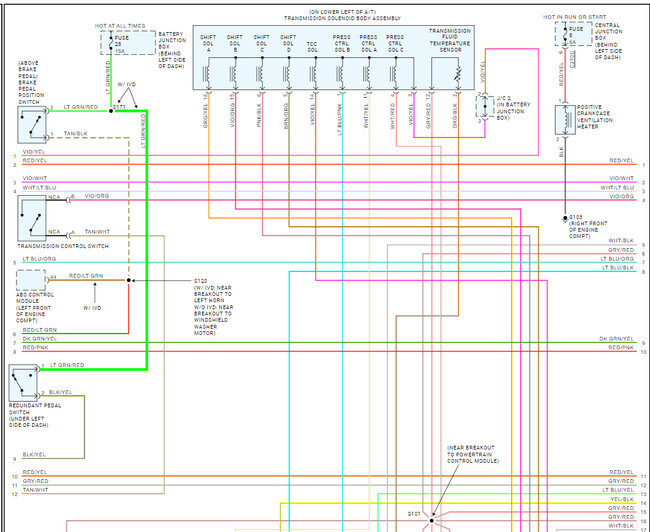

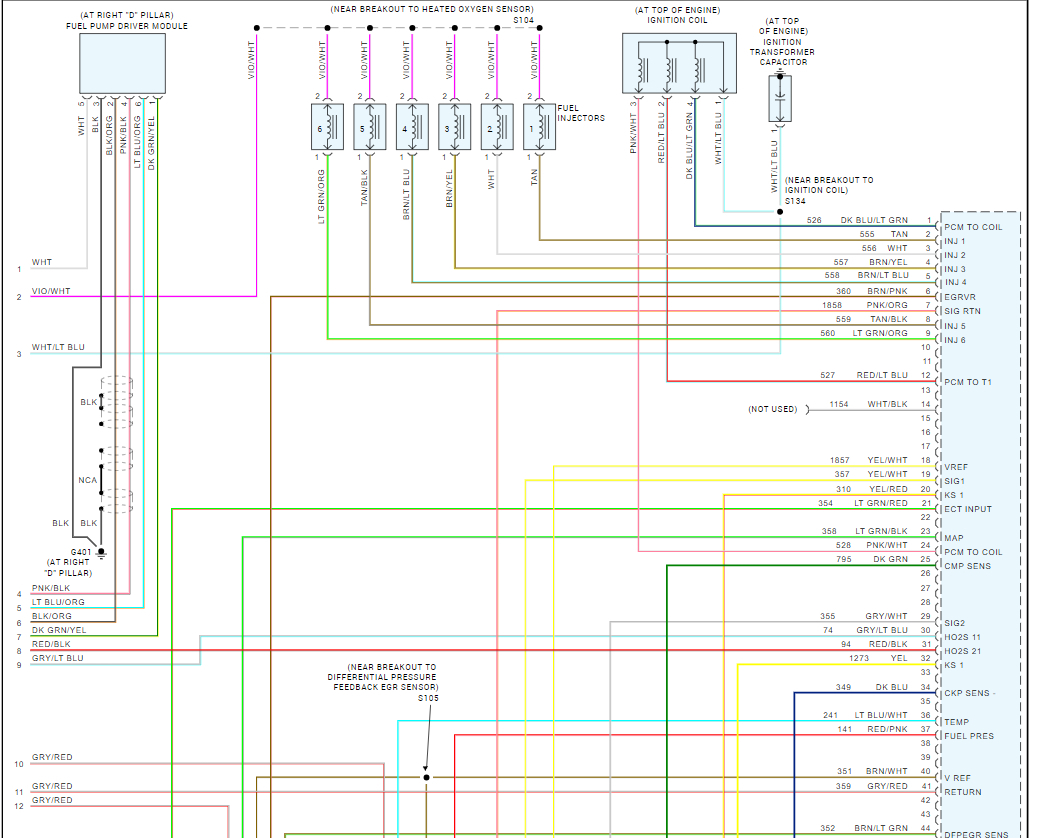

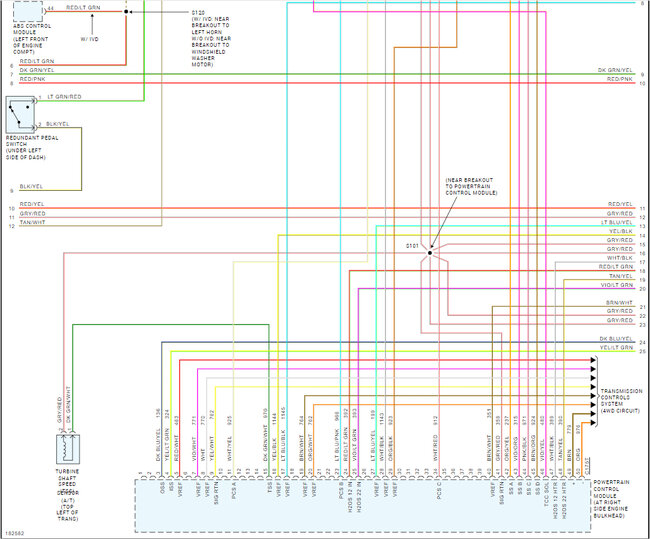

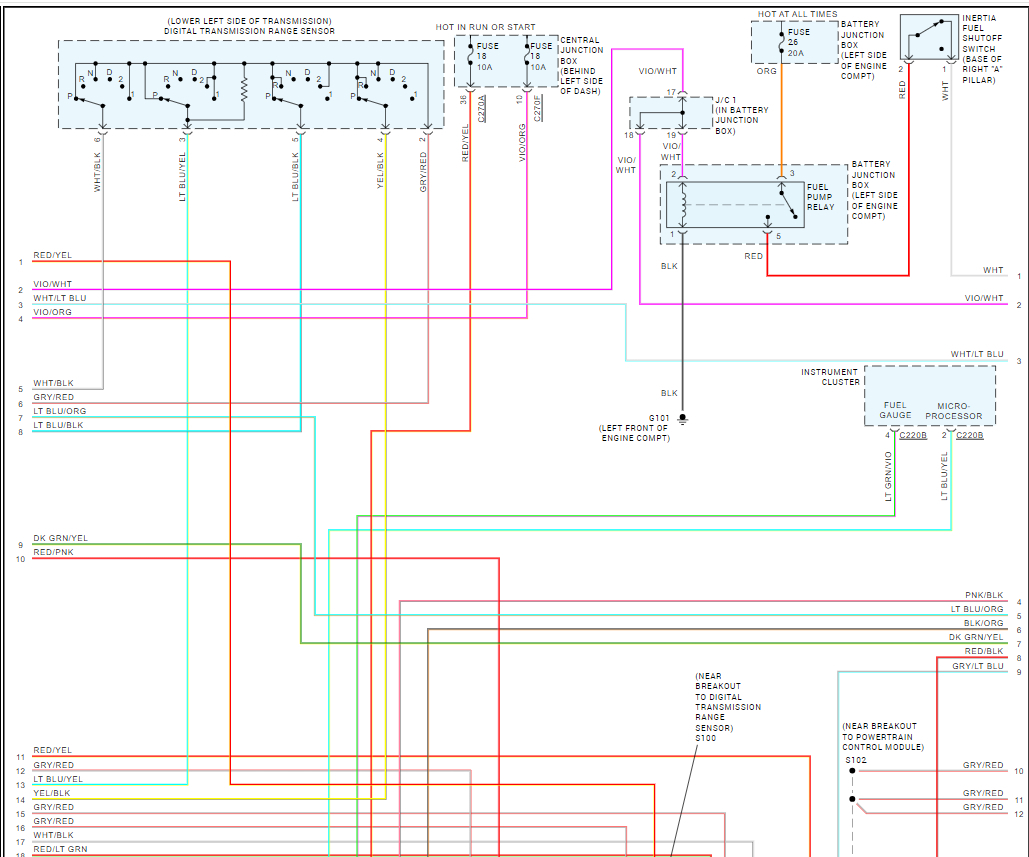

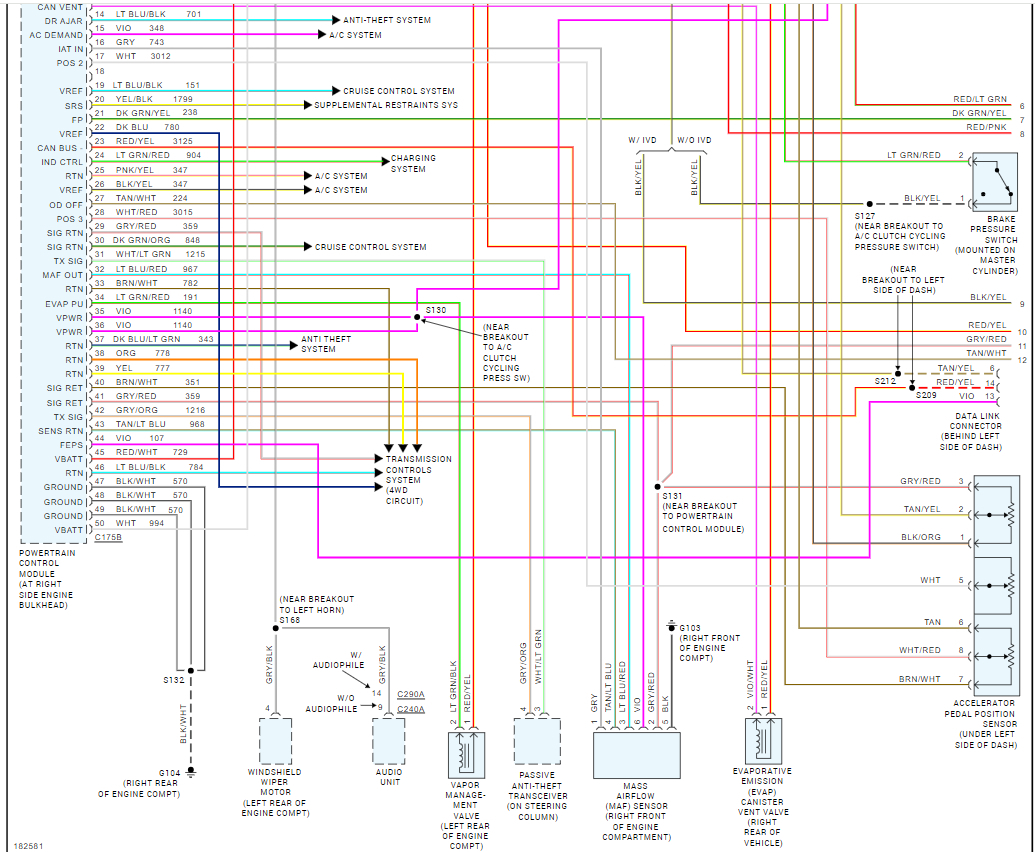

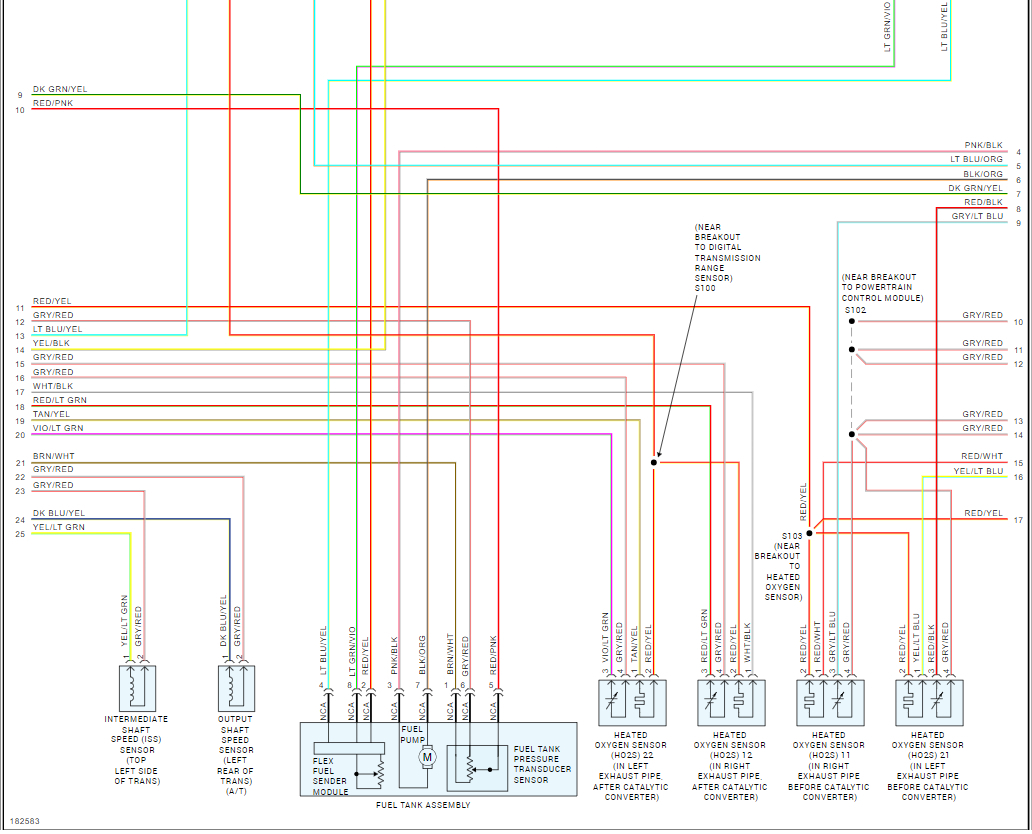

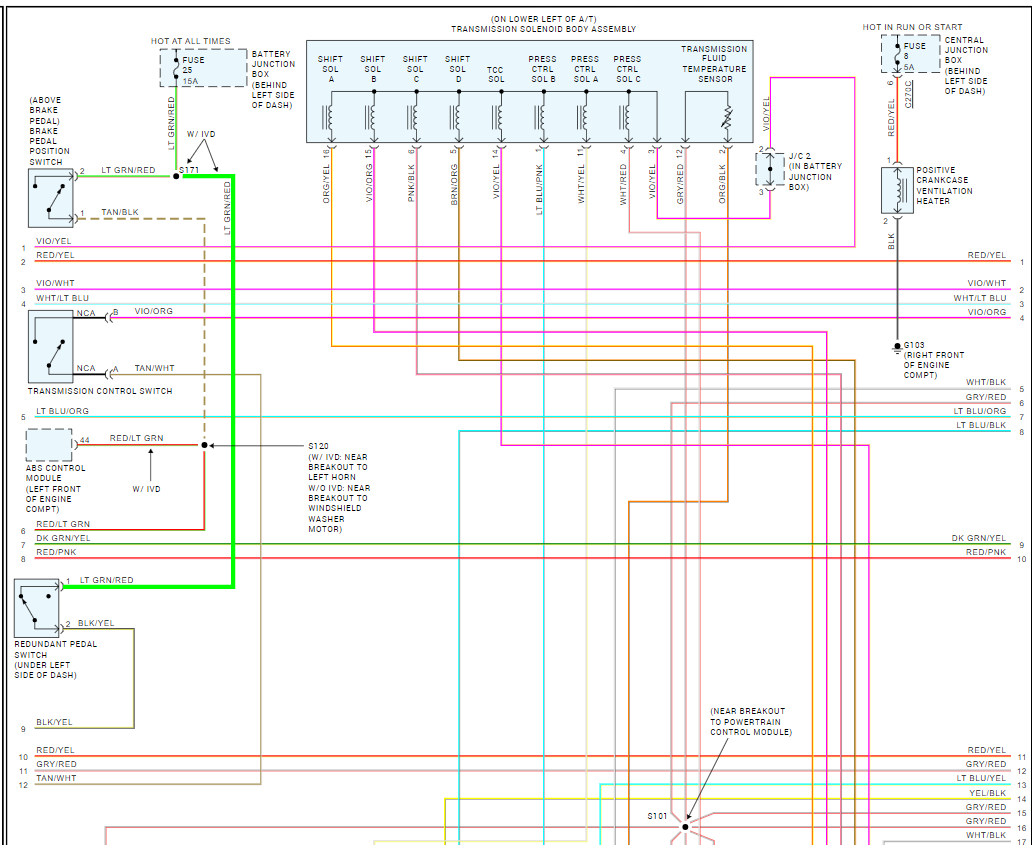

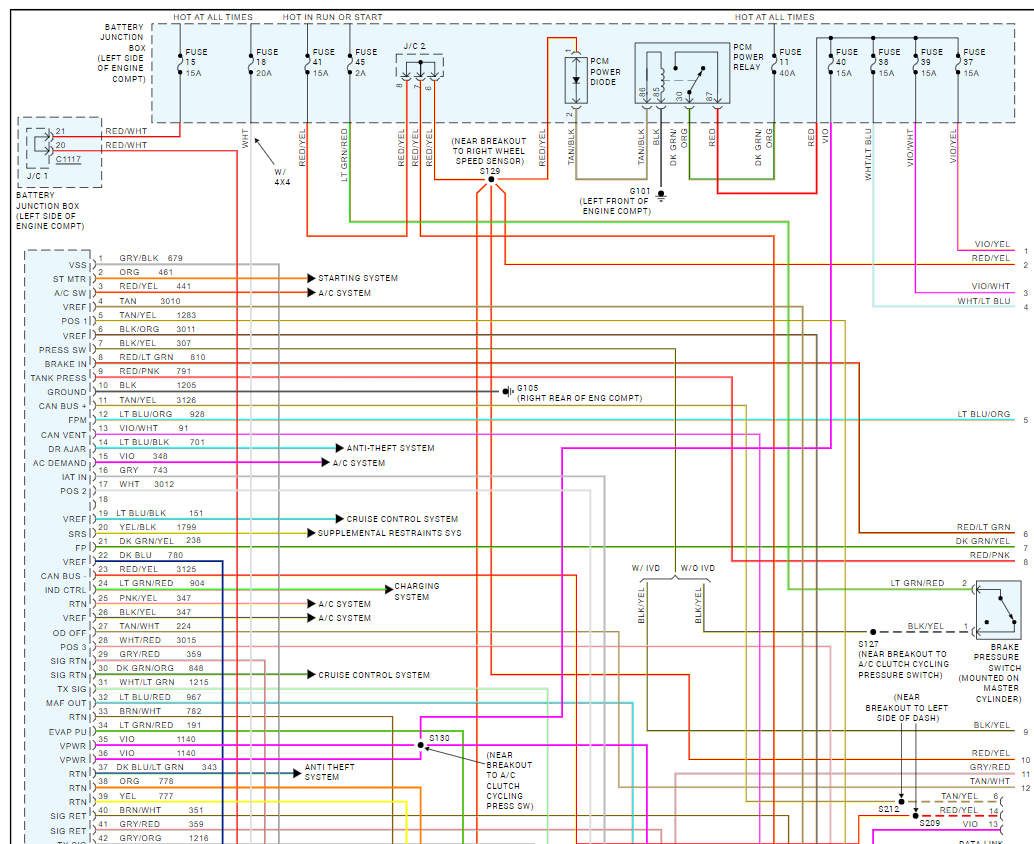

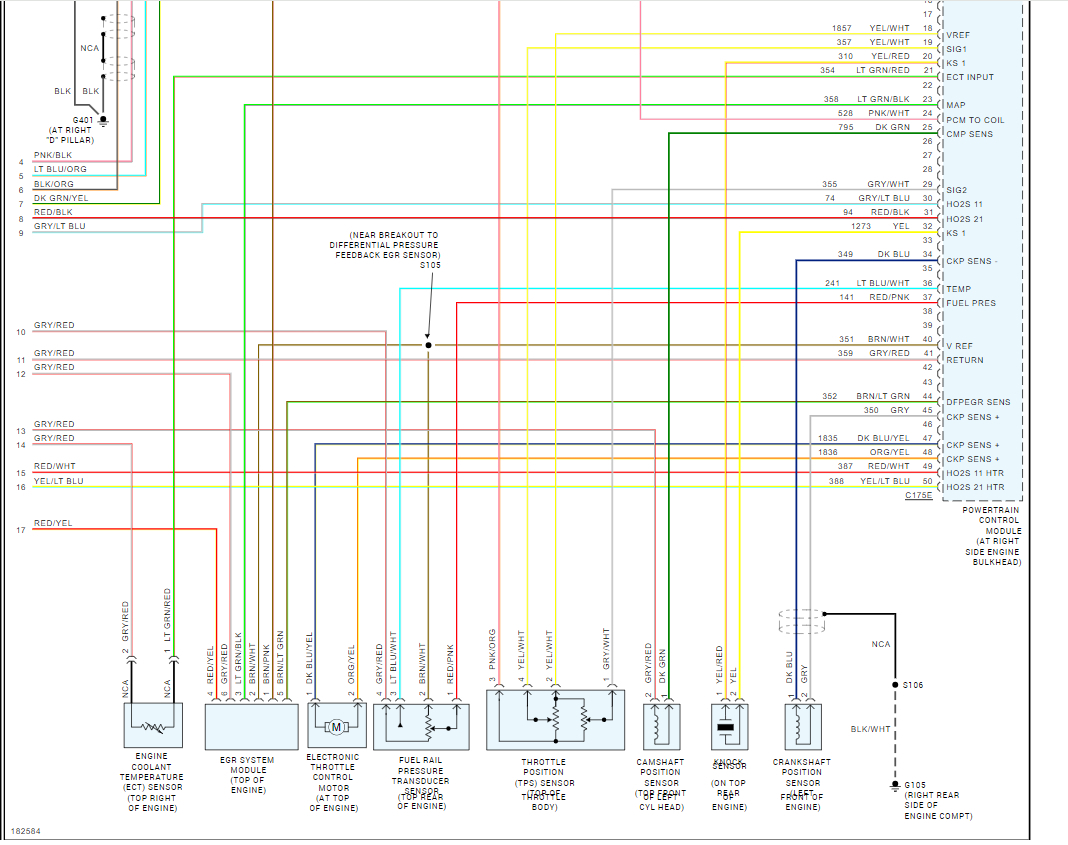

Sure, here is a guide to help you test the connections and I have included the engine /PCM wiring diagrams which included the oxygen sensors.

https://www.2carpros.com/articles/how-to-check-wiring


Check out the images (below). Please upload pictures or videos of the problem so we can see what's going on.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
