Emissions vacuum hose routing?

1999 CHEVROLET 1500
5.7L • AUTOMATIC
Avatar
FACEMAN
  • MEMBER
  • 1 POST
I need a complete block diagram of vacuume hose routing
Jul 22, 2026 at 10:12 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

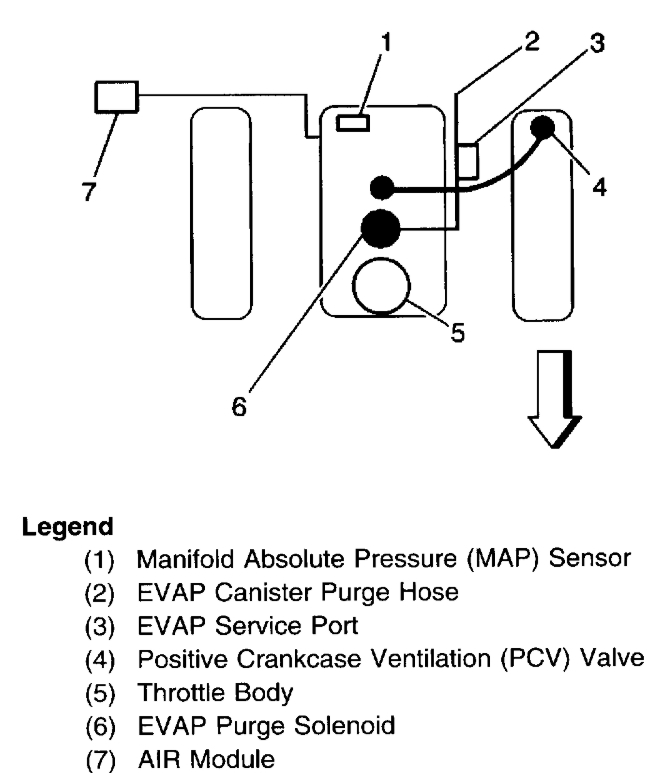

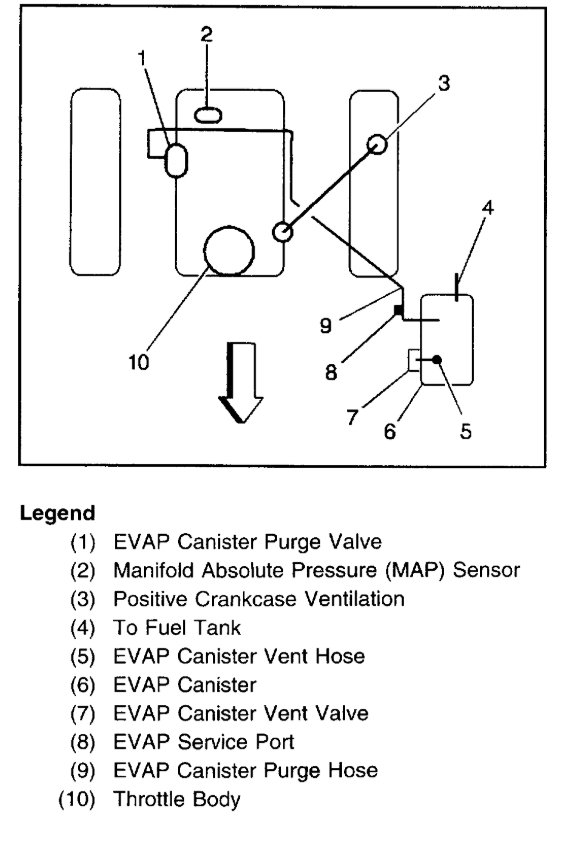

What size engine? Here is what we have for the 5.3 and 5.7 liter. Let me know if this helps.

Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 23, 2026 at 2:19 PM
Join 2CarPros for free, one of the most advanced car repair communities on the internet. From first-time drivers to seasoned mechanics, everyone is welcome to reply, share details, and get better answers. You can add a temporary image or video first; uploads are limited to 20 MB.
Ask a Free Question
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
