Please can i have a simple diagram procedure using a multi meter to test on ground if a throttle body is still in good condition. Thanks.
Jan 5, 2021 at 8:34 AM
Engine wiring diagrams?
2006 NISSAN MURANO
ANDRIN ATEM
- MEMBER
- 406 POSTS
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

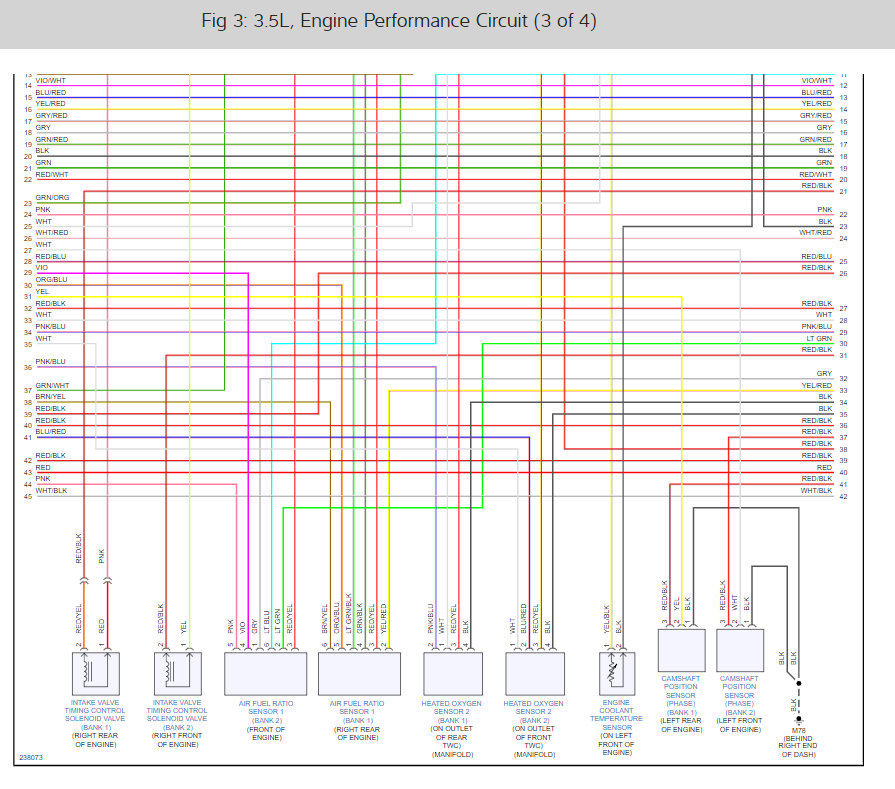

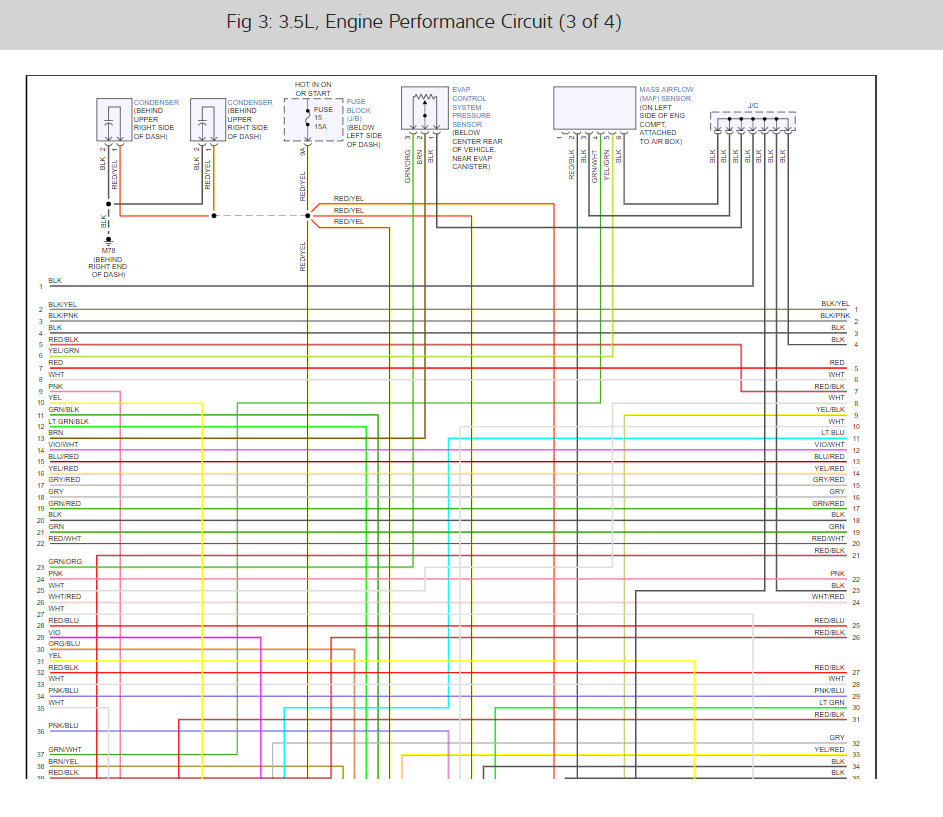

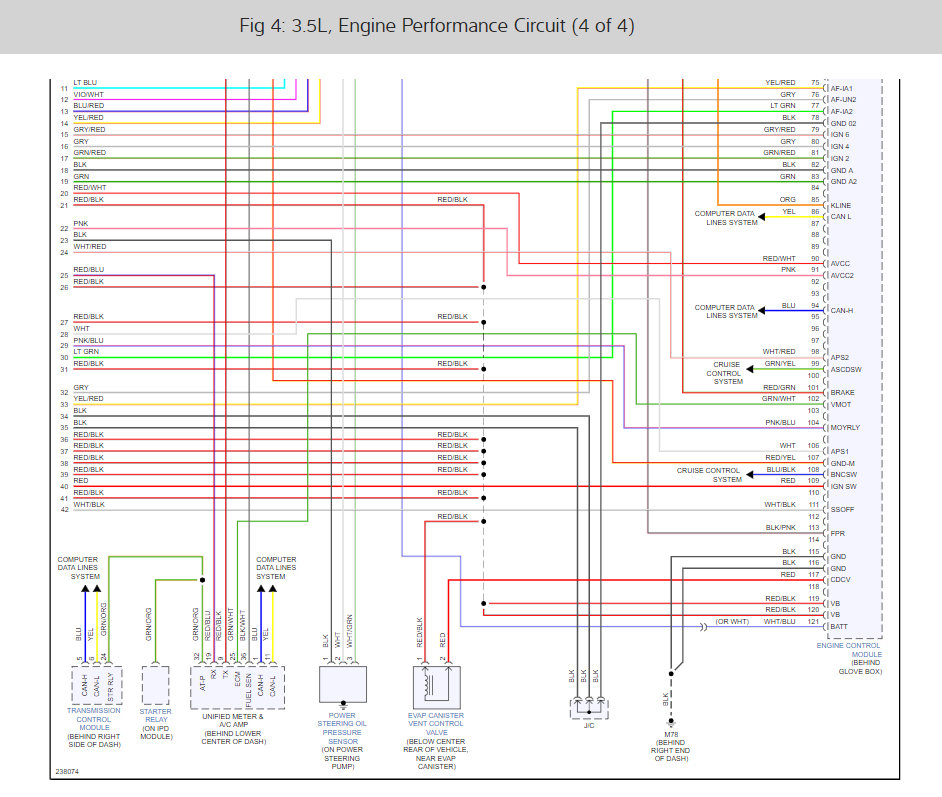

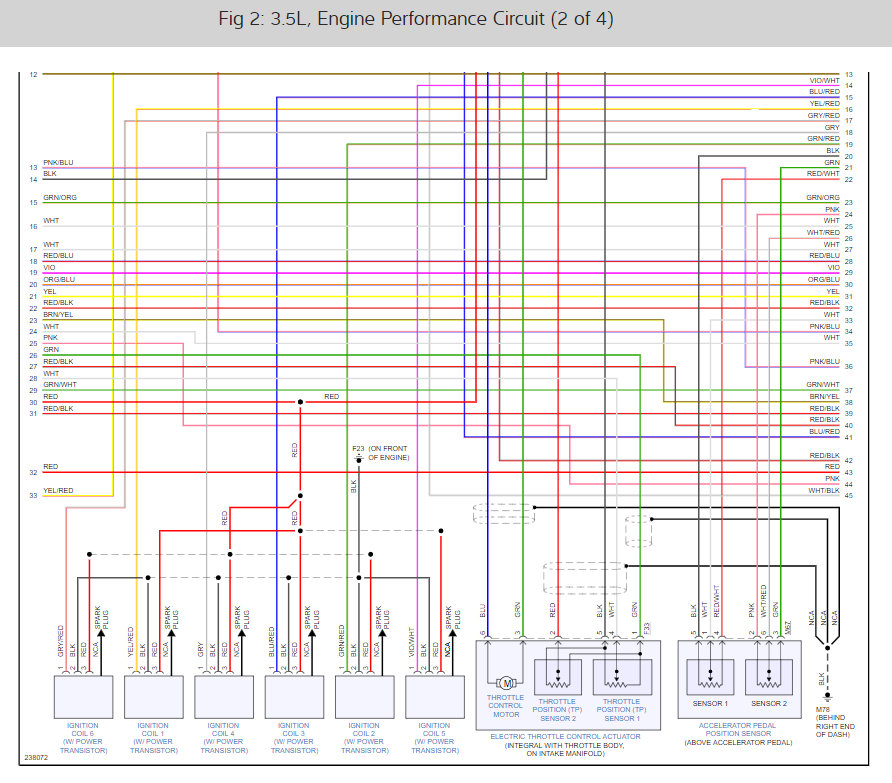

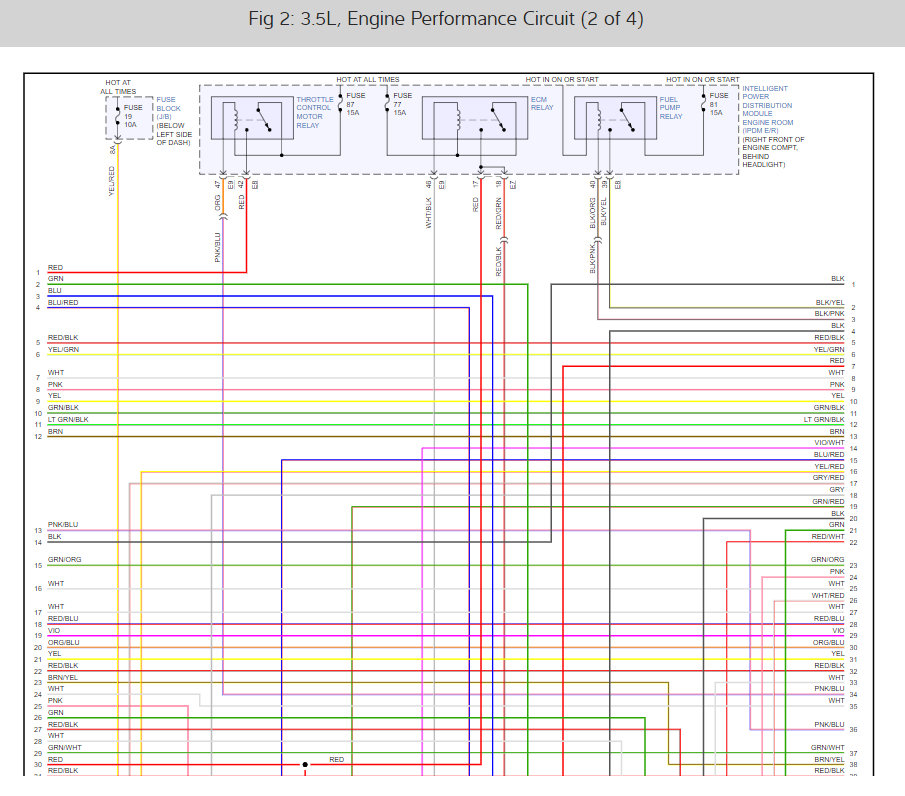

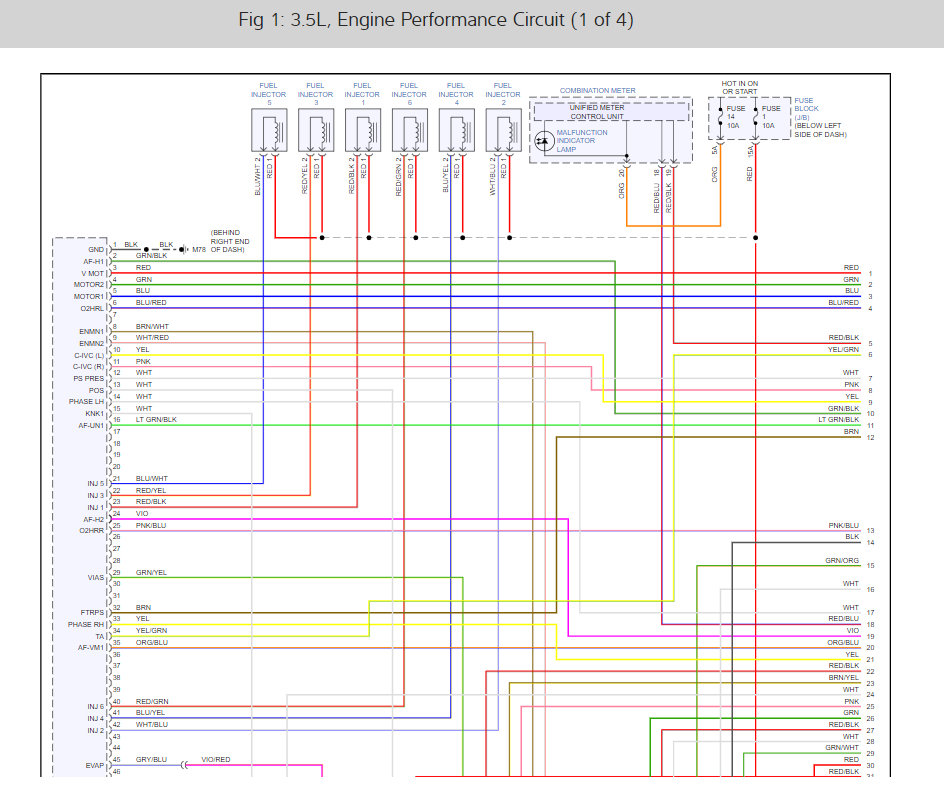

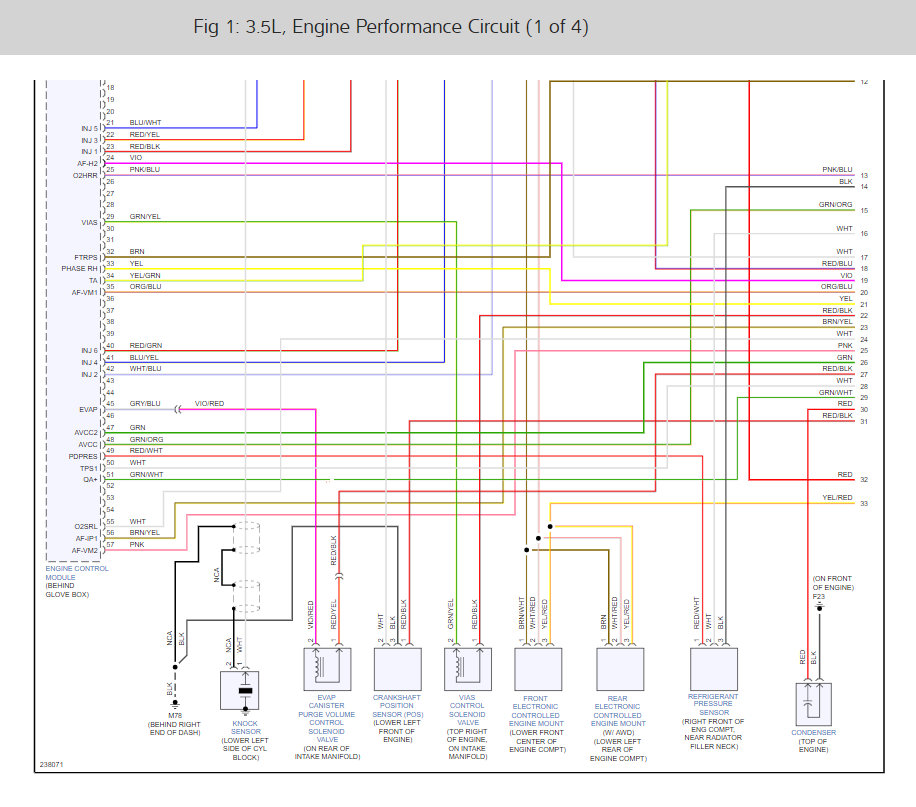

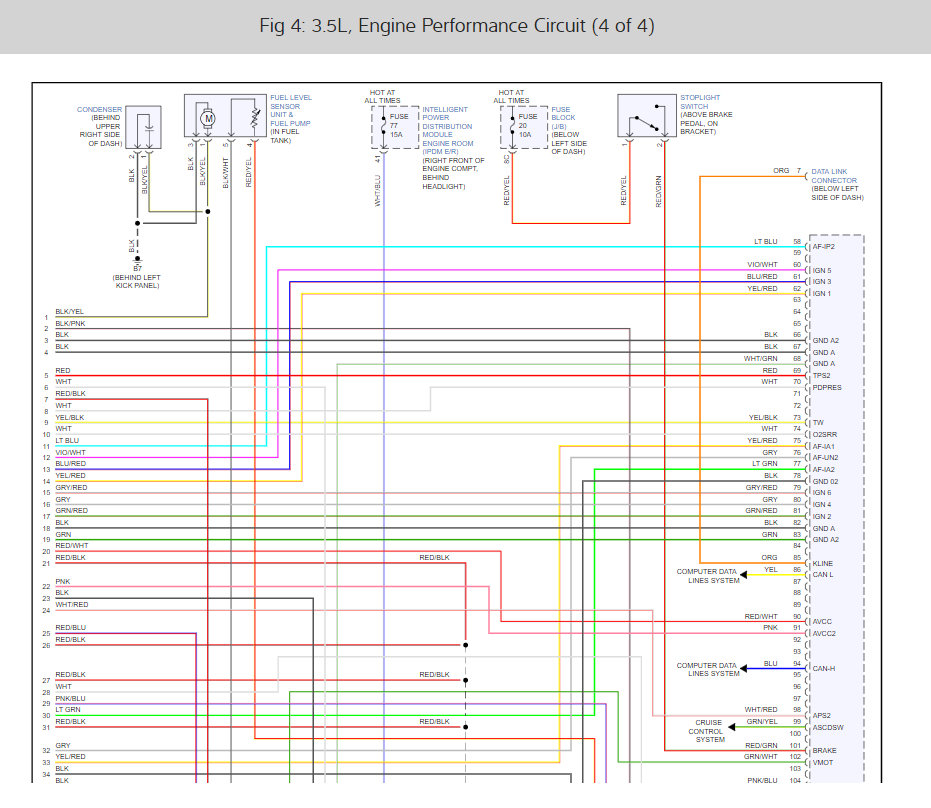

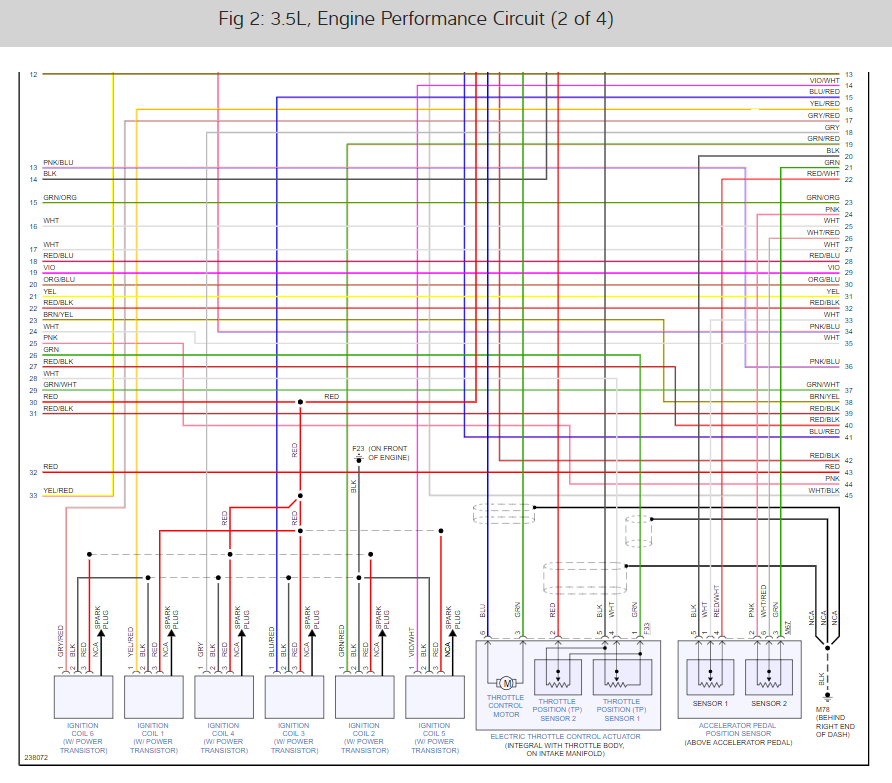

Here is a guide to help you test the ground, power and connections of the throttle body. I have included the complete engine wiring diagrams so you can see how the system works (below).
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
