Electrical

1994 FORD TAURUS
19,800 MILES • 3.0L • V6 • 2WD • AUTOMATIC
Avatar
PJCOFFEY123
  • MEMBER
  • 1 POST
Anyone have an electrical diagram like the one in my attachment for the car listed above?
Image (Click to enlarge)
Attached Media
Oct 2, 2017 at 12:42 PM
Avatar
STEVE W.
  • ✓Experienced Mechanic
  • 15,359 POSTS

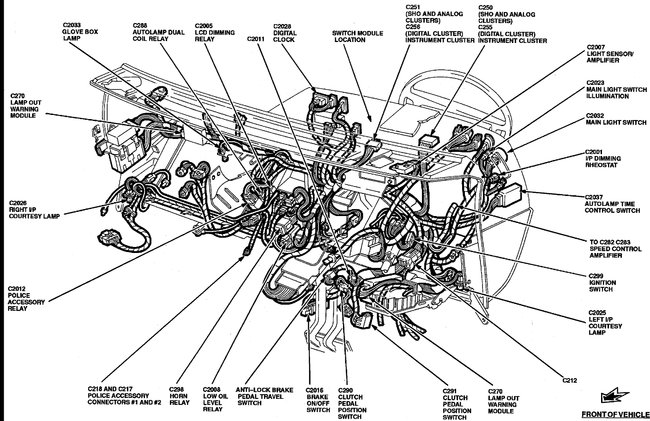

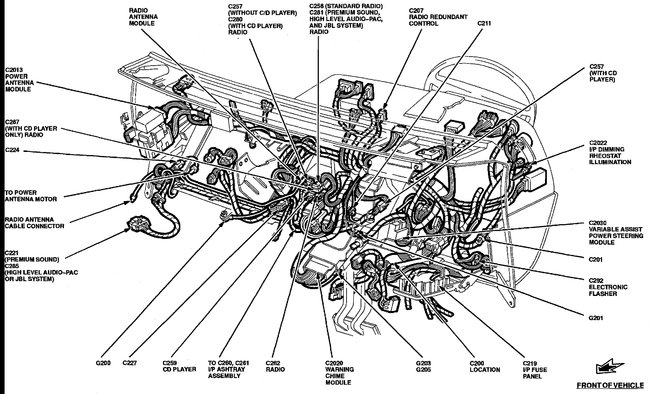

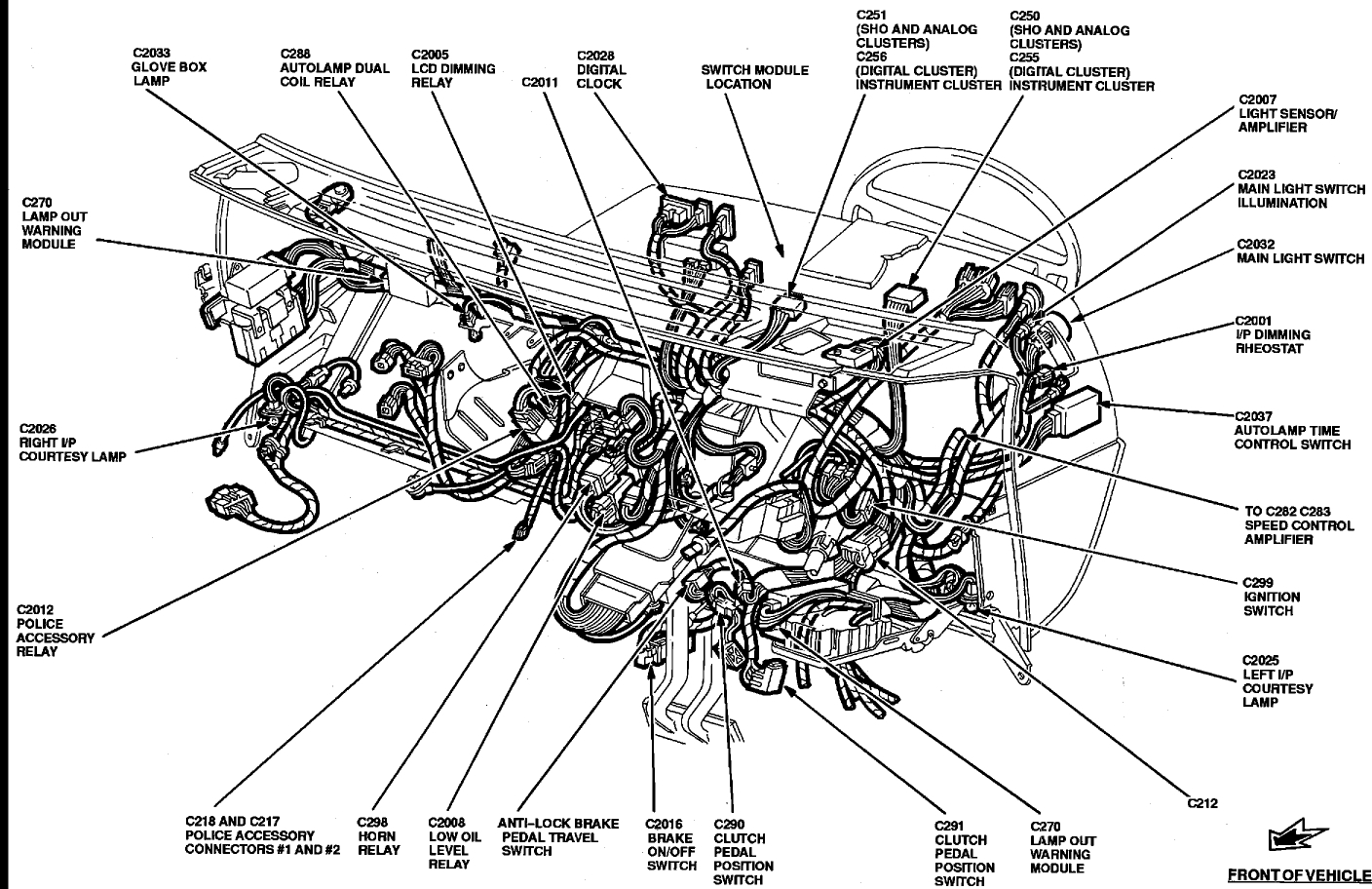

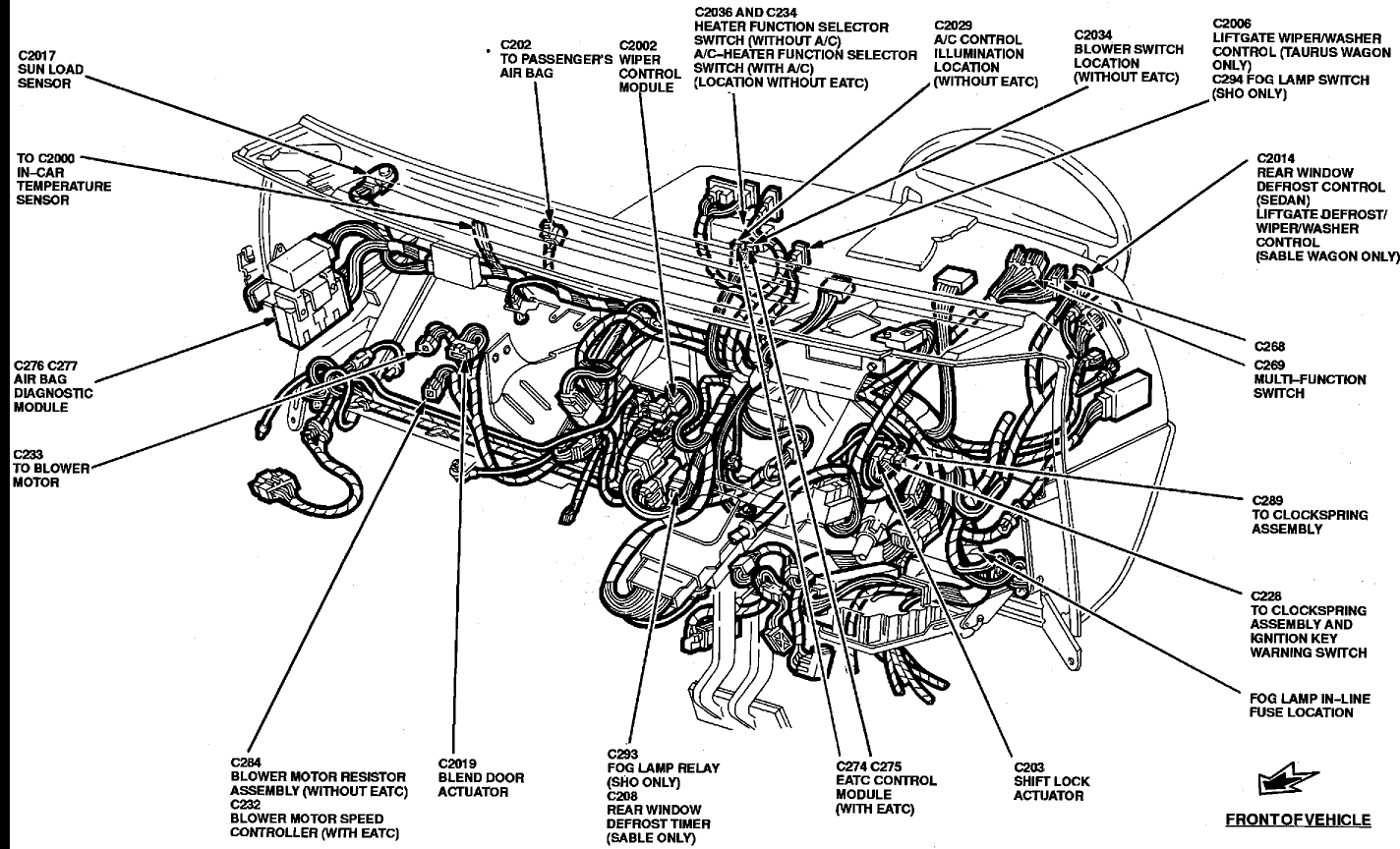

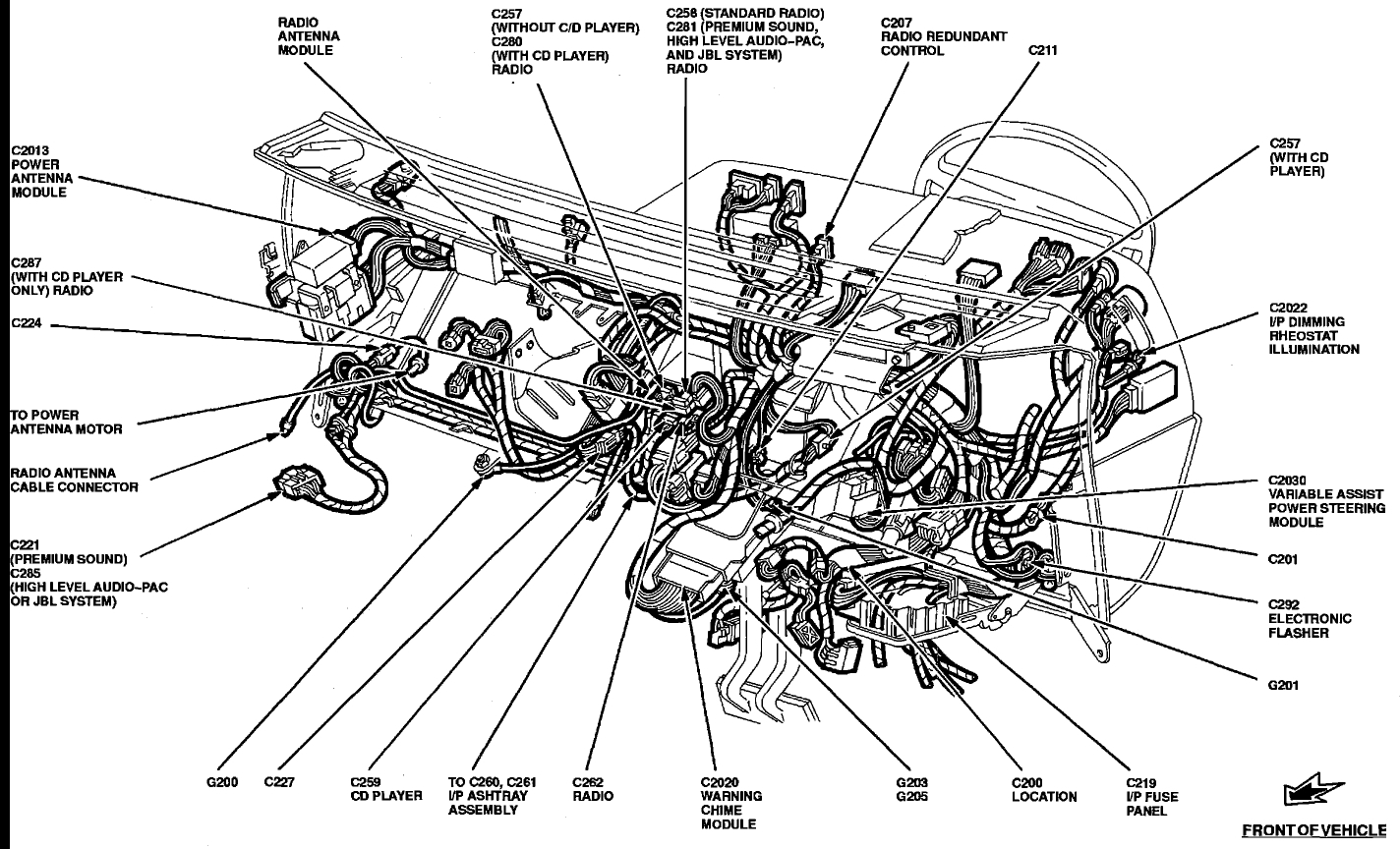

That is a harness view. Here are the three views that go to your vehicle.

Are you looking for something in particular?
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
