2004 HYUNDAI SONATA
2.7L
6 CYL
2WD
143,000 MILES
Need a diagram of coil pack. My connector crumbled to pieces. What wire goes where?
Wednesday, June 10th, 2020 AT 8:51 PM
1 Reply
KEN L
MASTER CERTIFIED MECHANIC
47,347 POSTS
Hello,
Here is a guide to help you check the wiring and the full engine wiring diagrams below:
https://www.2carpros.com/articles/how-to-check-wiring

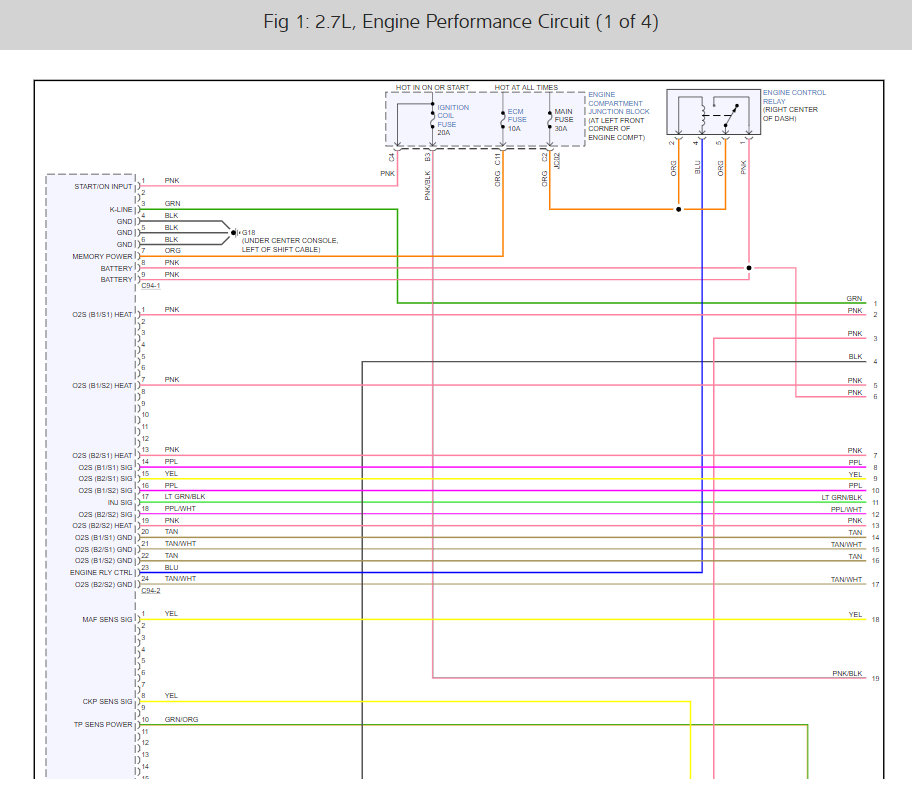

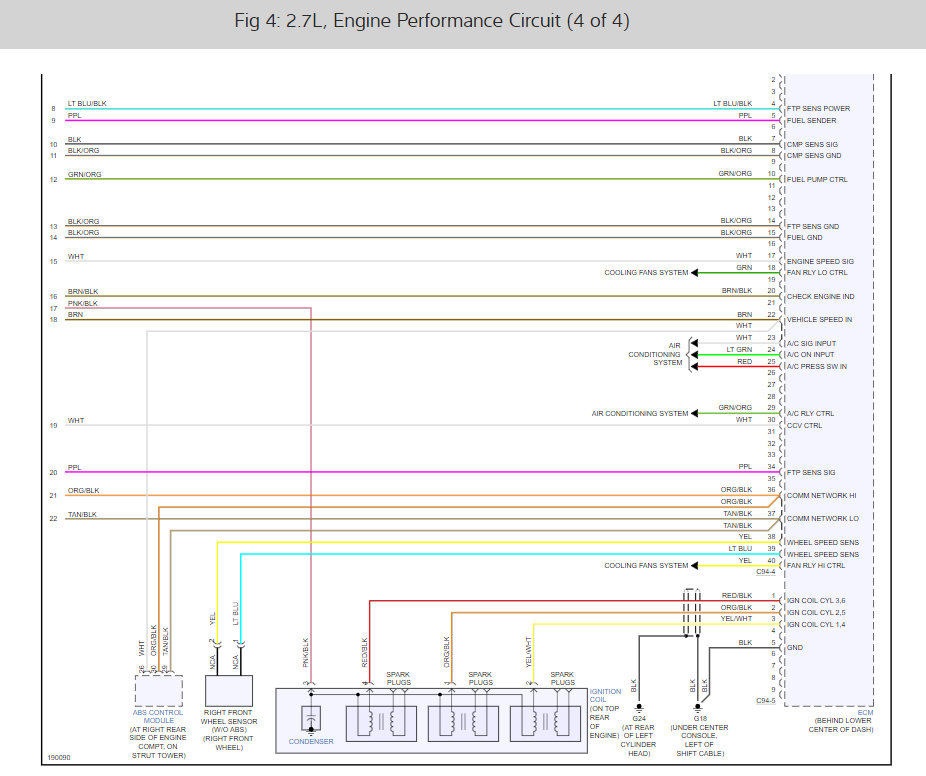

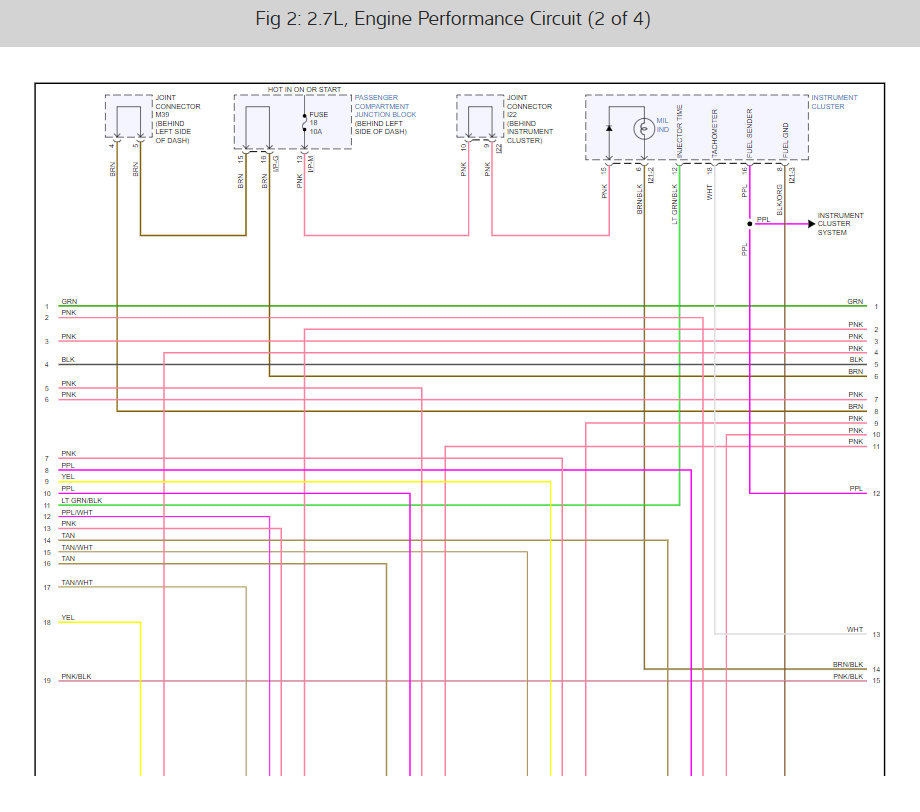

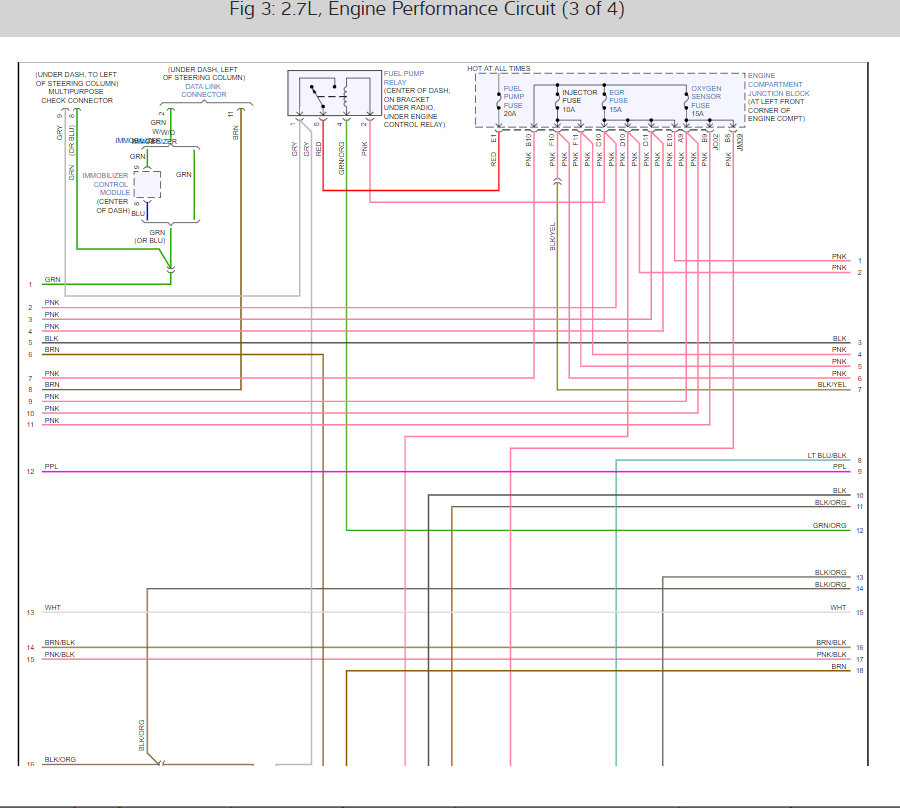

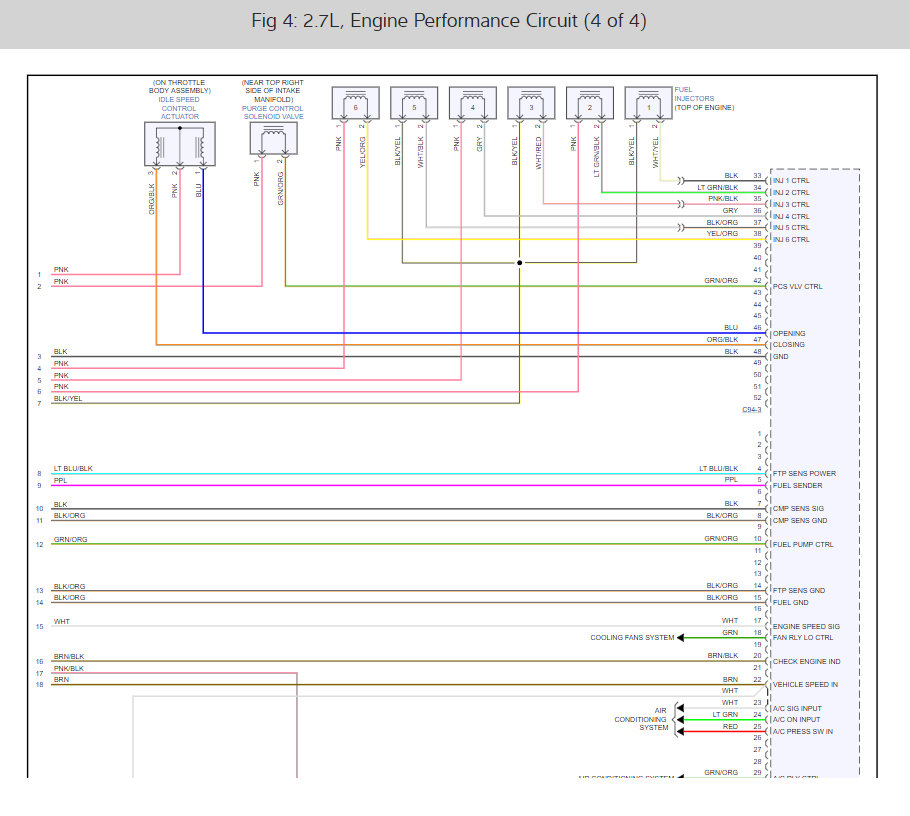

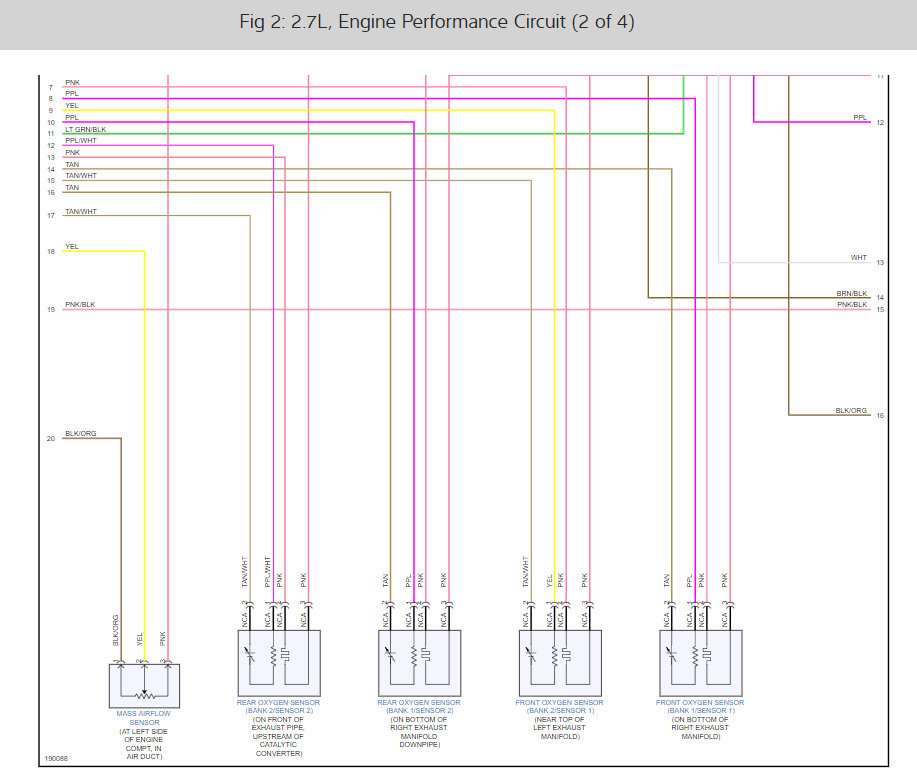

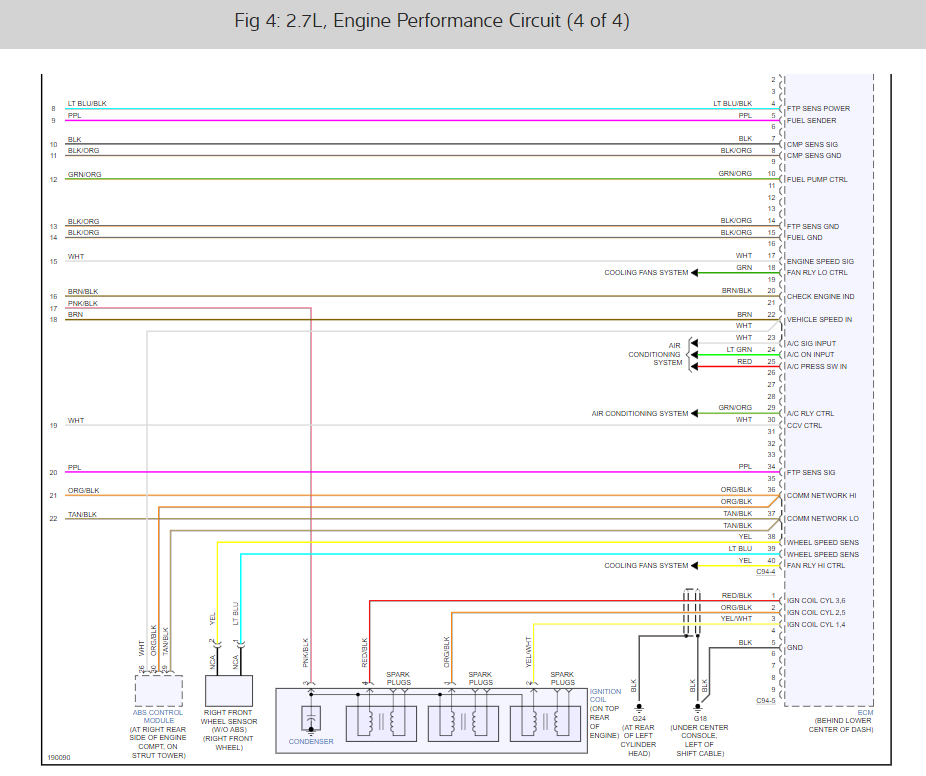

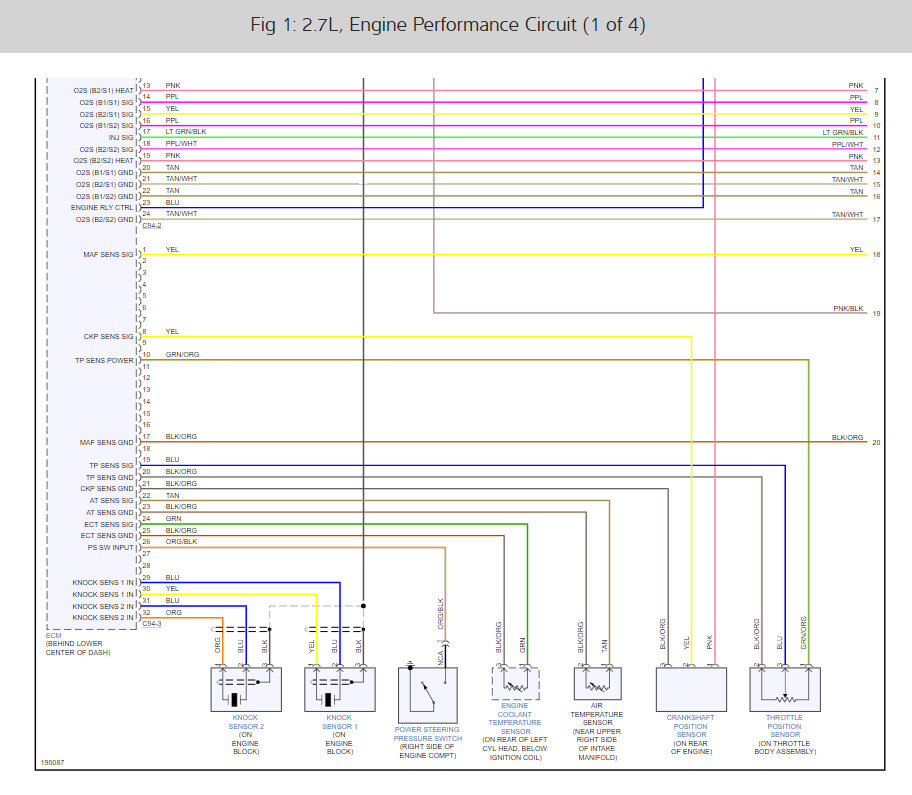

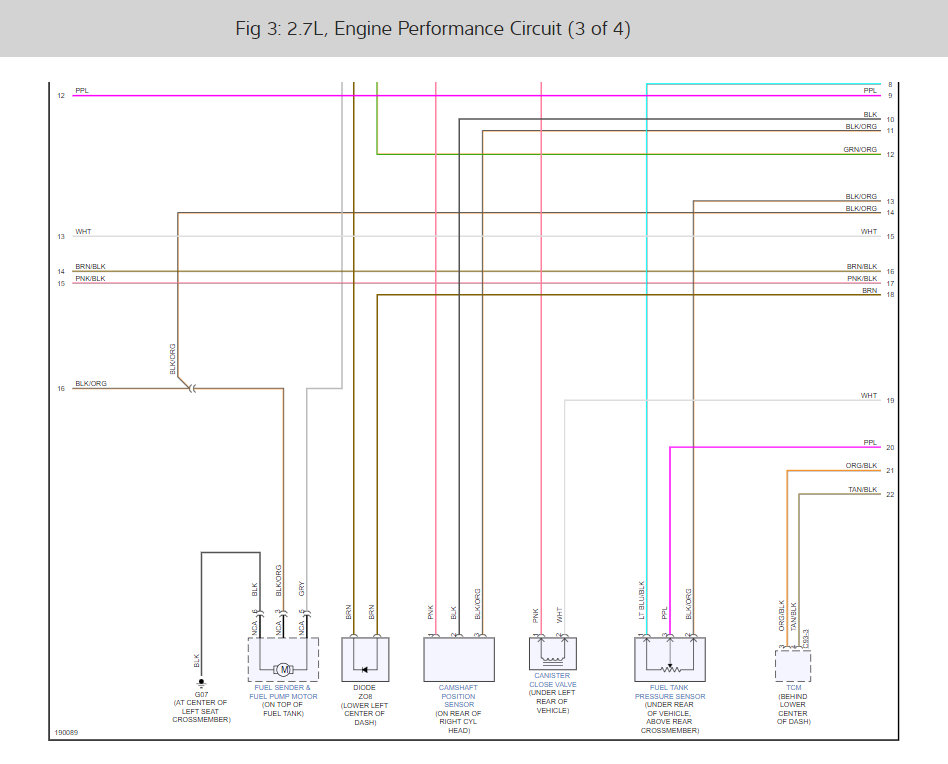

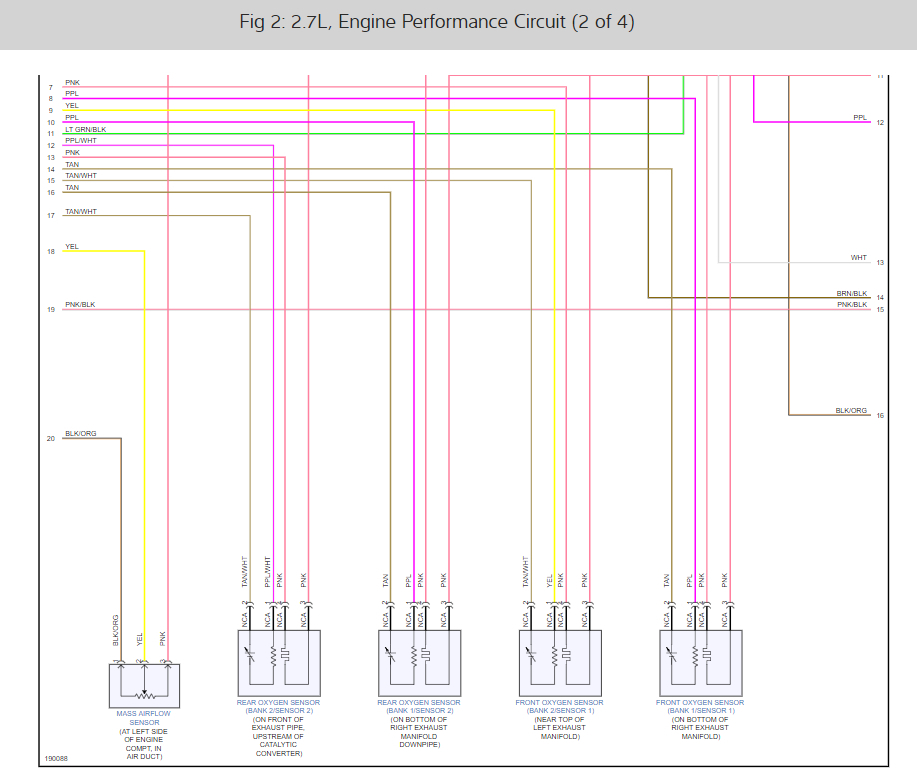

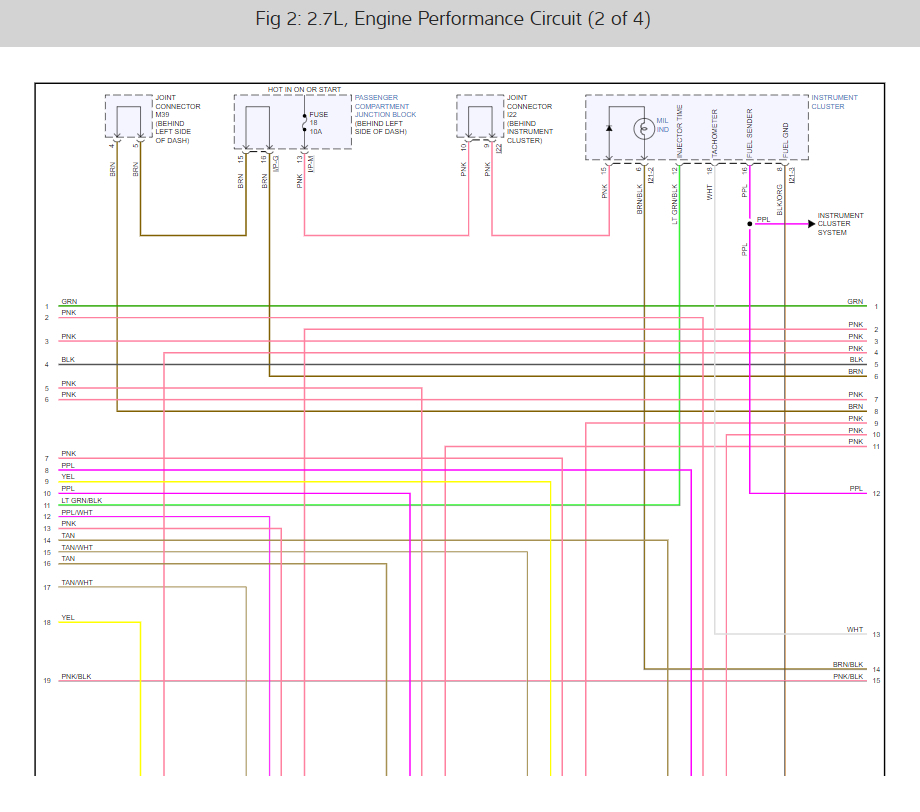

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
