ECU wiring diagram

Tiny
AUSTINO
  • MEMBER
  • 2003 JAGUAR S-TYPE
  • 3.0L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 67,000 MILES
Good evening, can you please send me an image of the ECU wiring diagram? Thanks for a speedy response.
Monday, December 3rd, 2018 AT 5:57 PM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi and thanks for using 2CarPros.

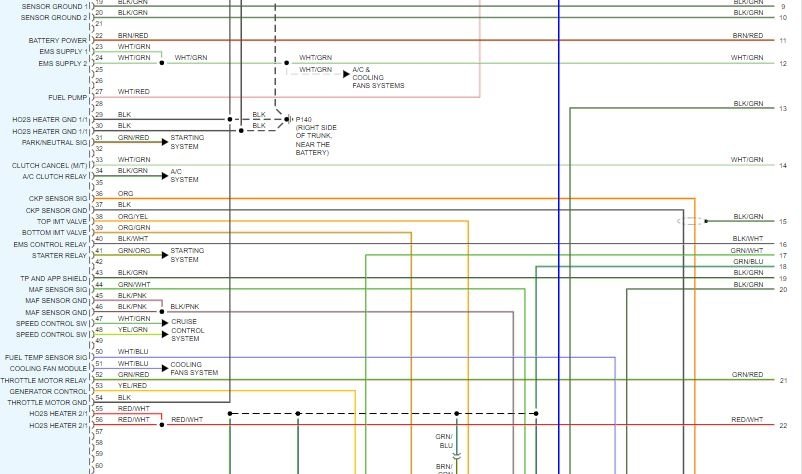

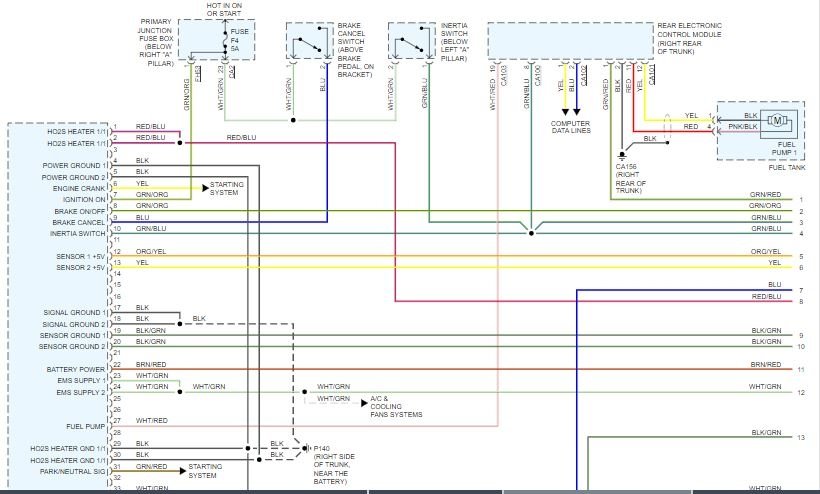

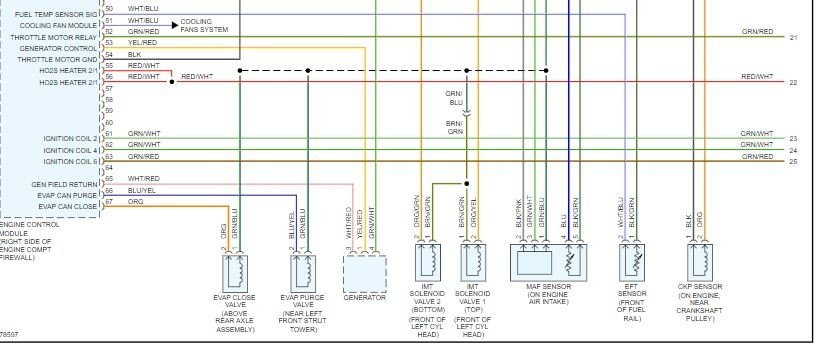

I attached one of four pages of schematics. The page includes the ECU and each pin's designation. I had to break it into three separate pictures for it to be readable. I overlapped the pictures so you can follow it and see where I left off.

Let me know if this helps or if it is even what you needed.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
