ECU wiring diagram

Tiny
ROTAVIOUS
  • MEMBER
  • 2019 NISSAN SENTRA
  • 17,000 MILES
Hey, I’m new to this whole mechanic thing and I’m trying to find a diagram for the wires connected to my ECU. Like the fuel pump wire, trunk release, lock and unlock and etc. If anyone knows anything thank you in advance.
Wednesday, January 13th, 2021 AT 9:27 AM

11 Replies

Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
Good evening,

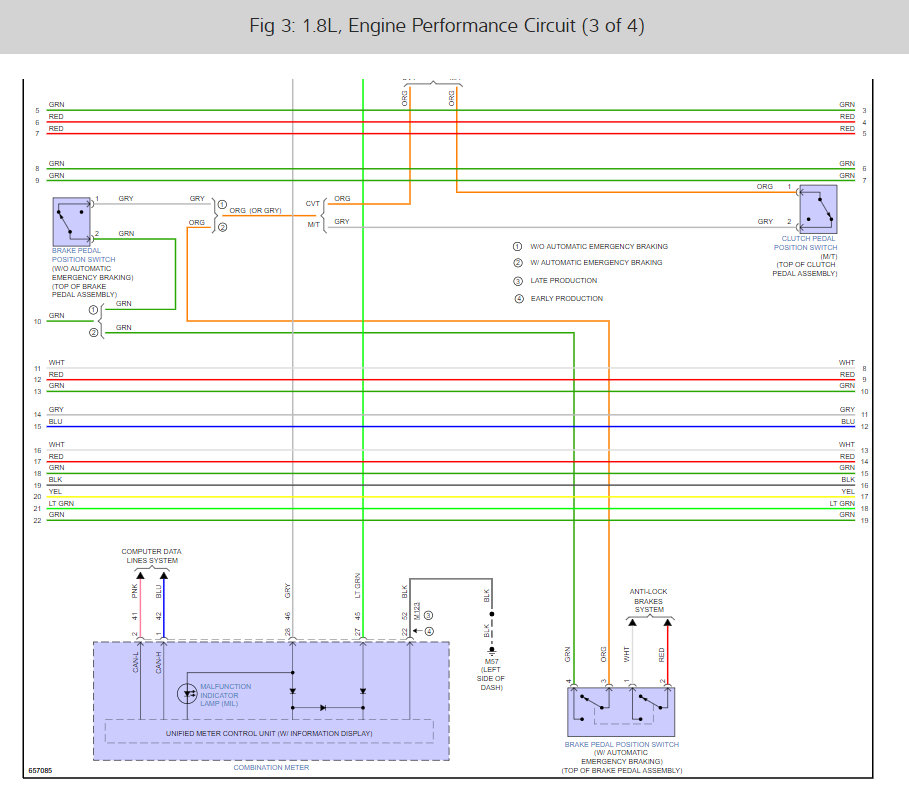

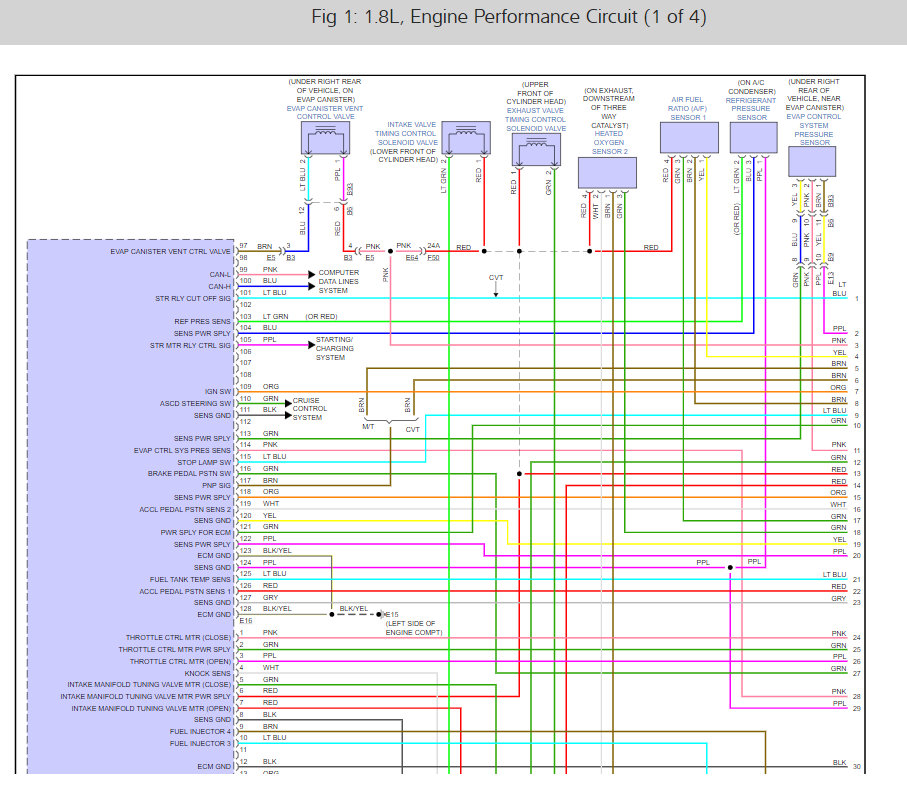

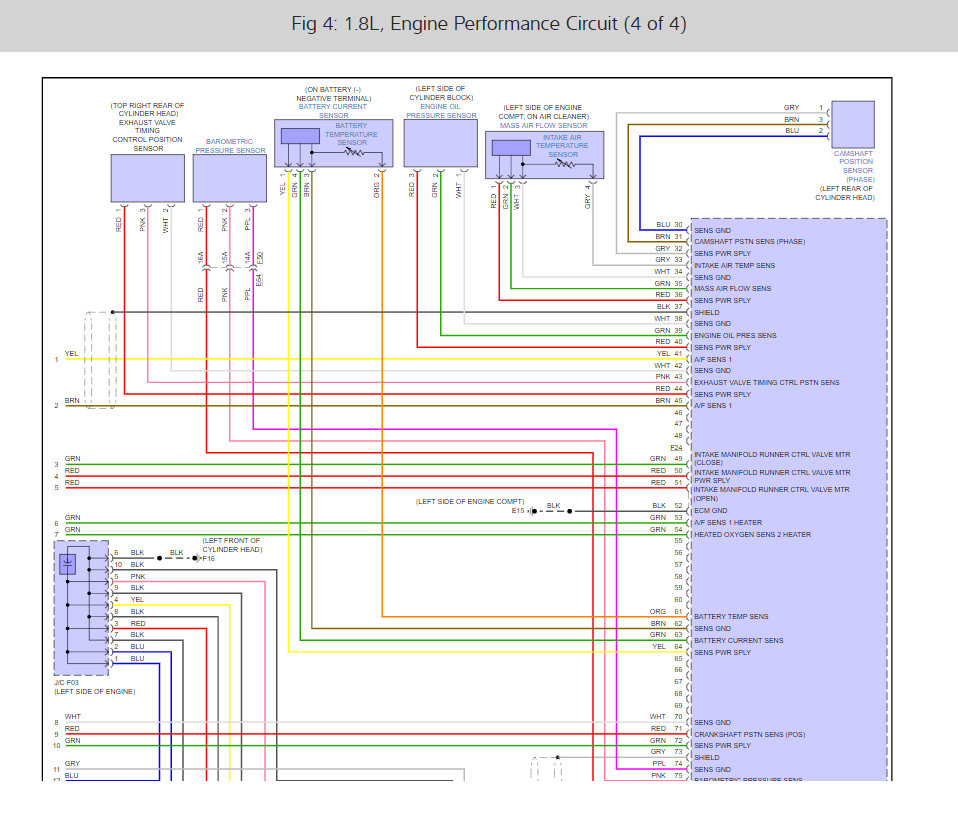

I attached the diagram of the engine control module for you to view.

The wires are labeled for what they control.

https://www.2carpros.com/articles/how-to-check-wiring

Roy
Images (Click to make bigger)
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Wednesday, January 13th, 2021 AT 5:06 PM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
Hey thank you so much for the reply. But, still not seeing what I'm looking for. I'm needing the provided wires so I'm able to tap into the and install my kit. I was told to wire through the ECU not sure if that's where I would find these wires or not. If it isn't if you can please guide be that direction I would be highly appreciative.

Trunk release
Unlock
Lock
Fuel Pump
Hand Brake
Parking brake
Horn Wire
Was this
answer
helpful?
Yes
No
Thursday, January 14th, 2021 AT 11:51 AM
Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
What kit are you trying to install?

You should never tap into anything as it will overload that circuit.

Roy
Was this
answer
helpful?
Yes
No
Thursday, January 14th, 2021 AT 12:17 PM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
It’s a PKE remote start push to start button.
Was this
answer
helpful?
Yes
No
Thursday, January 14th, 2021 AT 8:27 PM
Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
Can you take a picture of the instruction sheet for me to see so I can help?

Roy
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Friday, January 15th, 2021 AT 3:20 AM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
I know everything as far as the wire harness, just lost on the 10 pin.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
Friday, January 15th, 2021 AT 6:14 AM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
"ignition harness" sorry.
Was this
answer
helpful?
Yes
No
Friday, January 15th, 2021 AT 6:55 AM
Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS
What have you hooked up so far?

Roy
Was this
answer
helpful?
Yes
No
Friday, January 15th, 2021 AT 7:12 AM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
None so far. I didn't want to start anything until I know exactly where everything is, so I can finish it within a day so I'm not having to call people for rides. Because only half of the kit is connected and I'm not able to drive my car.
Was this
answer
helpful?
Yes
No
Friday, January 15th, 2021 AT 8:41 AM
Tiny
ROTAVIOUS
  • MEMBER
  • 7 POSTS
Just checking in for an update!
Was this
answer
helpful?
Yes
No
Tuesday, January 19th, 2021 AT 8:44 AM
Tiny
ASEMASTER6371
  • MECHANIC
  • 52,797 POSTS

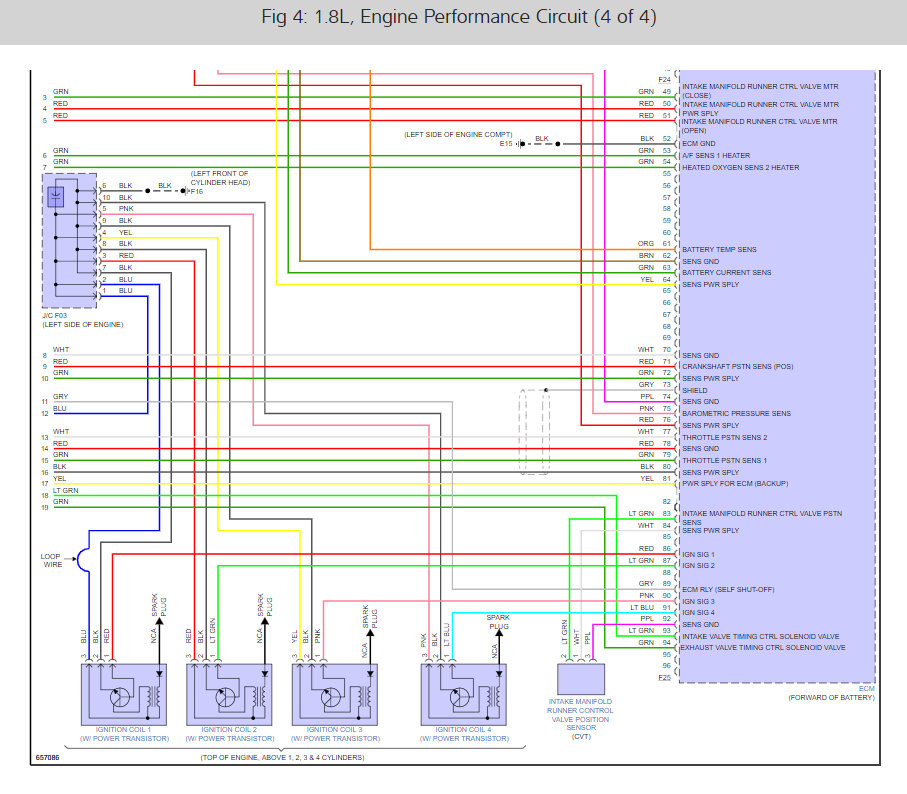

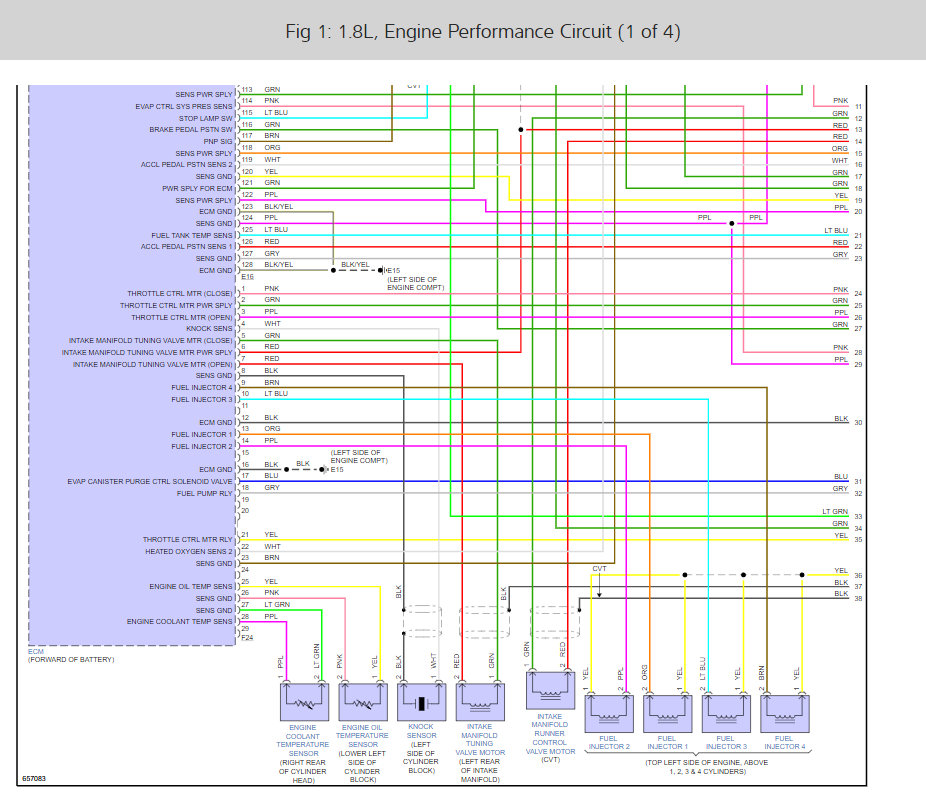

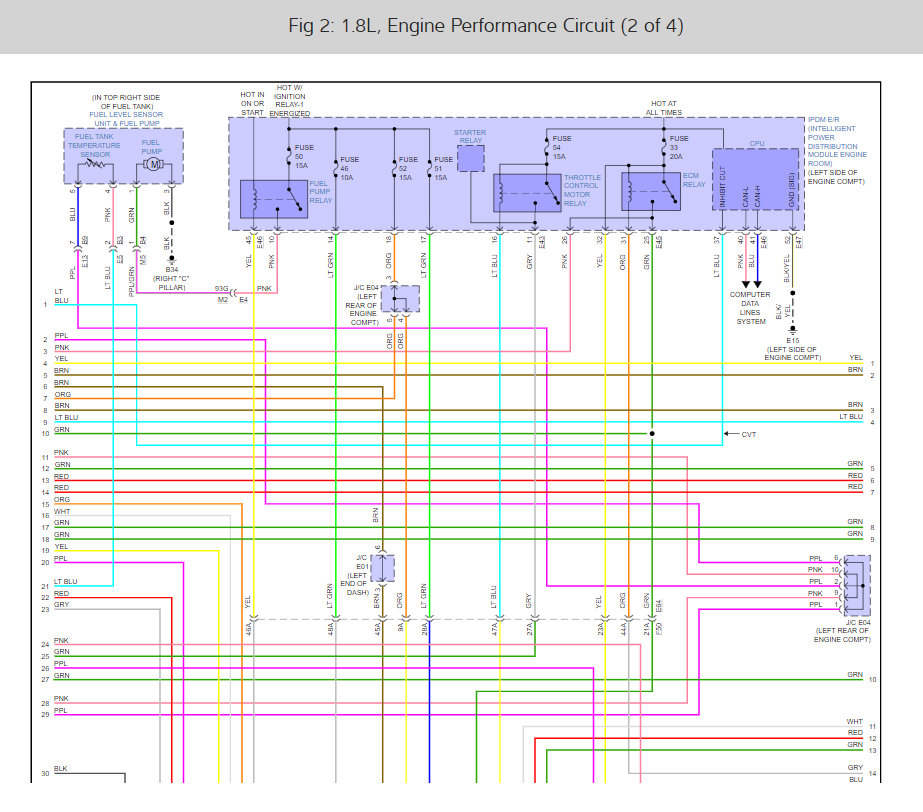

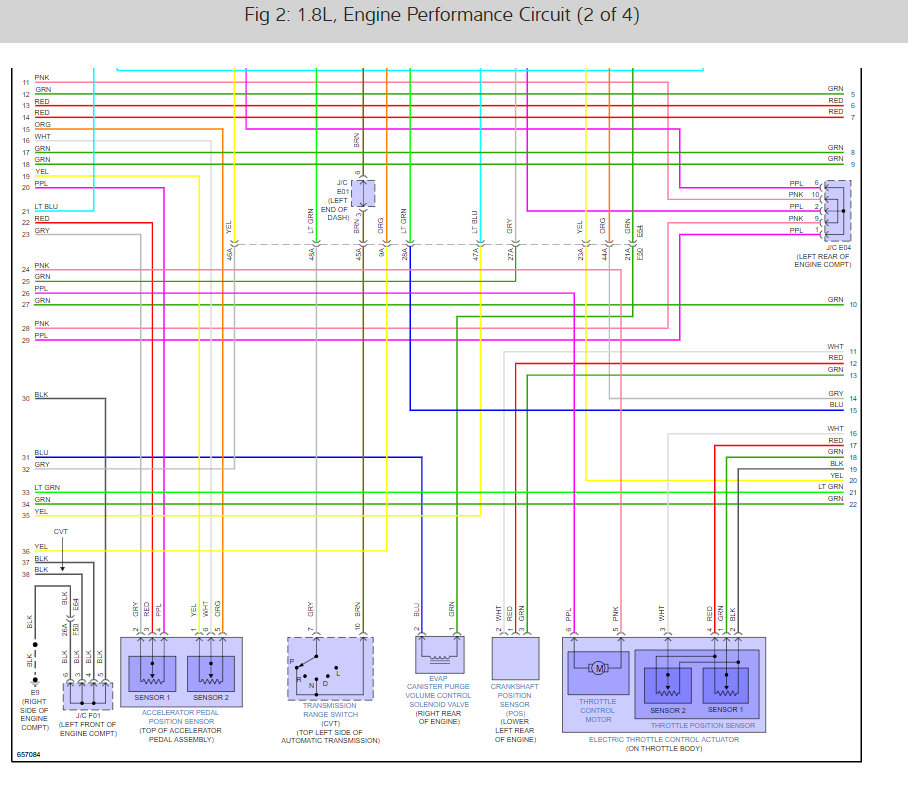

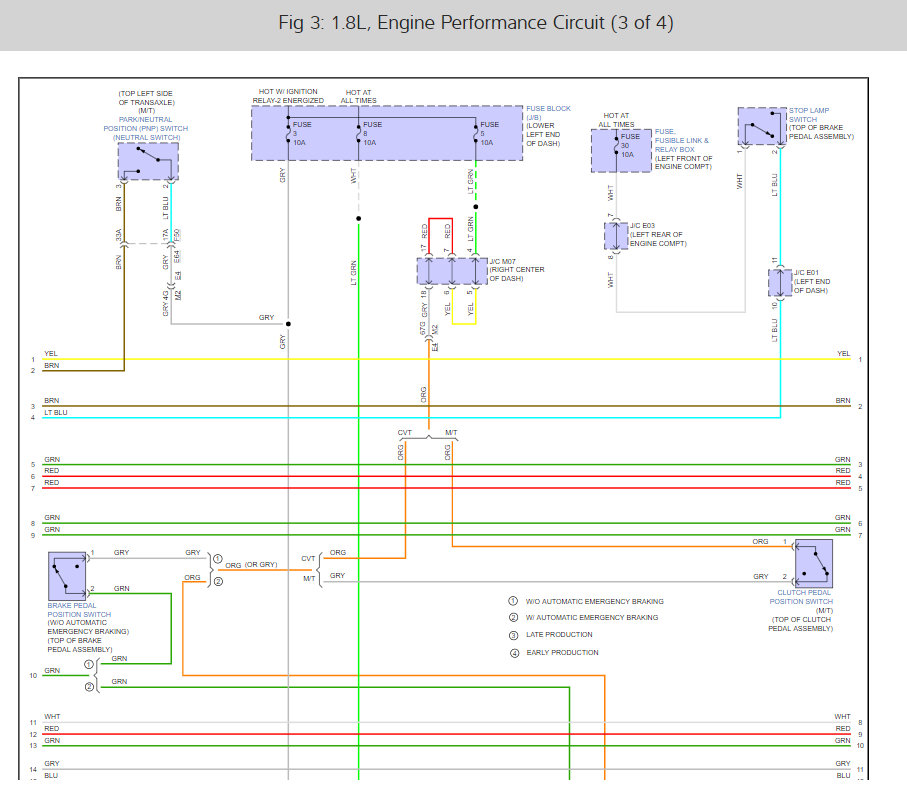

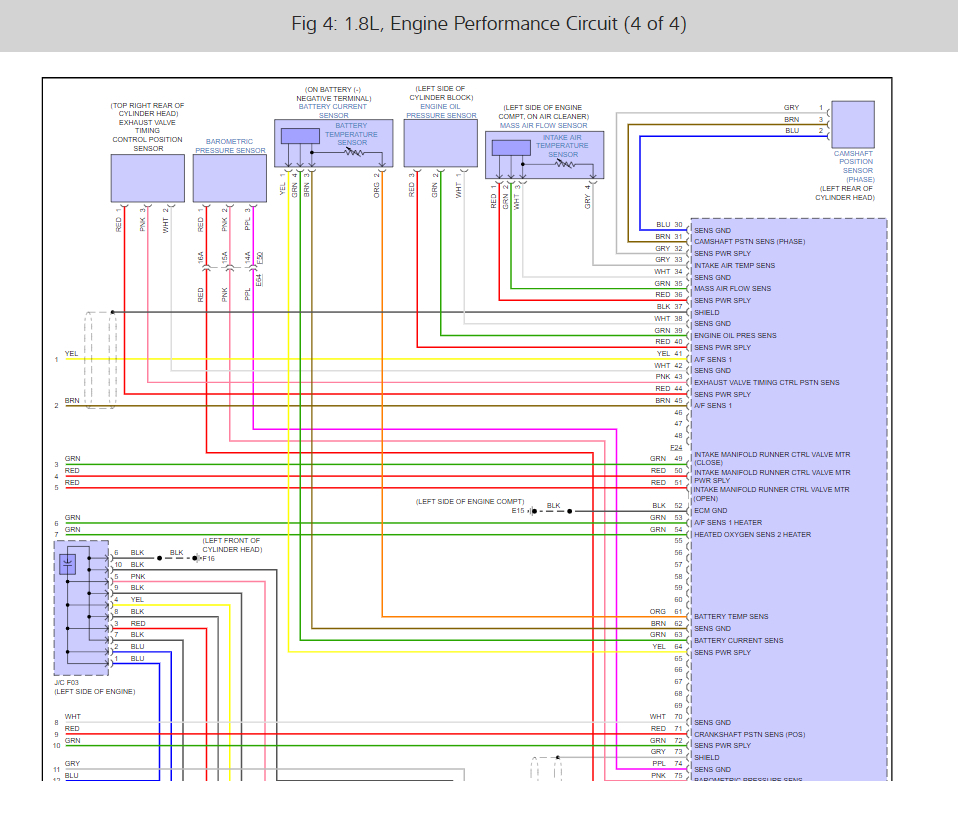

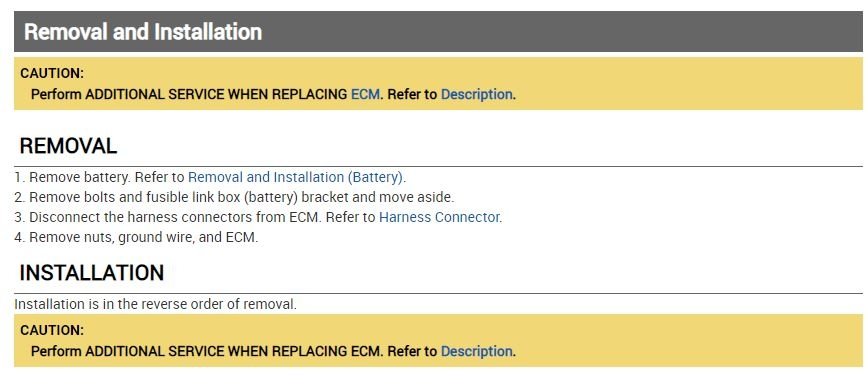

I attached some diagrams for you to review. I hope this helps with your wiring. Here are the engine wiring diagrams. This is not something we can do here online. It needs to be done in person with someone who can read and understand where to connect the wires for you.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Let us know what happens and please upload pictures or videos of the problem.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Wednesday, January 20th, 2021 AT 4:54 PM
