I'm looking for a pinout diagram for my ECU. It has four plugs and not three. I'm only finding pictures for ECU with three plugs.
Jun 1, 2022 at 1:44 PM
ECU Pin out diagram needed
2006 MITSUBISHI LANCER
JOHN MARK SCHMIEDICKE
- MEMBER
- 1 POST
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

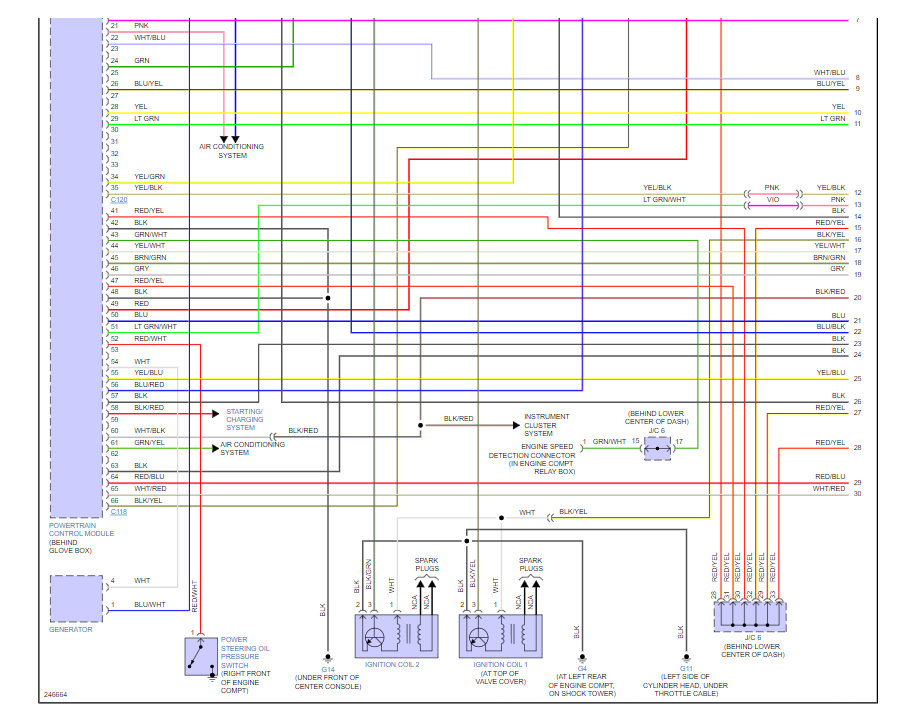

Here are the engine wiring diagrams for the 2.0 liter with an auto transmission with a guide to help you test the wiring.
https://www.2carpros.com/articles/how-to-check-wiring

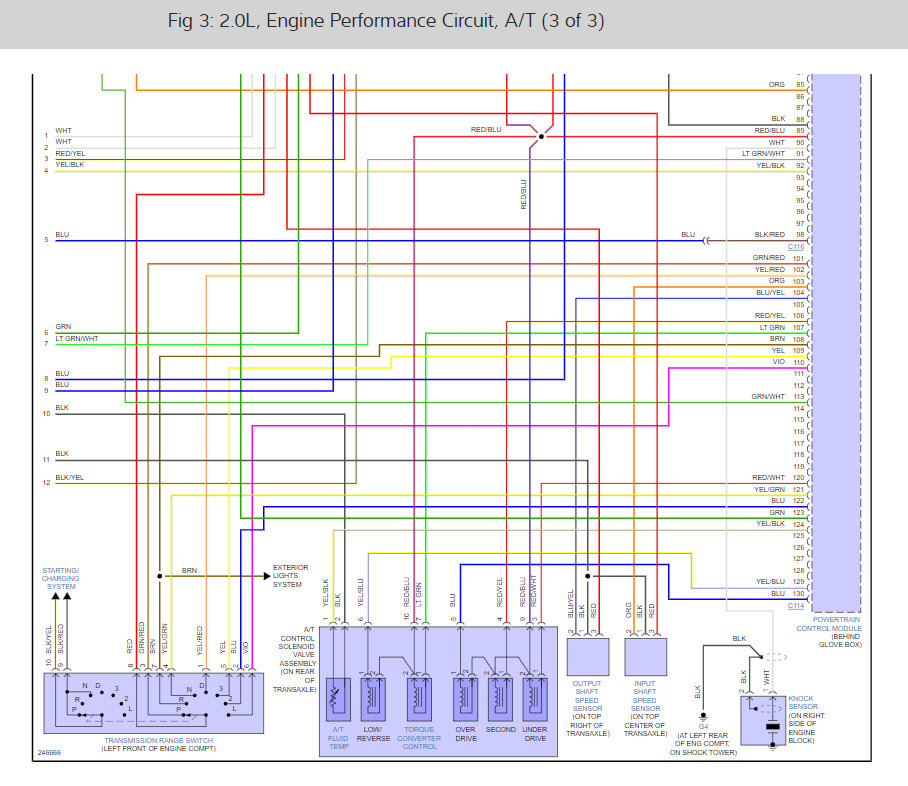

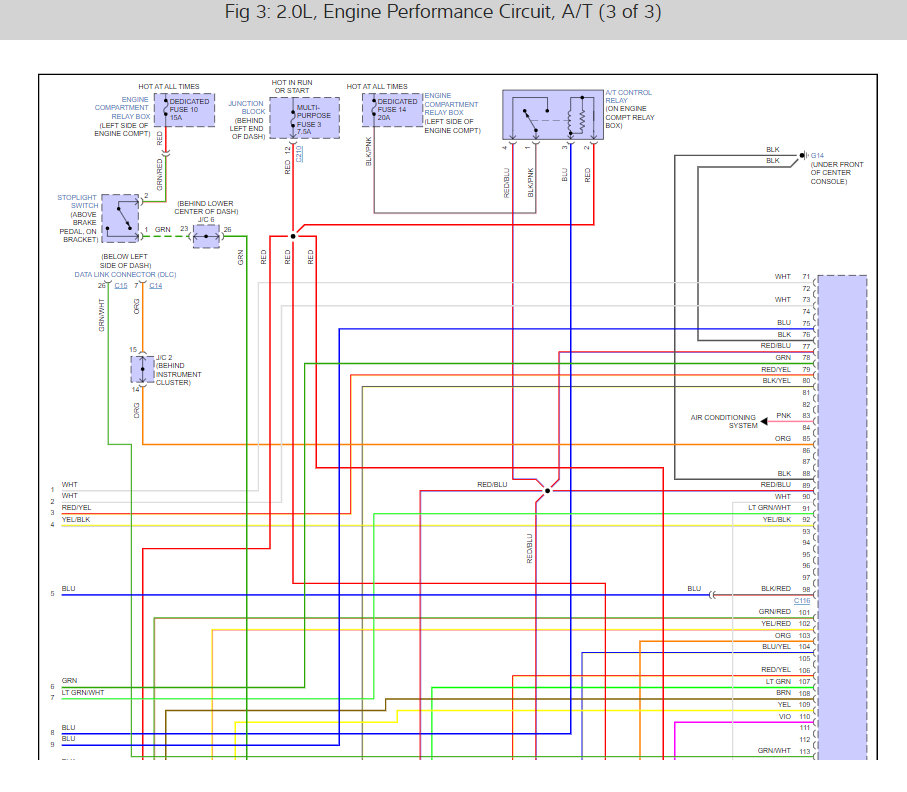

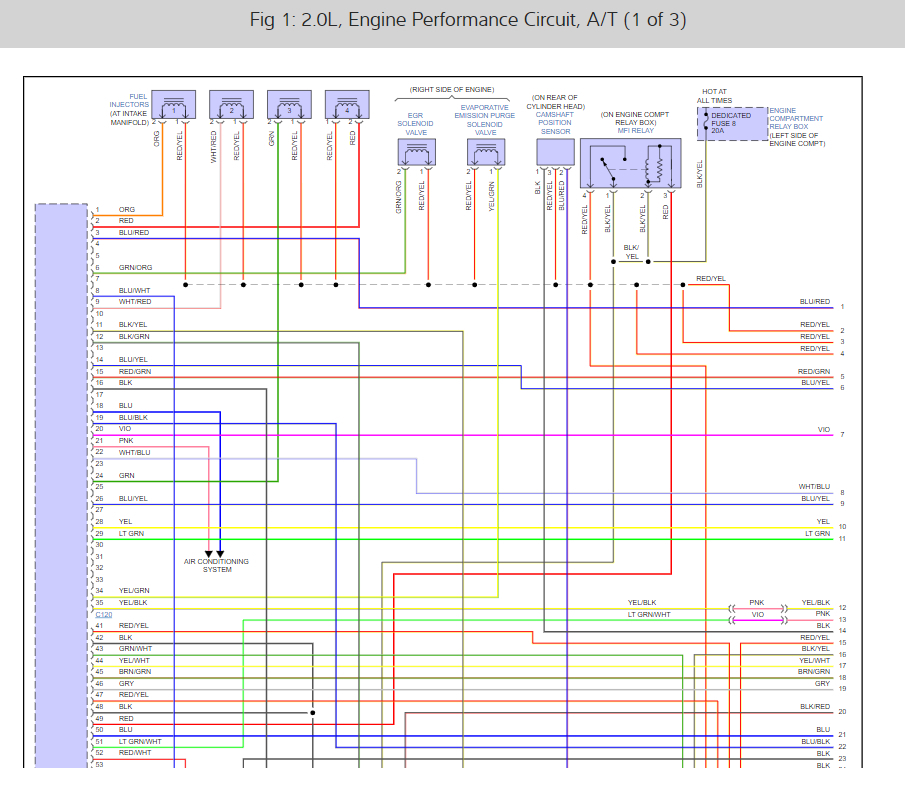

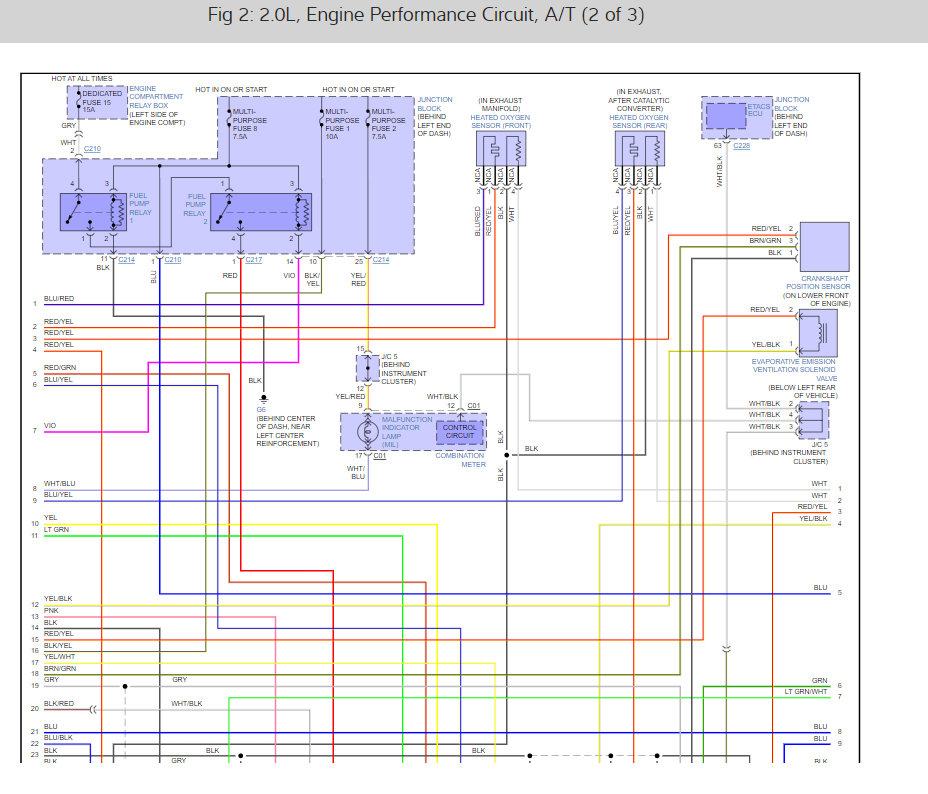

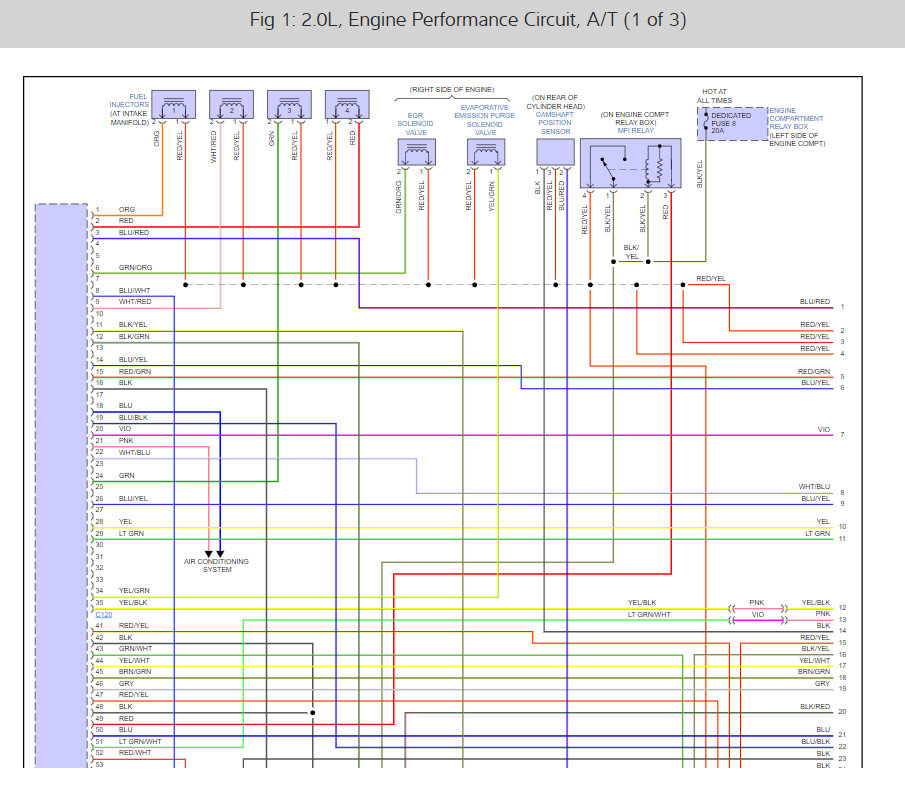

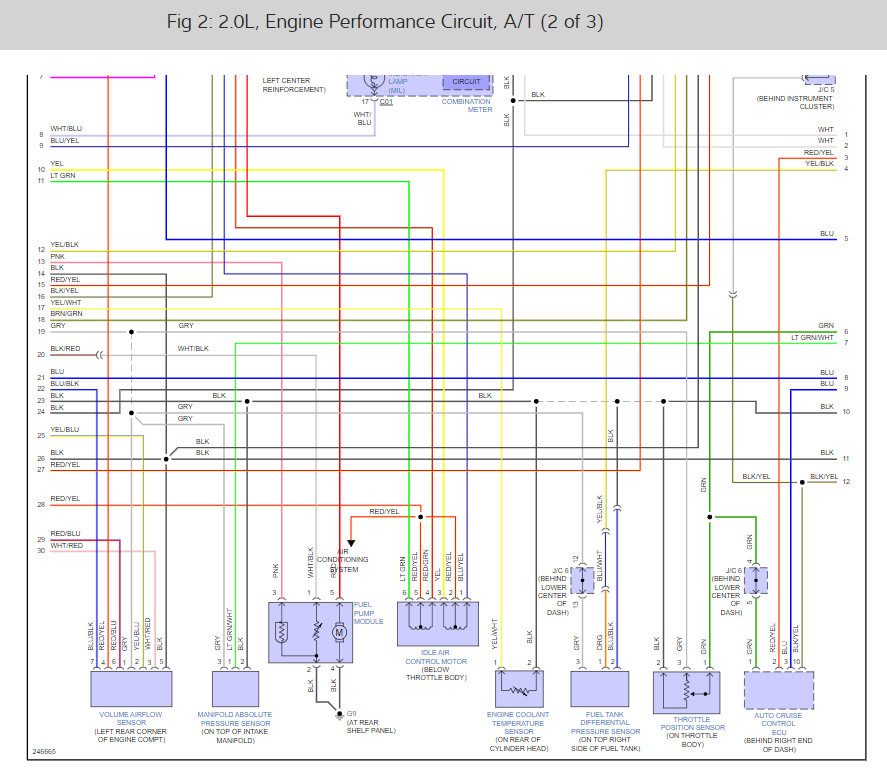

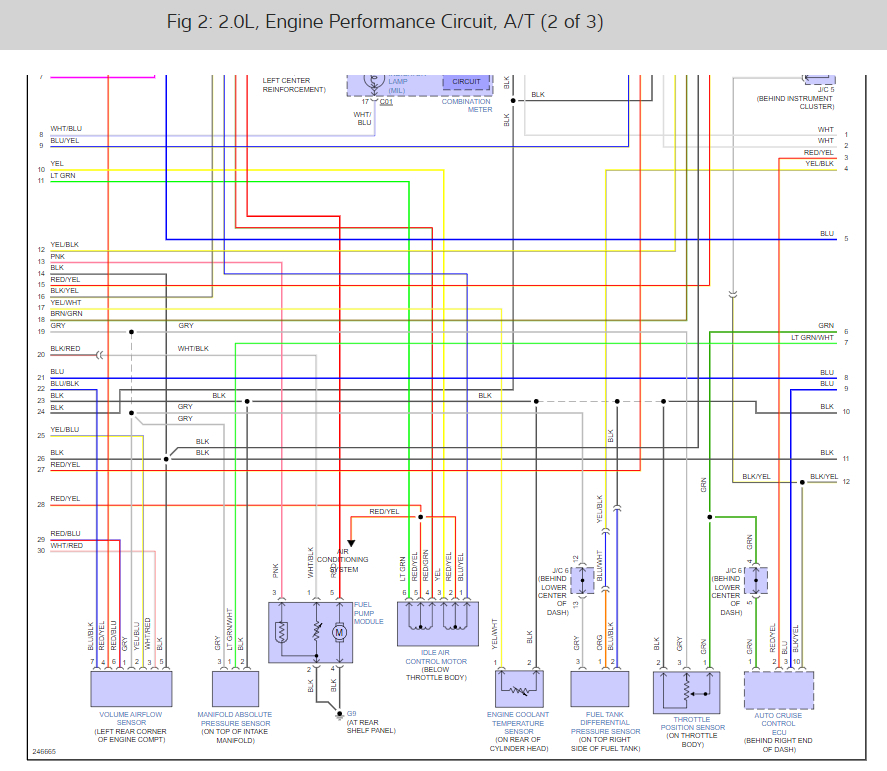

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
https://www.2carpros.com/articles/how-to-check-wiring
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
