I need the electrical wiring and color coded diagram of the power seat system in my car so I can troubleshoot for a short in the power seat harness.
Aug 9, 2024 at 6:55 PM
Driver side power/heated seat wiring issue?
2007 CHEVROLET IMPALA
DONALD LYTLE
- MEMBER
- 2 POSTS
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

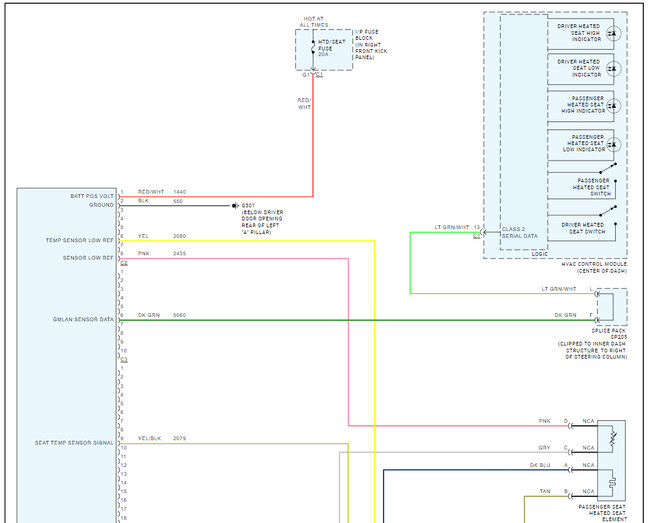

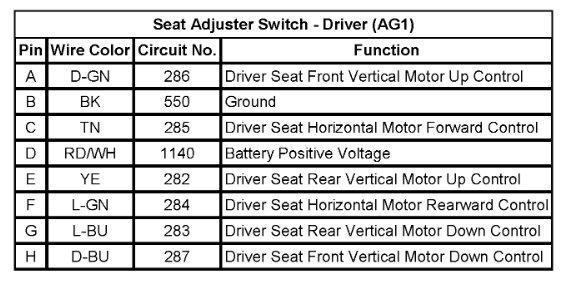

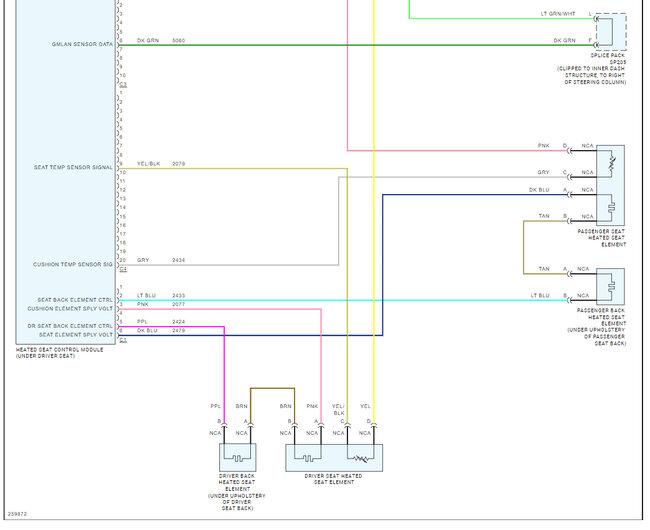

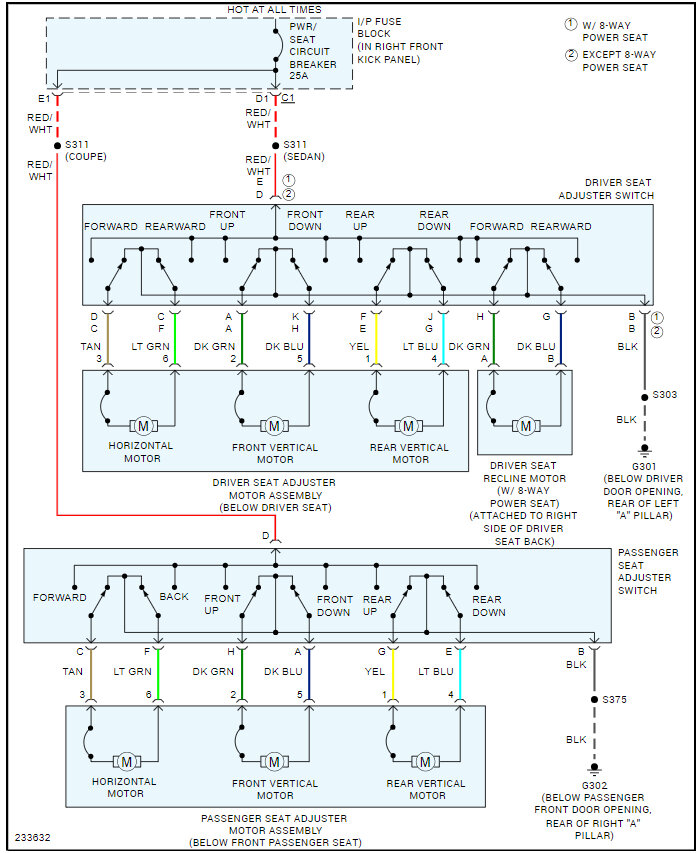

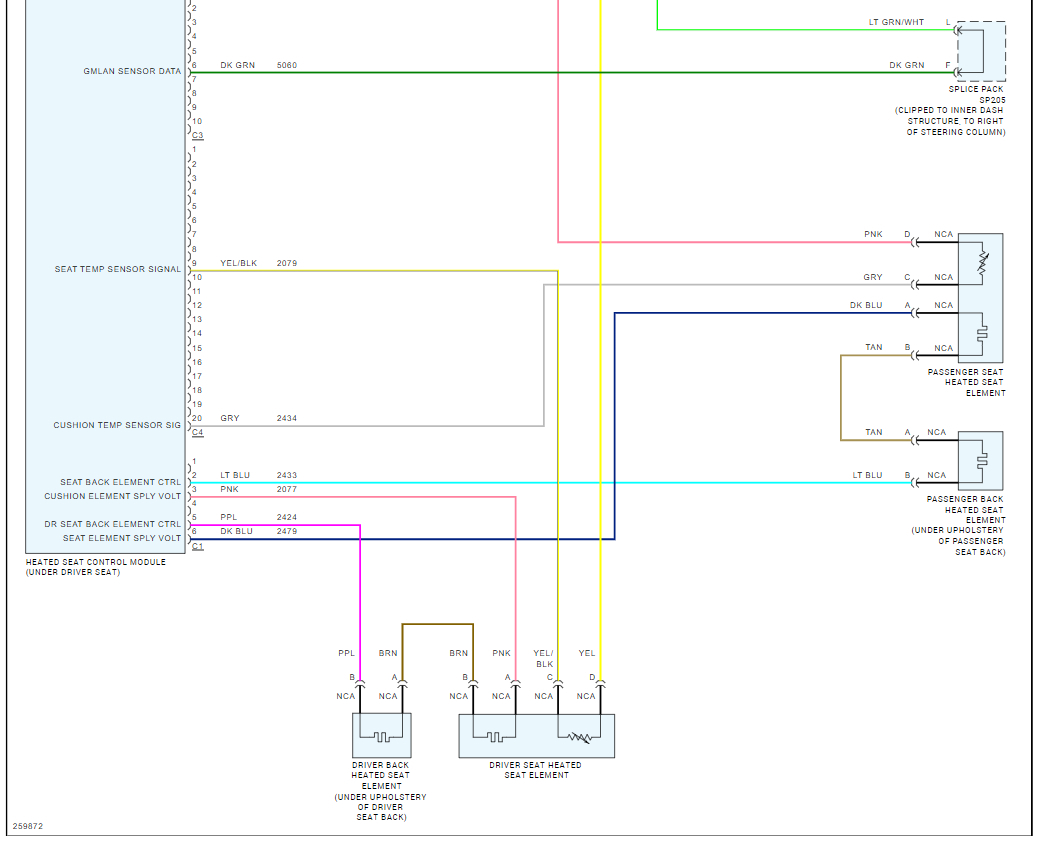

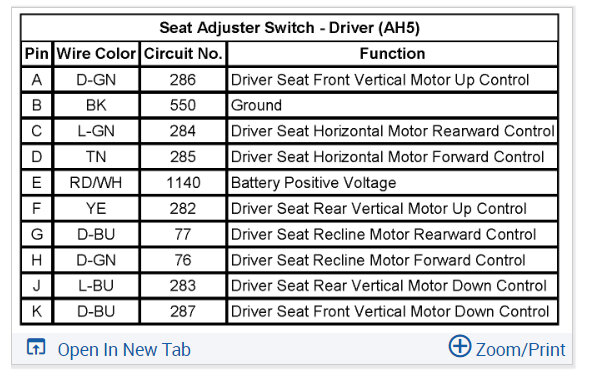

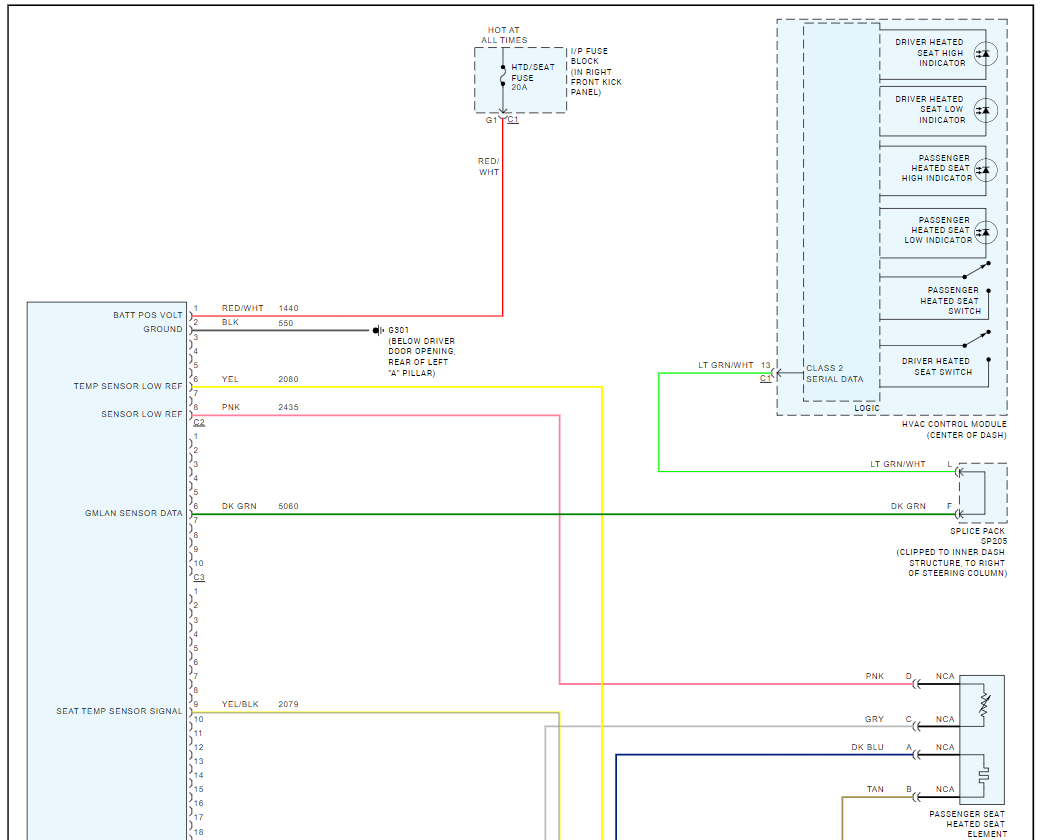

There are two sets of wiring diagrams, one is for the position motors and the other is for the heater seat feature, which I have included both in case you need them. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Aug 10, 2024 at 10:50 AM
Awesome, that's what I needed, one more question is there a drawing of the wire harness connectors for this seat configuration?
Aug 10, 2024 at 2:40 PM
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

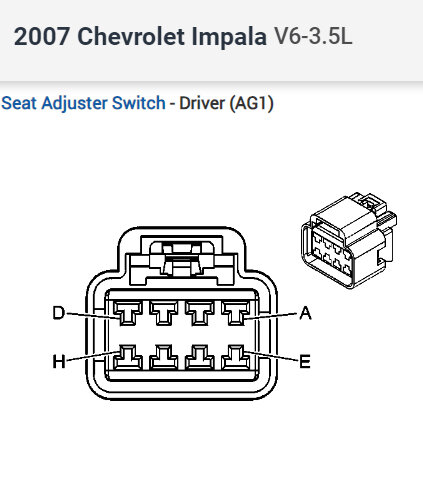

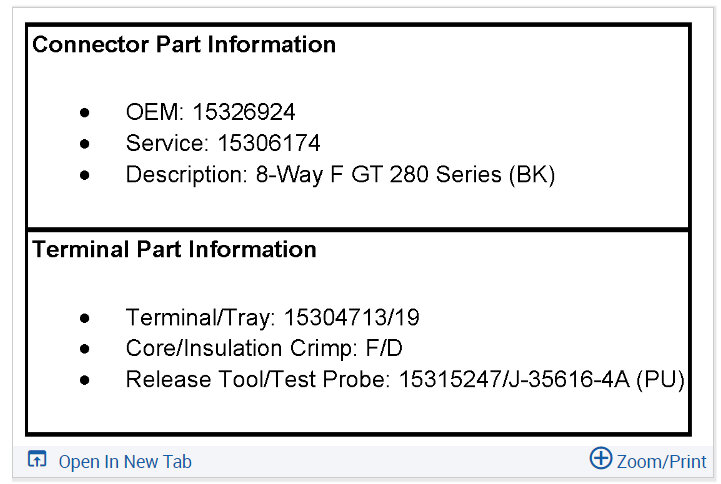

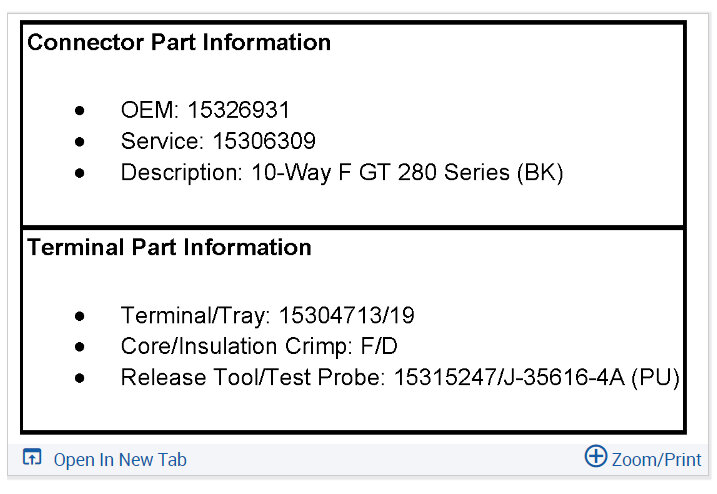

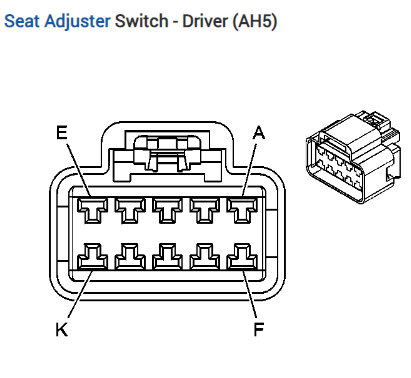

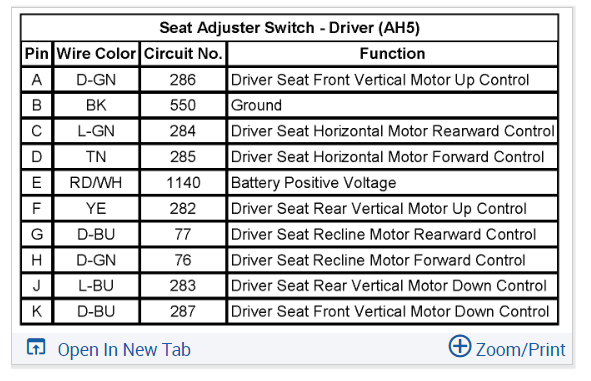

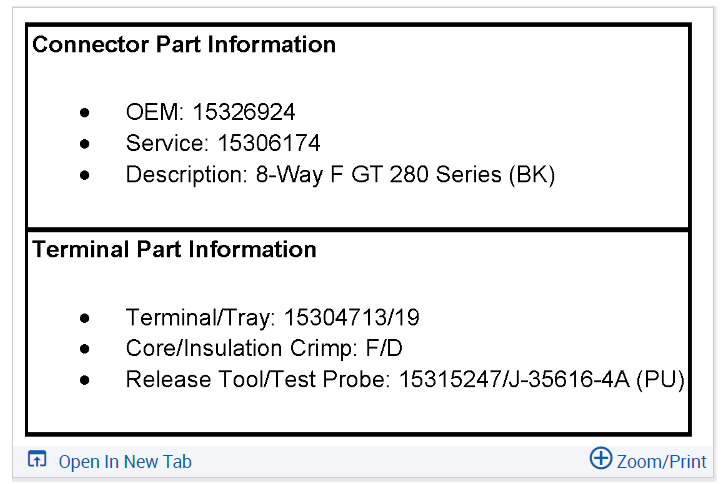

Sure, here are the connector views, Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Aug 11, 2024 at 10:08 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
