Drive Belts Diagram needed?
LBKILPATRICK
MEMBER
2011 HYUNDAI SONATA HYBRID
2.4L
130,000 MILES
Need drive belt (Serpentine) routing diagram for the vehicle listed above.
Friday, August 23rd, 2024 AT 3:03 AM
1 Reply
KEN L
MASTER CERTIFIED MECHANIC
48,296 POSTS

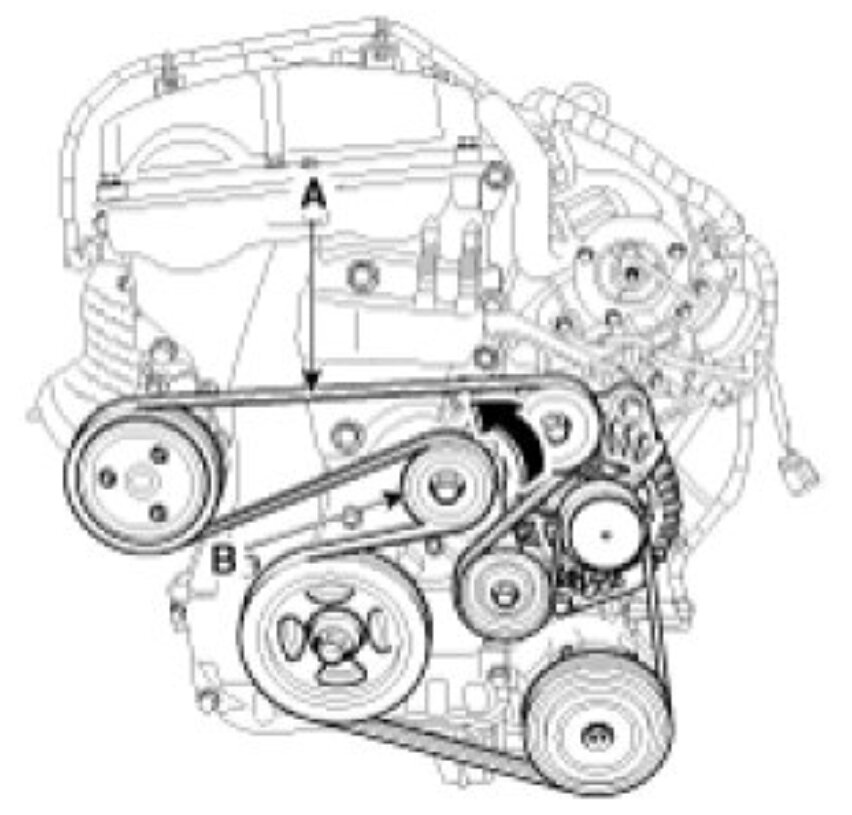

Sure, here is how the serpentine drive belt is installed. Check out the images (below). Let us know if you need anything else.
